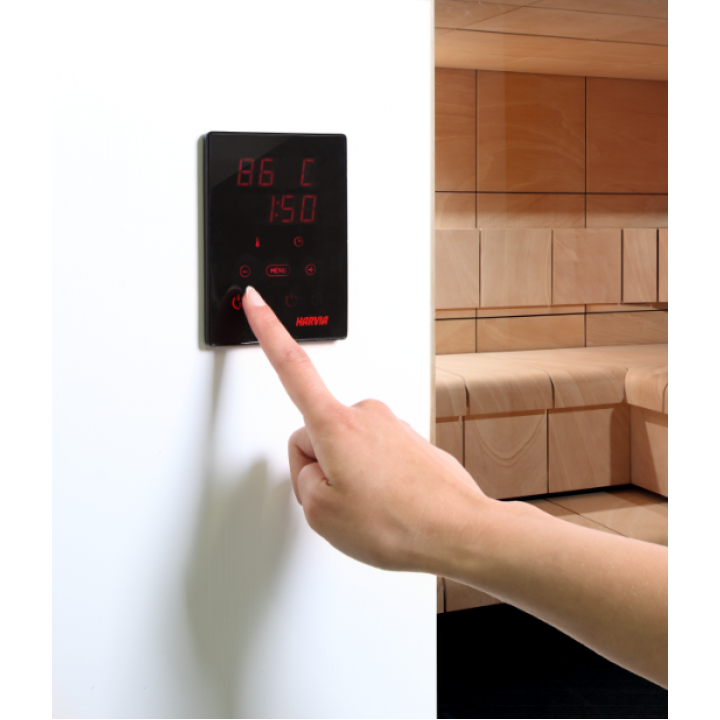

Electric sauna heater control panel - HARVIA Xenio CX110

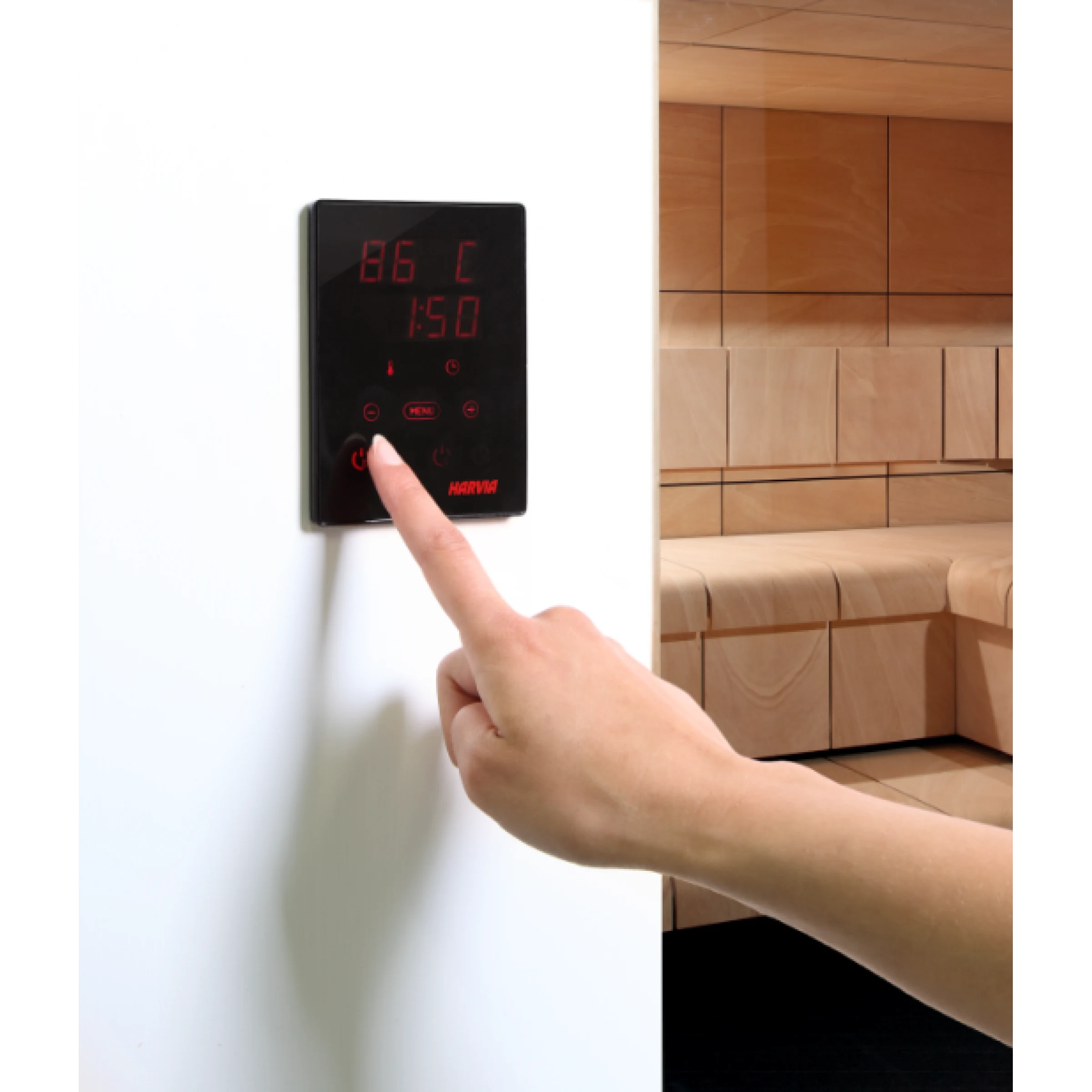

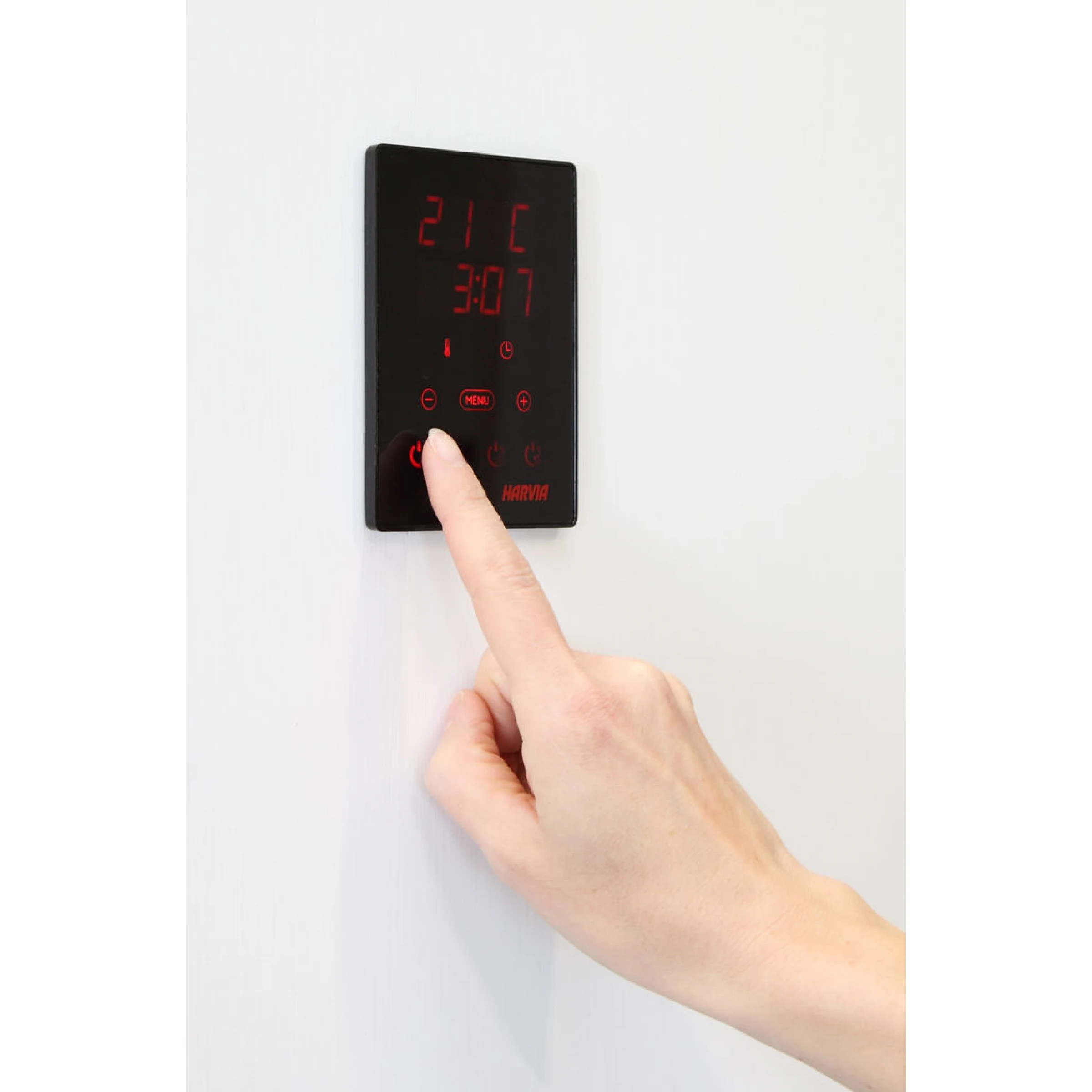

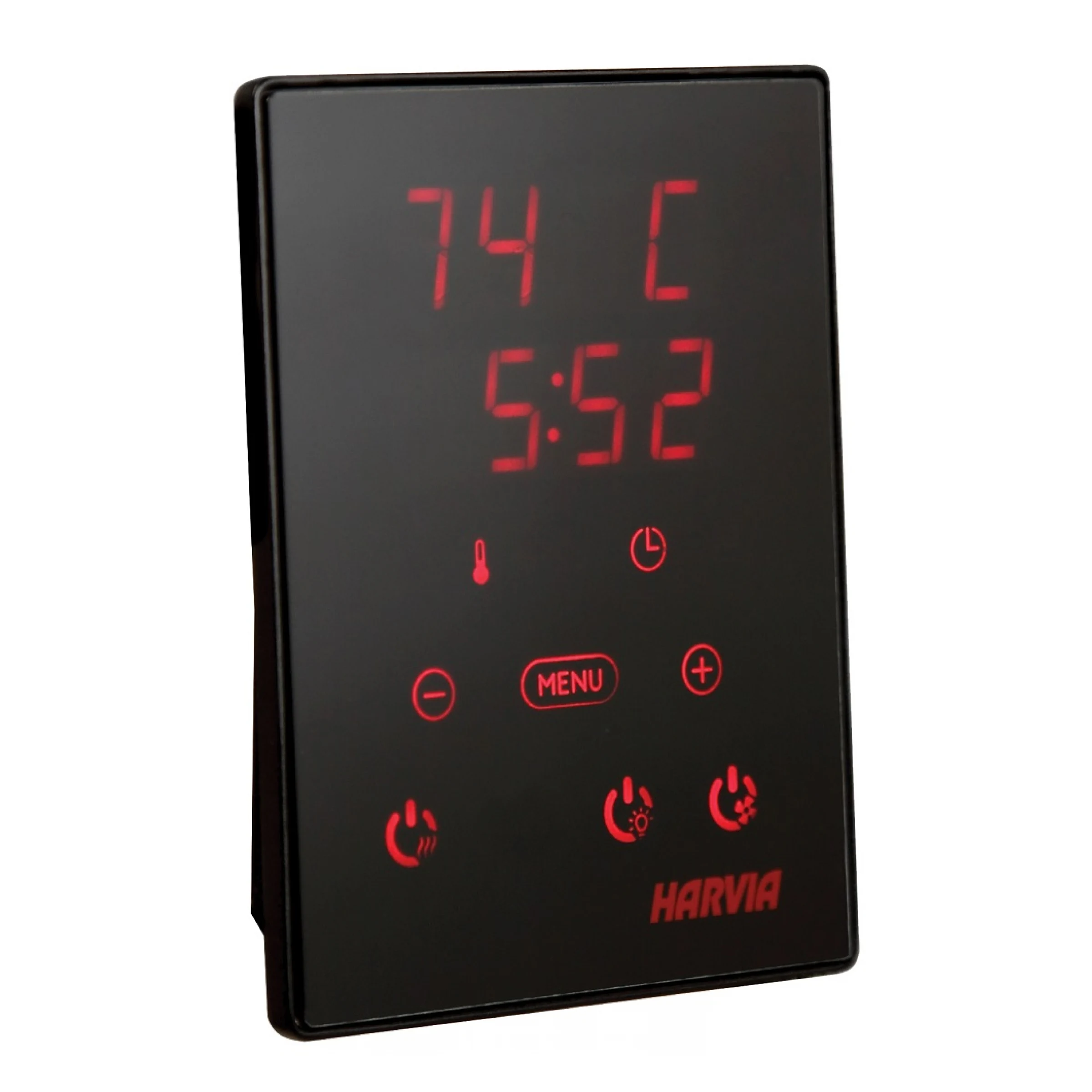

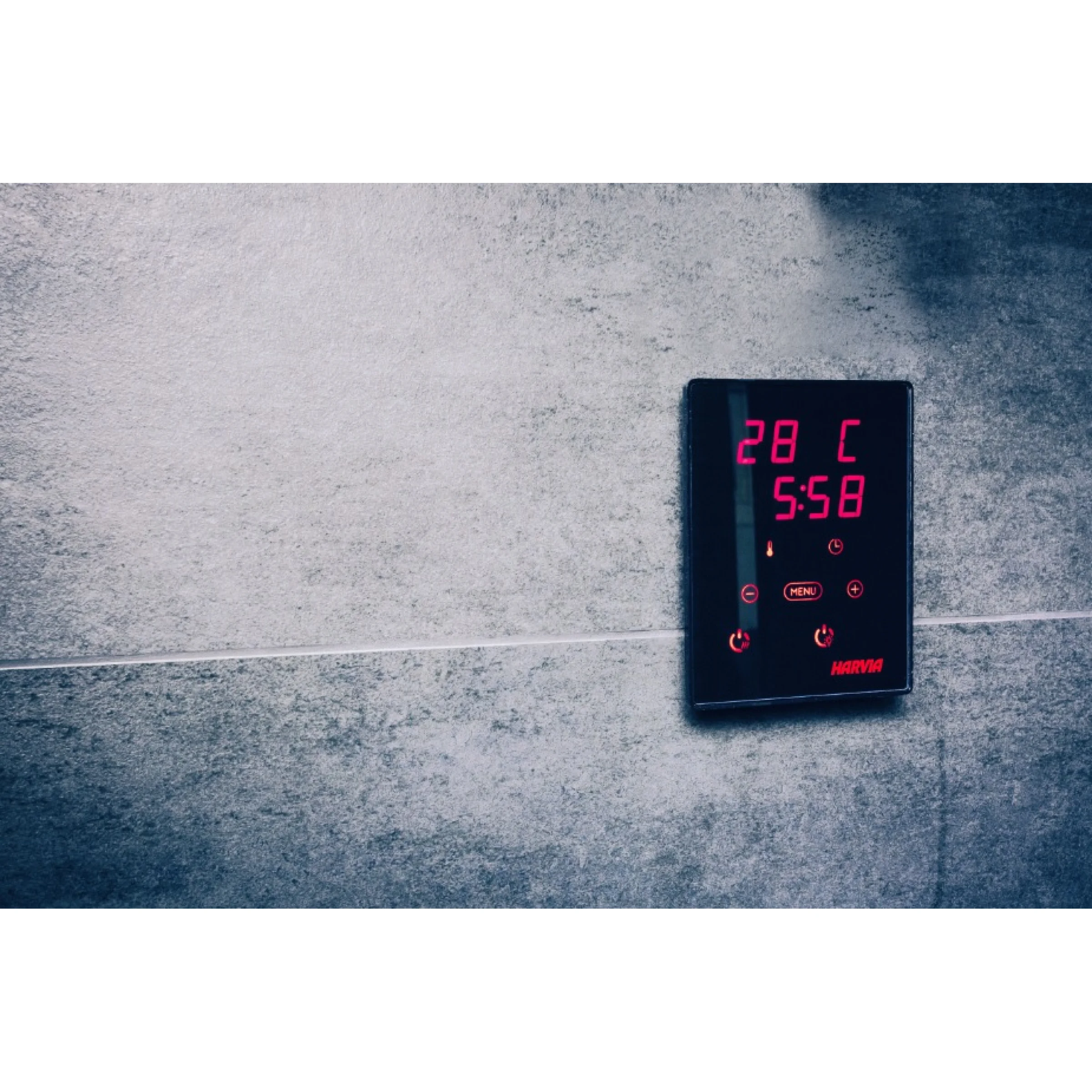

HARVIA Xenio CX110 is a new generation touch control panel for controlling any sauna heater that does not have a control panel. Installed outside the sauna.

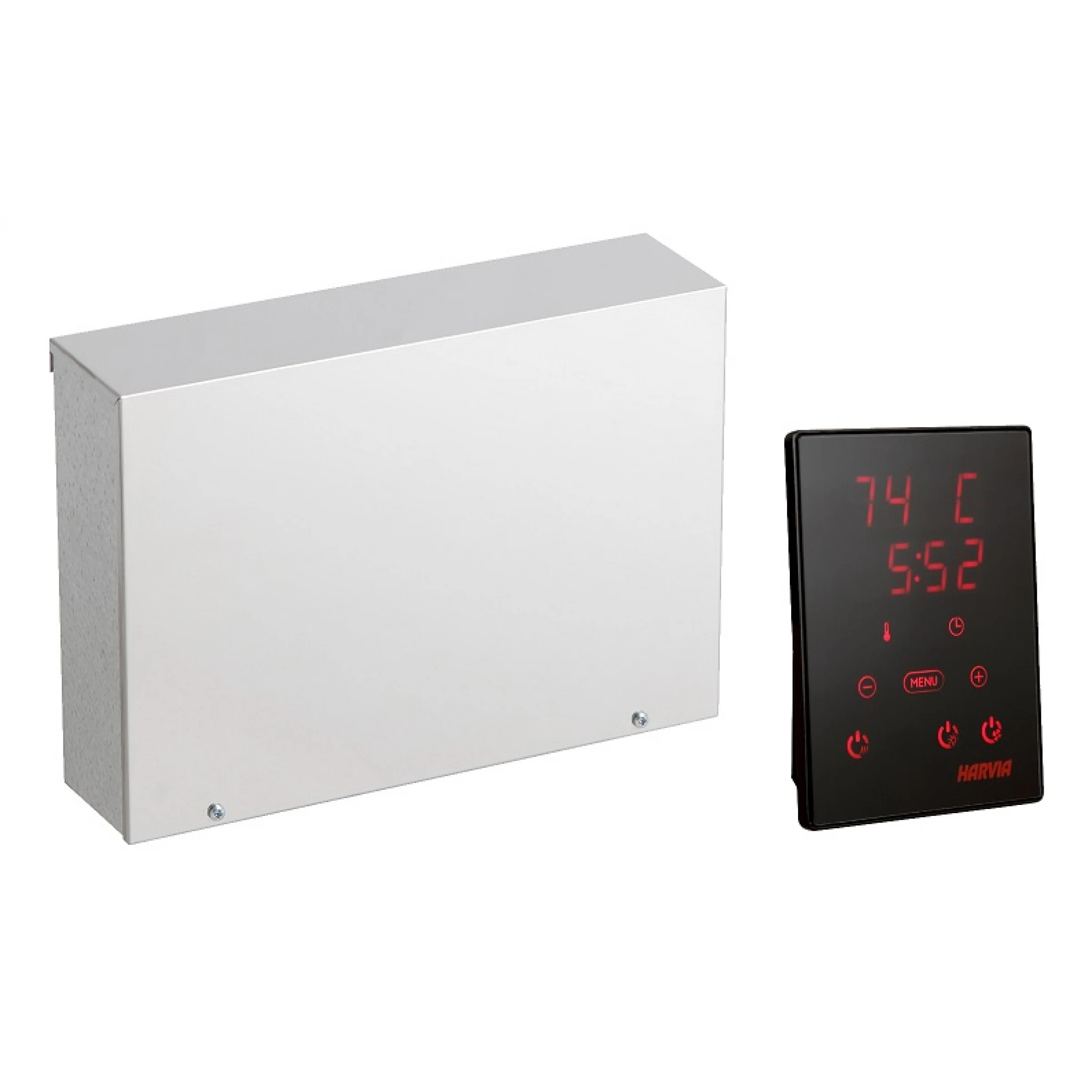

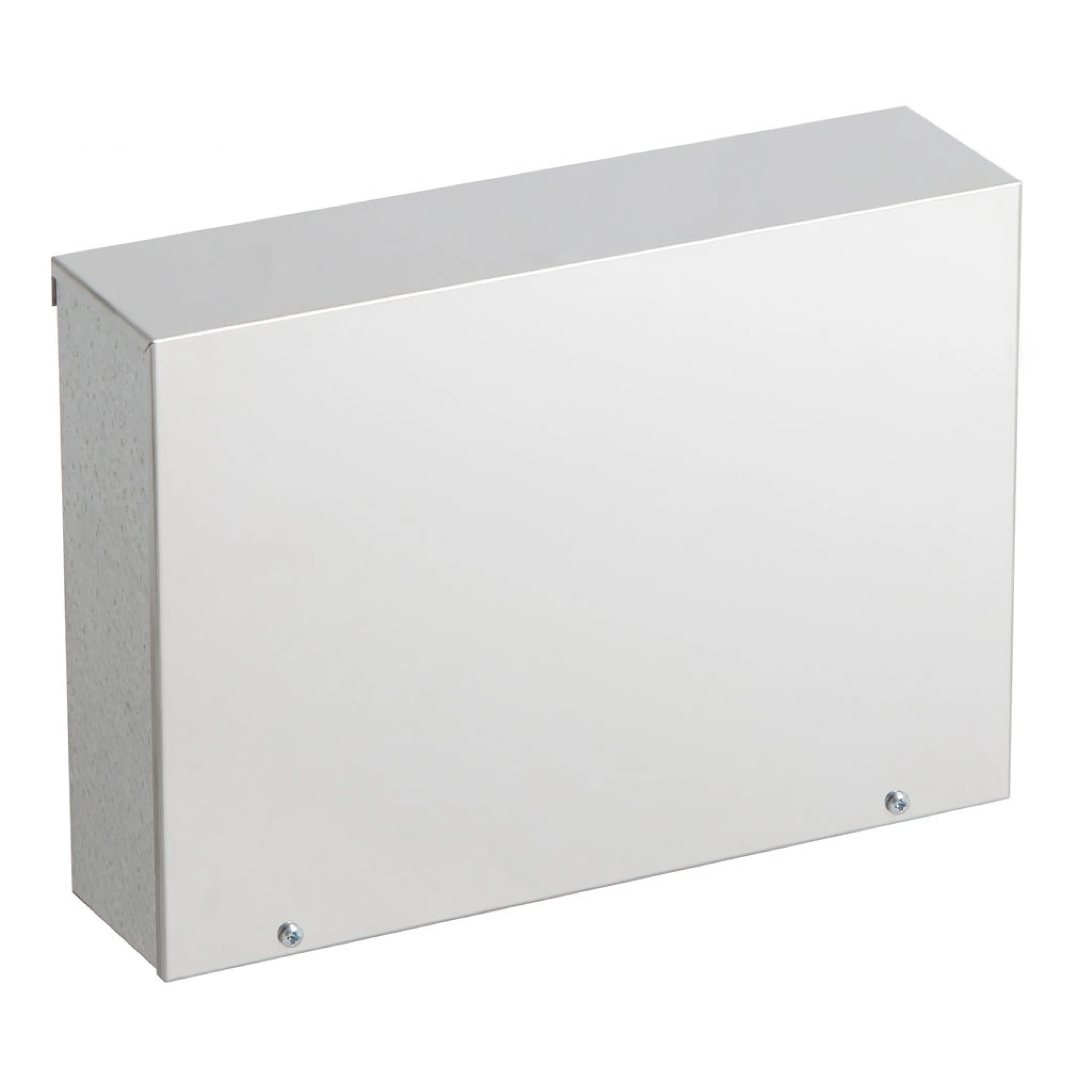

The set includes a separate power supply, a 5-meter data cable for connecting the panel to the power supply (max. Length 30 m), a temperature sensor and a 4-meter heat-resistant cable for connection. Overheat protection, fan and light switch.

Power supply:

• Electrical input voltage: 400V 3N ~
• Managed max. power: 11 kW
• Lighting control, max. power: 100 W, 230 V 1N ~
• Ventilation control, max. power: 100 W, 230 V 1N ~
• Dimensions: 272 mm x 70 mm x 193 mm

Technical data:

• Power: up to 11.0 kW
• Electrical connection: 400V 3N ~
• Temperature regulation range: 40 - 110oC
• Opening hours: 1 - 12 hours.
• Pre-timer: 0 - 12 h.
• Panel dimensions:
  • width 8.5 cm,
  • depth 2.4 cm,
  • height 11 cm.
