Harvia Xenio CX180-45 is a universal control unit designed for compatible electric sauna heaters. Depending on the supply voltage and electrical connection, it can control heaters with a power output ranging from 9 to 29 kW.
The separate digital Xenio touchscreen control panel allows the user to adjust the sauna temperature and operating time, as well as switch the lighting and ventilation on or off. The display clearly shows the main operating information and indicates when the set sauna temperature has been reached.
The compact control panel can be installed inside or outside the sauna room in accordance with the manufacturer’s installation instructions. The power unit must be installed outside the sauna room in a dry location.
The CX180-45 supports remote operation using compatible optional equipment, such as the MyHarvia WiFi accessory or a potential-free remote ON/OFF switch. Remote operation requires a compatible safety solution, such as a door sensor or heater safety device, unless the connected heater is approved by the manufacturer for remote operation without an additional safety device. Accessories are sold separately.
The built-in fault diagnostics help identify potential system malfunctions.
At a 380–415 V 3N~ connection, the CX180-45 can control a heater with a power output of up to 27–29 kW without an additional power extension unit. An optional Harvia LTY180-45 power extension unit is required only when additional load capacity is needed.
Maximum heater output by electrical connection:
- 220–240 V 1N~: up to 9 kW;
- 200–240 V 2~: up to 9–10.8 kW with one circuit;
- 200–240 V 2~: up to 18–21.6 kW with two circuits and balanced loads;
- 200–240 V 3~: up to 15–18 kW;
- 380–415 V 3N~: up to 27–29 kW.
The maximum permitted heater output depends on the supply voltage, electrical installation and connection configuration. The appropriate connection method must be determined by a qualified electrician according to the heater and control unit installation instructions.
Controllable functions:
- sauna temperature;
- heater operating time;
- lighting on/off;
- ventilation fan on/off;
- compatible remote-operation and safety functions.
The package includes:
- Xenio digital control panel;

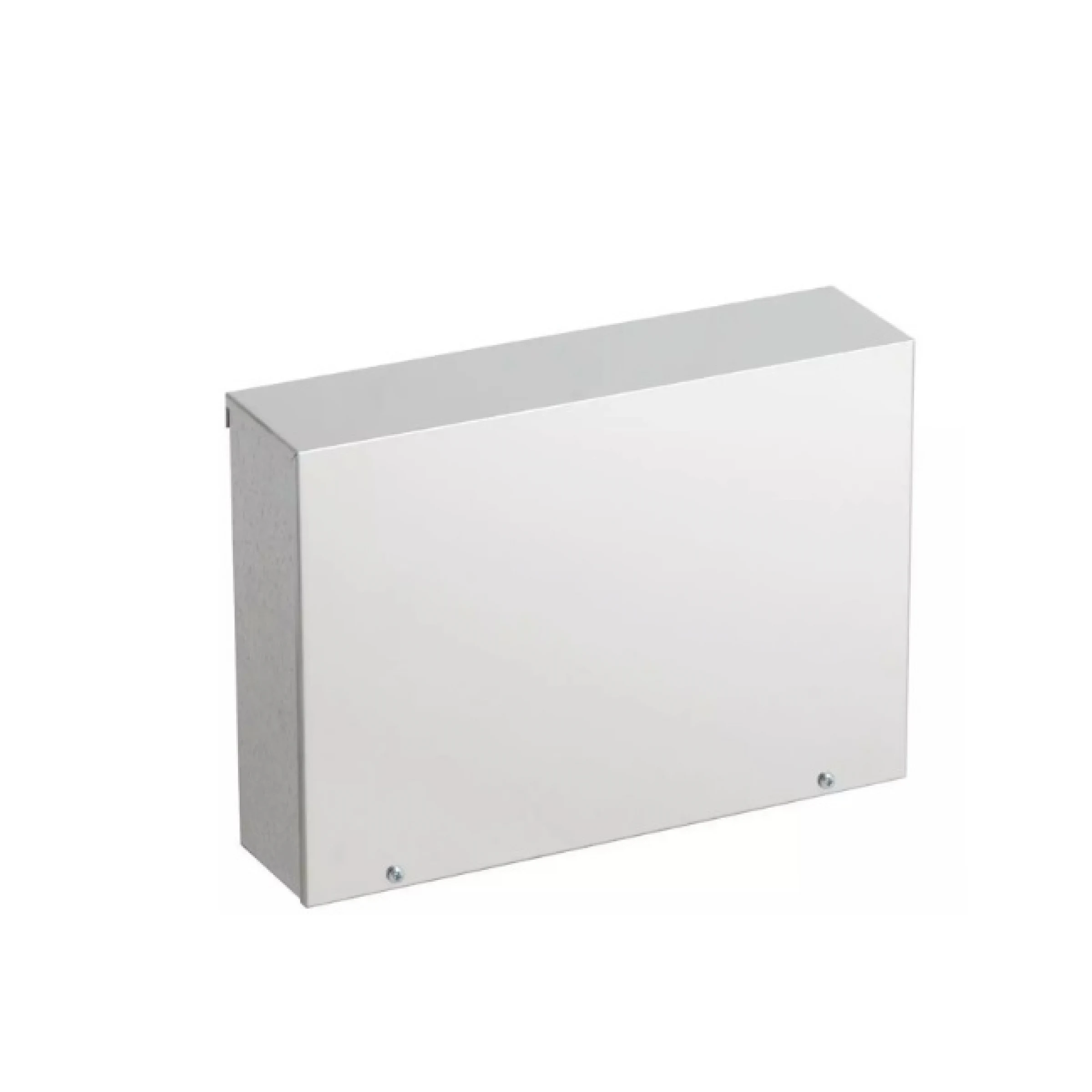

- power unit;
- control panel frame;
- 5 m control panel data cable;
- temperature sensor with a 4 m connection cable.
Technical information:
- Manufacturer: Harvia;
- Model: Xenio CX180;
- Product code: CX180-45;
- Supported heater output: 9–29 kW, depending on the electrical connection;
- emperature adjustment range: 40–110 °C;
- Protection class: IPX3;
- Maximum connected lighting power: 100 W;
- Frequency: 50/60 Hz;
- Control panel dimensions: 110 × 85 × 24 mm;
- Power unit dimensions: 270 × 365 × 75 mm;
- Minimum space required for the power unit: 400 × 400 mm;
- Control panel data cable length: 5 m;
- Colour: black;
- Certificates: CE, EAC.
Installation and electrical connections must be carried out by a qualified electrician in accordance with the manufacturer’s instructions.
