Harvia Xenio Infra CX36I is an infrared cabin control set consisting of a separate touchscreen control panel, power unit and temperature sensor. It is designed to control an infrared heating system with a total output of up to 3.6 kW.

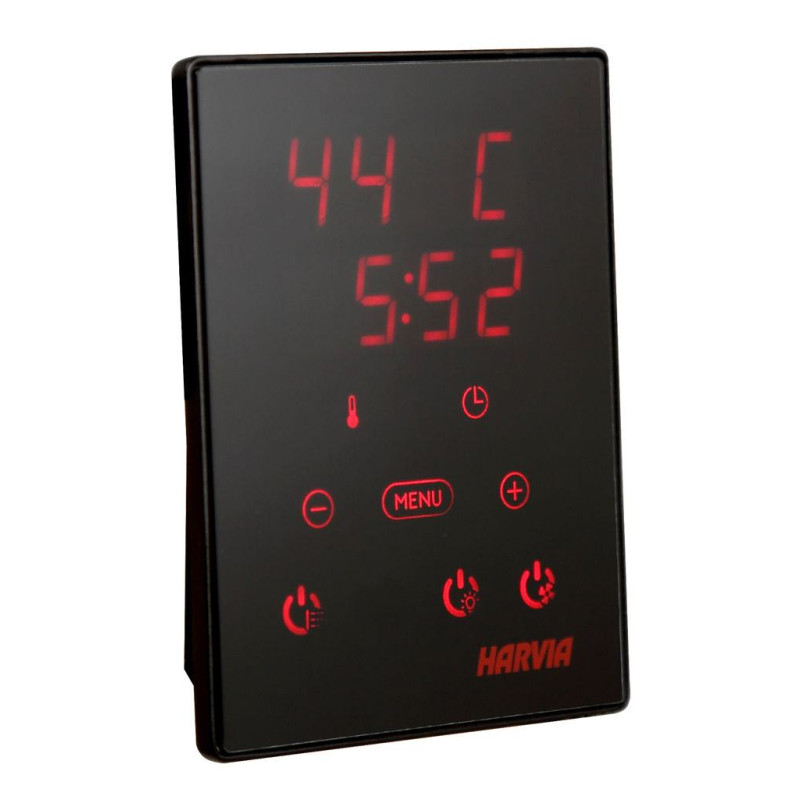

The compact Xenio touchscreen control panel allows the cabin temperature to be adjusted from 25 to 50 °C and the operating time from 1 to 12 hours. The digital display provides convenient control and monitoring of the infrared cabin. The unit also provides lighting control with a maximum connected lighting load of 100 W.

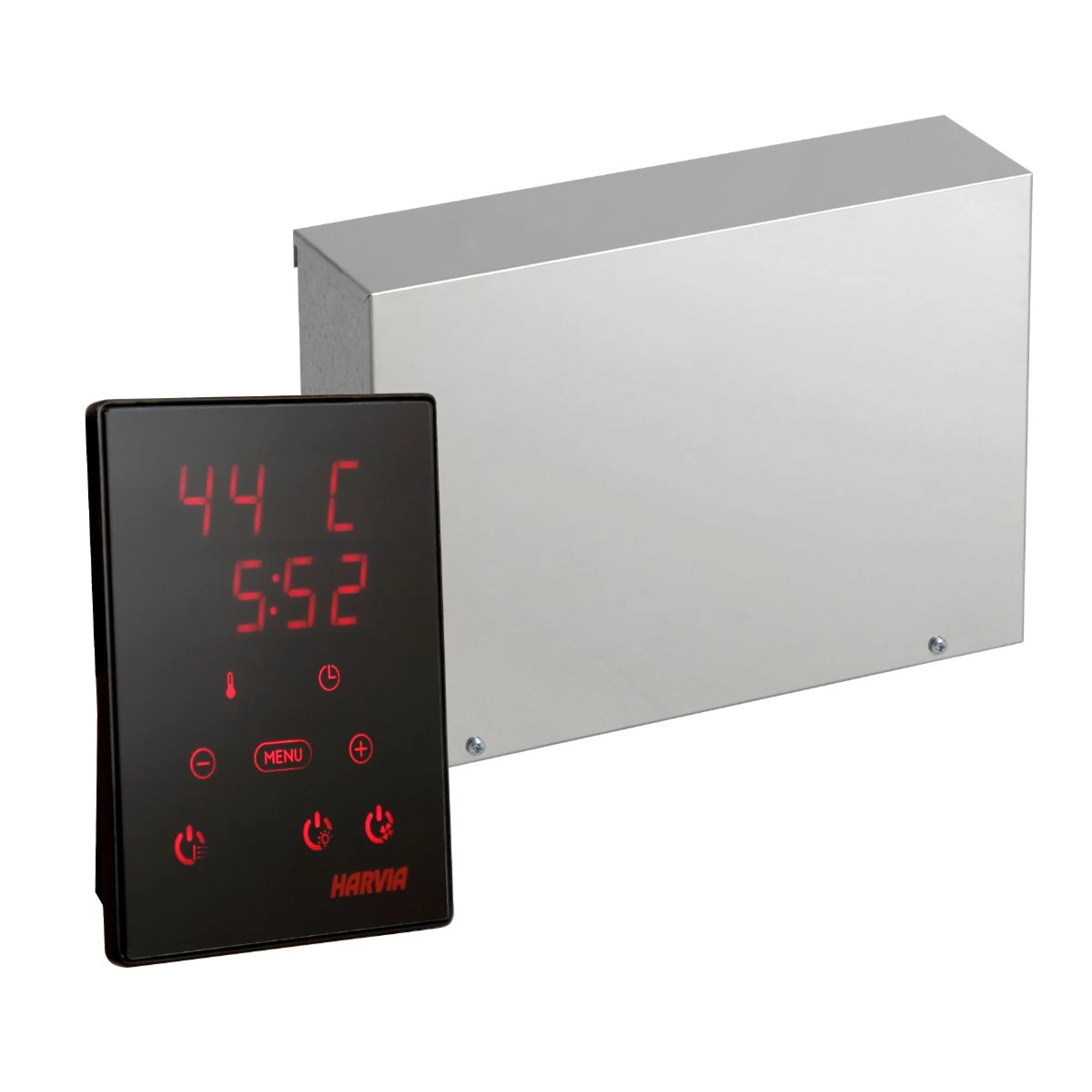

The control panel and power unit are separate components. The compact control panel can be installed in a convenient operating location, while the power unit must be installed in a dry location in accordance with the manufacturer's installation requirements. The power unit operates on a 230 V 1N~ supply.
CX36I supports the Multidrive function. If the capacity of one 3.6 kW power unit is not sufficient, the system can be expanded with additional Xenio Infra power units. Up to 8 power units can be used in the system. Additional power units are not included in the standard CX36I set.
The CX36I does not provide integrated app-based remote control. Electrical connection and installation must be carried out by a qualified professional in accordance with the manufacturer's installation instructions.
Scope of delivery
- Xenio CX36I touchscreen control panel;
- power unit;
- temperature sensor;
- control panel data cable;
- control panel installation components;
- installation and operating instructions.
Technical data
- Manufacturer: Harvia
- Series: Xenio Infra
- Model: CX36I
- Product code: CX36230I
- Product type: infrared control unit with power unit
- Intended use: infrared cabin control
- Maximum controlled output: 3.6 kW
- Temperature adjustment range: 25–50 °C
- Operating time adjustment: 1–12 h
- Lighting control: yes
- Maximum lighting load: 100 W
- Power unit supply voltage: 230 V 1N~
- Frequency: 50/60 Hz
- Multidrive: yes, up to 8 power units
- Remote control: no
- Control panel type: Xenio touchscreen
- Control panel installation: wall-mounted, vertical
- Control panel width: 85 mm
- Control panel height: 110 mm
- Control panel depth: 24 mm
- Colour: black
- Net weight: 1.5 kg
- Certificates: CE, EAC
- EAN: 6410082614028
- Sales unit: 1 set.
