Electric sauna heater control panel - HARVIA Xenio CX170

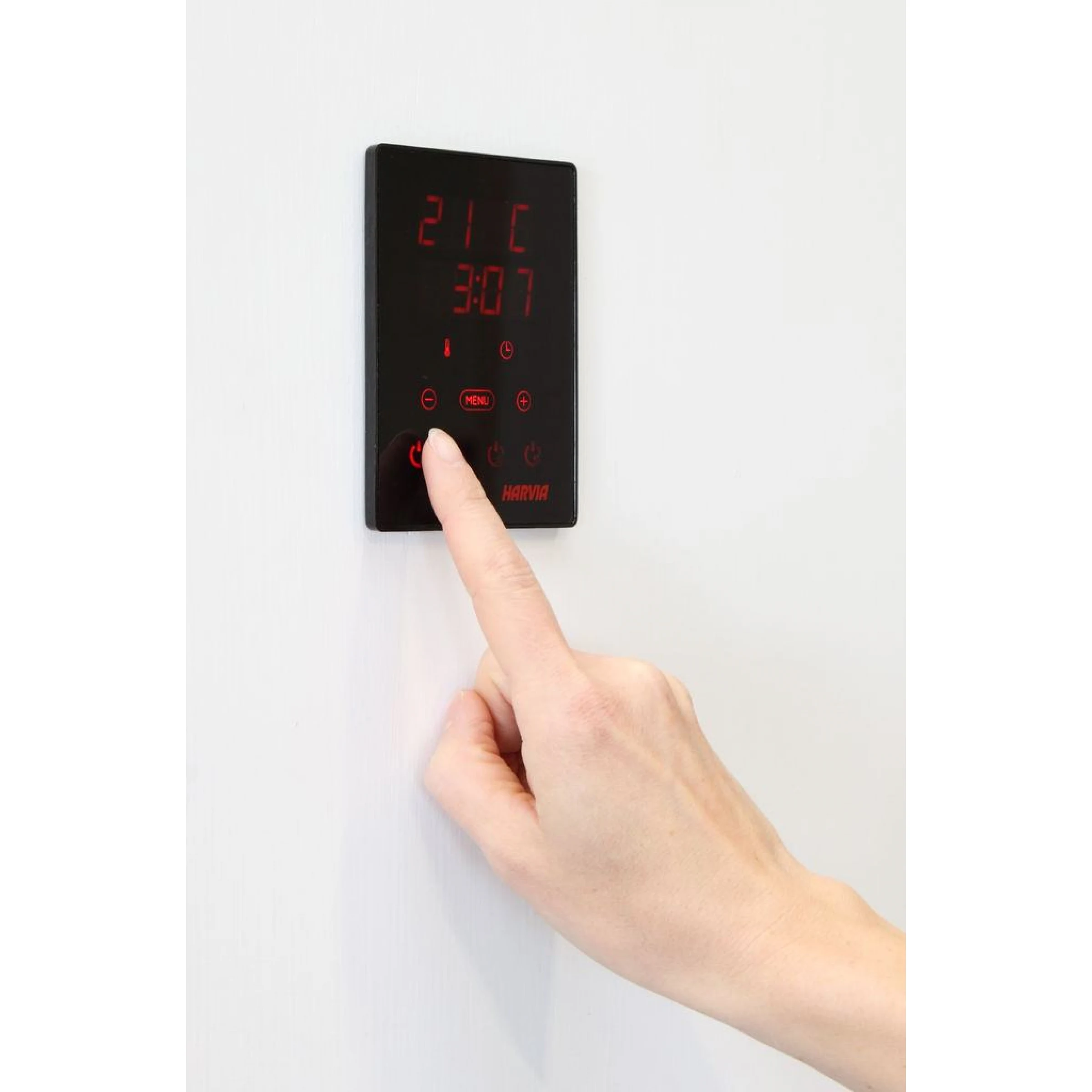

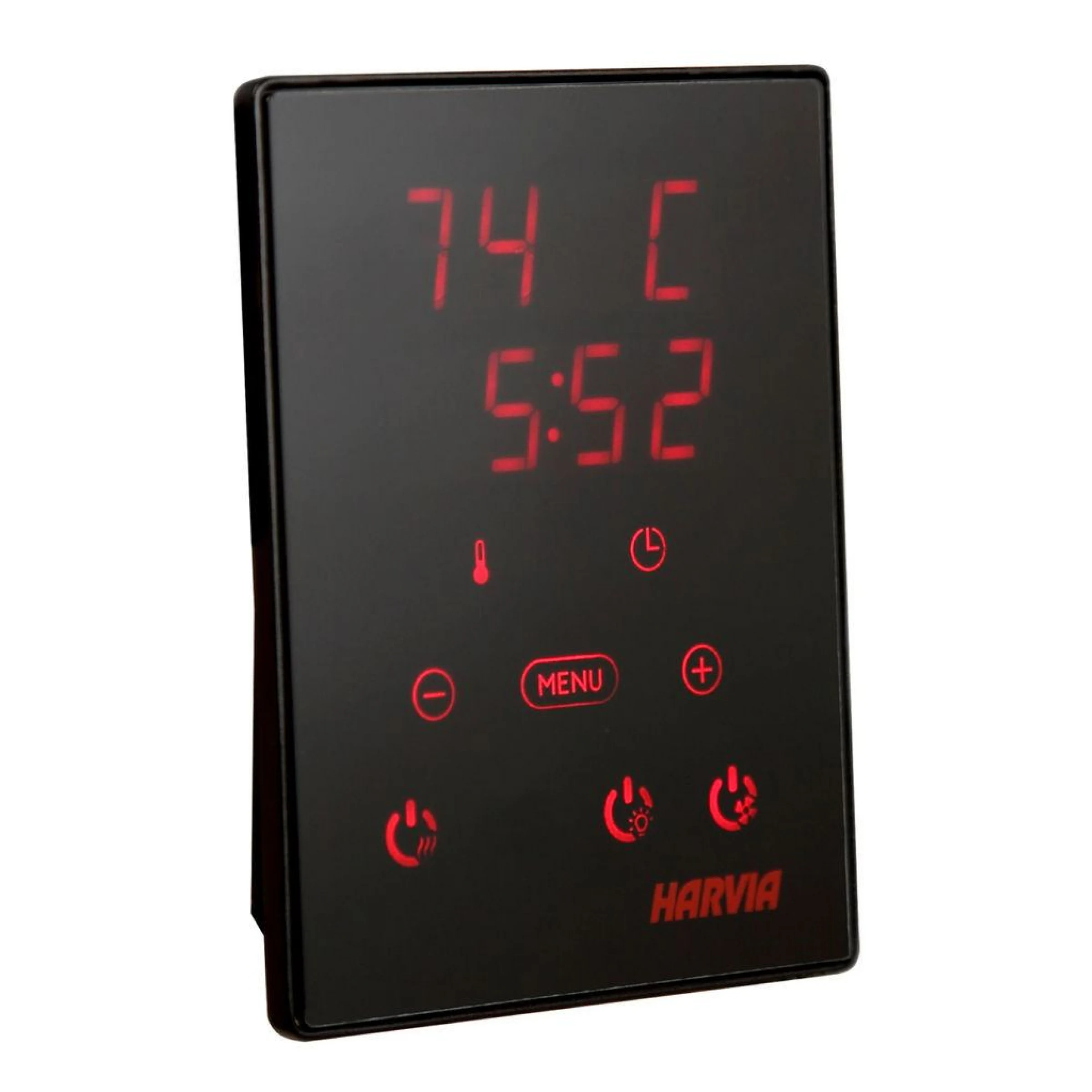

HARVIA Xenio CX170 is a new generation touch control panel for control of any sauna heater that does not have a control panel. Installed outside the sauna. The set includes a separate power supply, a 5-meter data cable for connecting the panel to the power supply (max. Length 30 m), a temperature sensor and a 4-meter heat-resistant cable for its connection. Overheat protection, fan and light switch.

Power supply:

• Electrical input voltage: 400V 3N ~
• Managed max. power: 17 kW
• Lighting control, max. power: 100 W, 230 V 1N ~
• Ventilation control, max. power: 100 W, 230 V 1N ~
• Dimensions: 272 mm x 70 mm x 193 mm
