Electric sauna heater – SAWOTEC Tower, without control unit

The product configuration or colour may differ slightly from what is shown in the photo.

Electric sauna heater – SAWOTEC Tower, without control unit

Product code: PWV-20830

No reviews yet. Have you bought this product? Leave your review

Made in Finland

Model

TH9-120NS-P
TH6-105NS

Description

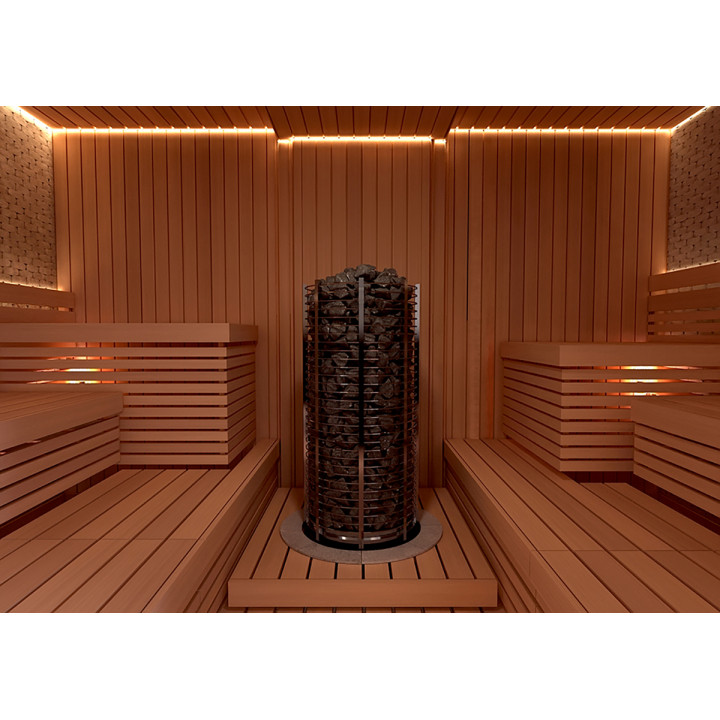

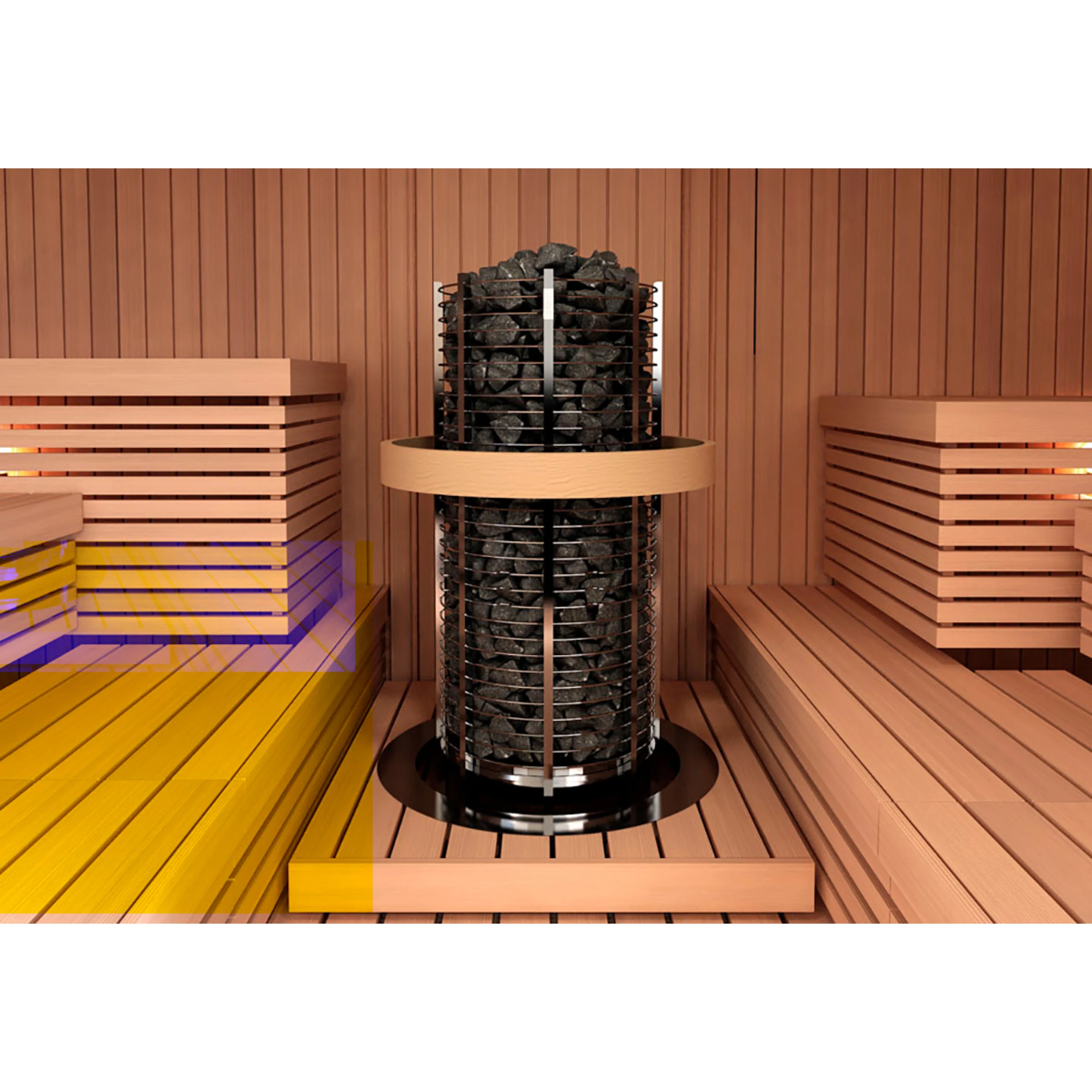

Sawotec Tower is a floor-standing heater. Due to its round and thin steel rods most of the water is exposed to stones – producing a high amount smooth steam to your sauna room. Tower-NS models which require separate control unit can be integrated into the lower bench with the help of an embedding flange. Size of the heater and max stone amount varies from the power output.

Suitable control panels:

HARVIA C170VKK (2,3-17kW).
HARVIA CS110 (2,3-9kW).
HARVIA CS170 (2,3-17kW).
HARVIA C150 (2,3-17kW).
HARVIA CX110 (2,3-11kW).
HARVIA CX170 (2,3-17kW).
HARVIA CF9 (2,3-9kW).

Technical data:

Model	Output, kW	Sauna size, m³	Stone capacity, kg	Weight without stones, kg	Cable, mm²	Dimensions mm
Model	Output, kW	Sauna size, m³	Stone capacity, kg	Weight without stones, kg	Cable, mm²	width	depth	height
TH3-35NS-P	3.5	3 - 6	60 - 70	13	5 x 1,5 / 4 x 1,5 / 3 x 2,5	260	260	1300
TH6-90NS	9	8 - 15	100 - 160	21	5 x 2,5 / 4 x 4,0 / 3 x 10	365	365	1300
TH6-105NS	10.5	9 - 16	100 - 160	21	5 x 1,5 / 5 x 1,5 / 5 x 2,5	365	365	1300
TH6-120NS	12	11 - 18	100 - 160	21	5 x 1,5 / 5 x 1,5 / 5 x 4,0	365	365	1300
TH9-105NS-P	10.5	10 - 16	165 - 230	27	5 x 1,5 / 5 x 1,5 / 3 x 2,5	450	450	1300
TH9-120NS-P	12	11 - 20	165 - 230	29	5 x 2,5 / 5 x 1,5 / 5 x 4,0	450	450	1300
TH9-150NS	15	14 - 25	165 - 230	27	5 x 2,5 / 5 x 1,5 / 5 x 4,0	450	450	1300
TH9-180NS-P	18	18 - 28	165 - 230	33	5 x 2,5 / 5 x 4,0	450	450	1300
TH12-150NS-P	15	15 - 26	360 - 360	37	5 x 2,5 / 5 x 2,5 / 5 x 4,0	545	545	1300
TH12-180NS-P	18	18 - 30	220 - 360	37	5 x 2,5 / 5 x 2,5	545	545	1300
TH12-210NS-P	21	22 - 35	220 - 360	42	5 x 2,5 / 5 x 4,0	545	545	1300
TH12-240NS-P	24	24 - 40	220 - 360	42	5 x 2,5 / 5 x 6,0	545	545	1300
