Electric sauna heater control panel - HARVIA Xenio Combi CX110C

HARVIA Xenio – control units with a touch control panel

The control panel of the Xenio control unit provides a modern and subtly stylish interface for controlling the heart of the sauna, be it a traditional electric heater, Combi heater with a steamer or infrared radiator. The compact yet clear touch control panel can be surface-mounted in almost any space – sauna room, bathroom, dressing room, or even the living room. The control panel shows you when the sauna is at the right temperature for bathing.

HARVIA Xenio

• The modern control unit range makes the use of heaters or infrared radiators precise and easy.
• A stylish touch control panel
• Comprehensive set of functions: control operating time, temperature, lighting and fan from the control panel
• The control panel can be fixed to the wall or embedded into the surface to create a smooth appearance

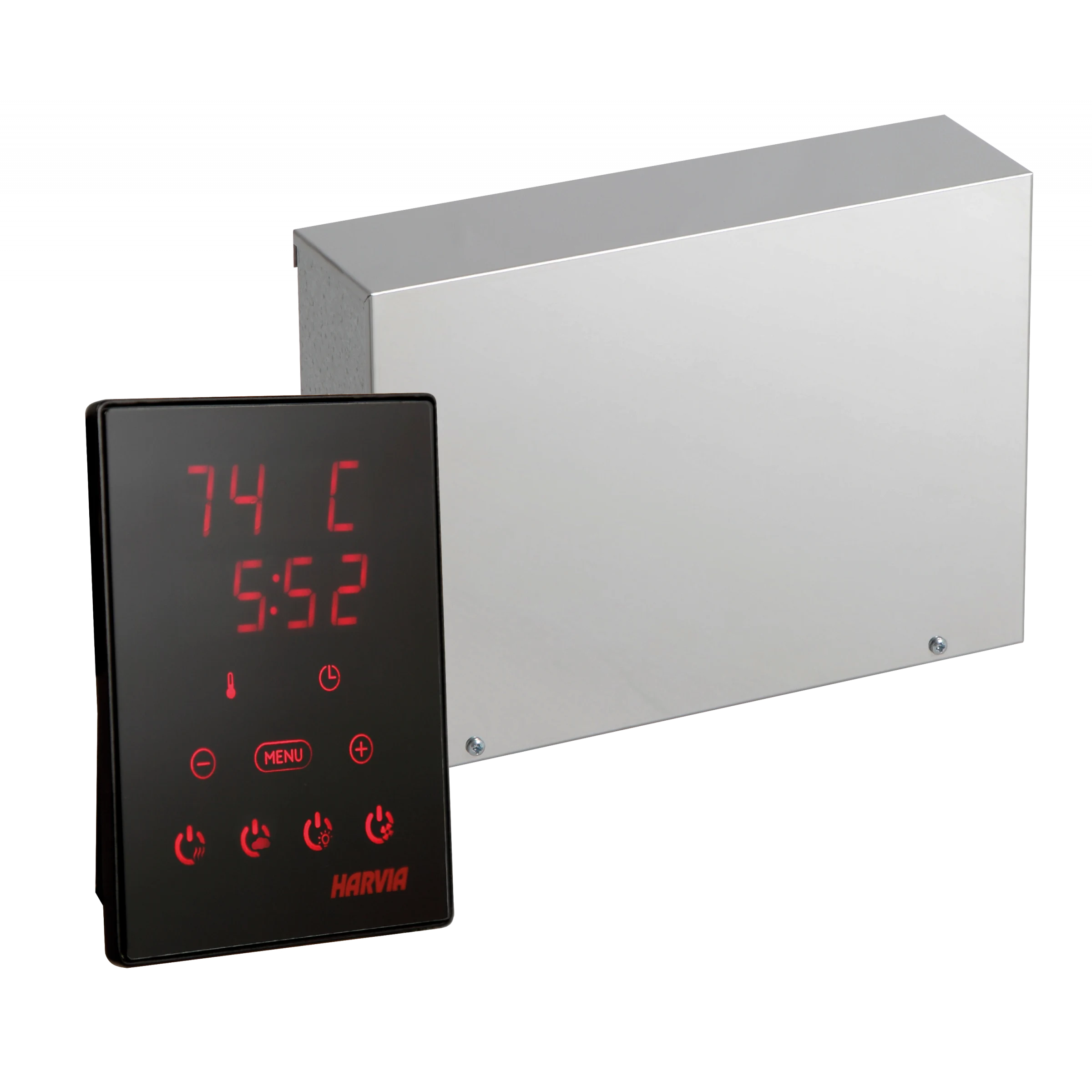

HARVIA Xenio Combi CX110C

• For controlling Combi heater and combined heater and steamer
• Temperature adjustment range 40–110 ˚C
• Humidity adjustment range 20–80 rH
• Operating time adjustment range:
  - family sauna 1–6 h
  - commercial sauna 1–12 h
• Pre-setting time adjustment range 0–12 h
• Lighting and fan control
• Maximum output from control unit to heater 11 kW, to a Combi heater with a contactor 17 kW, to heater(s) by using LTY17C power extension unit 28 kW
• Power unit supply voltage 400 V 3N~

Delivery contents:

• control panel
• power unit
• temperature sensor with cable ca 4 m
• data cable 5 m (10 m extension cables available, max. total length 30 m)

Power unit
Each HARVIA Xenio control unit comes with a power unit that is installed in a dry place outside the sauna room.
