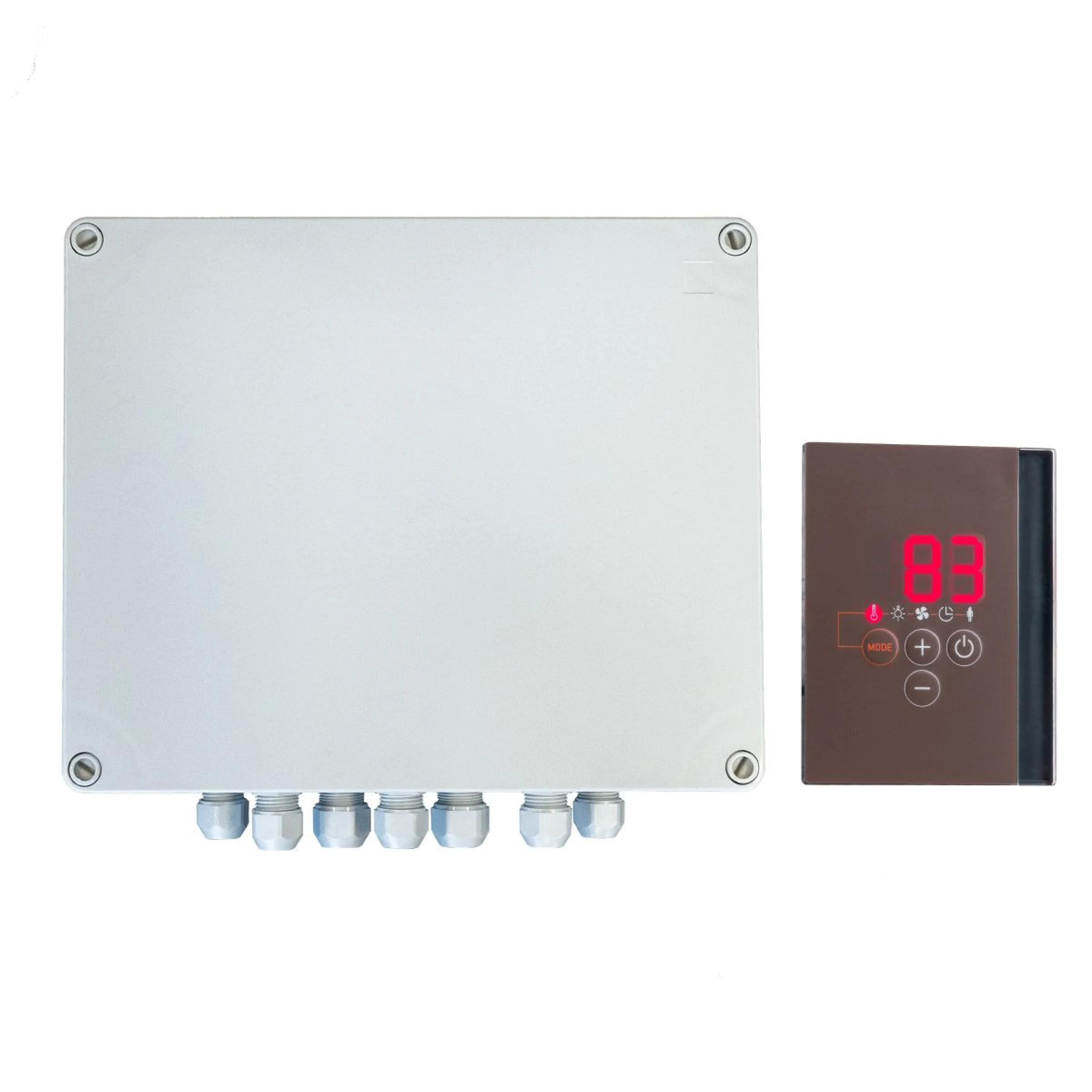

HARVIA PRO-IP-D2 is a sauna heater control unit featuring an IP65-rated power unit enclosure, designed for traditional Finnish saunas. The unit is suitable for electric sauna heaters with a power output of up to 10.5 kW and can be used in both private and commercial sauna installations.
The IP65-rated enclosure protects the power unit against dust and water jets when correctly installed in accordance with the manufacturer's instructions. This construction provides greater flexibility when selecting the installation location.
The control system allows users to adjust the sauna temperature, set the heater operating time and configure a preset start time. Sauna lighting and ventilation fan control functions are also supported.
Main features and benefits:
- Control of electric sauna heaters up to 10.5 kW.
- Temperature adjustment from 30 to 110 °C.
- IP65-rated power unit enclosure.
- Adjustable heater operating time limits of 6, 12, 18 or 24 hours.
- Preset start timer of up to 24 hours.
- Sauna lighting and ventilation fan switching and adjustment.
- Support for single or dual temperature sensor systems.
- User programs and ECO mode.
- Remote start capability with compatible additional equipment.
- Possibility of connecting an external power extension unit.
Important: The PRO-IP-D2 is designed for controlling traditional electric sauna heaters. Other PRO-D series versions are required for evaporator control or additional infrared heating outputs.
The control panel is not included and must be purchased separately. A compatible control panel, power unit and temperature sensor are required for operation. Component compatibility must be verified before installation.
External main power and lighting switches are also required.
Electrical installation must be carried out by a qualified professional in accordance with the manufacturer's installation instructions.
