Harvia MySentio Remote S-WIFI02 is a remote start system designed to connect compatible sauna, infrared sauna and steam bath control systems to the MySentio application.
The system is intended for compatible control units with a remote start input. The MySentio app can be used to remotely switch the connected sauna heater or steam generator on and off and check its operating status.
Please note that MySentio Remote does not provide full remote control of the control unit. Temperature, lighting, user programmes and other control unit settings cannot be adjusted through this system; it is intended for remote on/off operation.
Compatible systems listed by the manufacturer include:
- wave.com4 11 kW;
- SGH steam generators;
- HGD steam generators;
- home.com4;
- Pro B2 and Pro B3;
- Pro C2 and Pro C3;
- Pro D2, D2i, D3 and D3i.
Suitable safety equipment, such as a compatible door sensor or safety shut-off device, must be installed for remote sauna heater start according to the manufacturer's instructions.
Scope of delivery:
- MySentio Extension Box;
- MySentio WiFi module;
- 2 × 1 m 8-pin RJ45 Ethernet cables;
- installation material;
- installation instructions.

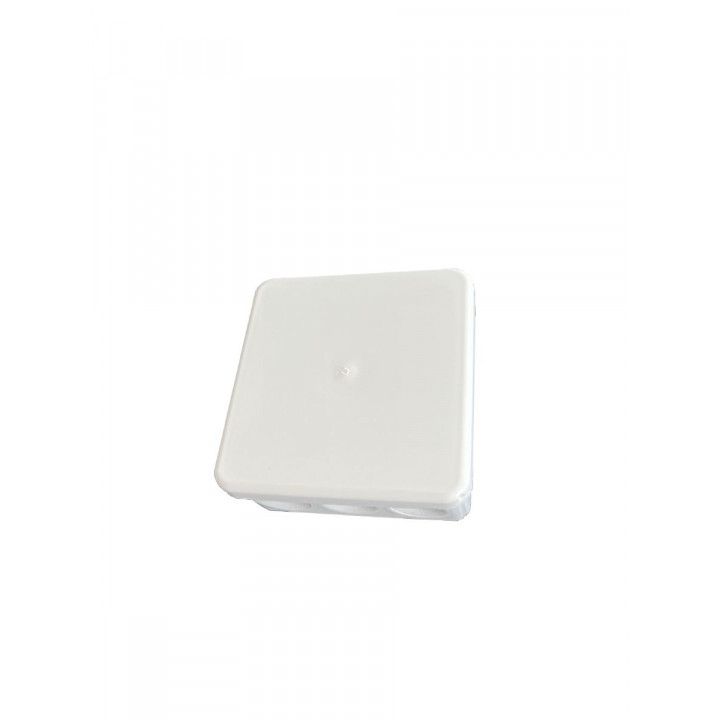

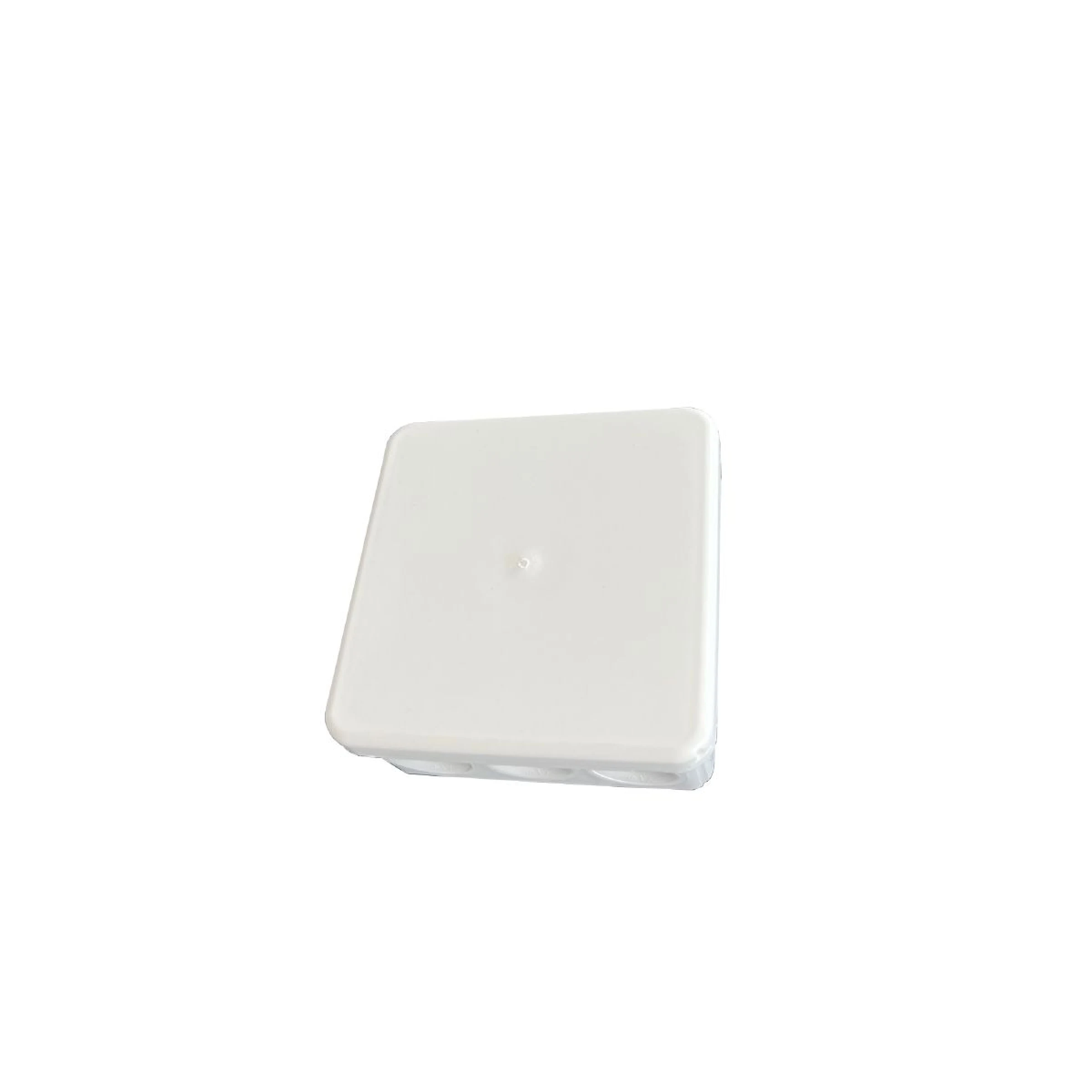

MySentio Extension Box:
- dimensions: 85 × 85 × 37 mm;
- protection class: IP65;
- operating voltage: 24 V DC, max. 3 W;
- switching capacity: max. 250 V, 4 A.
MySentio WiFi module:
- dimensions: 83 × 56 × 24.5 mm;
- protection class: IP20;
- operating voltage: 24 V DC, max. 3 W;
- WiFi: 2.4 GHz;
- minimum connection requirement: 1 Mbit/s.
