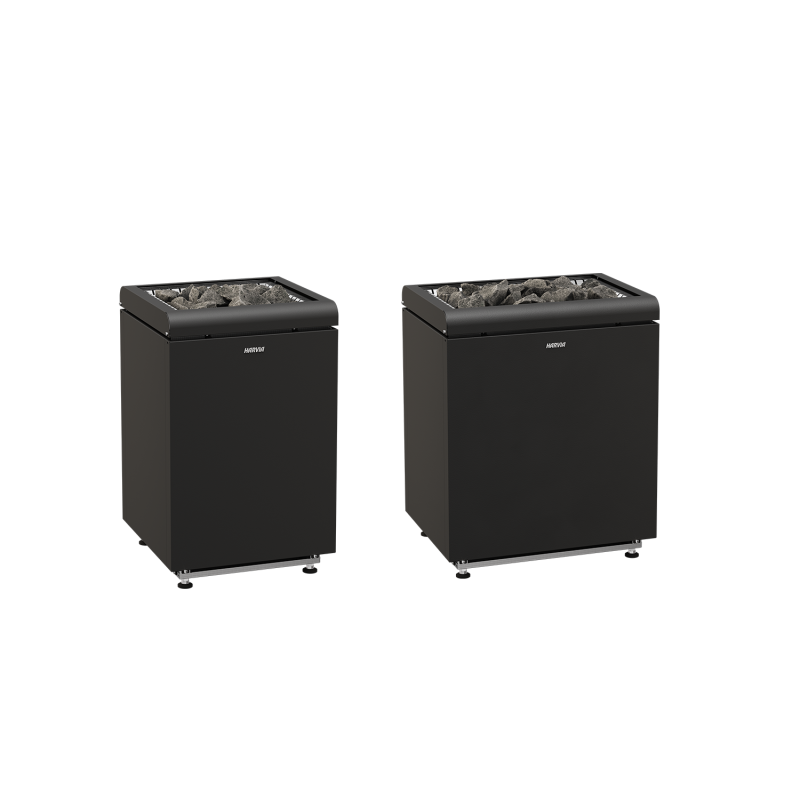

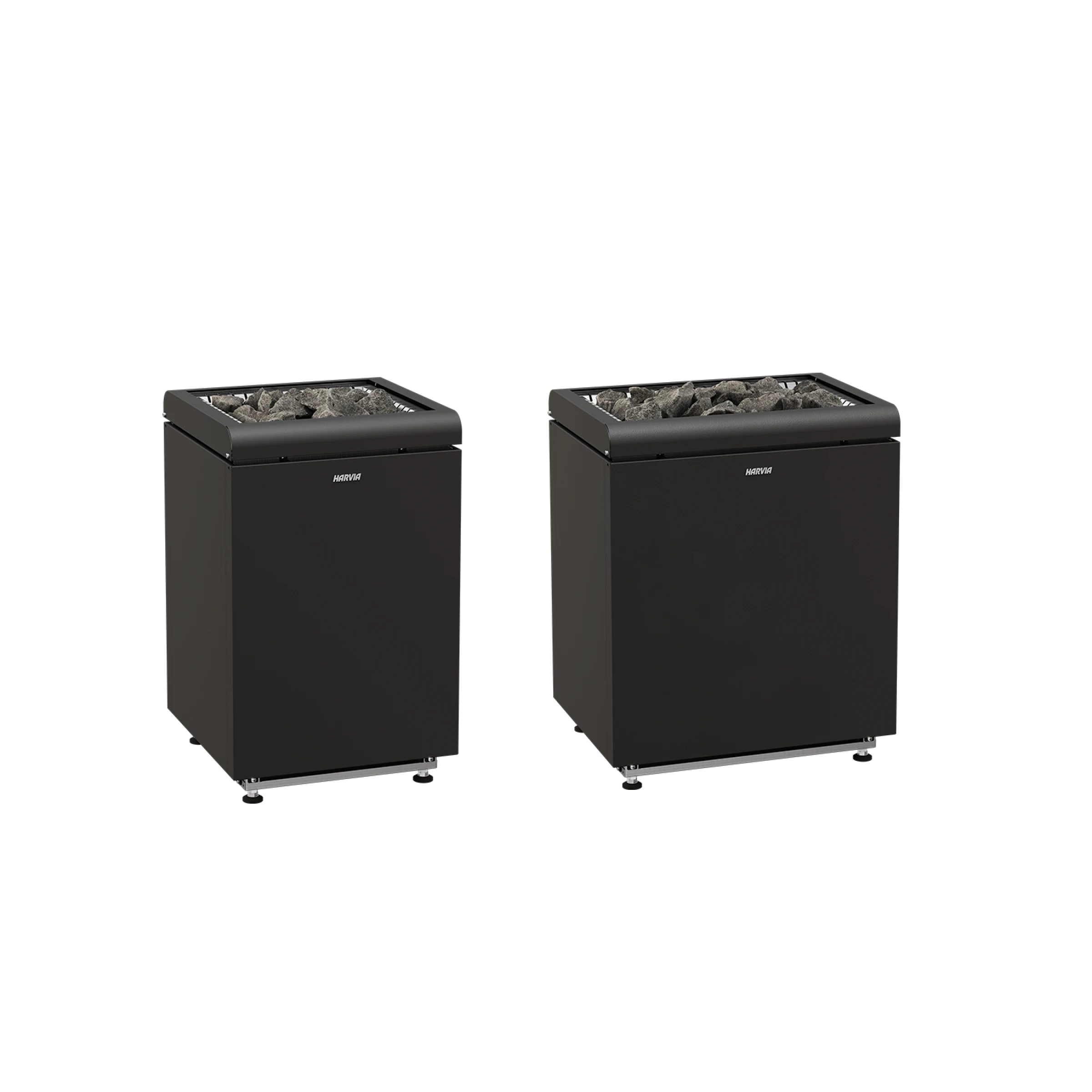

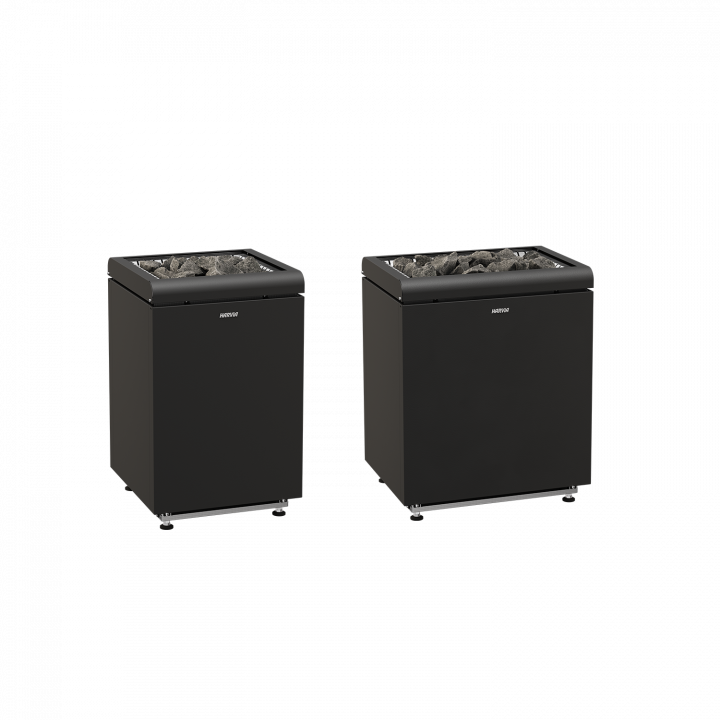

The Harvia Concept R electric sauna heater is designed for modern private saunas where functionality, contemporary design, and safety are equally important. Combining advanced engineering solutions with minimalist aesthetics, this heater integrates seamlessly into a wide range of modern sauna projects.
The elegant black exterior gives the heater a contemporary appearance, while its compact design allows it to be installed in both smaller and more spacious sauna rooms.

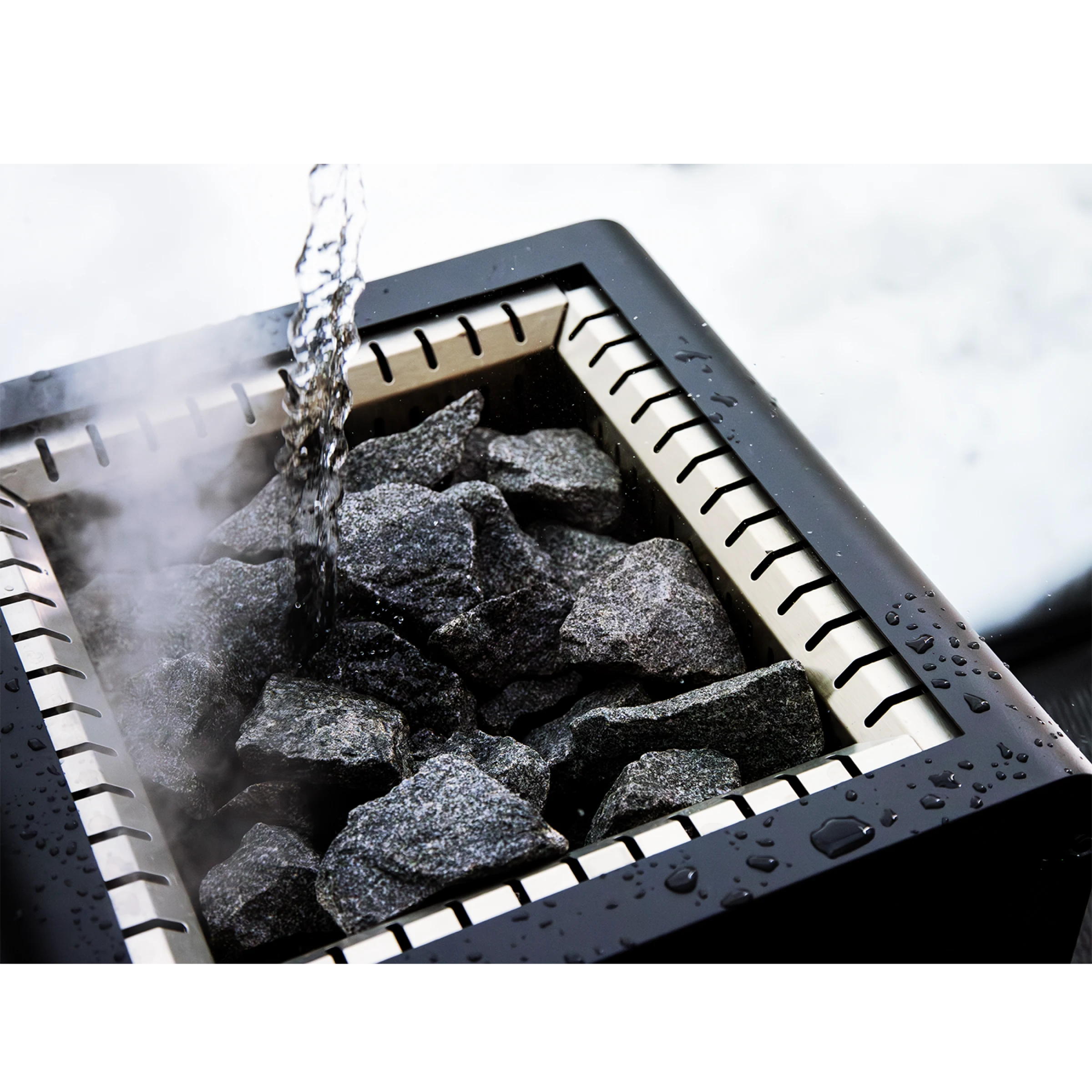

Thanks to its advanced construction, the Harvia Concept R reaches operating temperature quickly. Separate stone and heating element chambers help ensure efficient heat transfer and contribute to a longer service life of the heating elements.
The multilayer construction helps reduce the temperature of the outer casing, making the heater safer to use and more comfortable for everyday operation.
Harvia Concept R is an “E” type sauna heater and therefore operates only with a separately purchased compatible control unit.
A compatible safety switch can also be installed to enable a safe remote-control solution in accordance with the manufacturer's requirements.
Key Benefits
- Modern and elegant design
- Fast heat-up time
- Multilayer construction with reduced outer casing temperature
- Separate stone and heating element chambers
- Durable construction designed for long-term use
- Operates via a separately purchased compatible control unit
- Compatible with a safety switch for remote-control solutions
| Model | Output, kW | Sauna size, m3 | Stone capacity, kg | Weight without stones, kg | Cable, mm2 | Dimensions mm | ||
| width | depth | height | ||||||
| Harvia Concept R 9.0 | 9 | 9 - 14 | 25 | 34 | 5 x 2.5 | 455 |
450 |
730 |
| Harvia Concept R 10.5 | 10.5 | 10 - 15 |
25 |
34 | 5 x 2.5 | 455 | 450 | 730 |
| Harvia Concept R 12.0 | 12.0 | 14 - 18 | 35 | 40 | 5 x 2.5 | 590 | 450 | 730 |
| Harvia Concept R 15.0 | 15.0 | 18 - 25 | 35 | 40 | 5 x 2.5 | 590 | 450 | 730 |
Stones are purchased separately.
