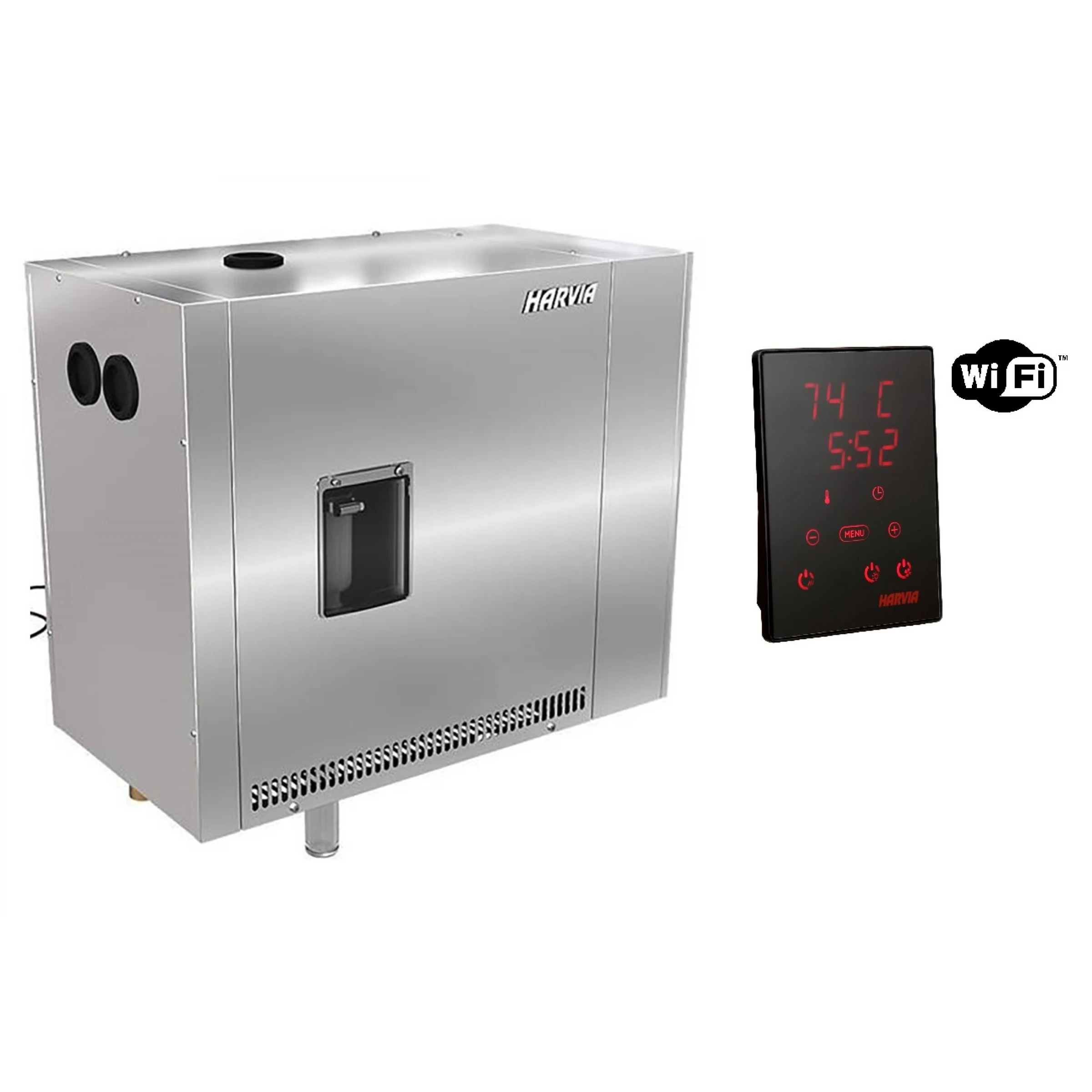

The HARVIA HGP steam generator is designed for intensive use in large commercial saunas, suitable for saunas from 12 to 56 m3 in size.
The steam generator is easy to install and use. The steam generator Harvia HGP is controlled by a stylish control unit. It can be used to control the steam generator, fragrance pump, lighting and fan.
The steam generator has a built-in automatic drain valve. An automatic drain valve flushes the steam generator at set intervals and every time the steam generator is turned off. This procedure removes all scale deposits from the steam generator. Regular descaling is necessary for the steam generator to function well.
Also, the generator has a built-in scent pump. It can be programmed to automatically mix scents with steam. The scent container attached to the scent pump can be small or large.
The set includes a steam generator, control unit (HARVIA Xenio WiFi), temperature sensor (1 pc.).
Recommended sauna size:
21.6 kW - 12-42 m3
30 kW - 16-56 m3
Installation diagram:
1. Control unit
2. Temperature sensor
3. Steam pipe
4. Steam nozzle
5. Water supply pipe
6. Water supply valve
7. Drain pipe
8. Sewer pipe
9. Safety valve
10. Power cable
11. Rubber stopper
12. Sediment vessel
13. Scent pump tube
