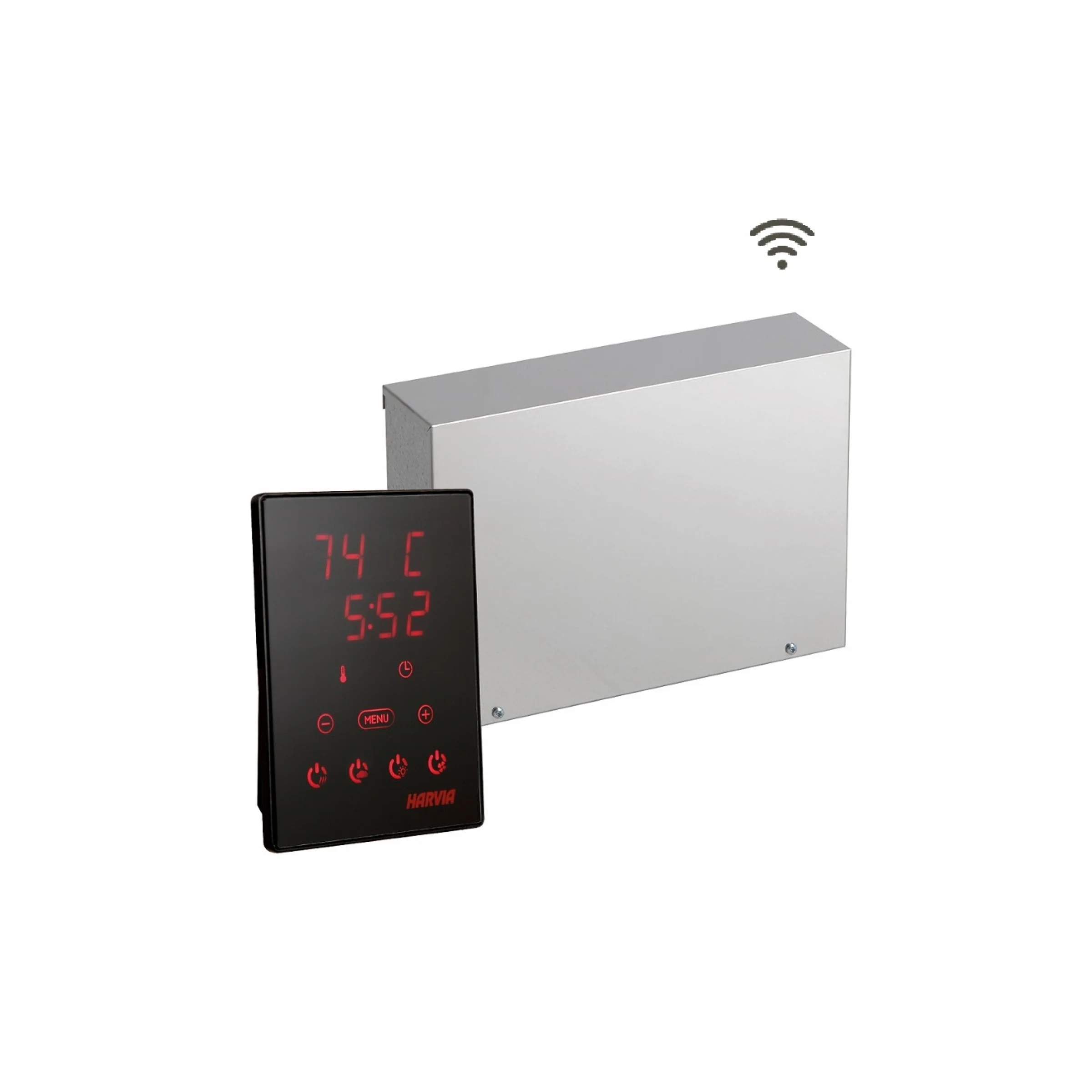

The purpose of the HARVIA Xenio Combi CX110C WIFI control panel is to control the electric sauna heater and steamer (SS20 or SS20A) or the combined heater.
The set includes:
Control panel:
- Temperature control range: 40-110 ° C.
- Humidity control range: 20-95 rH
- Time regulation range: family saunas 1-6 hours, public saunas 1-12 hours.
- Preset time adjustment range: 0-12 hours.
- Lighting and fan control.
- The control panel can be fixed to the wall or embedded into the surface for a smooth look
- Dimensions: 85 mm x 24 mm x 110 mm
- Door sensor SAB00103

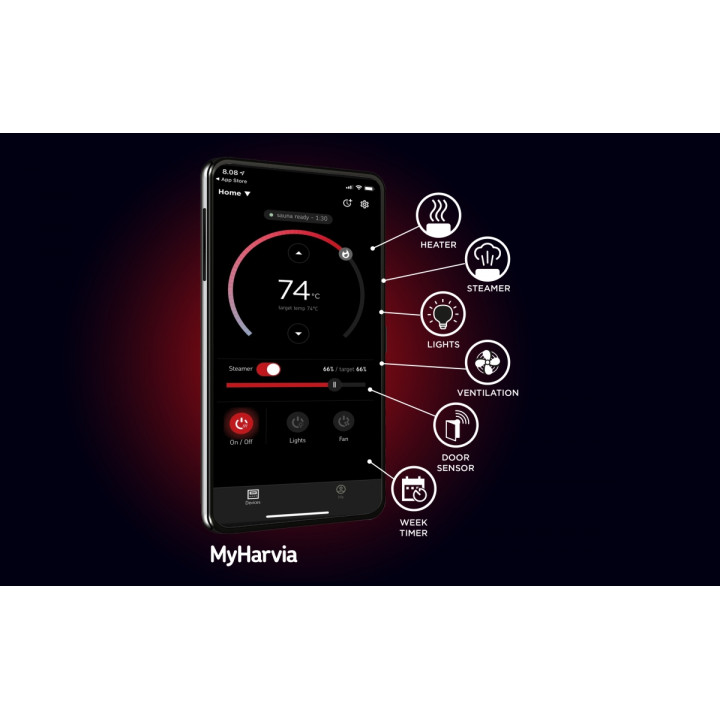

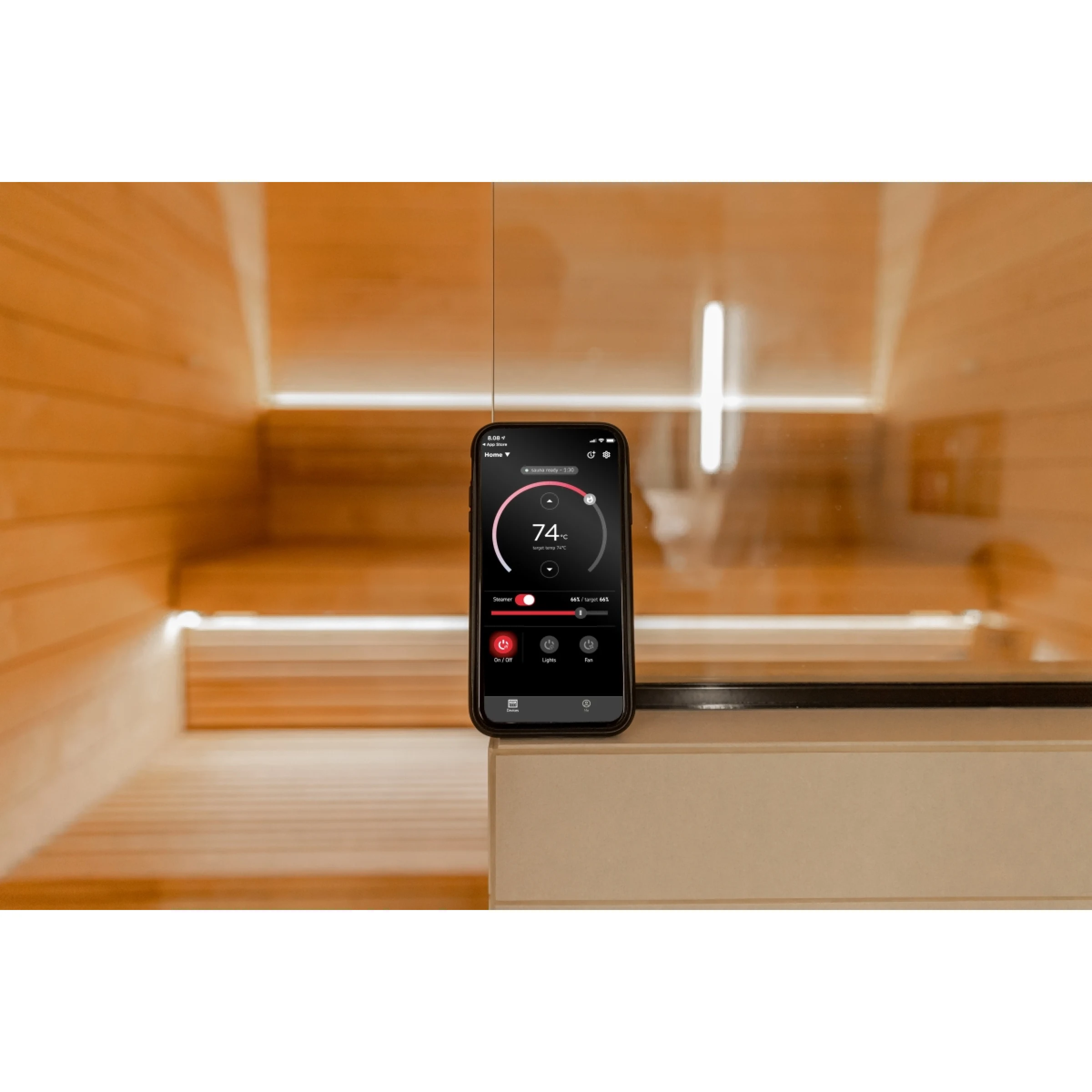

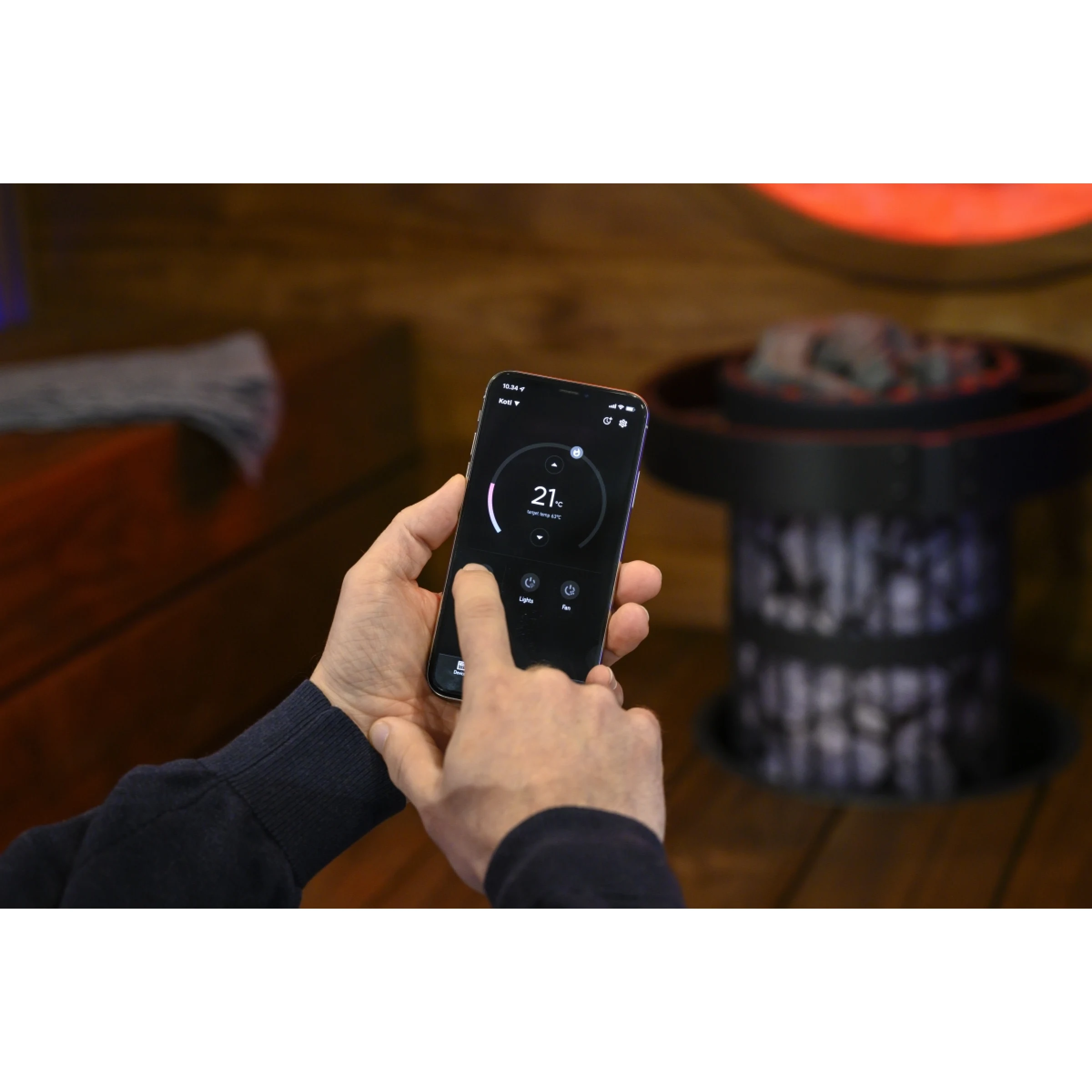

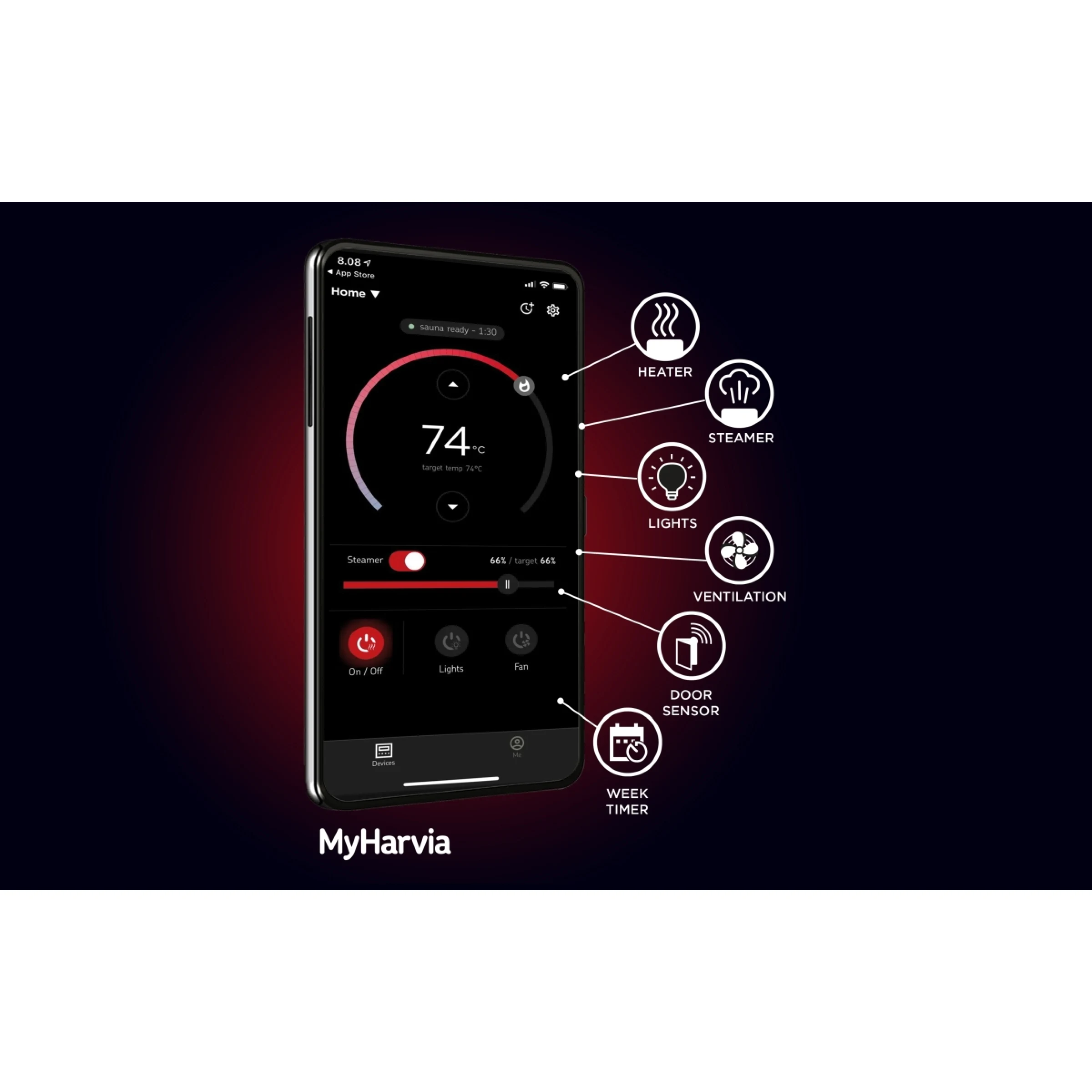

- MyHarvia Mobile App (available on GooglePlay and AppStore)
- Dimensions: 85 mm x 24 mm x 110 mm

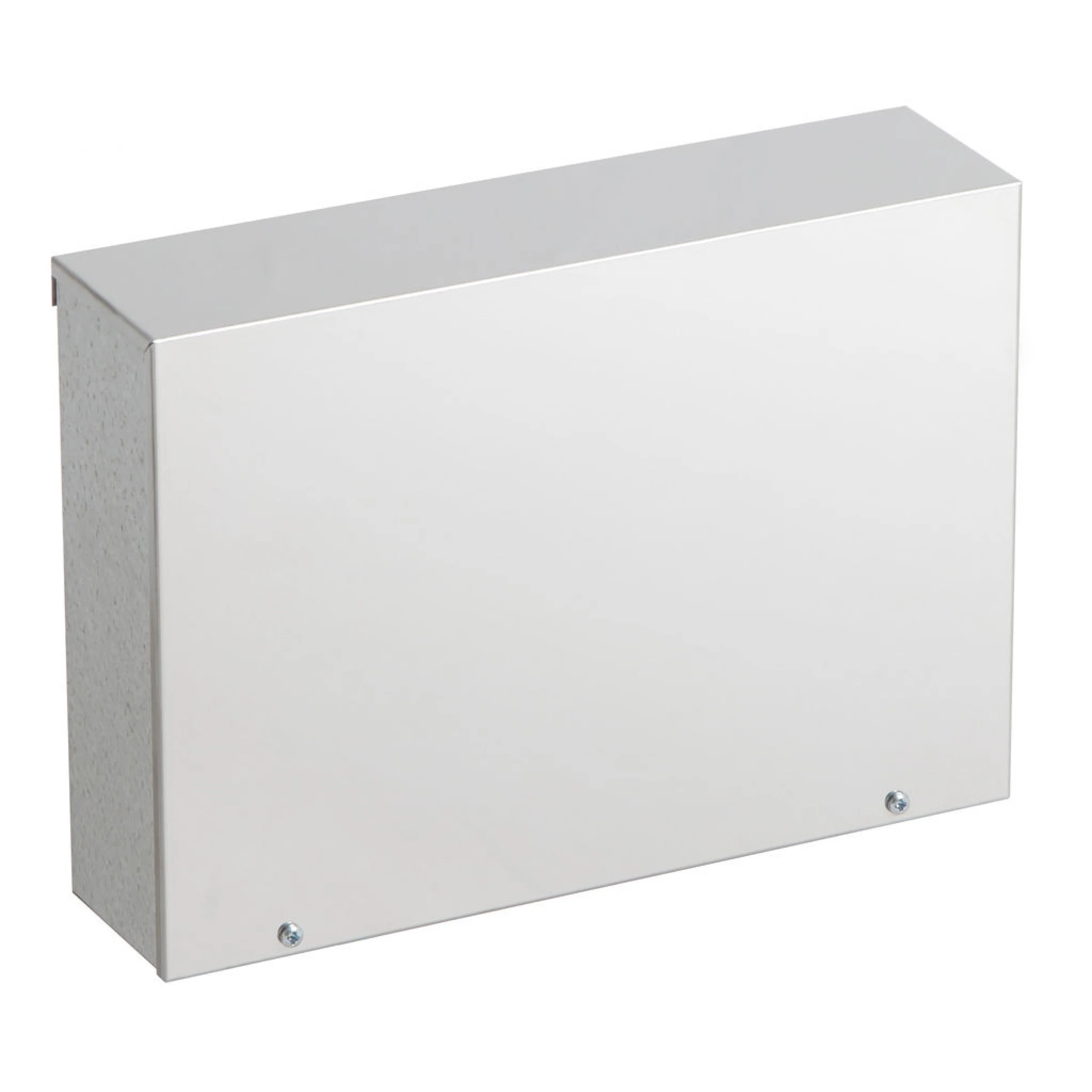

Power unit:
- Supply voltage: 400 V 3N ~
- Maximum power from the control unit to the heater 11 kW, to the combined heater with steamer 17 kW, to the heater using the LTY17C power expansion unit 28 kW
- Lighting control, max. power: 100 W, 230 V 1N ~
- Fan control, max. power: 100 W, 230 V 1N ~
- Dimensions: 272 mm x 70 mm x 193 mm
Temperature and humidity sensors with cables about 4 m
- The temperature sensor has a resettable protection against overheating and temperature sensing NTC thermistors (22 kΩ / T = 25 ° C).
- The humidity sensor WX325 measures temperature and relative humidity.
- Weight: 175 g with wires (about 4 m)
- Dimensions: 51 mm x 73 mm x 27 mm
Data cable 5 m
