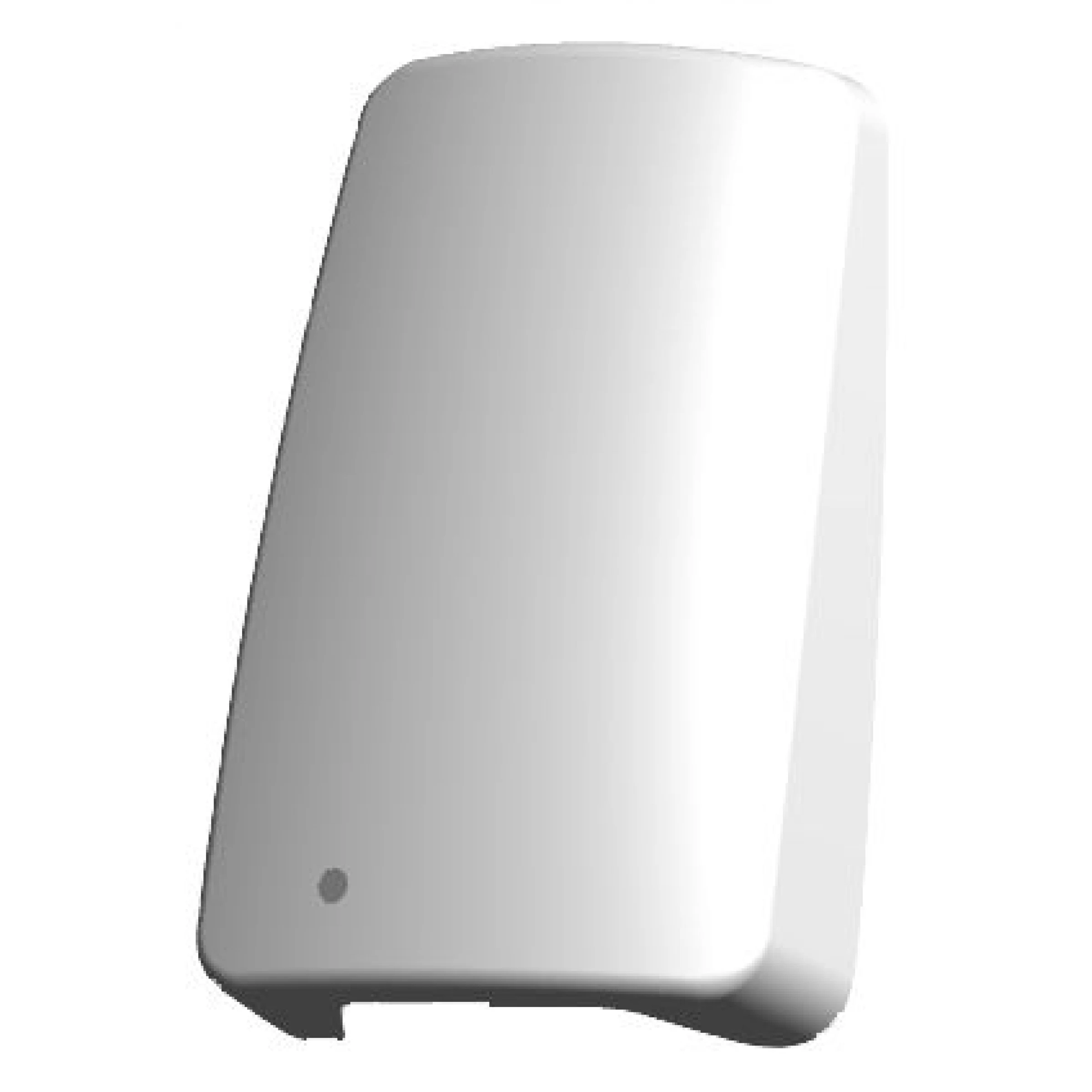

Harvia MySentio WiFi S-WIFI01 is a WiFi module designed to connect compatible Harvia and Sentiotec sauna control units to the MySentio mobile application. It allows supported control unit functions to be operated using a smartphone or tablet via a WiFi connection.
Depending on the connected control unit and its available functions, the MySentio app can be used to control sauna temperature, humidity, infrared radiators, lighting, fan and other supported functions. The available functions depend on the specific control unit.
Compatible with:
- home.com4 RS485;
- Harvia Pro B2;
- Harvia Pro B3;
- Harvia Pro C2;
- Harvia Pro C3;
- Harvia Pro D series control units when used with an additional BUS-CON-D converter.
The WiFi module is connected to the control unit using an 8-pin RJ45 data cable and must be installed within the operating range of the WiFi network.
For remote sauna start, appropriate safety equipment specified for the particular control system, such as a door sensor or safety shut-off device, must be installed according to the manufacturer's instructions.
Scope of delivery:
- MySentio WiFi module;
- 1 m 8-pin RJ45 Ethernet cable;
- installation material;
- installation instructions.
Technical data:
- WiFi: 2.4 GHz;
- minimum connection requirement: 1 Mbit/s;
- protection class: IP20;
- ambient temperature: –20 to +40 °C;
- dimensions: 83 × 56 × 24.5 mm;
- operating voltage: 24 V DC;
- connection: 8-pin RJ45.
