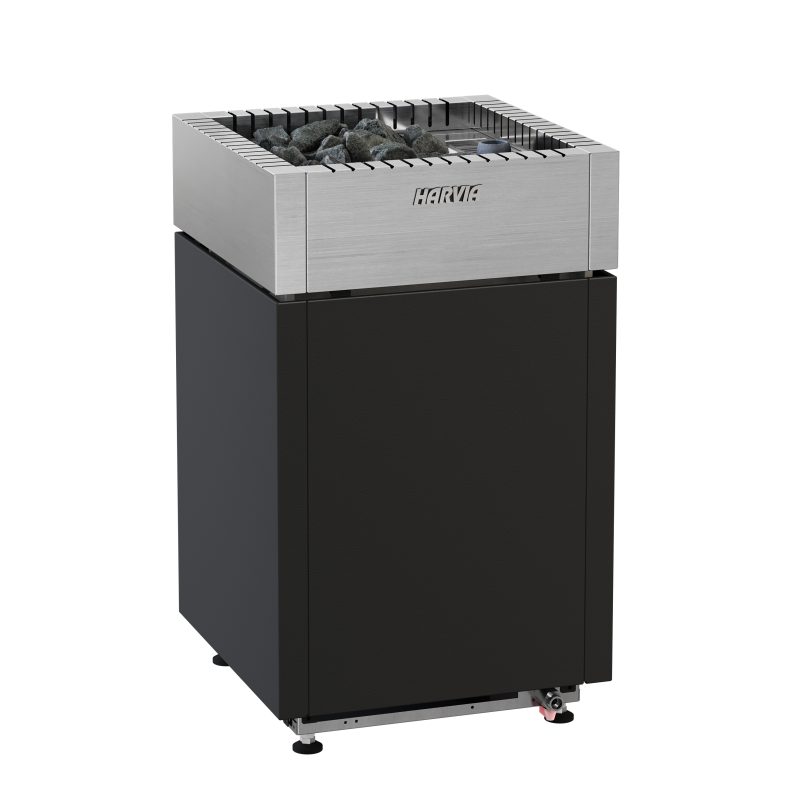

HARVIA Qube Combi combines an electric sauna heater with an integrated 3 kW steam generator. Available in 10.0 kW, 13.5 kW and 16.0 kW versions, it is designed for saunas of various sizes. The integrated steam generator allows users to enjoy both a traditional dry sauna experience and a more humid sauna environment.
The durable stainless steel construction is designed for intensive use. The fully automated steam generator provides a consistent supply of steam and convenient operation.

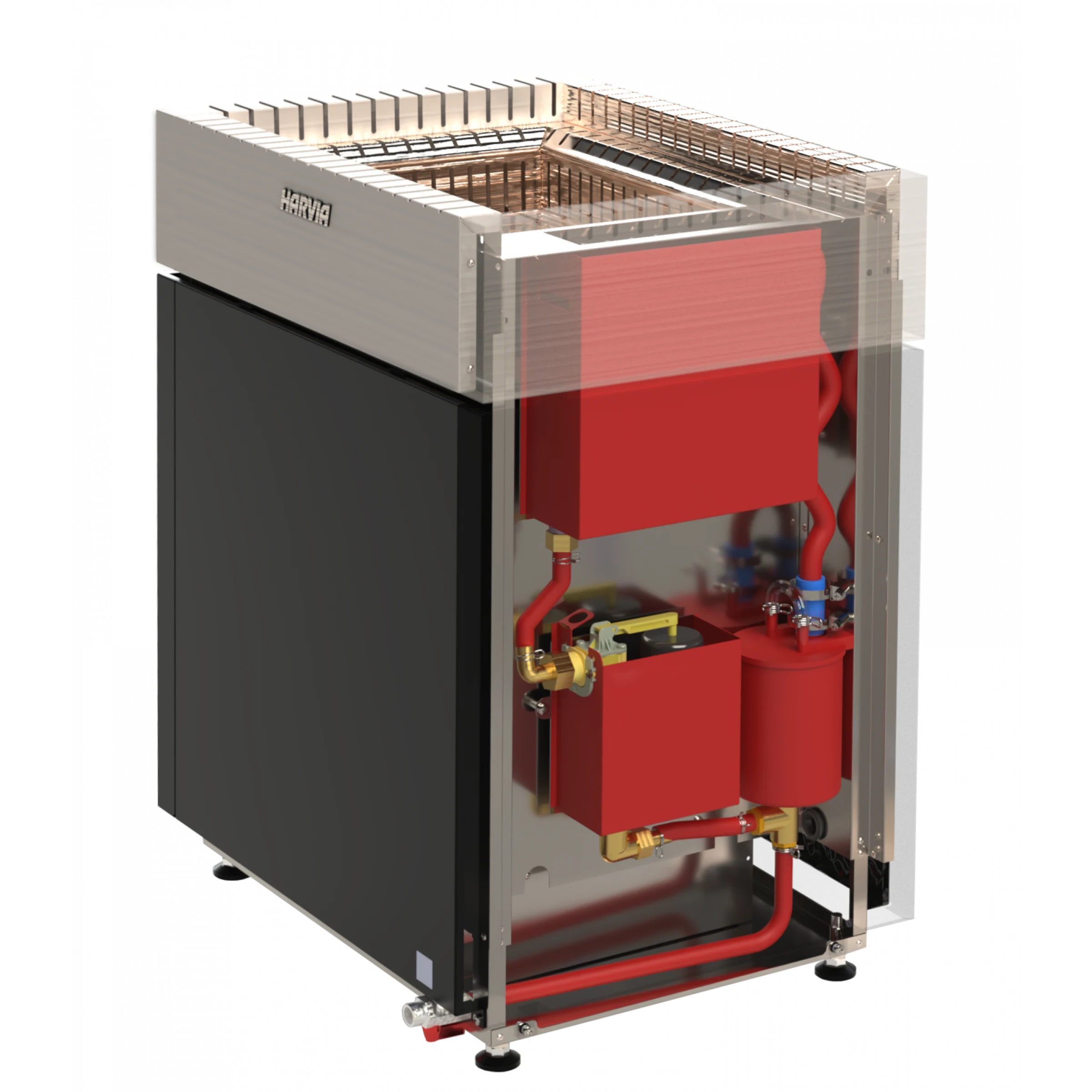

The integrated steam generator helps maintain the compact dimensions of the Qube Combi, allowing the heater to occupy a similar installation footprint to the standard HARVIA Qube model.
Maintenance is straightforward thanks to the built-in water and sediment collector, while the heating elements are designed to be accessible without dismantling the stone compartment.
Key features:

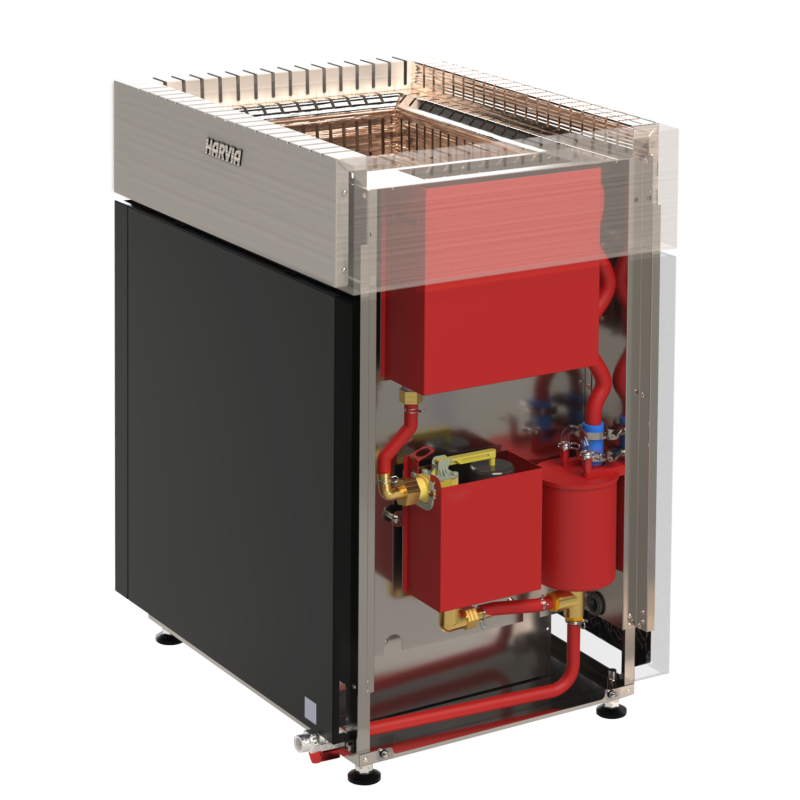

- Cold water tank with a steam outlet designed to collect condensate.
- Water level sensor that can operate with either a pressurized water supply or a water reservoir.
- Steam generator system separated from the heating elements.
- Steam line connection designed to reduce operating noise within the steam system.
- Drain valve for removing water from the system after use.
Technical data:
| Model | Output, kW | Sauna size, m3 | Stone capacity, kg | Weight without stones, kg | Dimensions mm | ||
| width | depth | height | |||||
| HARVIA Qube Combi 10.0 | 10 | 9 - 14 | 24 | 38 | 450 | 450 | 750 |
| HARVIA Qube Combi 13.5 | 13.5 | 14 - 18 | 40 | 45.5 | 594 | 450 | 750 |
| HARVIA Qube Combi 16.0 | 16 | 18 - 25 | 40 | 45.5 | 594 | 450 | 750 |
Stones and control panel are purchased separately.
