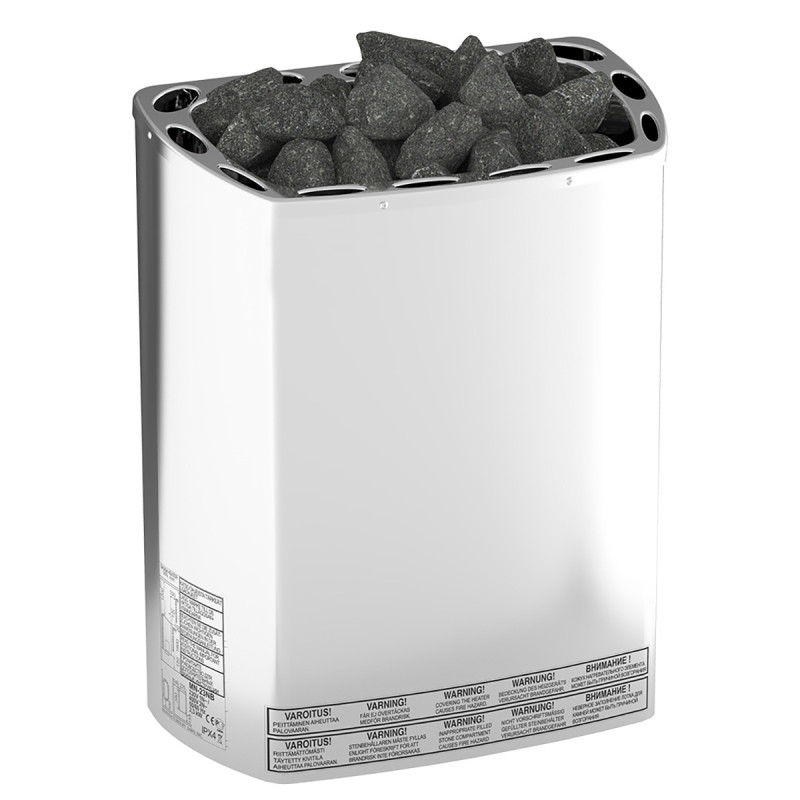

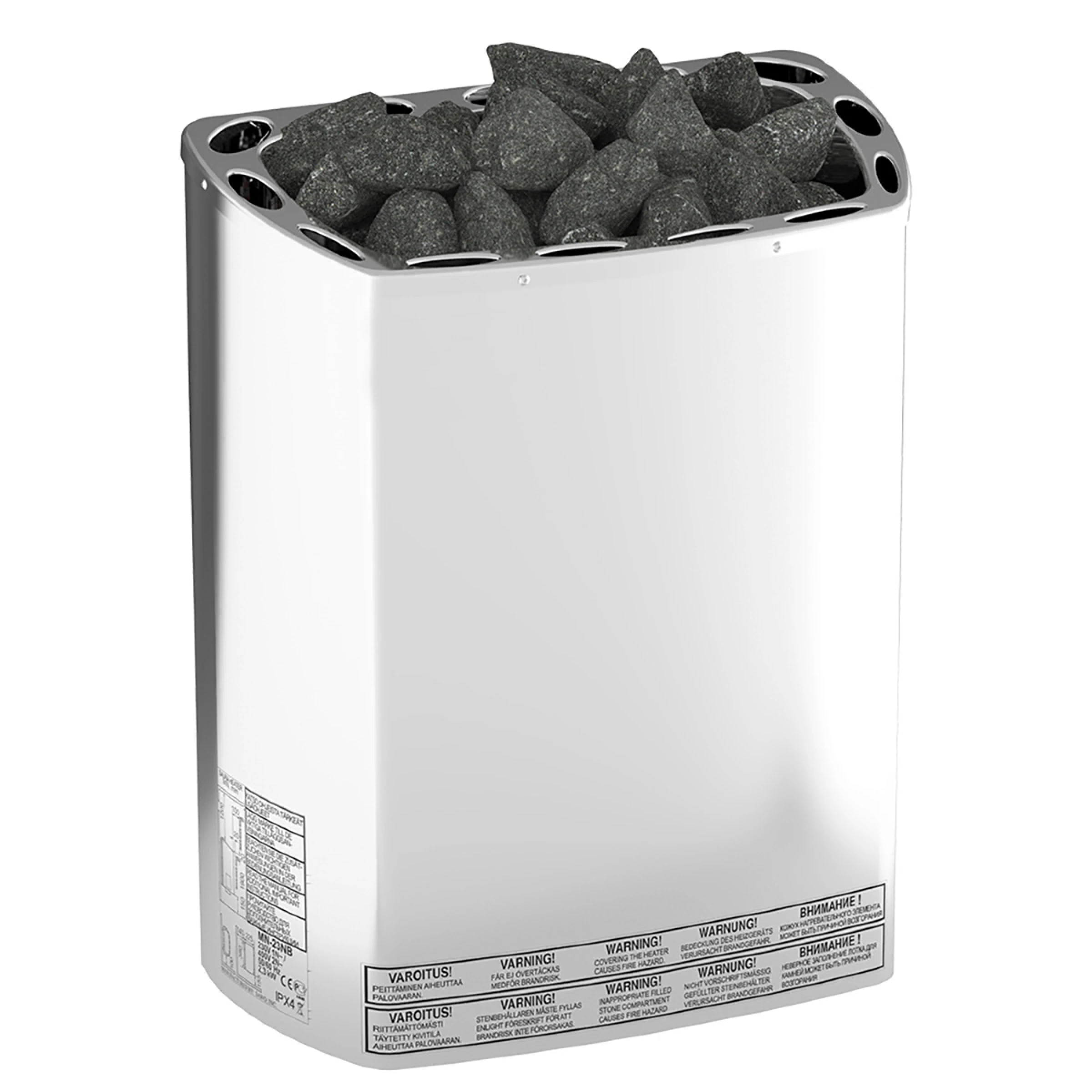

Mini heater is the best solution for small saunas (good for 1-2 persons). Its smaller body and moveable control panel can make the most of a very small space. Can hold 8 to 10,5kg stones. The Mini is available with separate control panel "NS" (not included). Available in 2.3kW, 3kW and 3.6kW.
Suitable control panels:
- HARVIA C170VKK (2,3-17kW).
- HARVIA CS110 (2,3-9kW).
- HARVIA CS170 (2,3-17kW).
- HARVIA C150 (2,3-17kW).
- HARVIA CX110 (2,3-11kW).
- HARVIA CX170 (2,3-17kW).
- HARVIA CF9 (2,3-9kW).
Technical data:
| Model | Output, kW | Sauna size, m3 | Stone capacity, kg | Weight without stones, kg | Cable, mm2 | Dimensions mm | ||
| width | depth | height | ||||||
| MN-23NS-Z | 2.3 | 1.3 - 2.5 | 8 - 10.5 | 6 | 3 x 2.5 / 4 x 1.5 | 330 | 215 | 455 |
| MN-30NS-Z | 3 | 2 - 4 | 8 - 10.5 | 6 | 3 x 2.5 / 4 x 1.5 | 330 | 215 | 455 |
| MN-36NS-Z | 3.6 | 3 - 6 | 8 - 10.5 | 6 | 3 x 2.5 / 4 x 1.5 | 330 | 215 | 455 |
Stones are not included!
