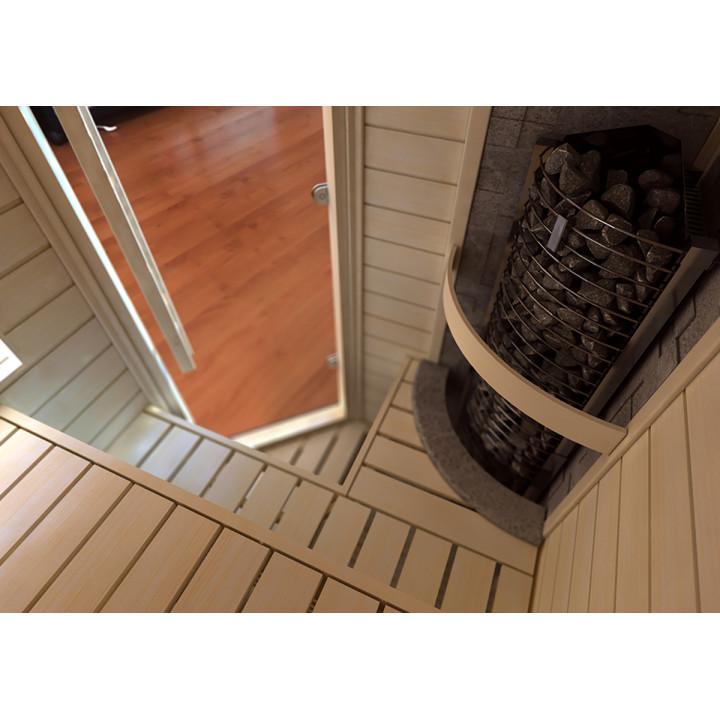

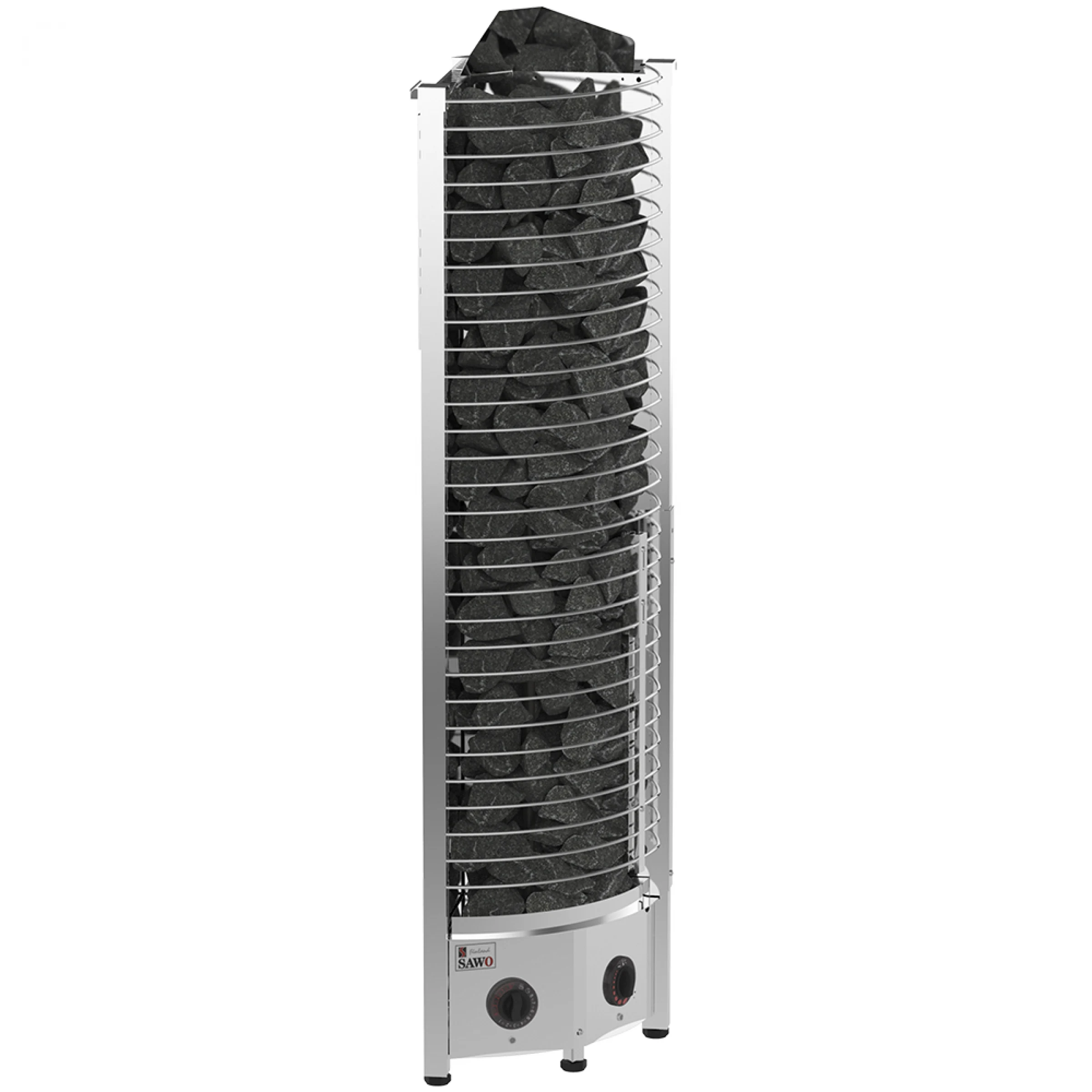

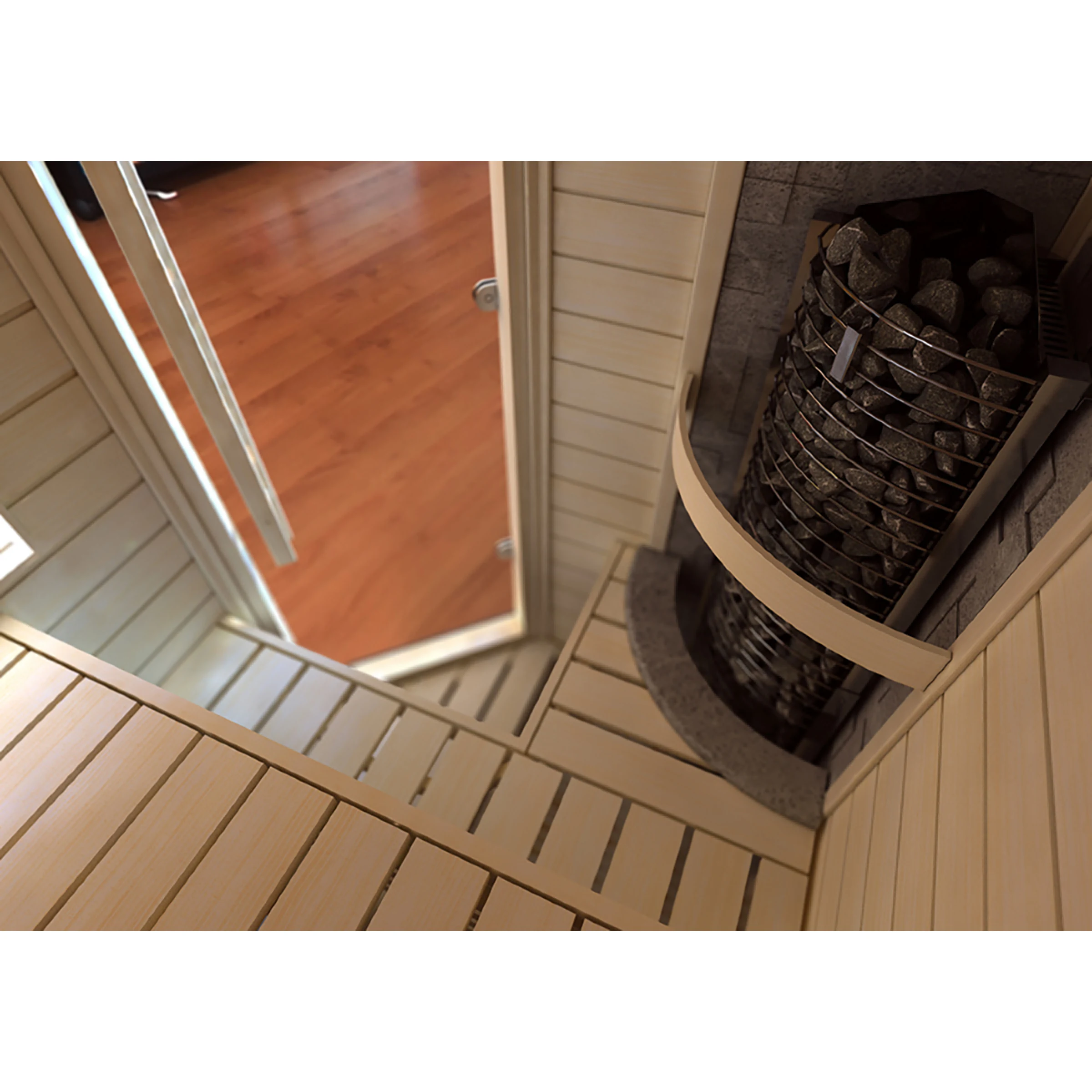

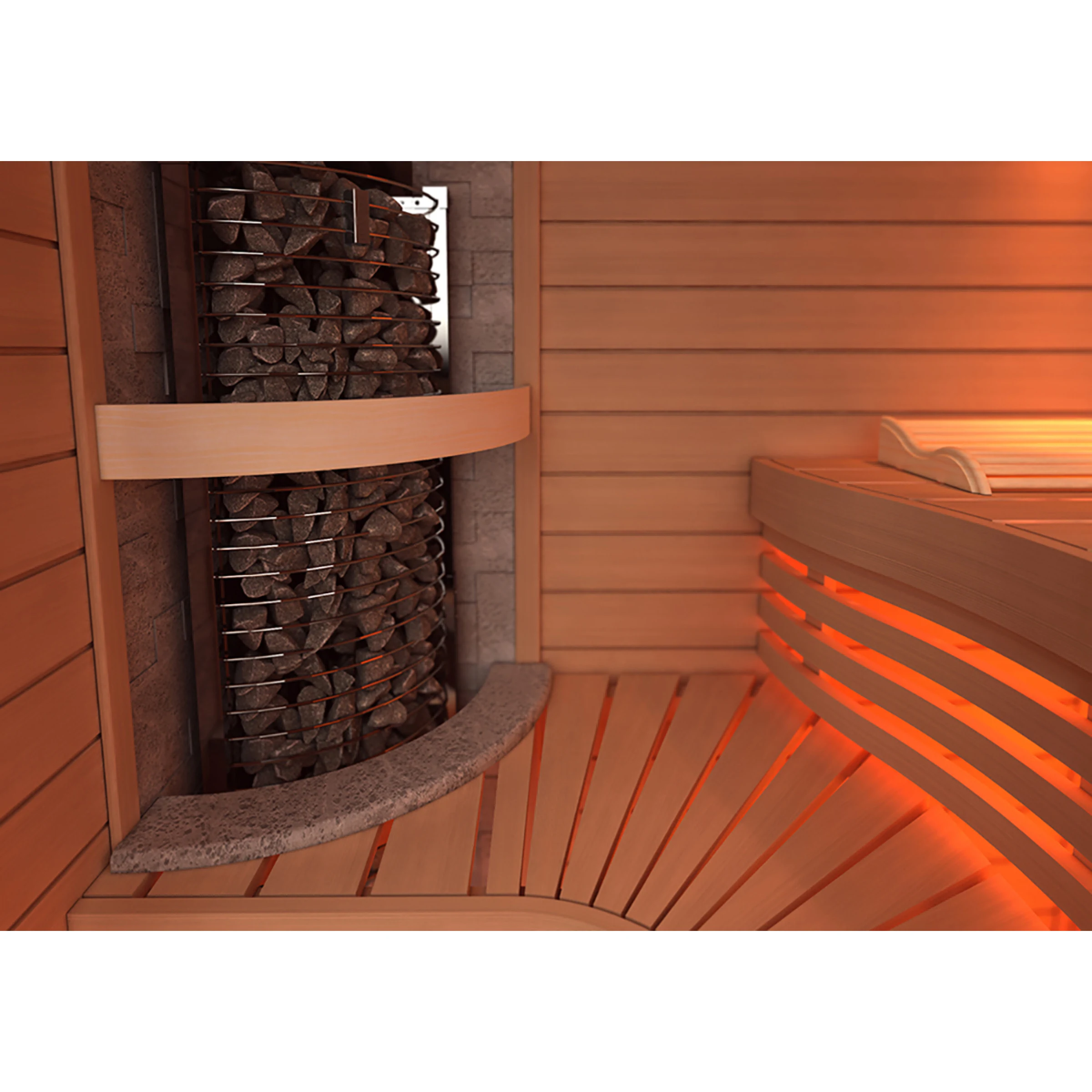

The tower-shaped corner stove will maximize the available space in the sauna room. The design of the stove provides more flexibility in the design of the sauna, especially when free space is limited. Due to the round and thin steel rods, most of the water is exposed to the stones, which creates a large amount of smooth steam in your sauna. The stove can be controlled with built-in or separate control units. Tower-NS models that require a separate control unit can be integrated into the lower stand with an embedding flange. The size of the oven and the maximum number of stones varies with the power.

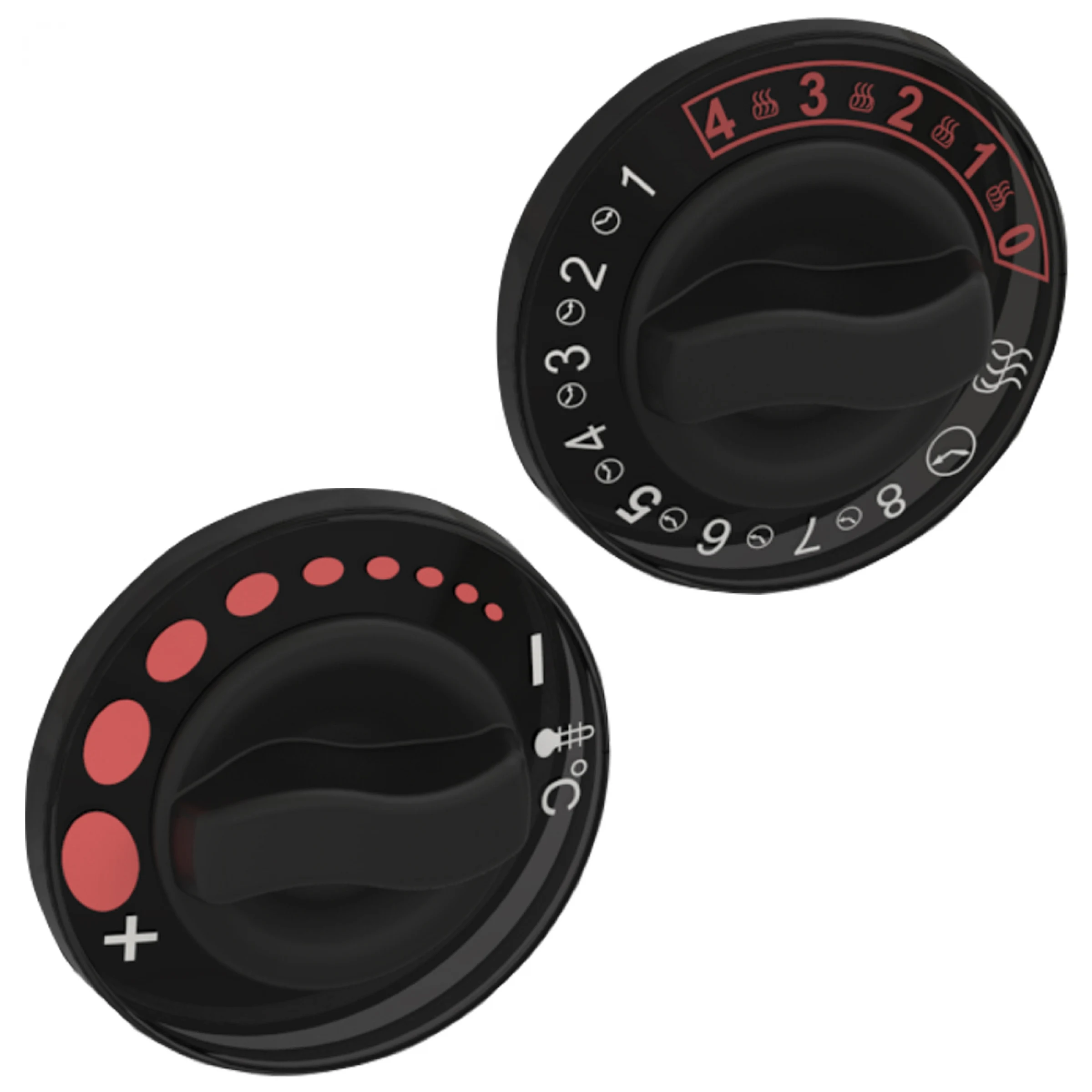

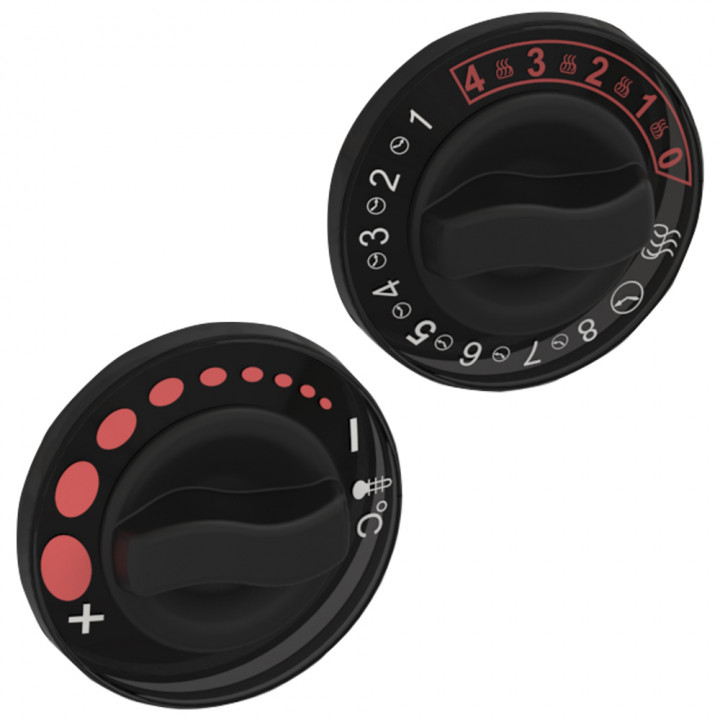

Integrated control settings:
Thermostat: adjust the temperature of the sauna simply by turning the control knob. The thermostat automatically maintains the selected temperature.
Timer: The timer has a 1-8 (white) hour preset time and a 1-4 (pink) hour run time.
Technical data:
| Model | Output, kW | Sauna size, m3 | Stone capacity, kg | Weight without stones, kg | Cable, mm2 | Dimensions mm | ||
| width | depth | height | ||||||
| TH3-35NB-CNR | 3.5 | 3 - 6 |
45 - 70 |
25 | 5 x 1,5 / 4 x 1,5 / 3 x 2,5 | 300 | 300 | 1380 |
| TH3-45NB-CNR | 4.5 | 3 - 6 |
45 - 70 |
25 | 3 x 10 / 3 x 16 / 1 x 25 | 300 | 300 | 1380 |
| TH3-60NB-CNR | 6 | 5 - 8 |
45 - 70 |
25 | 3 x 10 / 3 x 16 / 1 x 32 | 355 | 355 | 1380 |
| TH5-80NB-CNR | 8 | 8 - 14 | 80 - 105 | 32 | 3 x 16 / 3 x 32 / 1 x 40 | 355 | 355 | 1380 |
| TH6-80NB-CNR | 8 | 7 - 14 | 100 - 160 | 34 | 5 x 2,5 / 4 x 4,0 / 3 x 10 | 415 | 415 | 1380 |
| TH6-90NB-CNR | 9 | 8 - 15 | 100 - 160 | 34 | 5 x 2,5 / 4 x 4,0 / 3 x 10 | 415 | 415 | 1380 |
Compatible controllers:
HARVIA C170VKK (2.3-17kW).
HARVIA CS110 (2.3-9kW).
HARVIA CS170 (2.3-17kW).
HARVIA C150 (2.3-17kW).
HARVIA CX110 (2.3-11kW).
HARVIA CX170 (2.3-17kW).
HARVIA CF9 (2.3-9kW).
Stones are purchased separately!
