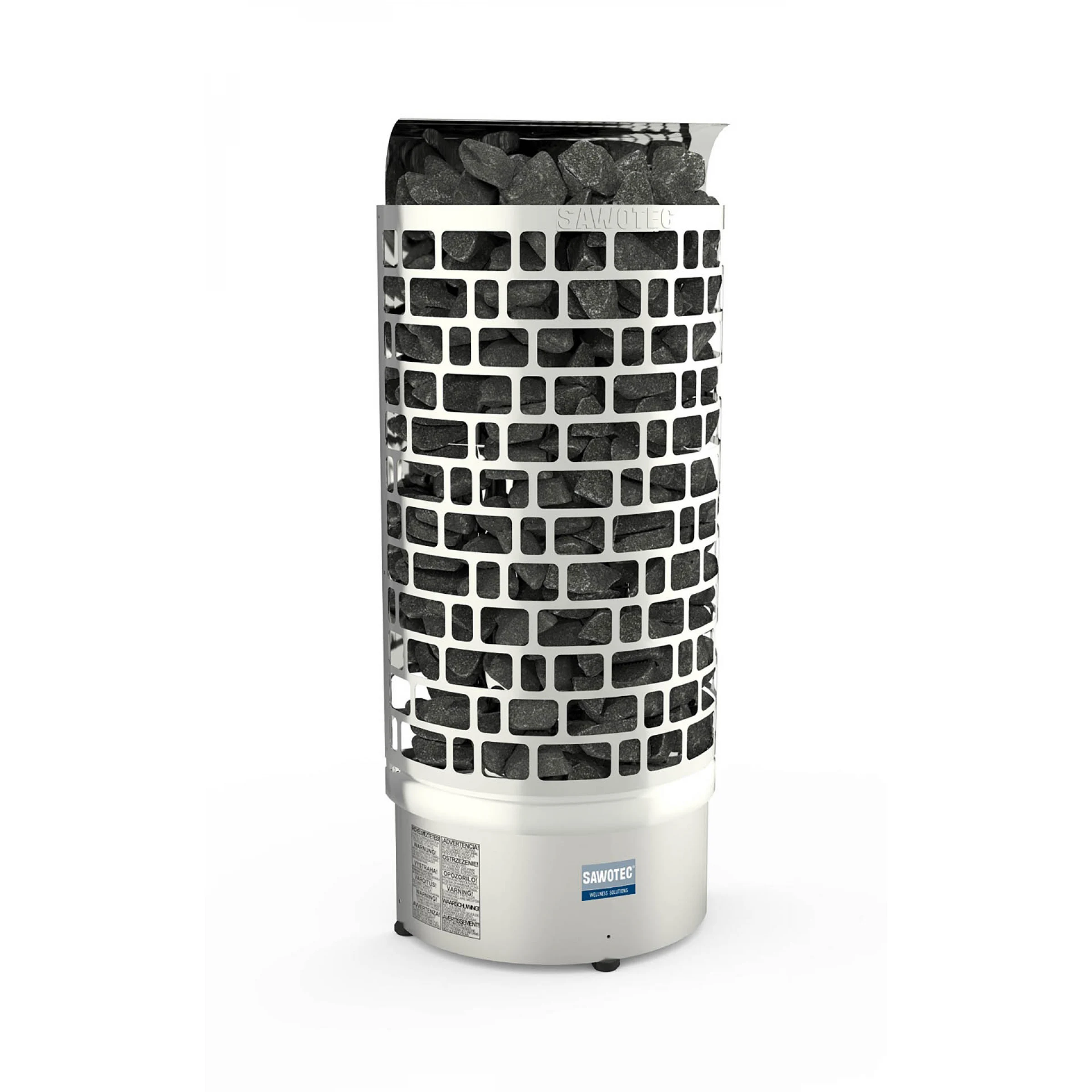

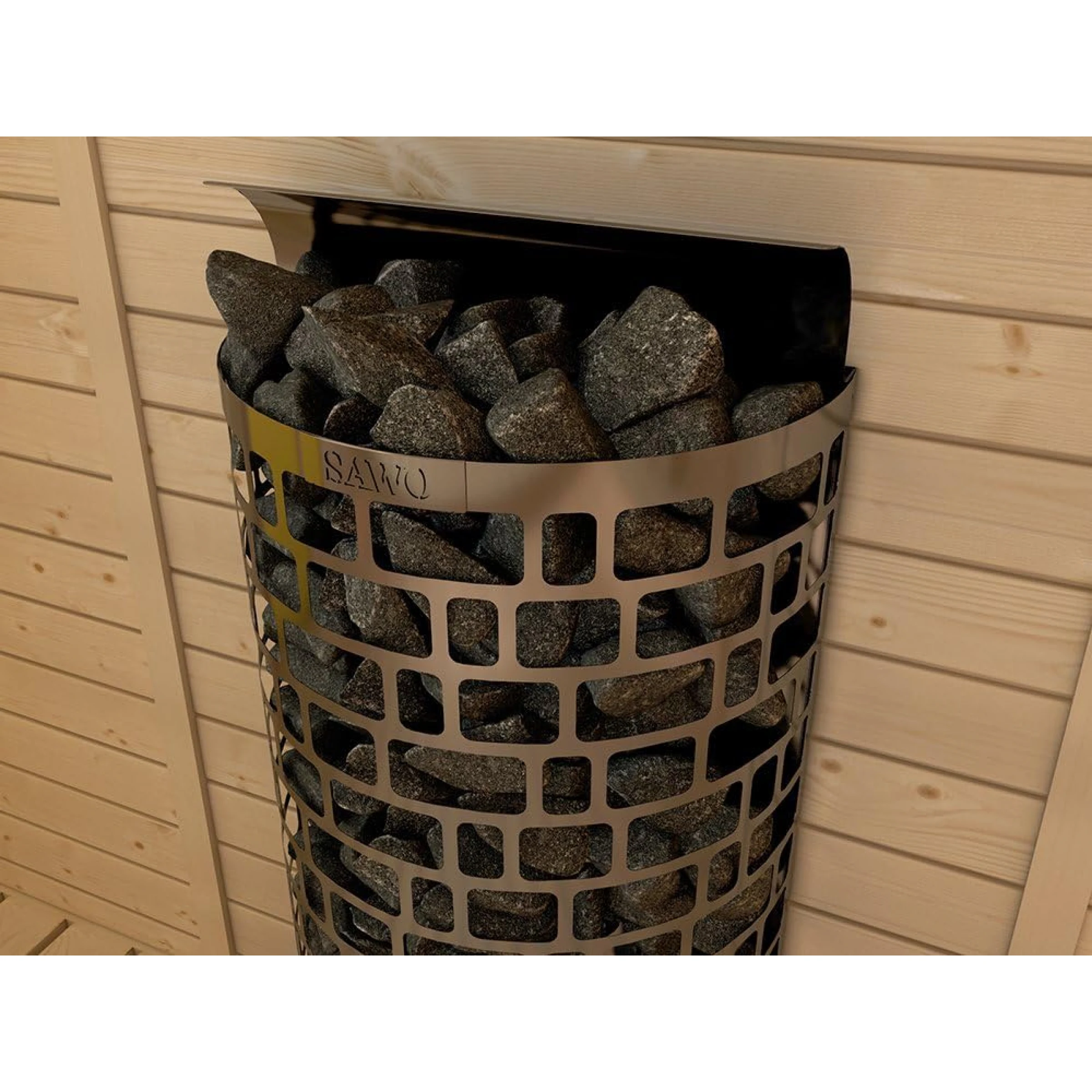

Aries is equipped with impressive sized stone space and fast heating capability. Outer casing is made of stainless steel. Wall Aries heater is best for narrow benches as it can lean on the sides of the wall. It can be controlled either with built-in or separate control units. For built-in Aries models timer and thermostat controls can switch sides. This allows more flexibility for heater location. Aries-NS models which requires separate control unit can be integrated into the lower bench with the help of an embedding flange.
Suitable control panels:
- Harvia C170VKK (2,3-17kW).
- Harvia CS110 (2,3-9kW).
- Harvia CS170 (2,3-17kW).
- Harvia C150 (2,3-17kW).
- Harvia CX110 (2,3-11kW).
- Harvia CX170 (2,3-17kW).
- Harvia CF9 (2,3-9kW).
Technical data:
| Model | Output, kW | Sauna size, m3 | Stone capacity, kg | Weight without stones, kg | Cable, mm2 | Dimensions mm | ||
| width | depth | height | ||||||
| ARI3-60NS-WL | 6 | 5 - 9 | 65 | 13 | 5 x 1,5 | 415 | 250 | 1030 |
| ARI3-75NS-WL | 7.5 | 7 - 12 | 65 | 13 | 5 x 2,5 | 415 | 250 | 1030 |
| ARI3-90NS-WL | 9 | 8 - 13 | 65 | 13 | 5 x 2,5 | 415 | 250 | 1030 |
Stones are not included!
