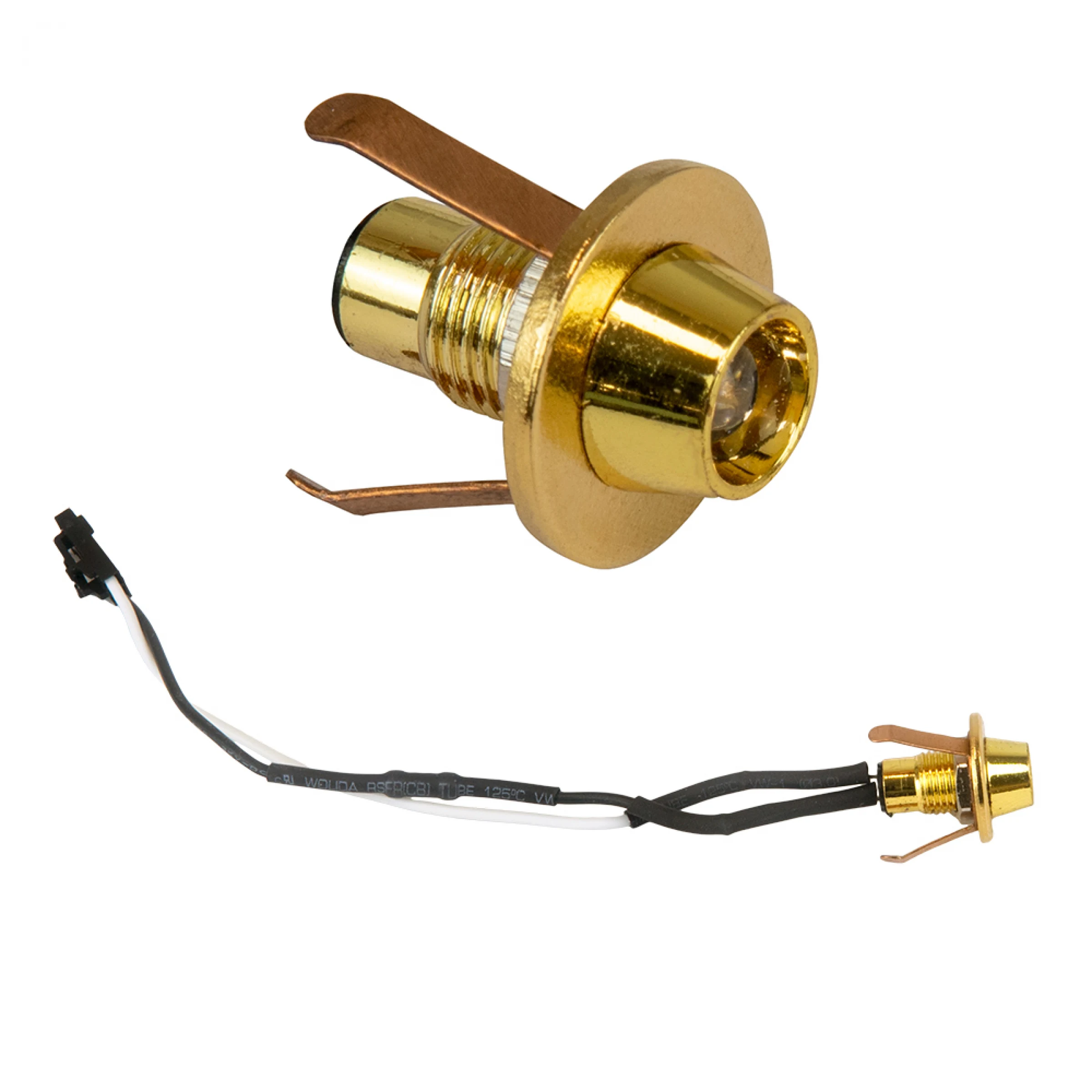

LedLite 12 is a set of twelve LED light points designed for decorative and accent lighting in a sauna. The compact gold-coloured fittings can be integrated into wall, ceiling or bench structures according to the sauna design and the manufacturer’s installation requirements.
The lights produce warm white light with a colour temperature of 3000 K. A 22° beam angle creates focused light accents and can be used to highlight selected areas of the sauna interior. Each light point requires a Ø 12 mm mounting hole.
The system operates on 12 V DC. The stated power of each LED light point is 0.35 W. A power supply and a connection distribution block for the individual LED lights are included in the set.
Installation must be carried out in accordance with the manufacturer’s instructions. The power supply and the IP20 connection block must be installed in a dry location or inside a suitably rated enclosure. The LED lights must not be installed within 500 mm of the outer edge of the sauna heater. Electrical connection work must be performed by a suitably qualified professional.
Technical information:
- Number of LED light points: 12
- Light colour: warm white
- Colour temperature: 3000 K
- Power per LED light point: 0.35 W
- Operating voltage: 12 V DC
- Beam angle: 22°
- Mounting hole diameter: Ø 12 mm
- Connecting cable temperature resistance: up to 180 °C
- Finish: gold-coloured

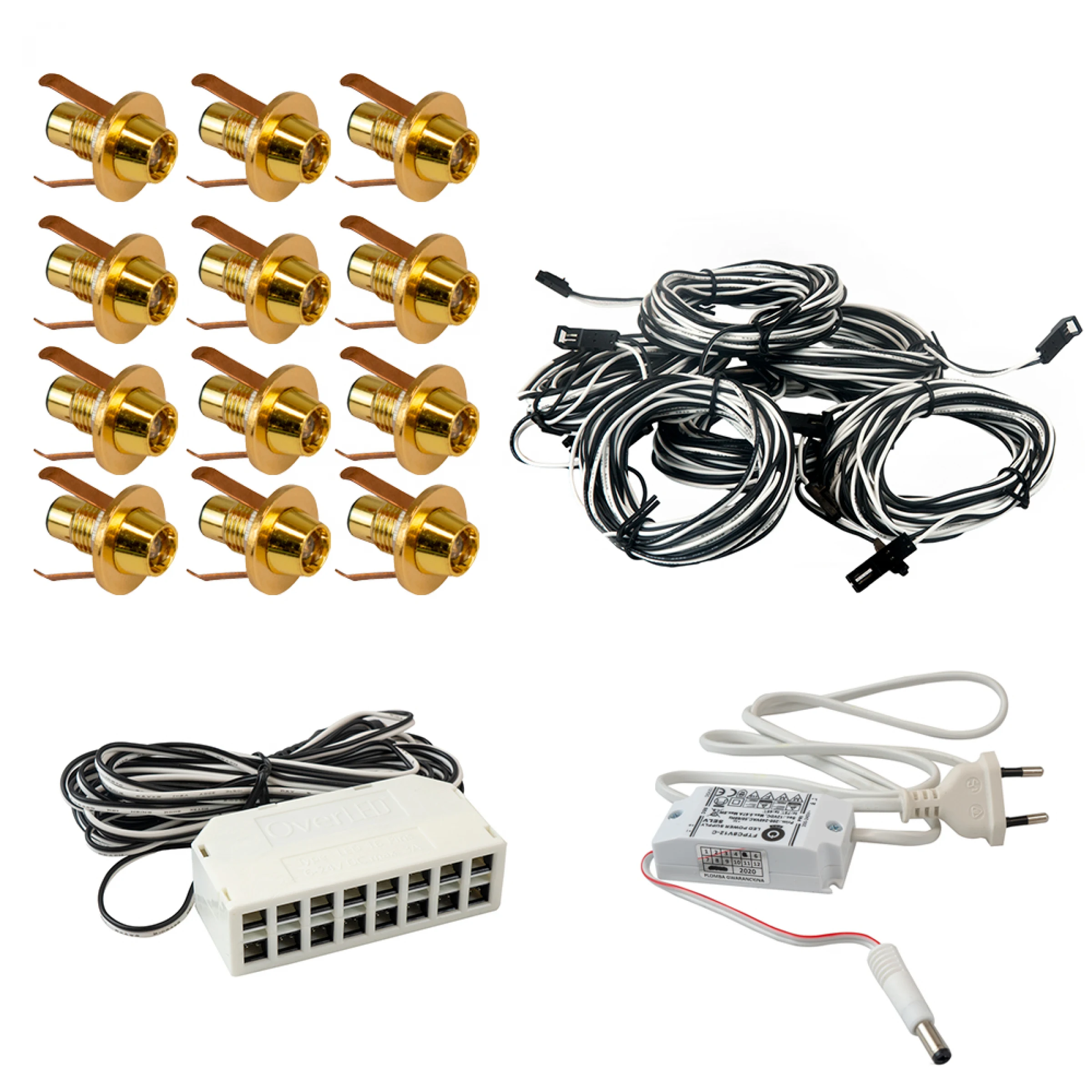

The set includes:
- 12 LED light fittings;
- 5 m connecting cables for the LED lights;
- 16-way connection distribution block;
- transformer;
- installation instructions.
The technical information and package contents are based on the current product information and the manufacturer’s installation manual.
