Teflon is a set of nine LED light points designed for decorative and accent lighting in a sauna. The recessed fittings produce warm white light with a colour temperature of 3000 K and can be installed in wall or ceiling panelling in accordance with the manufacturer’s installation requirements.
Each LED light point has a stated power of 0.3 W. The 80° beam angle provides wider lighting accents within the sauna. Each fitting requires a mounting hole with a diameter of Ø 13–16 mm.

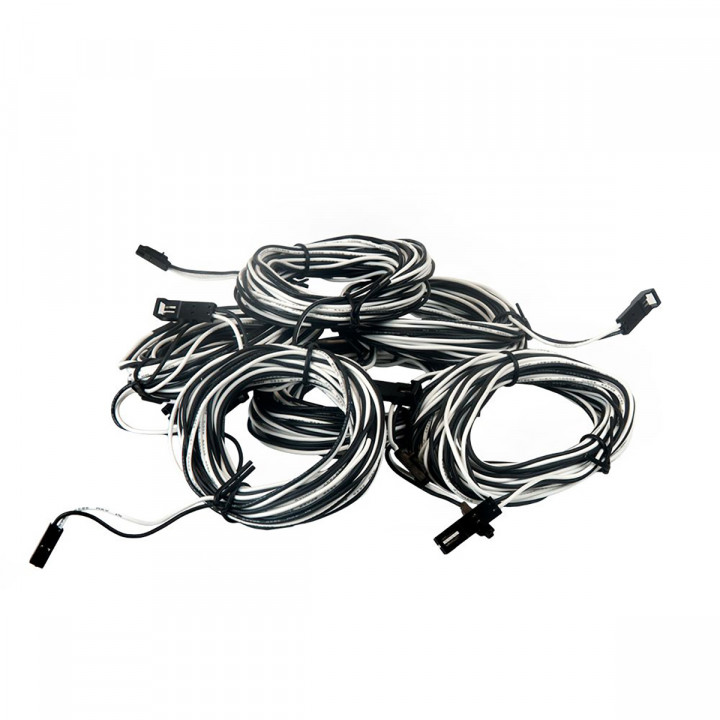

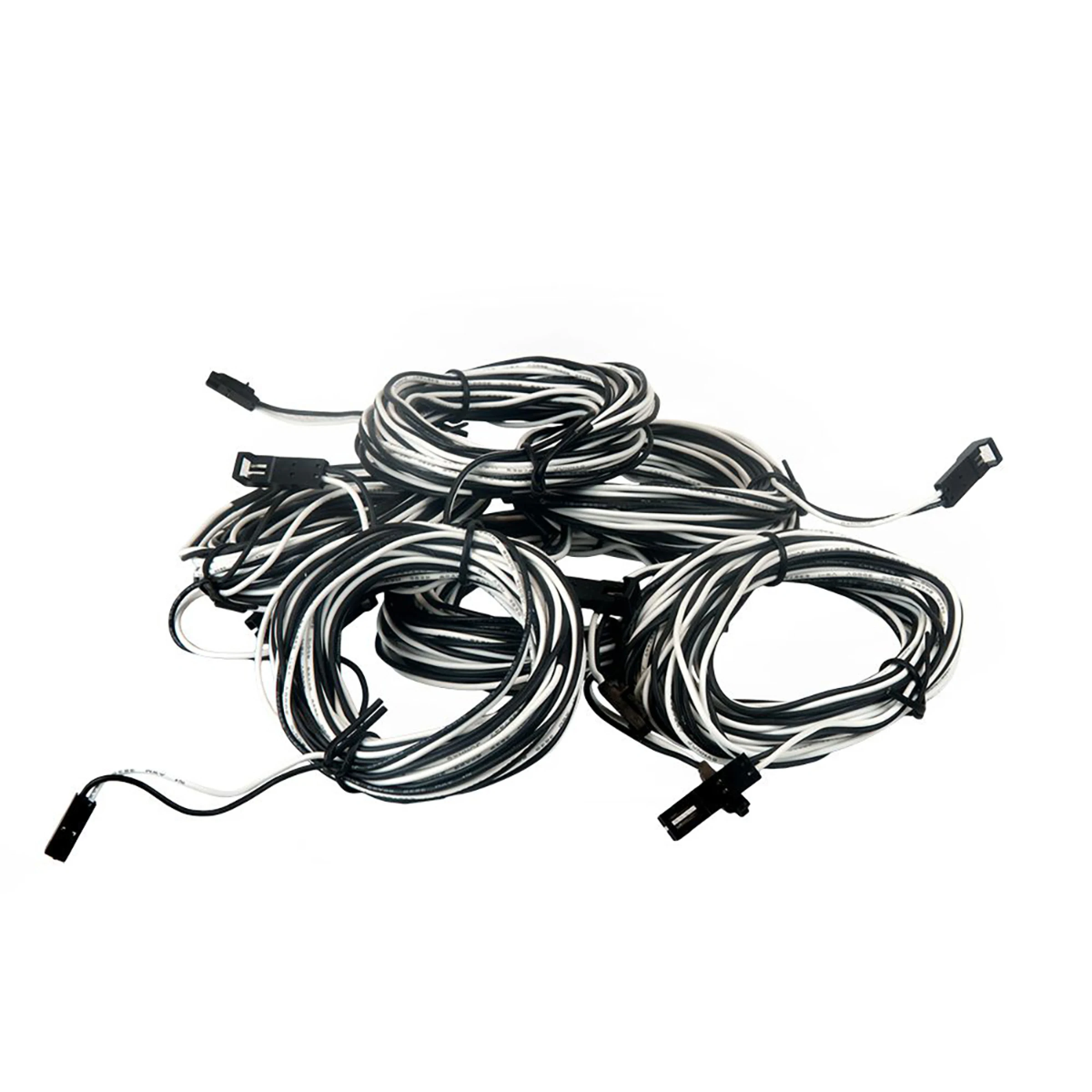

Each fitting is permanently connected to a heat-resistant cable. The set includes cables of different lengths: three 5 m cables, three 4 m cables and three 3 m cables. The stated maximum cable temperature is 170 °C.
The LED fittings have an IP44 protection rating. The transformer and connection distribution blocks are rated IP20 and must therefore be installed in a dry location. The fittings must be installed at least 500 mm from the sauna heater.
The fitting and its connecting cable form one integrated component. If an LED light point fails, the entire fitting must be replaced together with its cable. Electrical connection work must be performed by a suitably qualified professional in accordance with the manufacturer’s instructions.
Technical information:
- Number of LED light points: 9
- Power per LED light point: 0.3 W
- Light colour: warm white
- Colour temperature: 3000 K
- Beam angle: 80°
- LED system voltage: 12 V DC
- Mains supply voltage: 230 V AC
- Fitting protection rating: IP44
- Power supply and distribution component rating: IP20
- Mounting hole diameter: Ø 13–16 mm
- Stated maximum cable temperature: 170 °C

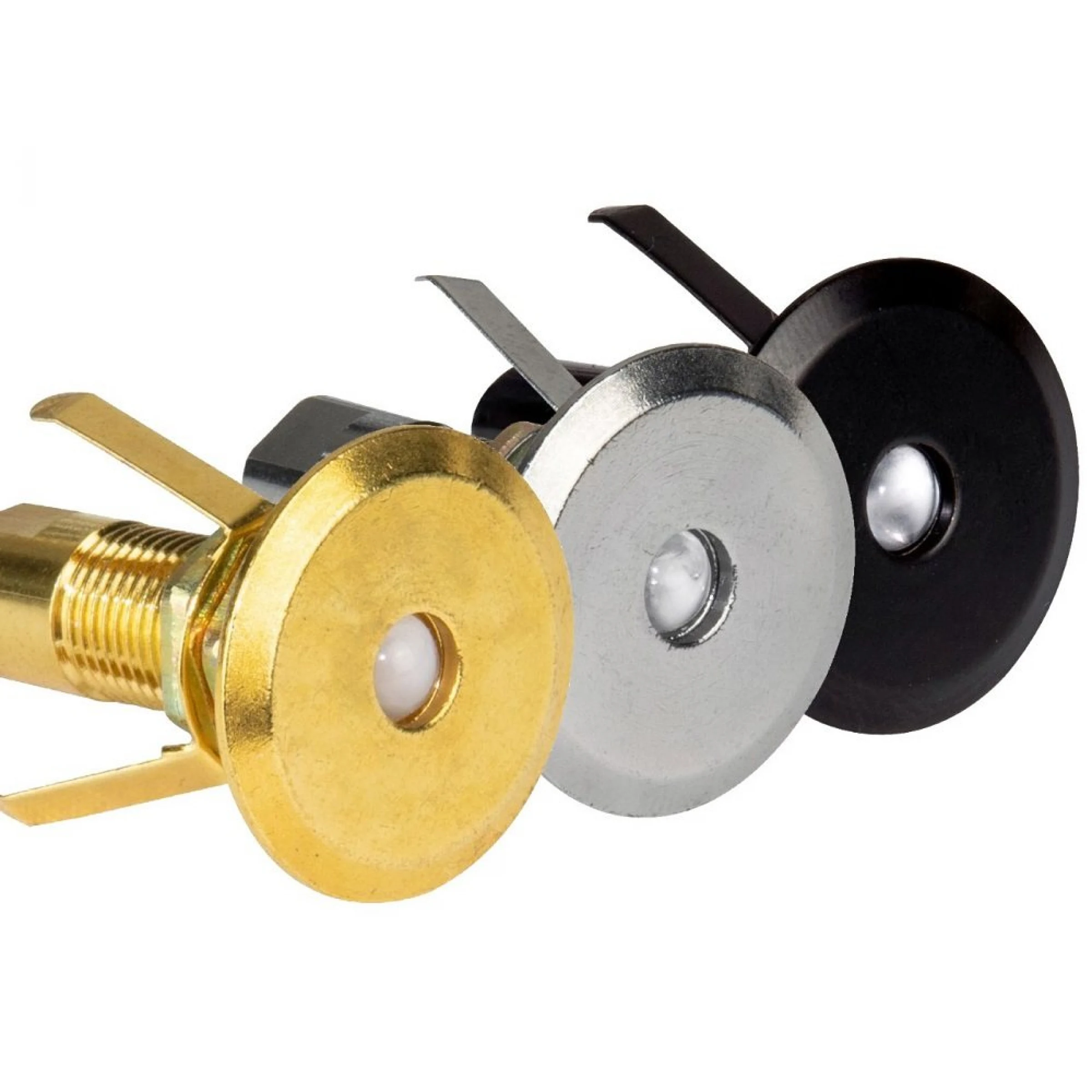

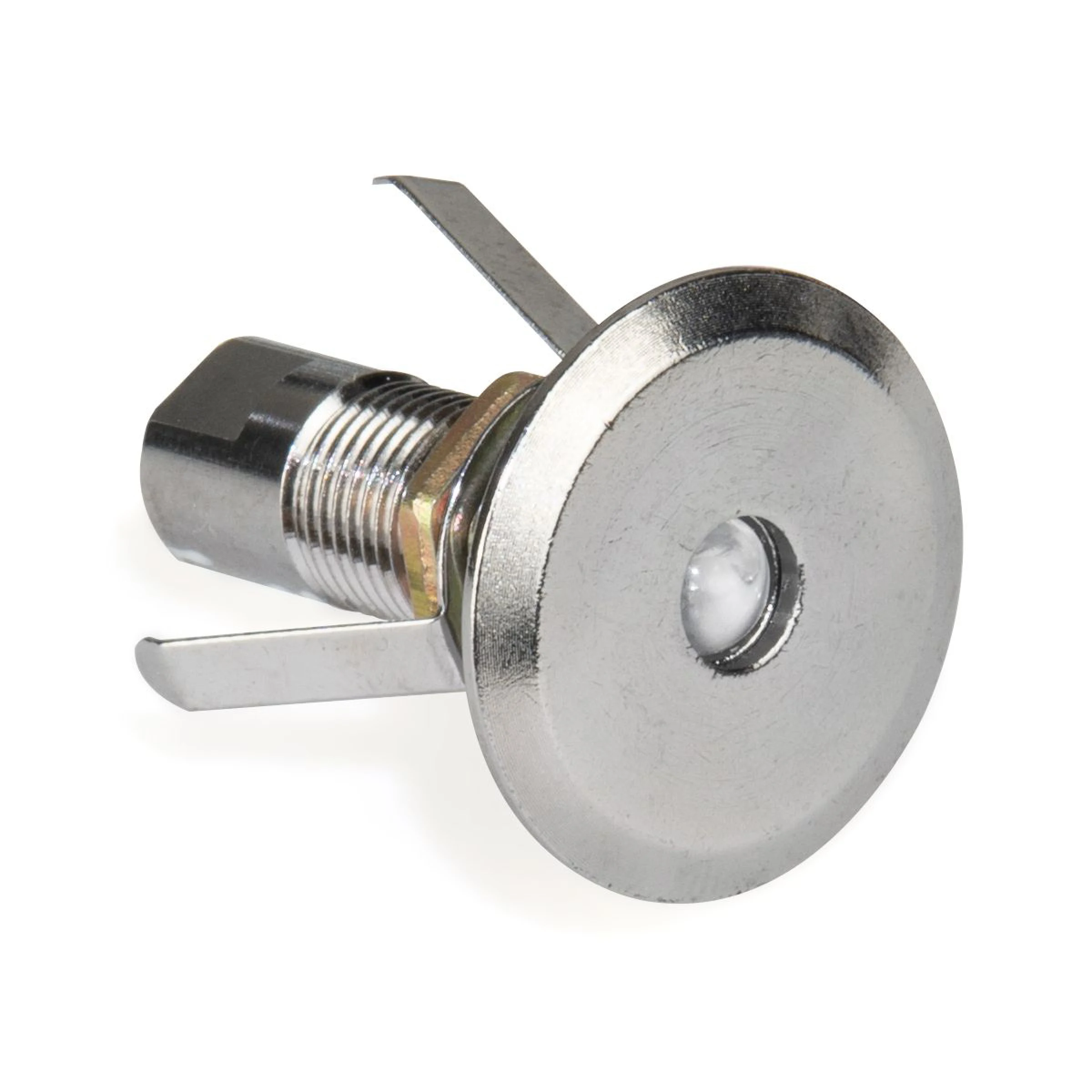

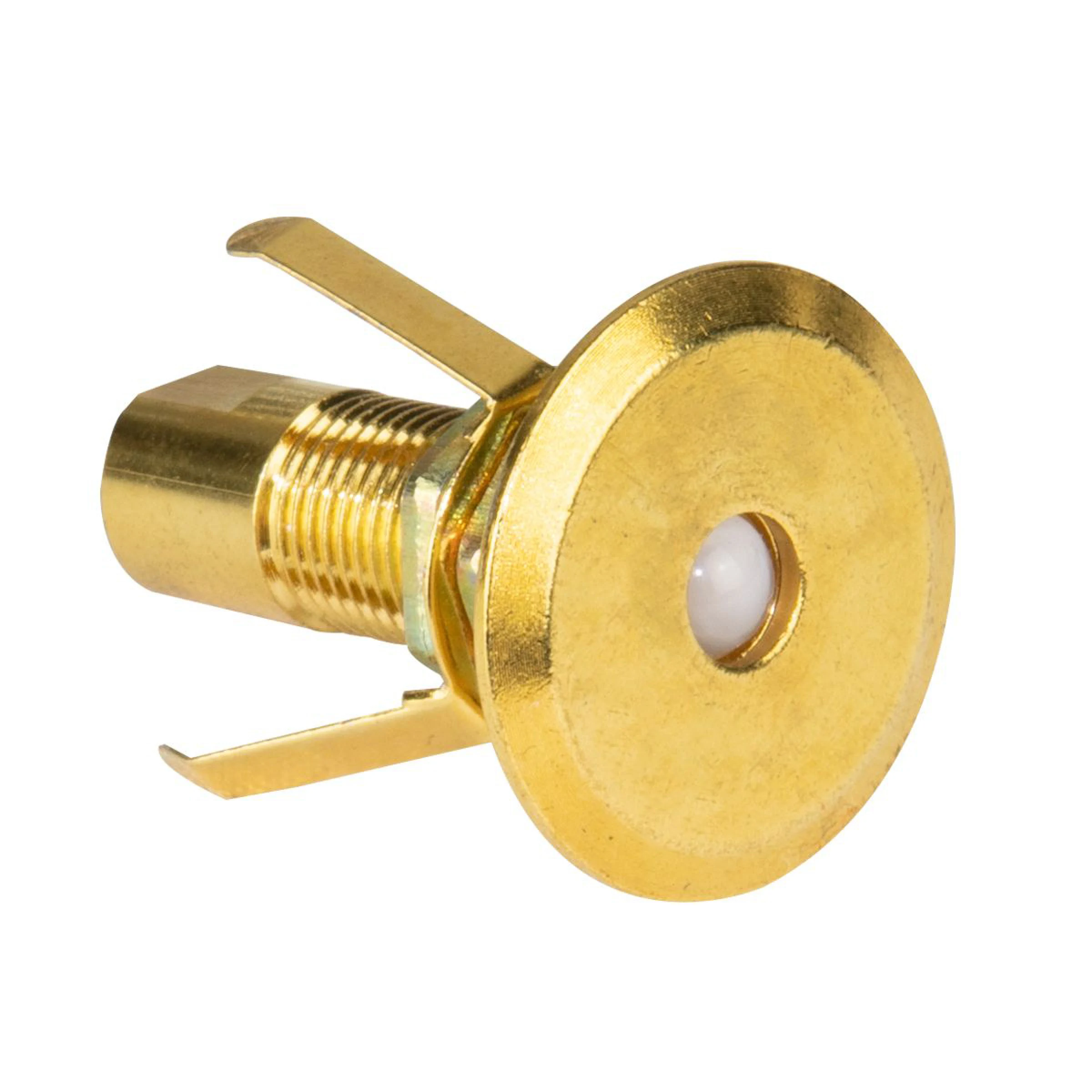

- Available fitting options: gold or silver
- Country of manufacture: Estonia

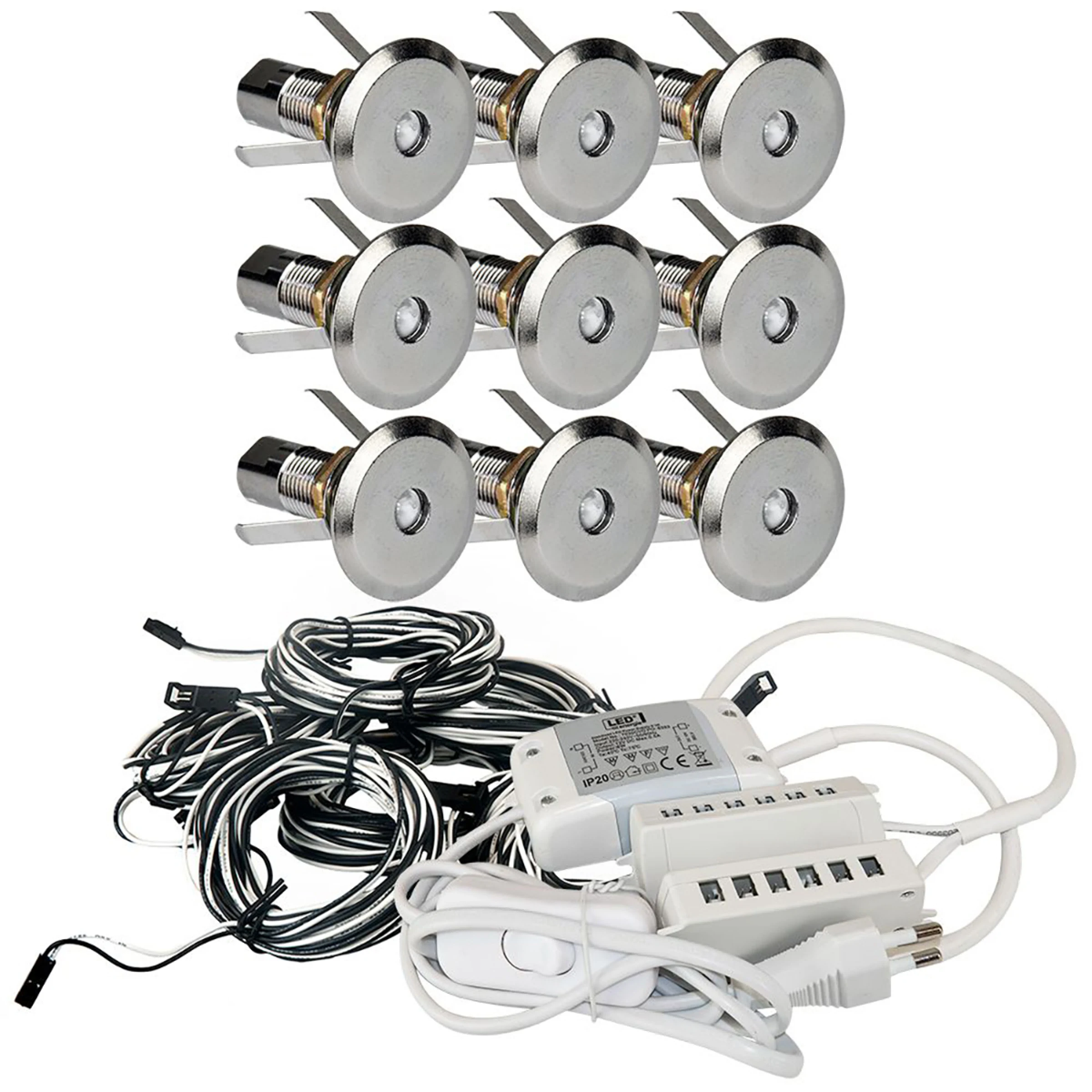

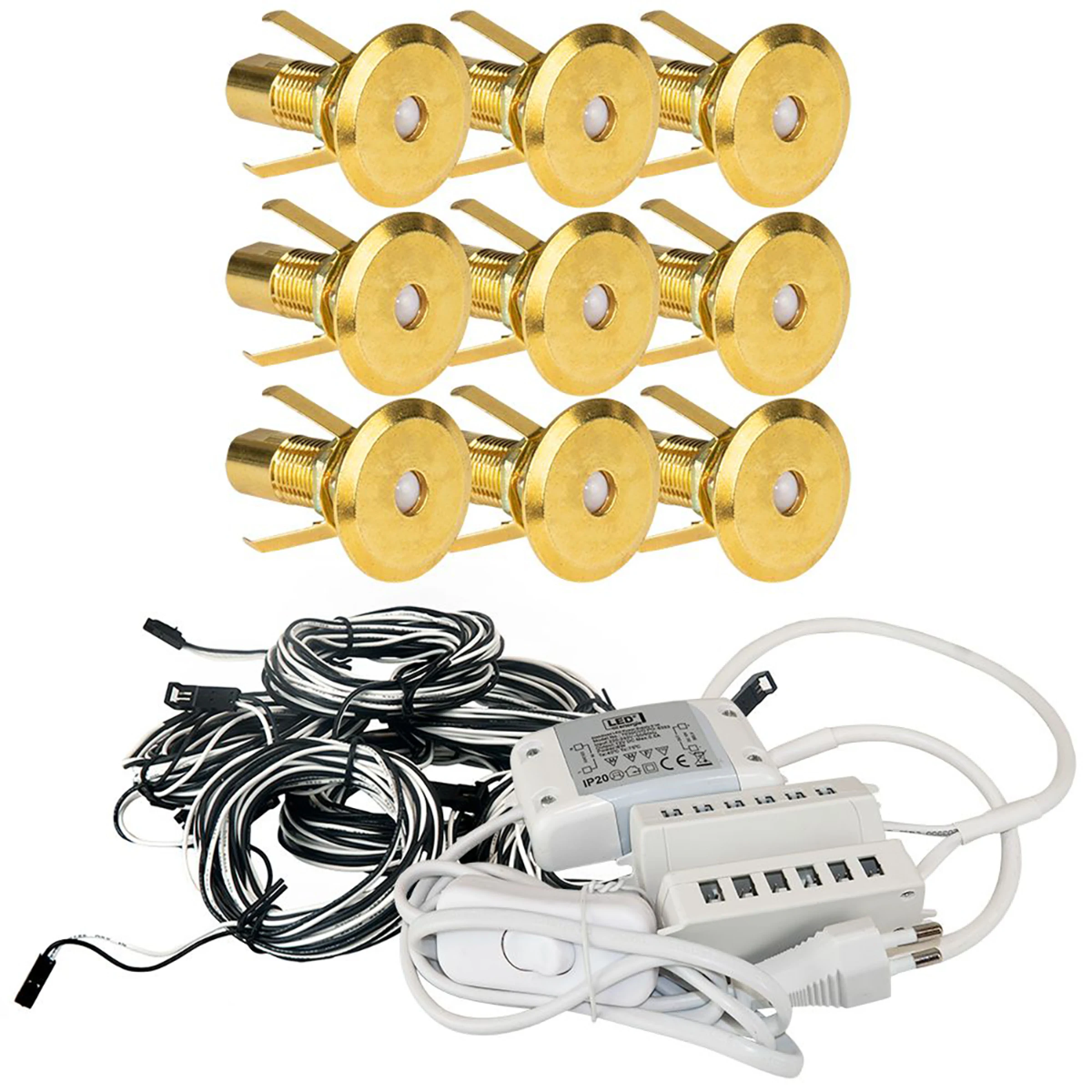

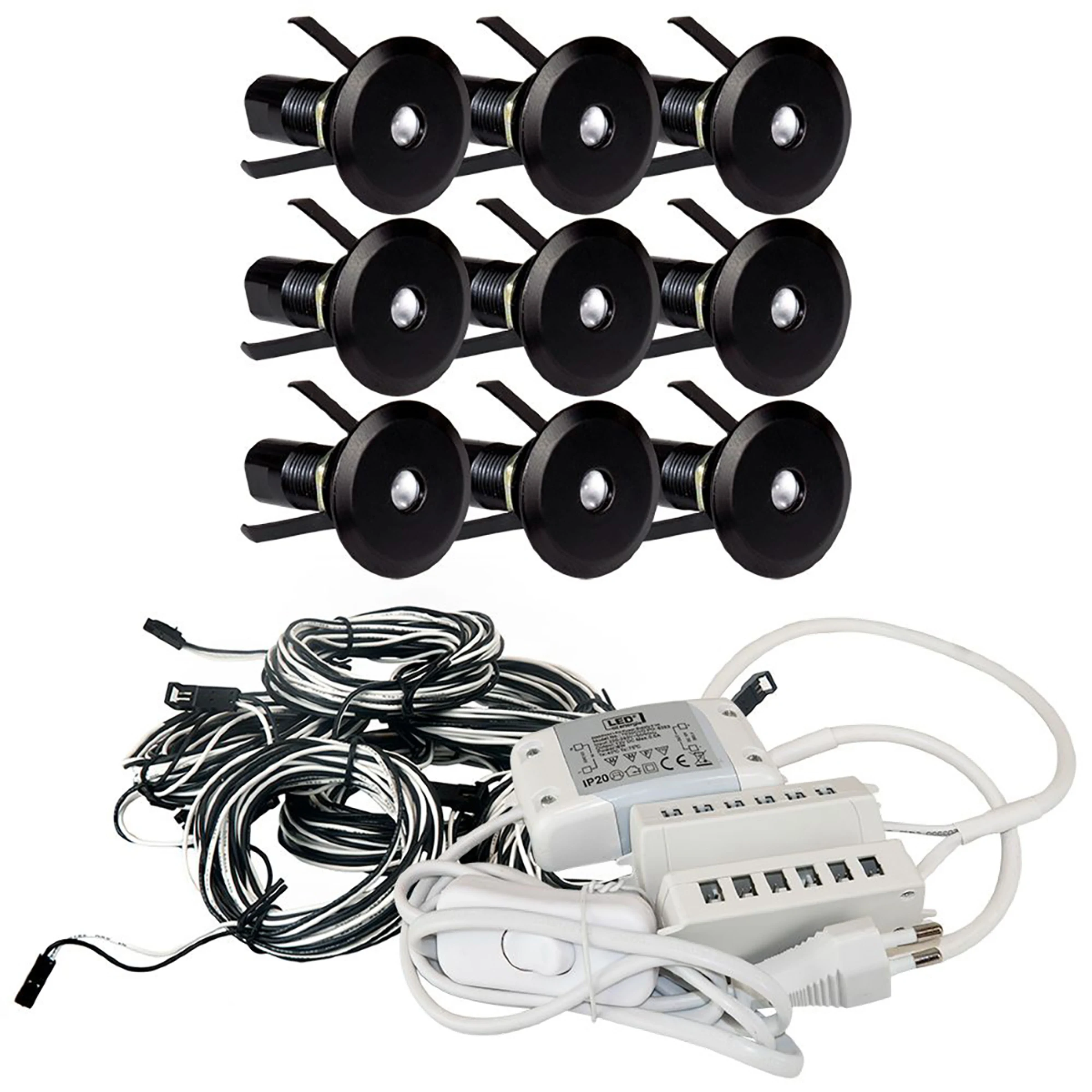

The set includes:
- 9 LED light fittings;
- 3 connecting cables, each 5 m long;
- 3 connecting cables, each 4 m long;
- 3 connecting cables, each 3 m long;

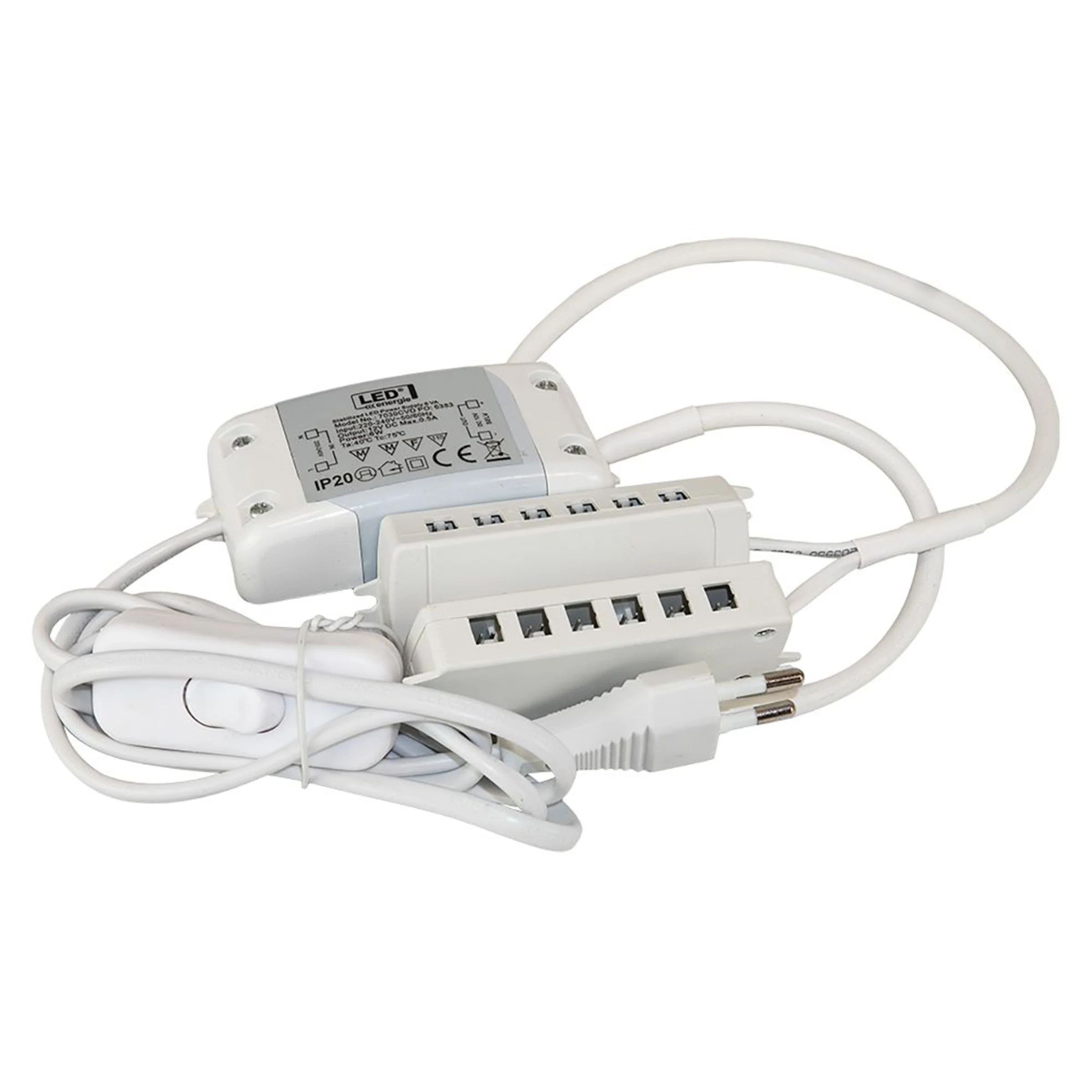

- transformer;
- two 12-way connection distribution blocks.
NOTE! The lamp part cannot be replaced in the event of a fault.
