LedLite 12 is a set of twelve LED light points designed for decorative and accent lighting in a sauna. The compact silver-coloured fittings can be integrated into wall or ceiling panelling according to the sauna design and the manufacturer’s installation requirements.
The lights produce warm white light with a colour temperature of 3000 K. The 22° beam angle creates focused light accents and can be used to highlight selected areas of the sauna interior. Each LED light point requires a Ø 12 mm mounting hole.
The system operates on 12 V DC. The stated power of each LED light point is 0.35 W. The lights are connected to the transformer through the included 16-way connection distribution block.
The connecting cables may be installed between the wooden panelling and the vapour barrier. The product specifications and the English section of the installation manual state a cable temperature resistance of up to 180 °C.
Installation must be carried out in accordance with the manufacturer’s instructions. The transformer and the IP20 connection block must be installed in a dry location or inside a suitably rated enclosure. The LED lights must be installed at least 500 mm from the outer edge of the sauna heater. Connection to the 230 V mains supply must be carried out by a suitably qualified professional.
Technical information:
- Number of LED light points: 12
- Light colour: warm white
- Colour temperature: 3000 K
- Power per LED light point: 0.35 W
- Operating voltage: 12 V DC
- Beam angle: 22°
- Mounting hole diameter: Ø 12 mm
- Connecting cable temperature resistance: up to 180 °C
- Stated maximum cable length: 15 m when using a 1.5 mm² cable
- Finish: silver-coloured

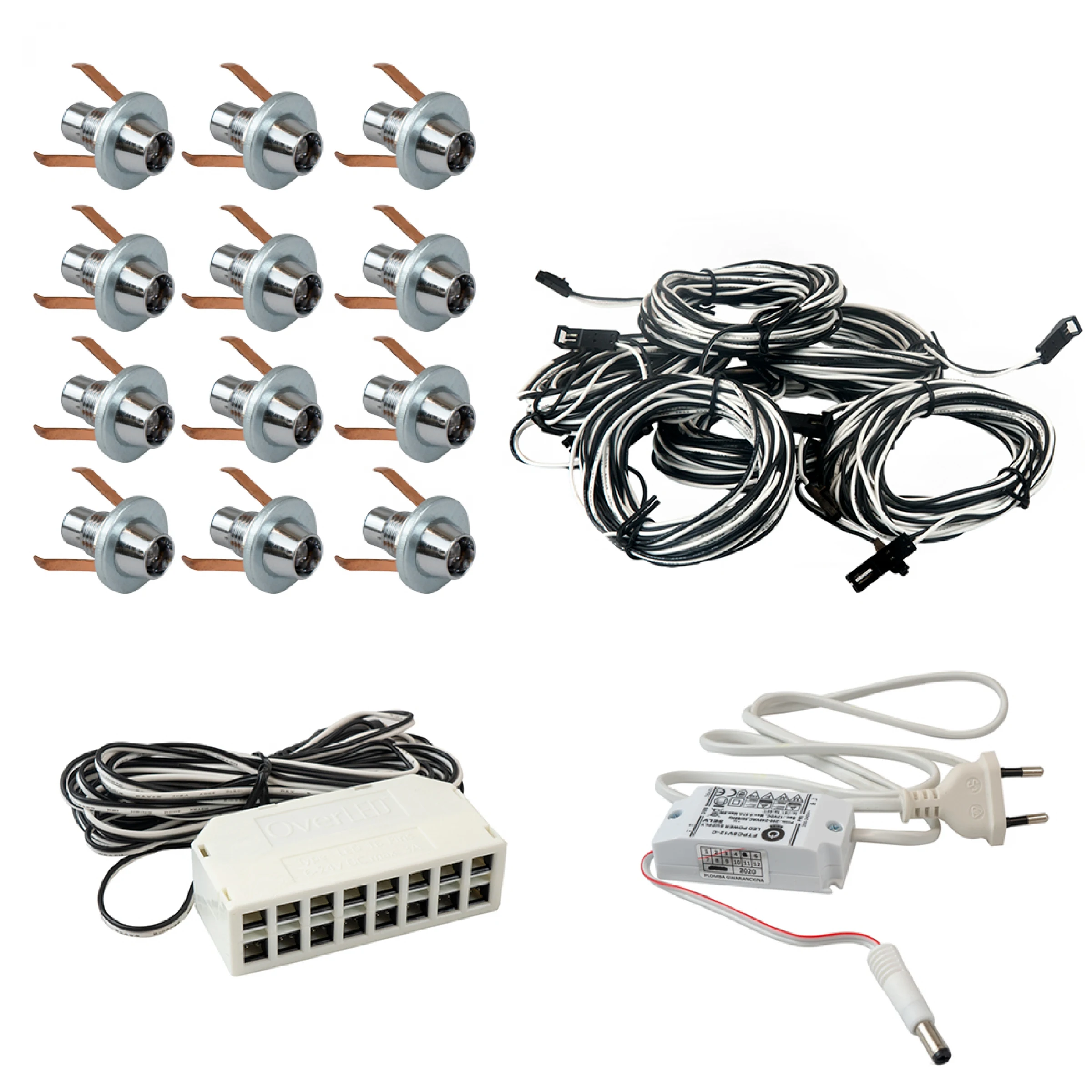

The set includes:
- 12 LED light fittings;
- 12 connecting cables, each 5 m long;
- 16-way IP20 connection distribution block;
- 12 V DC transformer;
- installation instructions.
