LedLite 9 is a set of nine LED light points designed for decorative and accent lighting in a sauna. The compact gold-coloured fittings can be integrated into wall, ceiling or other sauna interior structures according to the room design and the manufacturer’s installation instructions.
The lights produce warm white light with a colour temperature of 3000 K. The 22° beam angle is suitable for creating focused light accents and illuminating selected areas of the sauna interior. Each LED light point requires a Ø 12 mm mounting hole.
The system operates on 12 V DC. The stated power of each LED light point is 0.35 W. The individual lights are connected to the power supply through the included 16-way connection distribution block.
The connecting cables may be installed between the wooden panelling and the vapour barrier. The English section of the manufacturer’s installation manual specifies cable temperature resistance of up to 180 °C.
The transformer and the IP20 connection distribution block must be installed in a dry location or inside a suitably rated enclosure. The LED lights must not be installed within the sauna heater safety zone. A minimum distance of 500 mm must be maintained from the outer edge of the heater. Electrical connection work must be performed by a suitably qualified professional.
Technical information:
- Number of LED light points: 9
- Light colour: warm white
- Colour temperature: 3000 K
- Power per LED light point: 0.35 W
- Operating voltage: 12 V DC
- Beam angle: 22°
- Mounting hole diameter: Ø 12 mm
- Connecting cable temperature resistance: up to 180 °C
- Stated maximum cable length: 15 m when using a 1.5 mm² cable
- Transformer protection rating: IP20
- Connection distribution block protection rating: IP20
- Finish: gold-coloured
- Country of manufacture: Estonia

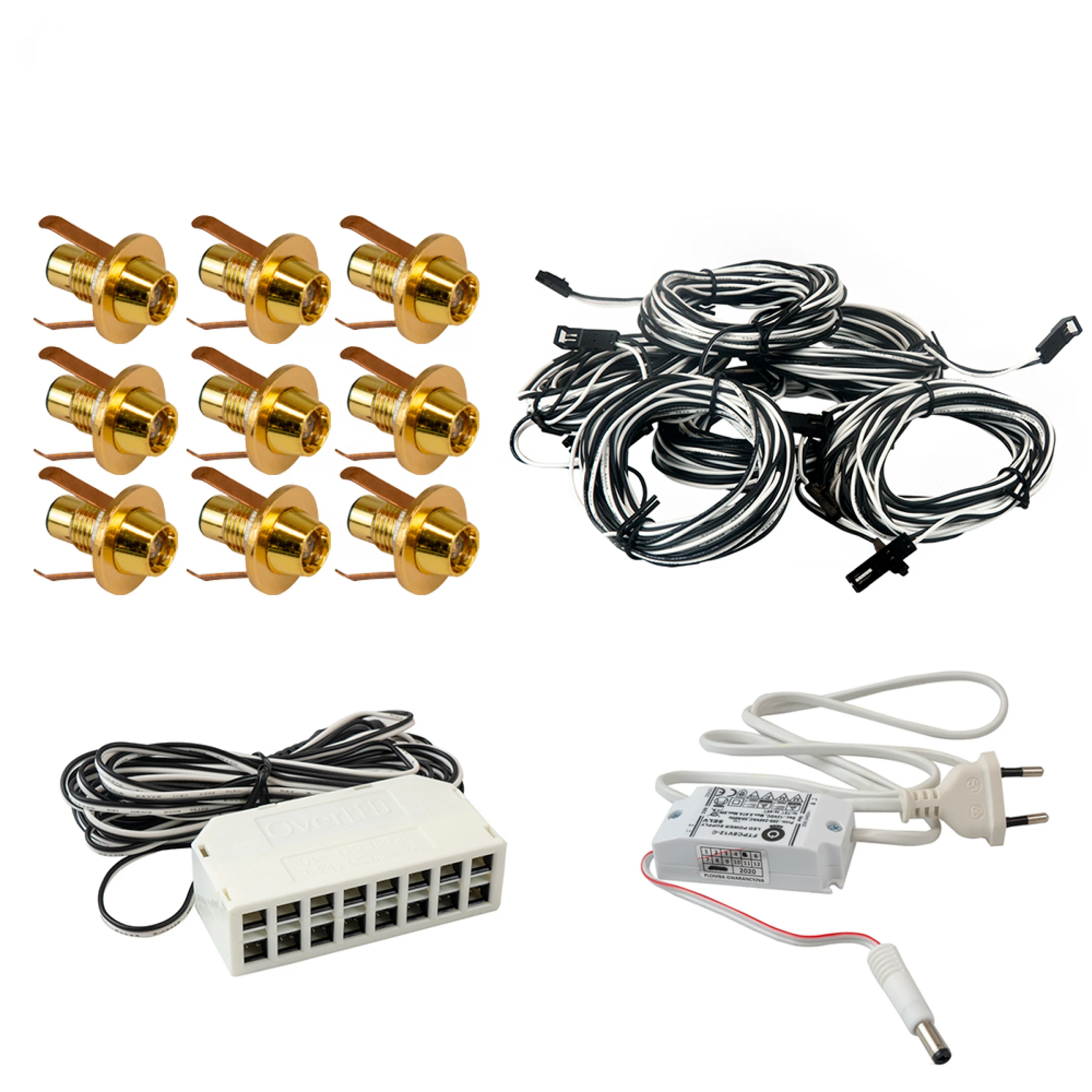

The set includes:
- 9 LED light fittings;
- 9 connecting cables, each 5 m long;
- 16-way IP20 connection distribution block;
- 6 W, 12 V DC transformer;
- installation instructions.
