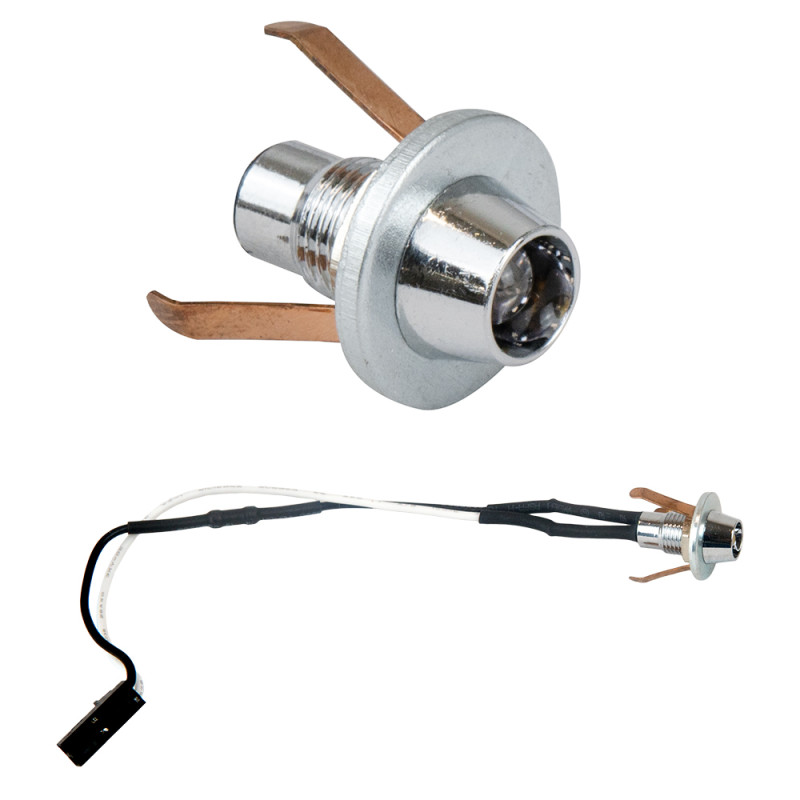

LedLite 9 is a set of nine LED light points designed for decorative and accent lighting in a sauna. The compact silver fittings can be integrated into wall or ceiling panelling in accordance with the manufacturer’s installation instructions.
The lights produce warm white light with a colour temperature of 3000 K. The 22° beam angle is suitable for creating focused lighting accents and illuminating selected areas of the sauna interior. Each LED light point requires a Ø 12 mm mounting hole.
The system operates on 12 V DC. The stated power of each LED light point is 0.35 W. The lights are connected to the transformer through the included 16-way connection distribution block.
The connecting cables may be installed between the wooden panelling and the vapour barrier. The transformer and the IP20 connection distribution block must be installed in a dry location or inside an enclosure with an appropriate protection rating.
The LED lights must not be installed within the sauna heater safety zone. A minimum distance of 500 mm must be maintained from the outer edge of the heater. Connection of the transformer to the 230 V mains supply must be carried out by a suitably qualified professional.
Technical information:
-
Number of LED light points: 9
-
Light colour: warm white
-
Colour temperature: 3000 K
-
Power per LED light point: 0.35 W
-
Operating voltage: 12 V DC
-
Transformer: 6 W, 12 V DC
-
Beam angle: 22°
-
Mounting hole diameter: Ø 12 mm
-
Connecting cable temperature resistance: up to 180 °C
-
Stated maximum cable length: 15 m when using a 1.5 mm² cable
-
Transformer protection rating: IP20
-
Connection distribution block protection rating: IP20
-
Finish: silver
-
Country of manufacture: Estonia

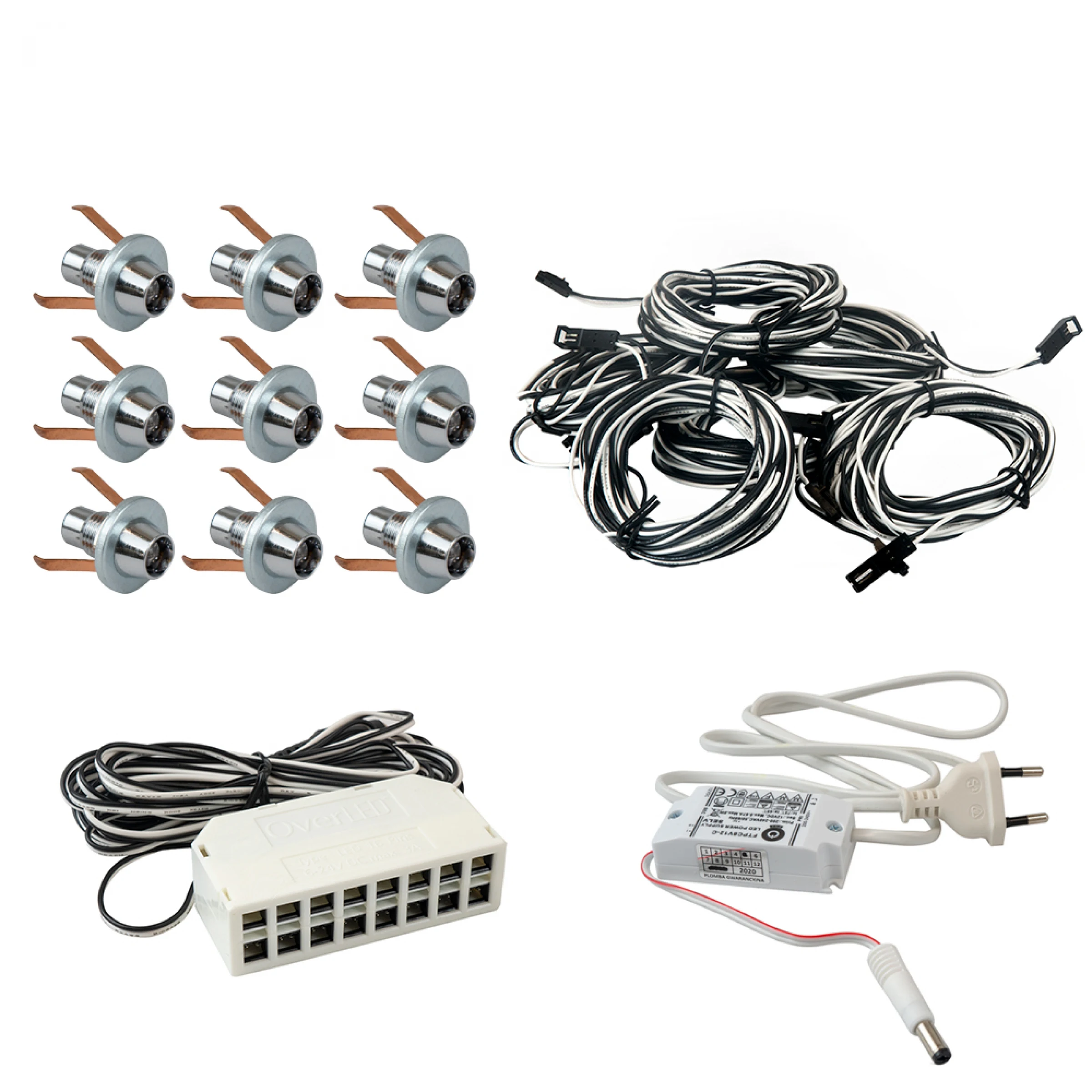

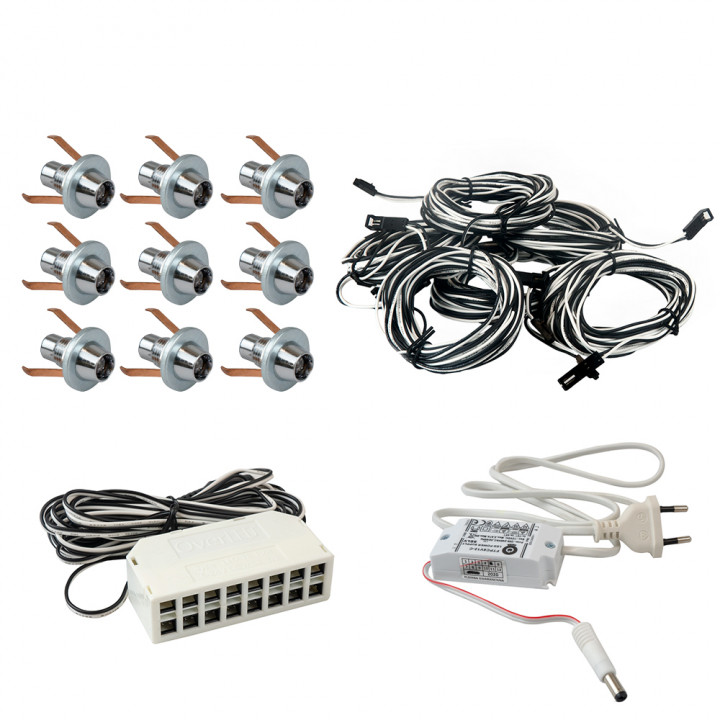

The set includes:
-
9 LED light fittings;
-
9 connecting cables, each 5 m long;
-
16-way IP20 connection distribution block;
-
6 W, 12 V DC transformer;
-
installation instructions.
