LedLite 6 is a set of six LED light points designed for decorative and accent lighting in a sauna. The compact black fittings can be integrated into wall, ceiling or other sauna interior structures according to the room design and the manufacturer’s installation instructions.
The lights produce warm white light with a colour temperature of 3000 K. The 22° beam angle is suitable for creating focused light accents and illuminating selected areas of the sauna interior. Each LED light point requires a Ø 12 mm mounting hole.
The system operates on 12 V DC. The stated power of each LED light point is 0.35 W. The individual lights are connected to the power supply through the included connection distribution block.
The connecting cables can be concealed within the sauna panelling structure in accordance with the manufacturer’s installation requirements. The LED lights must not be installed within the sauna heater safety zone. The stated minimum distance from the heater is 500 mm.
Installation must be carried out in accordance with the manufacturer’s instructions, taking into account the protection ratings of the individual system components. Connection to the mains electrical supply must be performed by a suitably qualified professional.
Technical information:
- Number of LED light points: 6
- Light colour: warm white
- Colour temperature: 3000 K
- Power per LED light point: 0.35 W
- Operating voltage: 12 V DC
- Beam angle: 22°
- Mounting hole diameter: Ø 12 mm
- Stated maximum connecting cable temperature: 180 °C
- Stated maximum cable length: 15 m when using a 1.5 mm² cable
- Finish: black
- Country of manufacture: Estonia

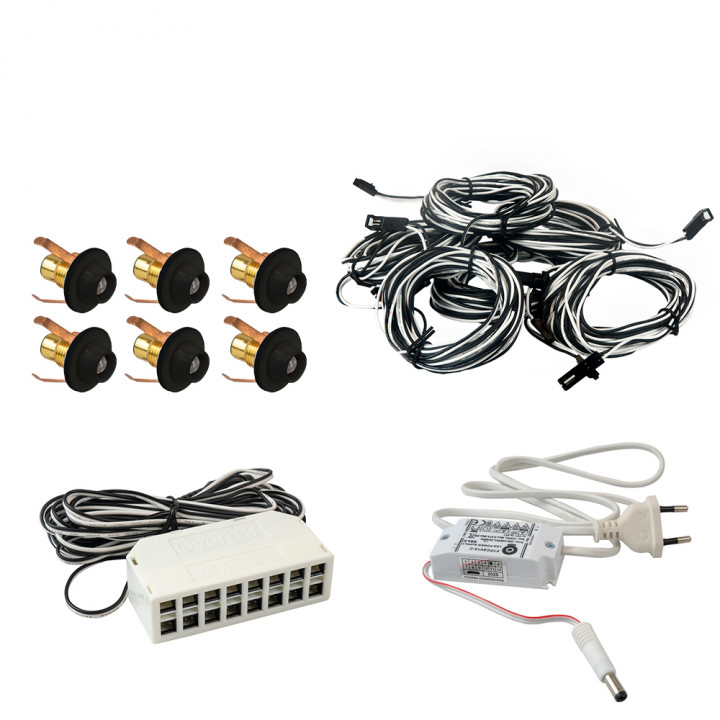

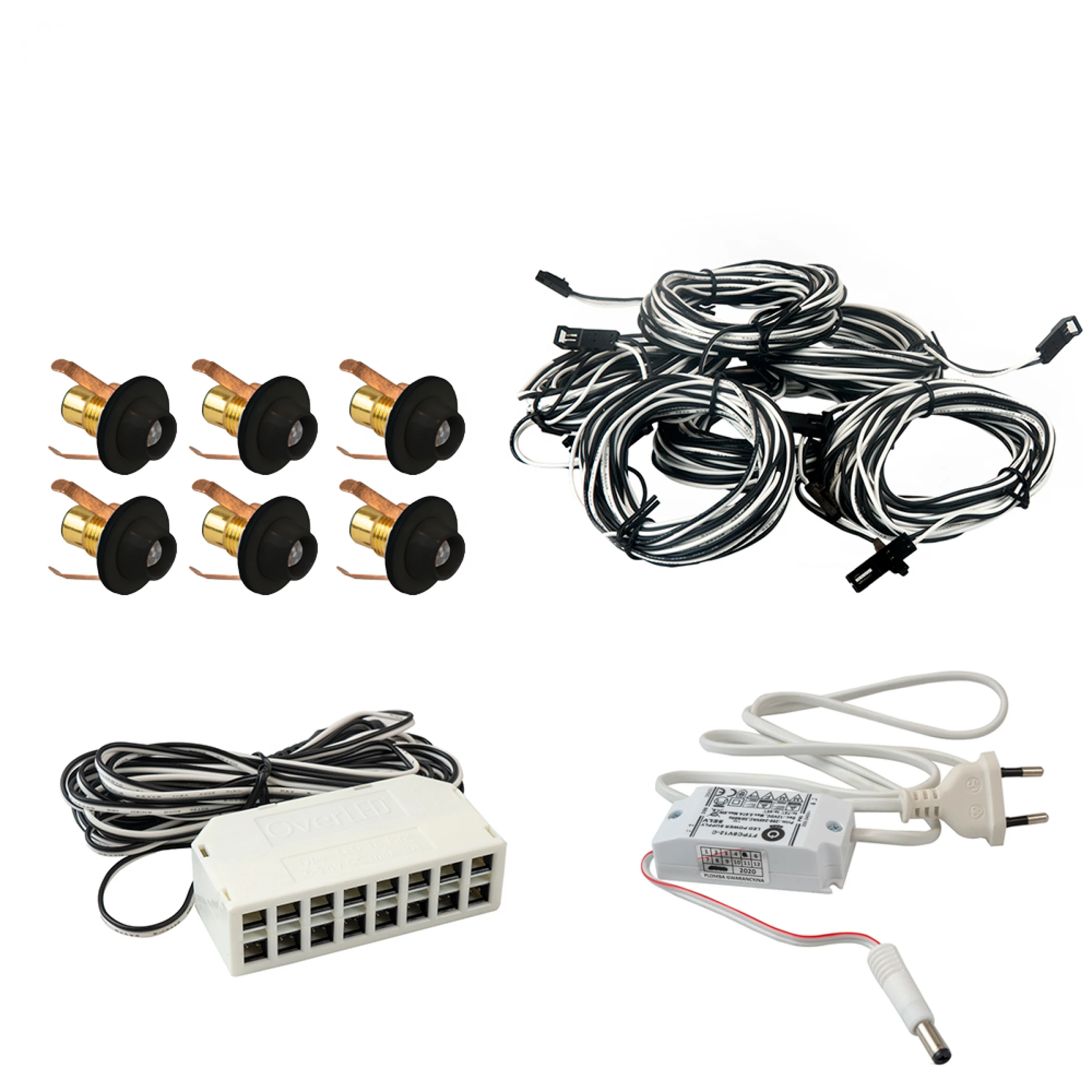

The set includes:
- 6 LED light fittings;
- 6 connecting cables, each 5 m long;
- 16-way connection distribution block;
- transformer;
- installation instructions.
