Harvia Pro D Infra Dimmode INFRA-D is an infrared control unit designed for controlling infrared radiators and infrared heating panels. The Dimmode version controls infrared heating by adjusting the heating intensity, making it particularly suitable for full-spectrum infrared radiators.
The system has two separately controllable heating circuits, each with a maximum output of 1.5 kW. The total maximum infrared heating output is 3.0 kW. The power unit provides four infrared heater connections, with two connections for each heating circuit.
The control panel allows the infrared heating intensity and operating time to be adjusted. Predefined operating programmes are also available. The standard maximum operating time is 6 hours and can be configured to 12 or 24 hours.
The system also provides separate outputs for lighting and fan control. The maximum lighting output is 60 W and the maximum fan output is 50 W. A remote start function is also available.
The control panel and power unit are separate. The compact control panel can be installed inside the infrared cabin, while the power unit is installed separately in accordance with the manufacturer's installation requirements.
When infrared heating panels are used, an additional panel temperature sensor may be required. Electrical installation and system configuration must be carried out by a qualified professional.

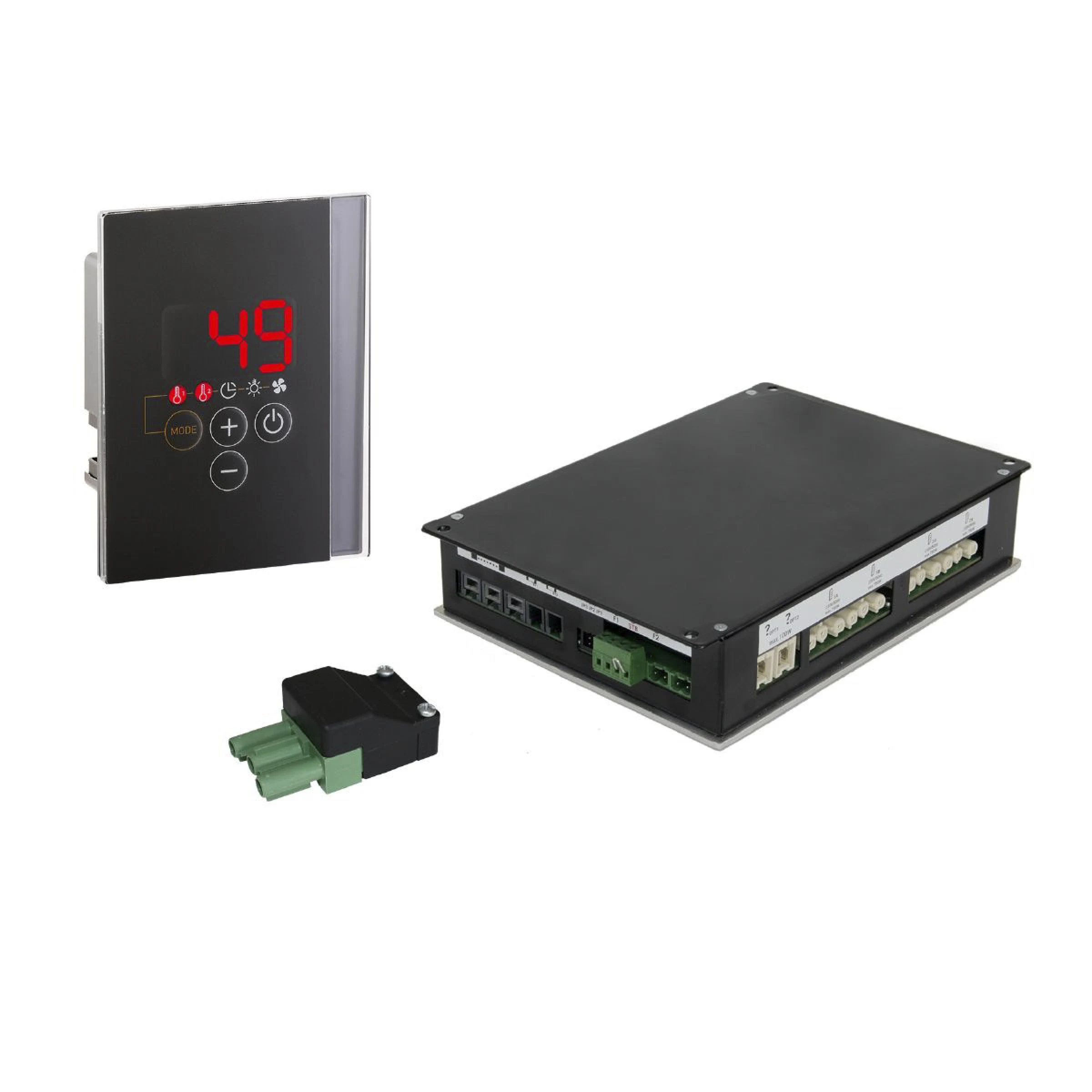

Scope of delivery:
- PRO D Infra black control panel WC4-PRODI-B;
- Dimmode power unit VITAMY-WC4-IRX;
- mains connection cable IR-CP-EU;
- lighting connector WC4-P-LI.
Technical data:
- Manufacturer: Harvia
- Series: Pro D Infra
- Model: INFRA-D
- Control mode: Dimmode
- Product type: infrared control unit
- Maximum controlled infrared output: 3.0 kW
- Maximum dimmable infrared output: 3.0 kW
- Number of heating circuits: 2
- Maximum output per heating circuit: 1.5 kW
- Number of infrared connections: 4
- Intensity control: yes
- Temperature control: no
- Lighting control: yes
- Maximum lighting output: 60 W
- Fan control: yes
- Maximum fan output: 50 W
- Operating time limit: 6, 12 or 24 h
- Remote start: yes
- Power supply: 230 V AC, 1N PE
- Control panel size: 79 × 103 × 36.6 mm
- Control panel installation cut-out: 65 × 70 × 35 mm
- Control panel protection class: IPX4
- Power unit size: 238 × 170 × 49.5 mm
- Power unit protection class: IP20
- Control panel connection cable: 3 m, extendable up to 10 m
- Colour: black
- Product code: INFRA-D
- EAN: 9120053868516
- Sales unit: 1 pc.
