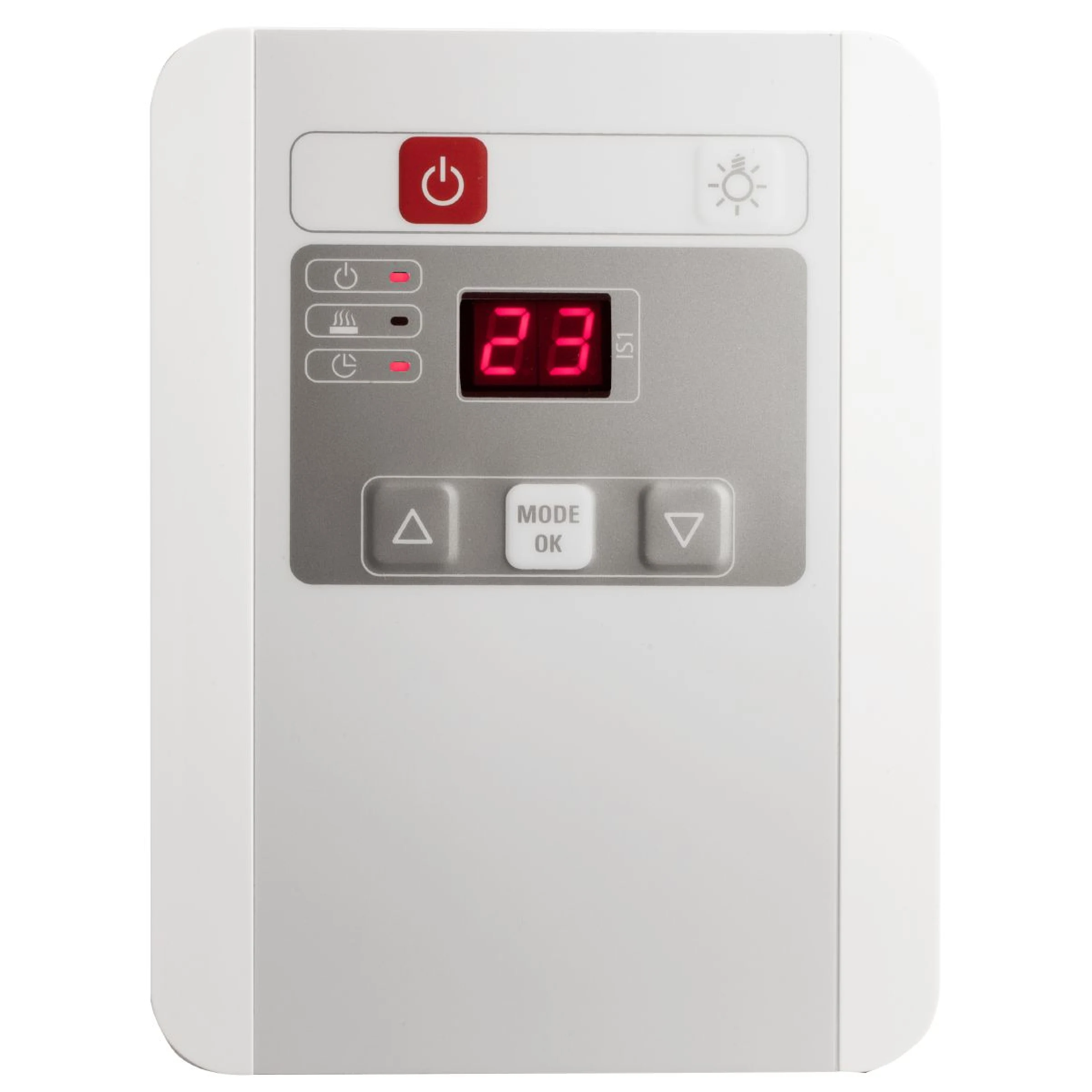

Harvia IS1 P-IS1-T is an infrared control unit designed for controlling infrared radiators and infrared heating panels.
The control unit allows the user to adjust the desired cabin temperature and operating time and to control the cabin lighting. The current temperature is shown on the display and measured using the room temperature sensor supplied with the unit.
When infrared radiators are used, the temperature can be adjusted from 30 to 70 °C. When infrared heating panels are used, an additional panel temperature sensor is required, and the maximum cabin temperature is limited to 50 °C.
The control unit has one heating circuit and can control an infrared heating system with a total output of up to 3.0 kW.
The unit can be installed as a surface-mounted or recessed control unit. Electrical installation must be carried out by a qualified professional in accordance with the manufacturer's installation instructions.
Technical data:
- Manufacturer: Harvia
- Model: P-IS1-T
- Series: IS1
- Product type: infrared control unit
- Number of heating circuits: 1
- Maximum controlled output: 3.0 kW
- Power supply: 230 V
- Current: 16 A
- Temperature range with infrared radiators: 30–70 °C
- Maximum temperature with infrared heating panels: 50 °C
- Lighting control: yes
- Maximum lighting load: 200 W
- Installation: surface-mounted or recessed
- Size: 134.5 × 179.5 × 48.5 mm
- Net weight: 0.43 kg
- Product code: P-IS1-T
- EAN: 9120053860343
- Sales unit: 1 pc.
