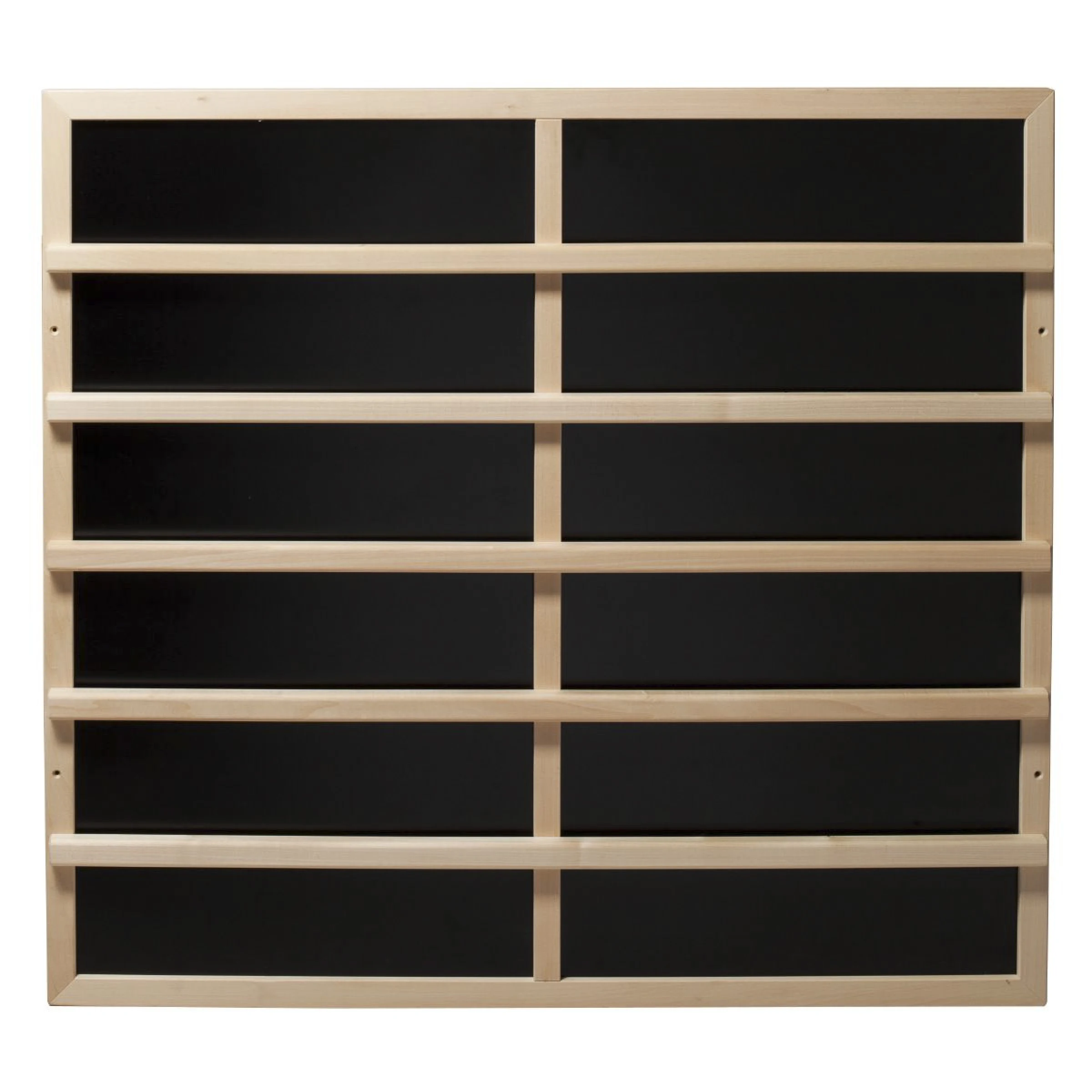

Harvia IR-WPHL infrared heating plates are designed for installation in infrared and sauna cabins. The panels emit long-wave infrared radiation and are supplied with a light wood backrest covering the front of the heating plate.
Four output versions are available: 100, 175, 390 and 515 W. Their different dimensions allow the panels to be adapted to different heating zones within the cabin. The IR-WPHL-100 is specifically identified by the manufacturer as a calf-level radiator. The heating plates can also be combined with full-spectrum infrared radiators.
The insulated rear side directs the heat primarily towards the front. The heating plate has an integrated 100 °C safety temperature limiter and an IPX4 protection rating. Depending on the installation solution, the panel can be installed horizontally or vertically.
The IR-WPHL heating plate must be operated with a suitable control unit providing temperature regulation and operating-time limitation. A compatible foil temperature sensor is also required when these heating plates are used.
Available versions:
- IR-WPHL-100 – 100 W;
- IR-WPHL-175 – 175 W;
- IR-WPHL-390 – 390 W;
- IR-WPHL-510 – 515 W.
Main features:
- long-wave infrared heating plate;
- light wood backrest;
- wall mounting;
- horizontal or vertical installation;
- 230 V, 1N, 50 Hz;
- IPX4;
- integrated 100 °C safety temperature limiter;
- can be combined with full-spectrum IR radiators;
- controlled by a separate compatible control unit;
- foil temperature sensor required;
- supplied with a power lead and plug.
