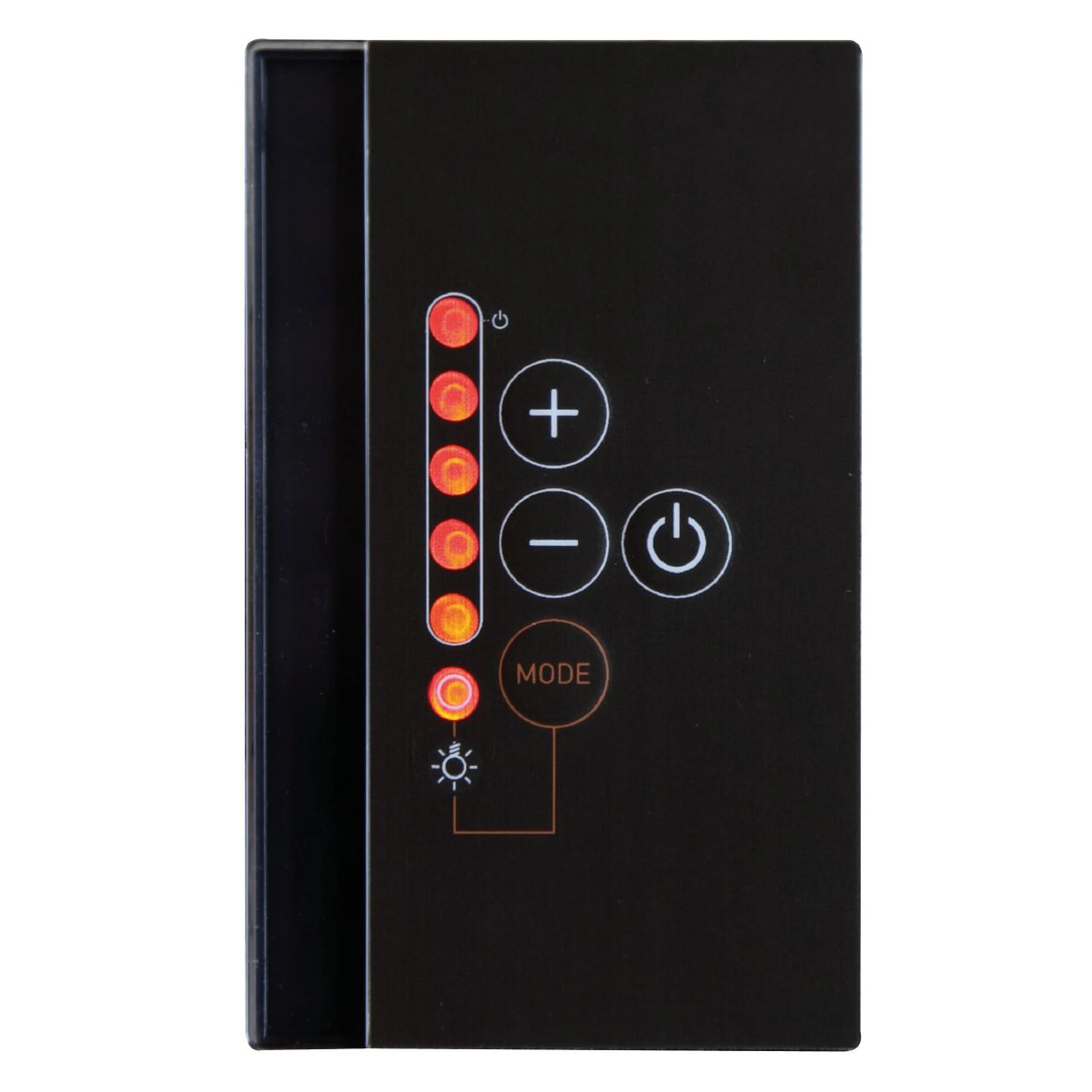

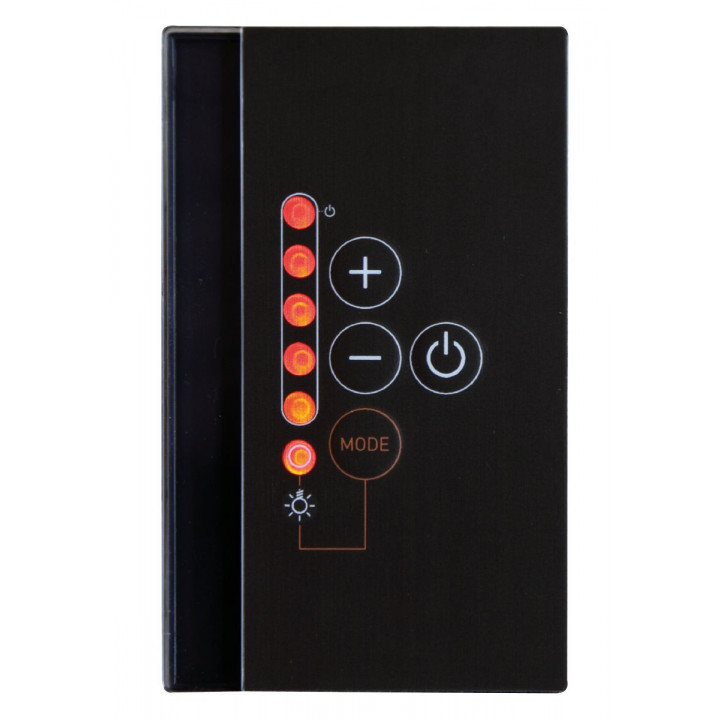

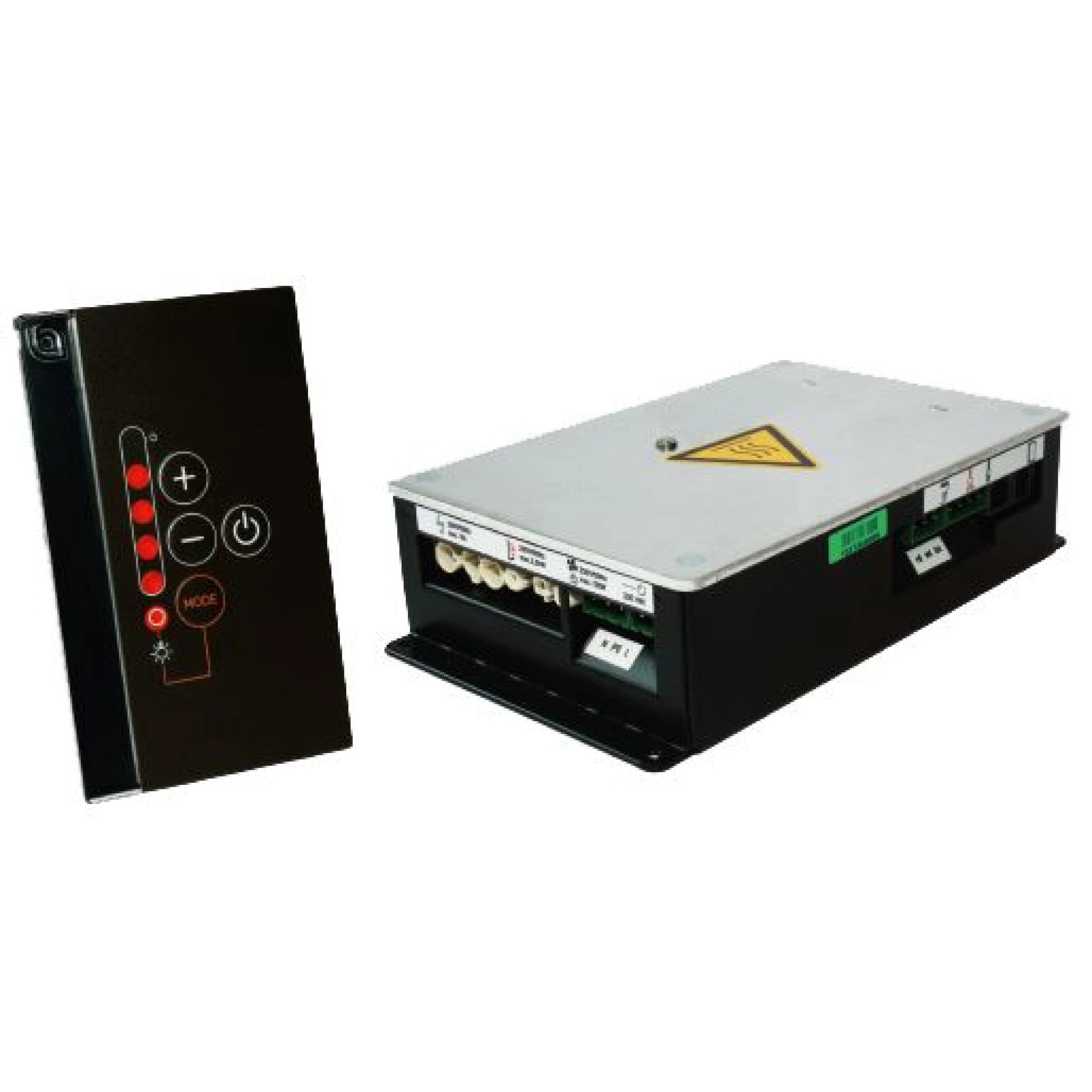

Harvia Infrabox IRB-S is a digital control unit designed for controlling infrared radiators and infrared heating panels. The set consists of a separate compact control panel and power unit, allowing the control panel to be conveniently integrated into the selected installation location.
The control unit allows the operating time, infrared heating and lighting or fan to be controlled. Infrared heating intensity can be adjusted in five levels, depending on the connected equipment and selected operating mode.
The infrared heating output can switch a load of up to 3.5 kW. When dimming is used, the maximum permitted load depends on the selected control method: up to 1.3 kW or up to 350 W. The unit also provides control and dimming of lighting up to 100 W.
The standard heating time limit is 6 hours and can be configured to 12 or 24 hours. The unit also features a remote start or enable input.
When infrared heating panels are used, a compatible panel temperature sensor is required. If the connected infrared radiator or heating panel does not have integrated overtemperature protection, an additional safety temperature limiter must be used in accordance with the manufacturer's instructions.
Electrical installation and system configuration must be carried out by a qualified professional in accordance with the manufacturer's installation instructions.
Scope of delivery:
- Infrabox control panel;
- Infrabox power unit;
- 2.5 m power unit connection cable IR-CP-EH;
- installation materials;
- light plug;
- HV plug;
- installation and operating instructions.
Technical data:
- Manufacturer: Harvia
- Model: IRB-S
- Product type: infrared control unit
- Maximum switched infrared heating load: 3.5 kW
- Manufacturer-specified total power output: 3.6 kW
- Infrared intensity control: 5 levels
- Dimmable load: up to 1.3 kW or 350 W depending on control mode
- Maximum lighting output: 100 W
- Standard operating time limit: 6 h
- Adjustable operating time limit: 6, 12 or 24 h
- Power supply: 230 V~
- Frequency: 50/60 Hz
- Protection class: IPX4
- Installation: wall-mounted, vertical
- Color: anthracite
- Main material: steel
- Power unit size: 131 × 195 × 48 mm
- Control panel size: 63 × 104 × 36 mm
- Net weight: 1.33 kg
- Control panel weight: 0.13 kg
- Power unit weight: 0.84 kg
- Certificates: CE, EAC
- Product code: IRB-S
- EAN: 9120053863016
- Sales unit: 1 pc.
