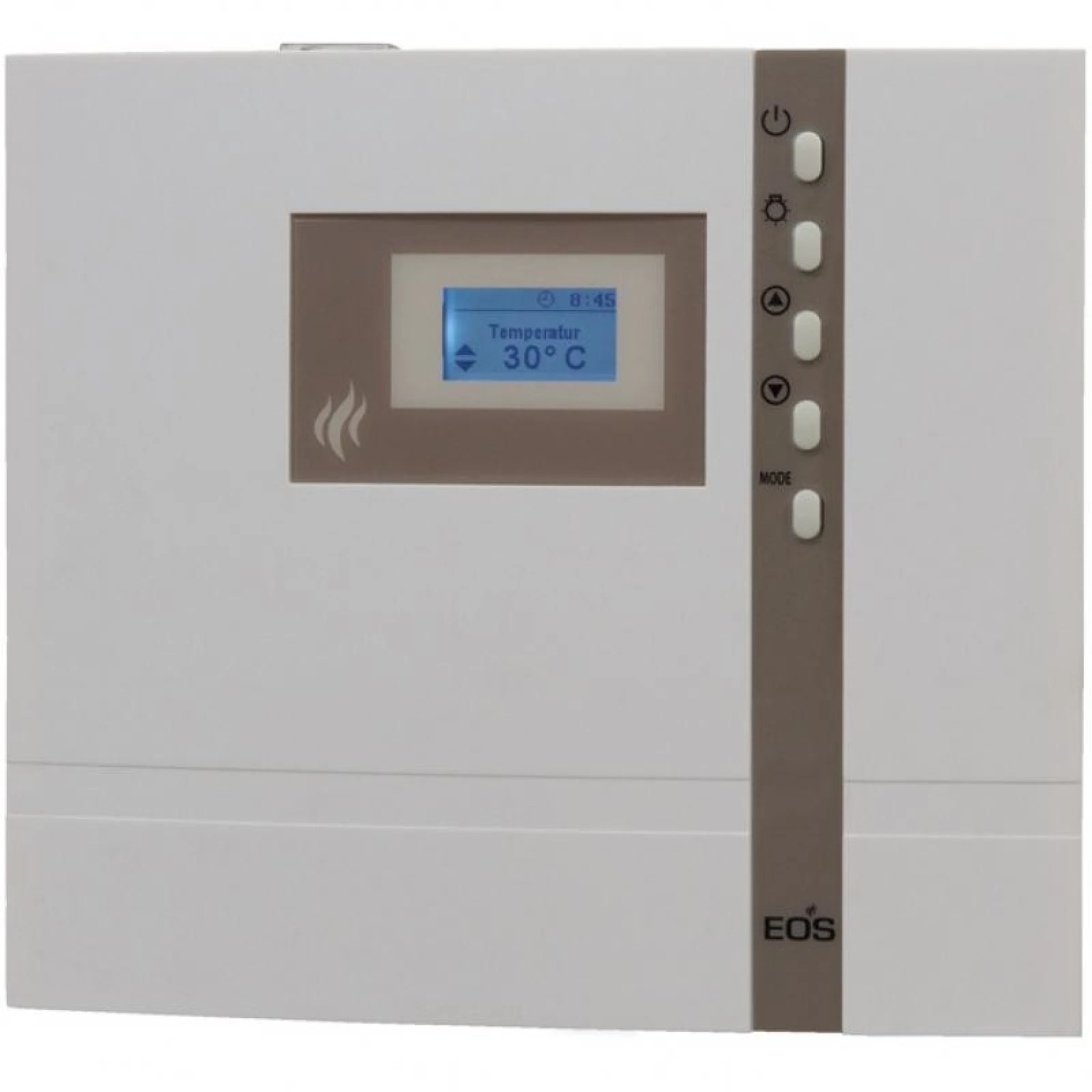

EOS Econ I1 is an electronic infrared (IR) sauna control unit designed to operate infrared radiators and heating foils in private and commercial infrared cabins. The unit allows users to adjust the temperature, heating duration and cabin lighting.
The control unit features an illuminated LCD display showing temperature, operating time and system messages. The menu is available in 12 languages.
Main functions and features:
- Temperature control range: 30-70 °C.
- Maximum switching capacity: 9 kW.
- Adjustable heating duration: up to 12 hours.
- Cabin lighting control: up to 100 W.
- Keypad lock function.
- "Life Guard" function for additional heating time limitation.
- Protection rating: IPX4.
The control unit is designed for installation outside the infrared cabin, either surface-mounted or semi-recessed into a wall.
Scope of delivery: control unit, temperature sensor with a 2 m cable and safety temperature limiter, mounting accessories and operating instructions.
Important: EOS Econ I1 is intended exclusively for controlling infrared radiators and heating foils. It is not suitable for steam generators or conventional electric sauna heaters. Connected IR radiators and heating foils must comply with the manufacturer's safety requirements, including integrated 139 °C overheating protection. Electrical installation must be carried out by a qualified electrician.
