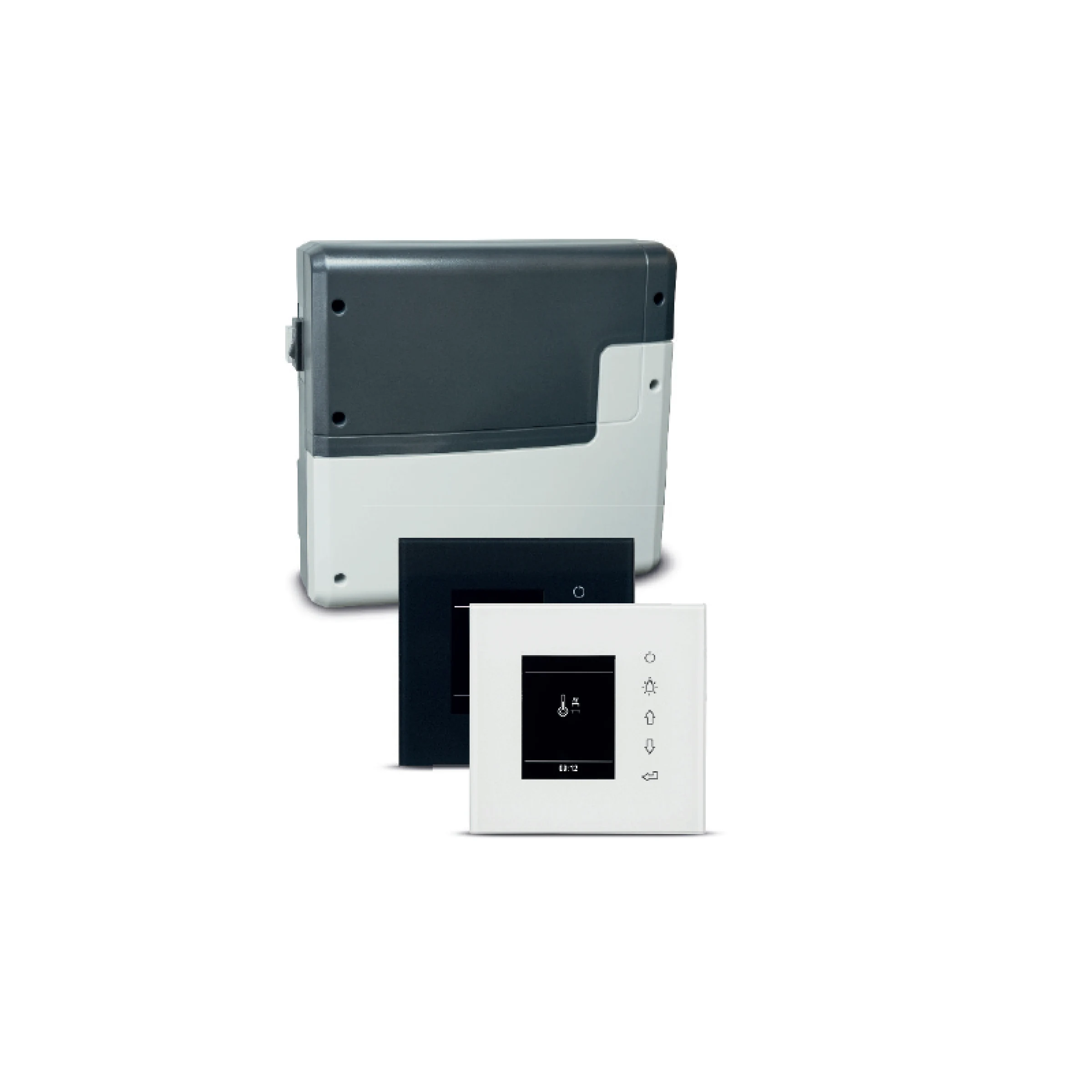

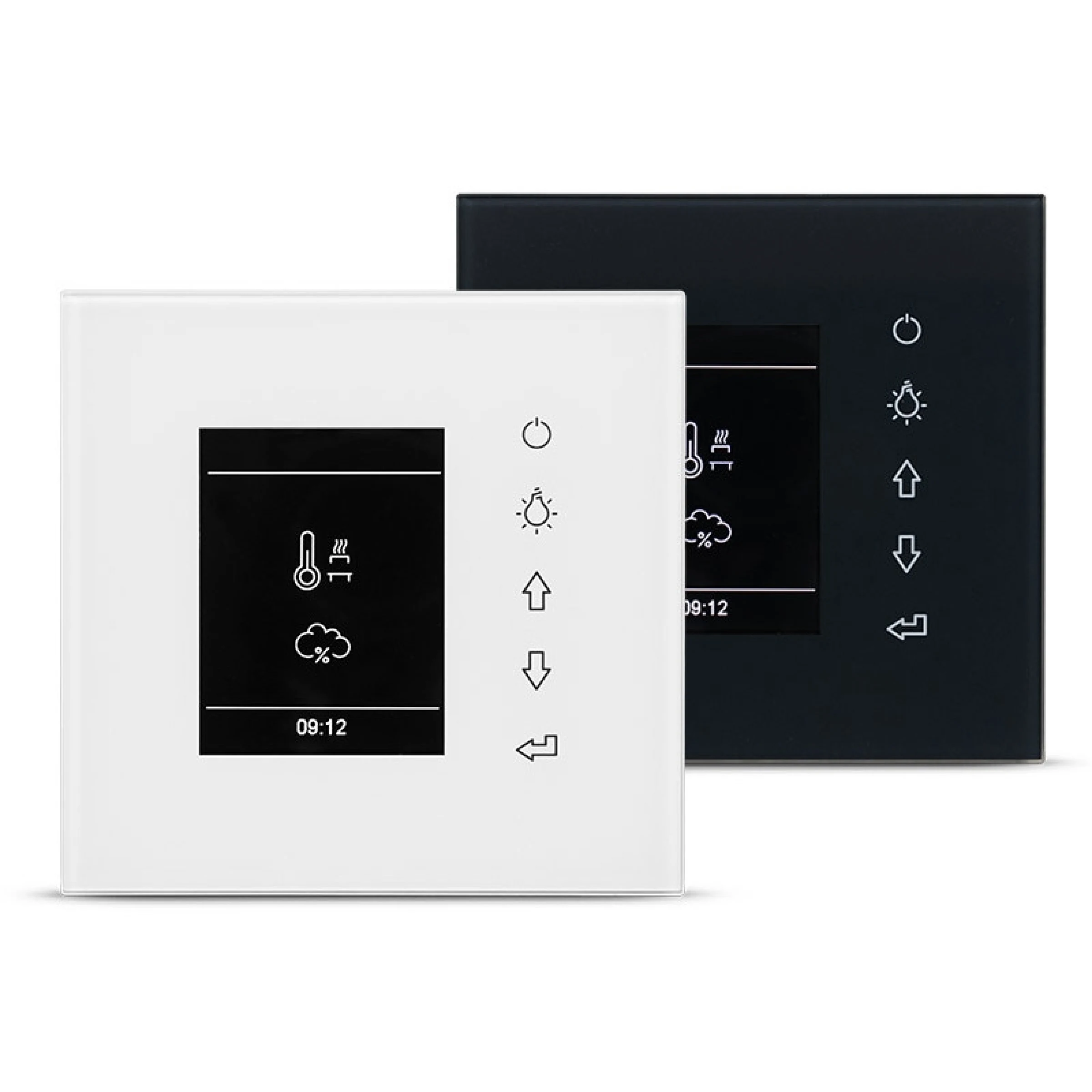

Exclusive control panel with front side completely made of glass in a black and white design, colour TFT-display and separate power unit. Thanks to the innovative operating concept, the unit can be operated intuitively and quickly, and numerous functions can be reached and set very quickly.
Properties and advantages:
- Flat, compact control panel with modern TFT colour display.
- Simple, easy operation via capacitive keys.
- Made in Germany - Quality by EOS
- Case: Control panel with front side completely made of glass
- Screen: TFT colour display with menu navigation
- Menu navigation: 19 languages
- Temperature control: digital two-point regulation, 30 - 115°C
- Heating time limit: 6 ,12 hours and infnite
- Time pre-selection: 24 hrs in real time or week timer
- Temperature limit: 139 °C safety limit
- Switching power: up to 9 kW (can be expanded with LSG)
- Connection: 400 V 3N AC 50 Hz.
- Control panel HxWxD: 127 x 130 x 25 mm

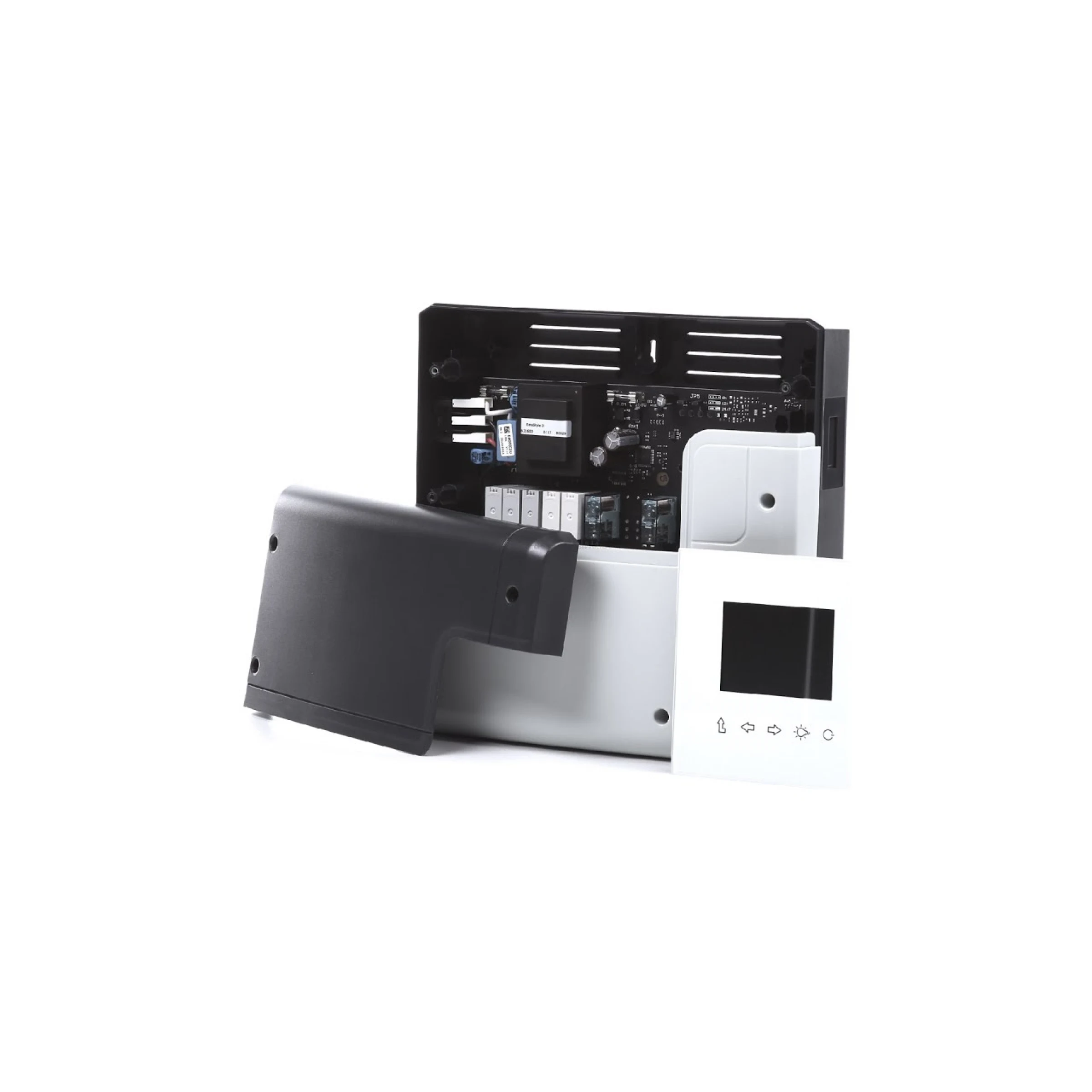

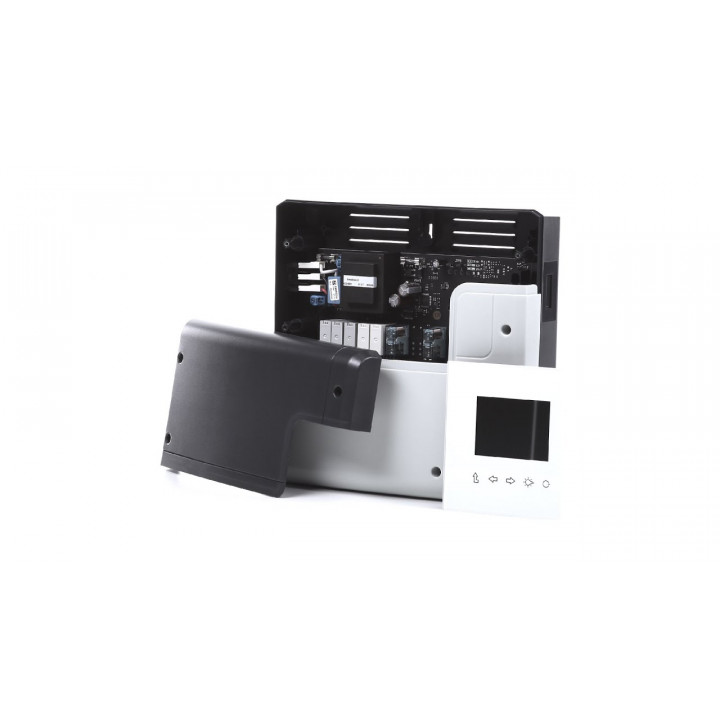

- Power unit HxWxD: 270 x 300 x 100 mm
- Assembly: Control panel - installation or attachment, power unit - wall mounting.
