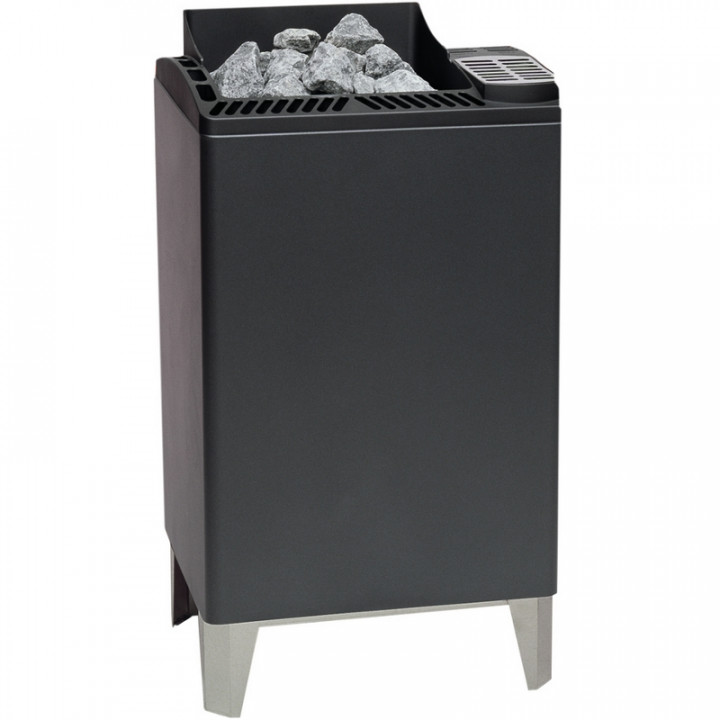

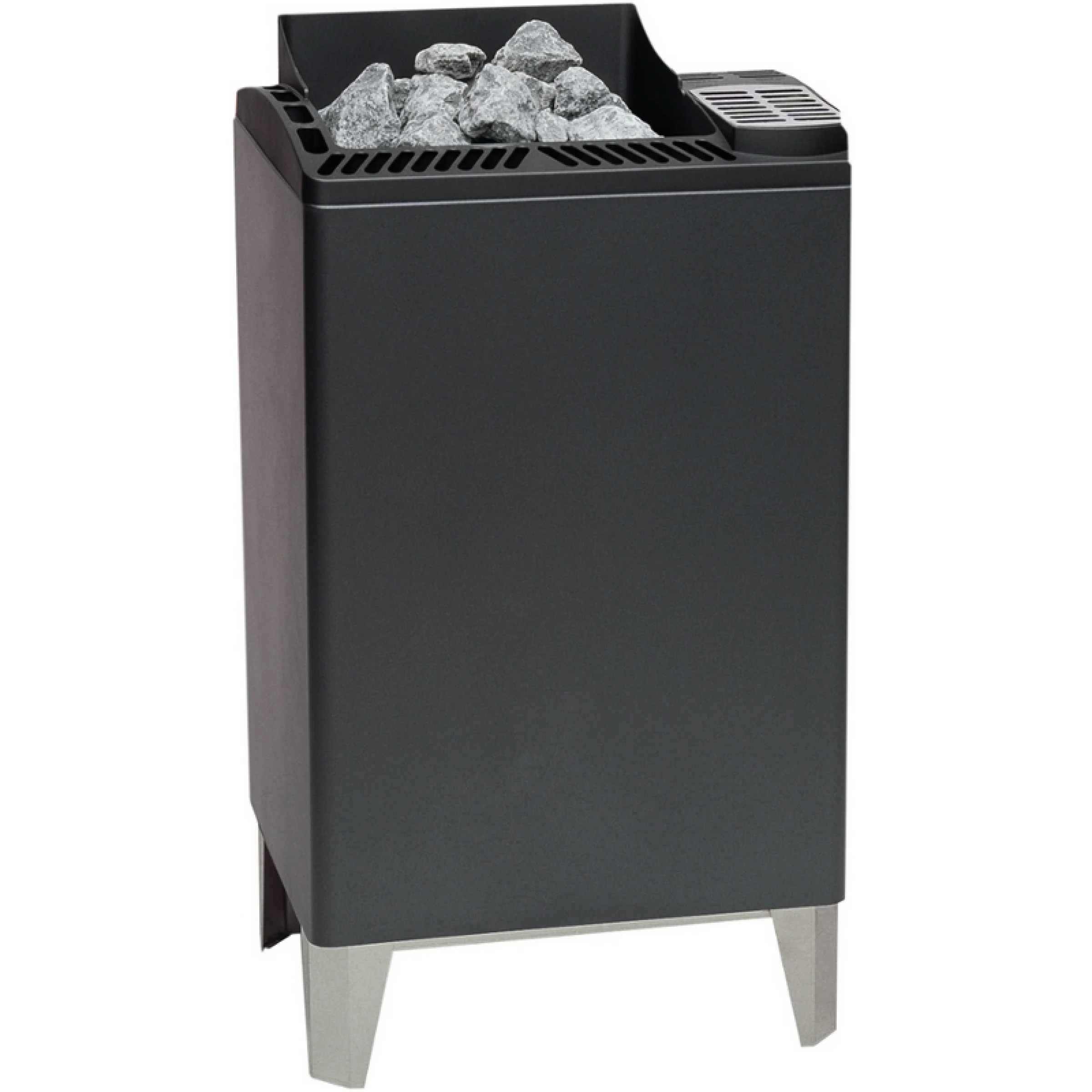

Electric sauna heater for family and commercial saunas. For Finnish sauna operation. Cover in die-cast aluminium, the stone basket with its air intake openings is located above the heating elements.
The heating elements do not come into contact with sauna stones. Service-friendly due to the modular design. Optimised ratio of radiation heat and convection through adapted stone quantity.
Suitable control units: Econ D1, Econ D2, Econ D3, Emotec D.
Stones and control unit purchased separately.
Technical data:
| Model | Output, kW | Sauna size, m3 | Stone capacity, kg | Weight without stones, kg | Min. size of air intake and outlet cm | Dimensions mm | ||
| width | depth | height | ||||||
|
EOS Euro-Max 9.0 |
9 | 9 - 14 | 60 | 49 | 35 x 6 | 500 | 500 | 925 |
| EOS Euro-Max 12.0 | 12 | 14 - 18 | 60 | 49 | 35 x 7 | 500 | 500 | 925 |
| EOS Euro-Max 15.0 | 15 | 18 - 25 | 60 | 49 | 35 x 9 | 500 | 500 | 925 |
