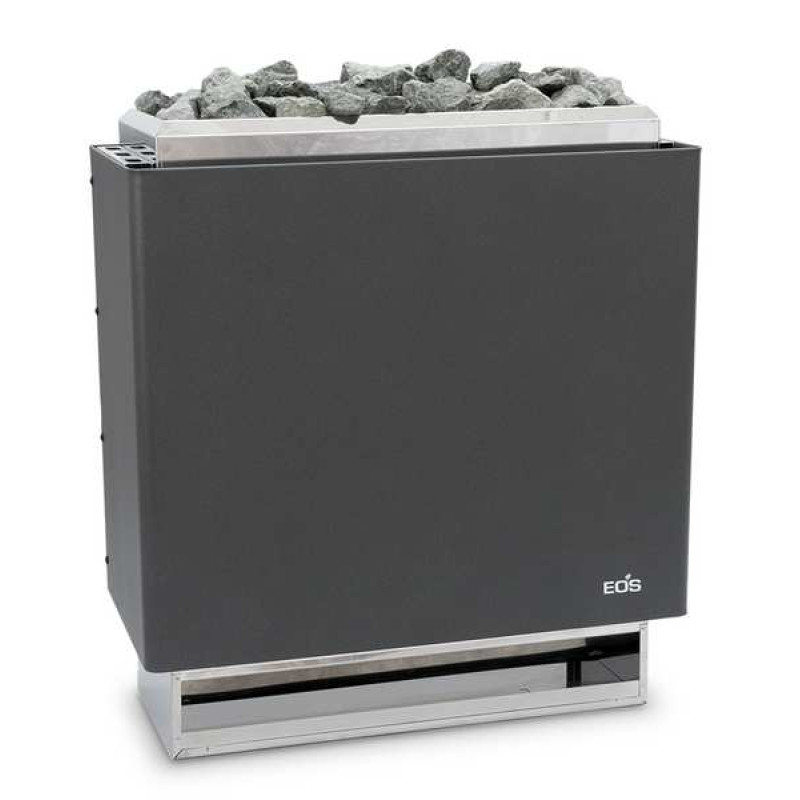

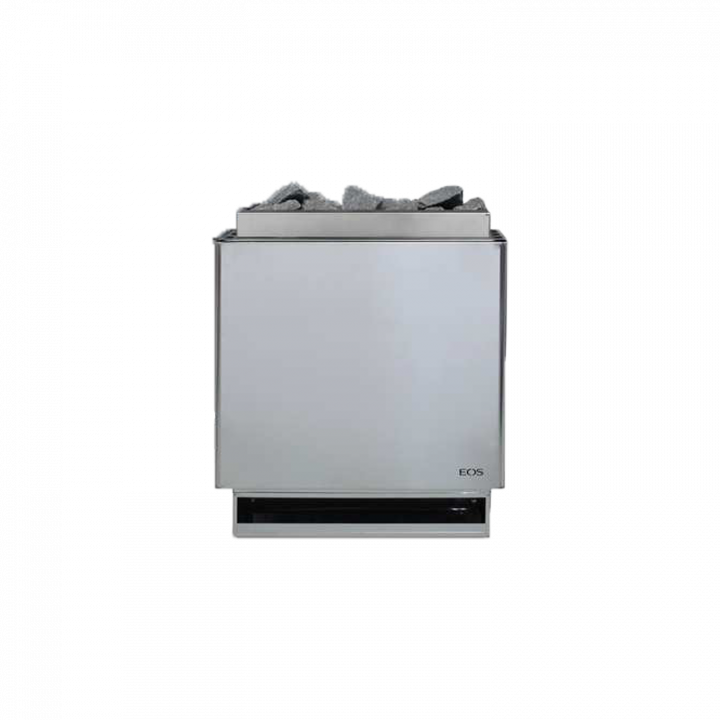

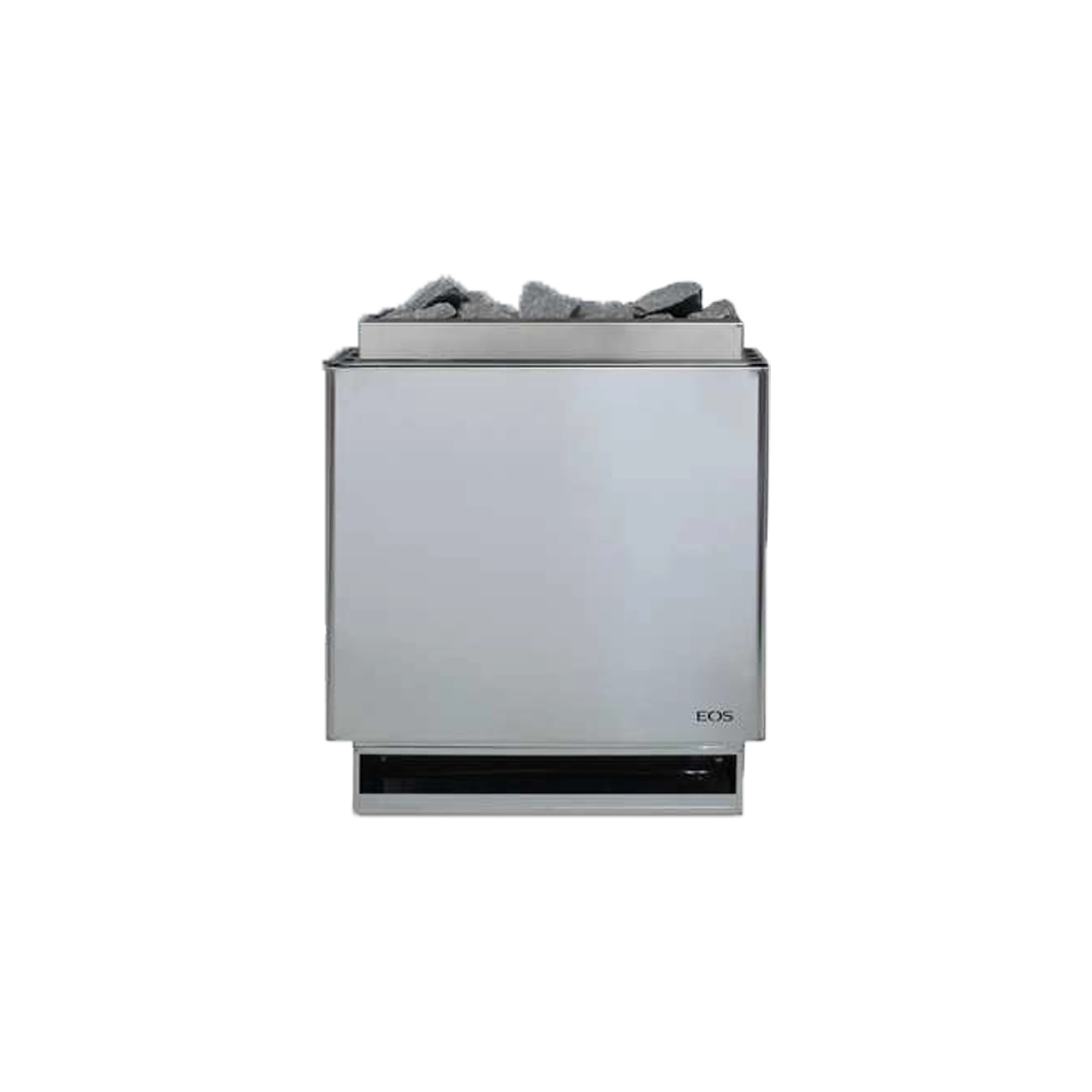

Floor-standing sauna heater for the Finnisch (dry) sauna in classic design. P1 heater features extra-slim, place-saving construction with only 38 cm depth. The rock store is placed above the heating elements for easy servicing and improved air convection. Great for middle-size commercial saunas.
Your advantages:
- Durable, long-lasting construction.
- Optimal relation between stone volume and air convection capacity for fast heat-up times and powerful water infusions.
- Made of CRS (Cold Rolled Steel) - strong structural steel for sauna stoves

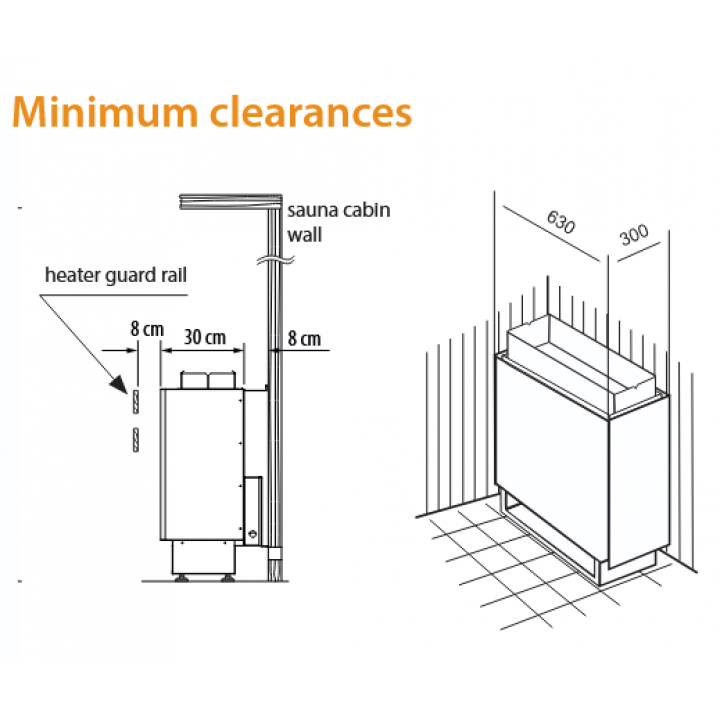

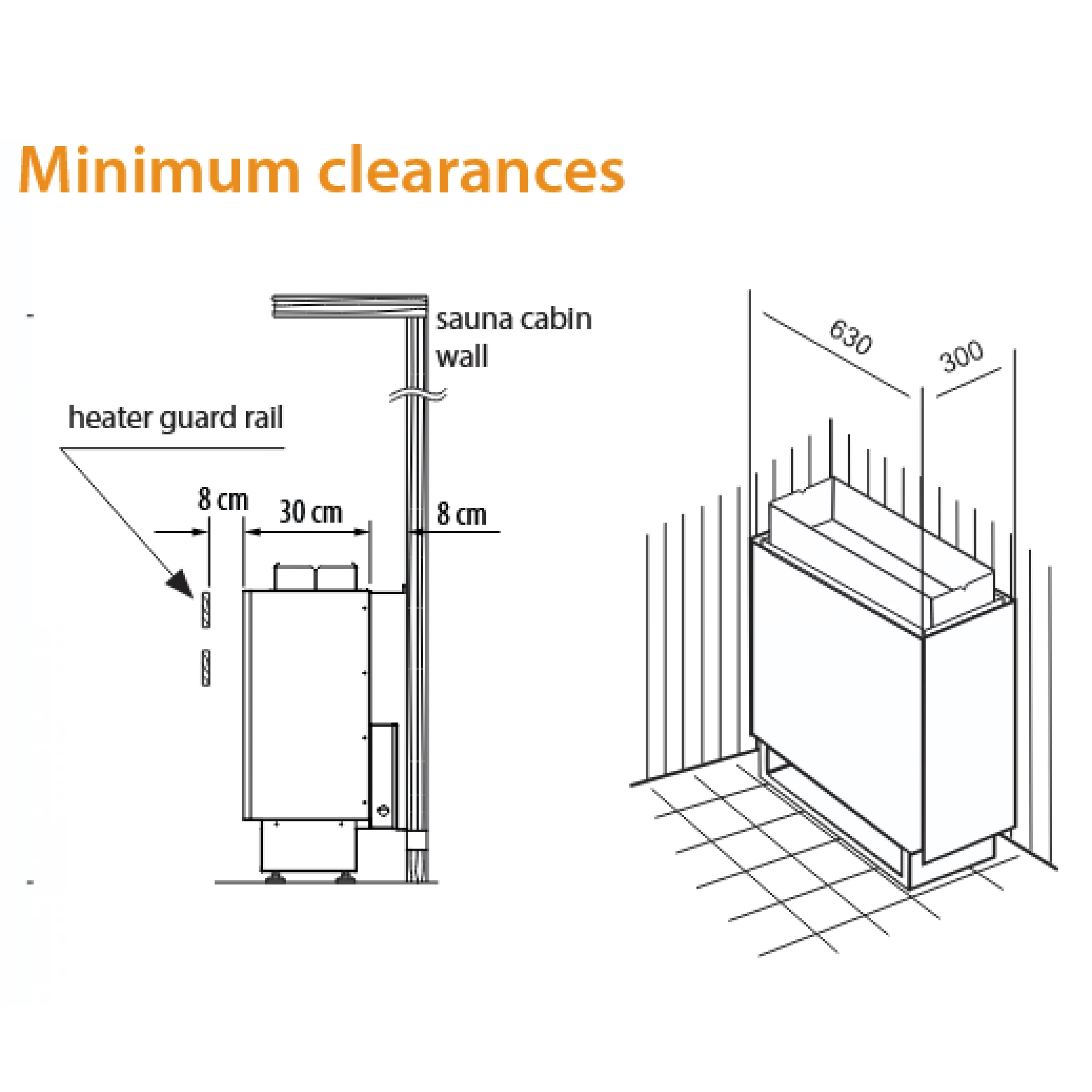

- Slim, place-saving construction - only 38 cm depth.
- Easy to install and to service, rock store placed above heating elements.
- Made in Germany quality from EOS.
Suitable control units:
EOS Econ D2 - 94.6138,
EOS Econ D3 - 94.6140,
EOS Econ D4 - 94.5842,
EOS EmoTec D series,
EOS EmoStyle D / Hi series,
EOS EmoTouch 3 series. Power extension unit (e.g. Emotec L09) is required for 10,5 - 15 kW heaters.
Stones purchased separately.
Technical data:
| Model | Output, kW | Sauna size, m3 | Stone capacity, kg | Weight without stones, kg | Min. size of air intake and outlet cm | Dimensions mm | ||
| width | depth | height | ||||||
| EOS P1 10.0 | 10 | 11 - 15 | 30 | 25.5 | 35 x 9 | 630 | 380 | 720 |
| EOS P1 10.5 | 10.5 | 11 - 15 | 30 | 25.5 | 35 x 9 | 630 | 380 | 720 |
| EOS P1 12.0 | 12 | 14 - 18 | 30 | 25.5 | 35 x 9 | 630 | 380 | 720 |
| EOS P1 15.0 | 15 | 18 - 25 | 30 | 25.5 | 35 x 9 | 630 | 380 | 720 |
