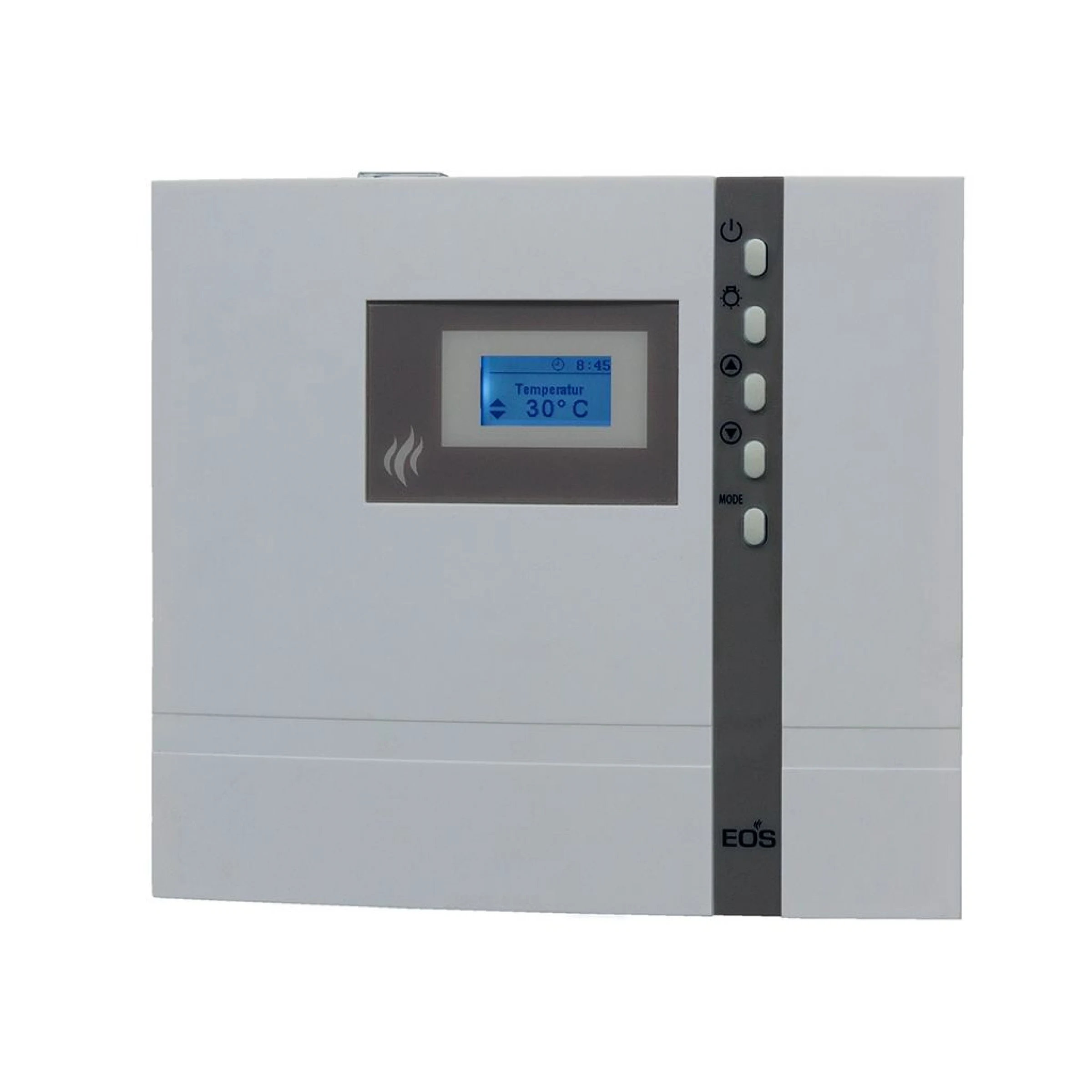

Electronic sauna control unit with LCD display with multi-language menu navigation. For dry and humid sauna heaters.
Your advantages:
- For dry and humid sauna operation.
- Easy to use thanks to LCD display with 12 language menu navigation.
- Slim design - only 58 mm thick. Semi-recessed and on-surface installation possible.
- VDE approved quality and norm compliance.
- Made in Germany quality from EOS.
- Housing: plastic, creme-white
- Display: LCD display 40 x 22 mm, multiline, alphanumeric, with backlighting
- Menu navigation: 12 languages (DE, EN, FR, ES, IT, NL, RU, PL, FI, SE, SLO, CZ)
- Temperature control: digital two-point, 30 - 115°C range
- Humidity control: proportional to time, 10 step
- Heating time: up to 6 hours
- Temperature limitation: 142 °C safety overheating limitation
- Switching capacity: up to 9 kW
- Power supply: 400 V 3N AC 50 Hz
- Installation: wall-mounting or semi-recessed
- Functions: Temperature preselection,
- Output for cabin lighting (max. 100 W),
- Output for ventilation fan (max. 100 W),
- Child lock (keypad lock),
- Error messages in clear text,
- Life-Guard,
- Data retention by power loss (24 h)
Inc. temperature sensor with 2 m cable.
