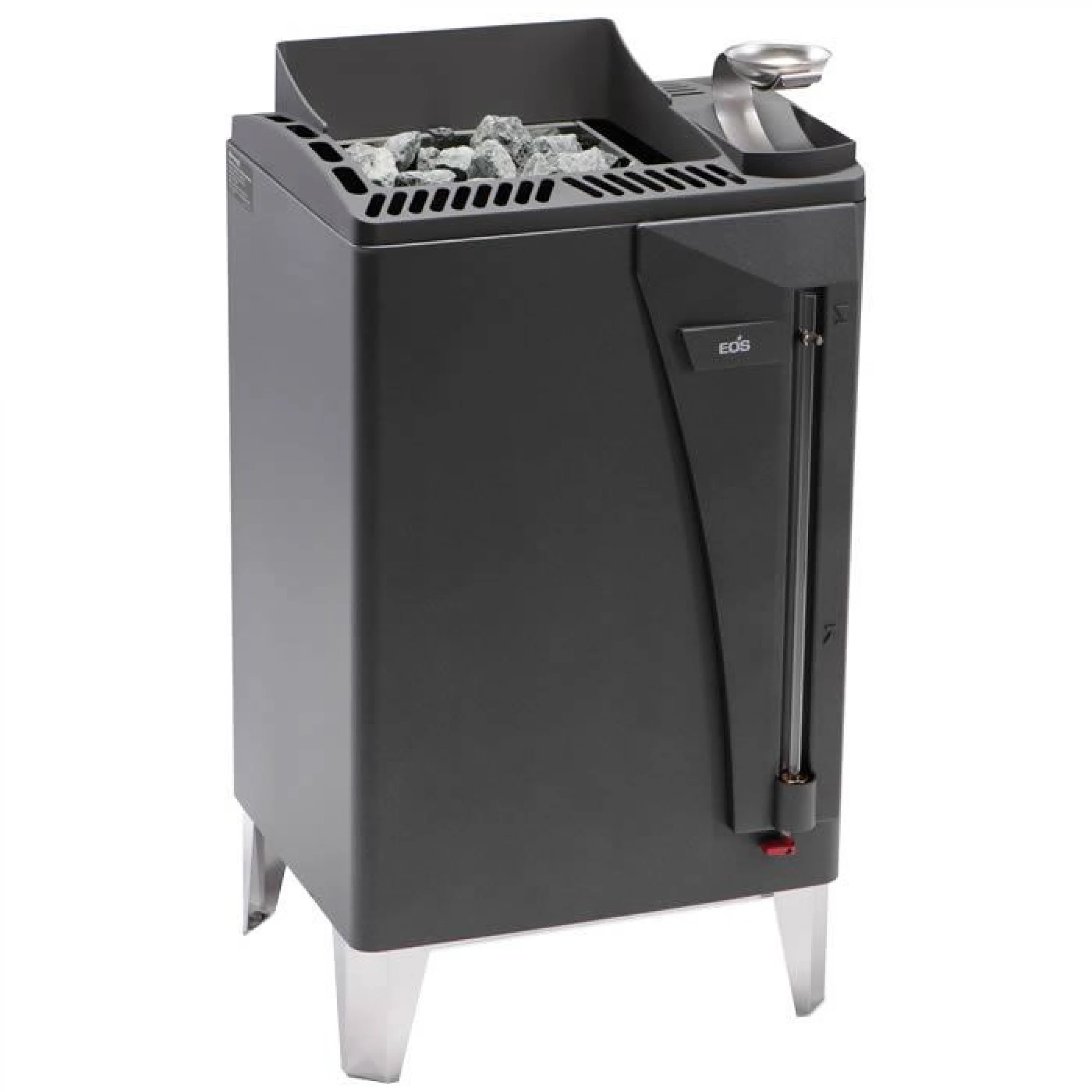

Bi-O Max Free-standing combi heater with vaporizer for the family and the hotel sauna. Optimized ratio of radiation to convection heat through the use of a large quantity of rocks (uo to 60 kg), with the related powerful sauna infusion. Rock basket with air entry openings is located above the heating elements which do not come into contact with the sauna rocks.
Themed sauna or infusions – thanks to the innovative accessories such as an aroma bowl for flower blossoms or for citrus fruits, the Bi-O Max is perfect for all those who love variety. Because of its large stone volume the heat is particularly evenly distributed. A very practical detail is the optical water level display.
Suitable control units: Econ H1, Econ H2, Econ H3, Emotec H.
Power extension unit (e.g. Emotec L09R) is required for 12 and 15 kW heaters.
Vaporizer: 2 kW, 8 l stainless-steel tank, manual water filling, low-water sound alarm, water level indicator, with drain valve.
Stones purchased separately.
Technical data:

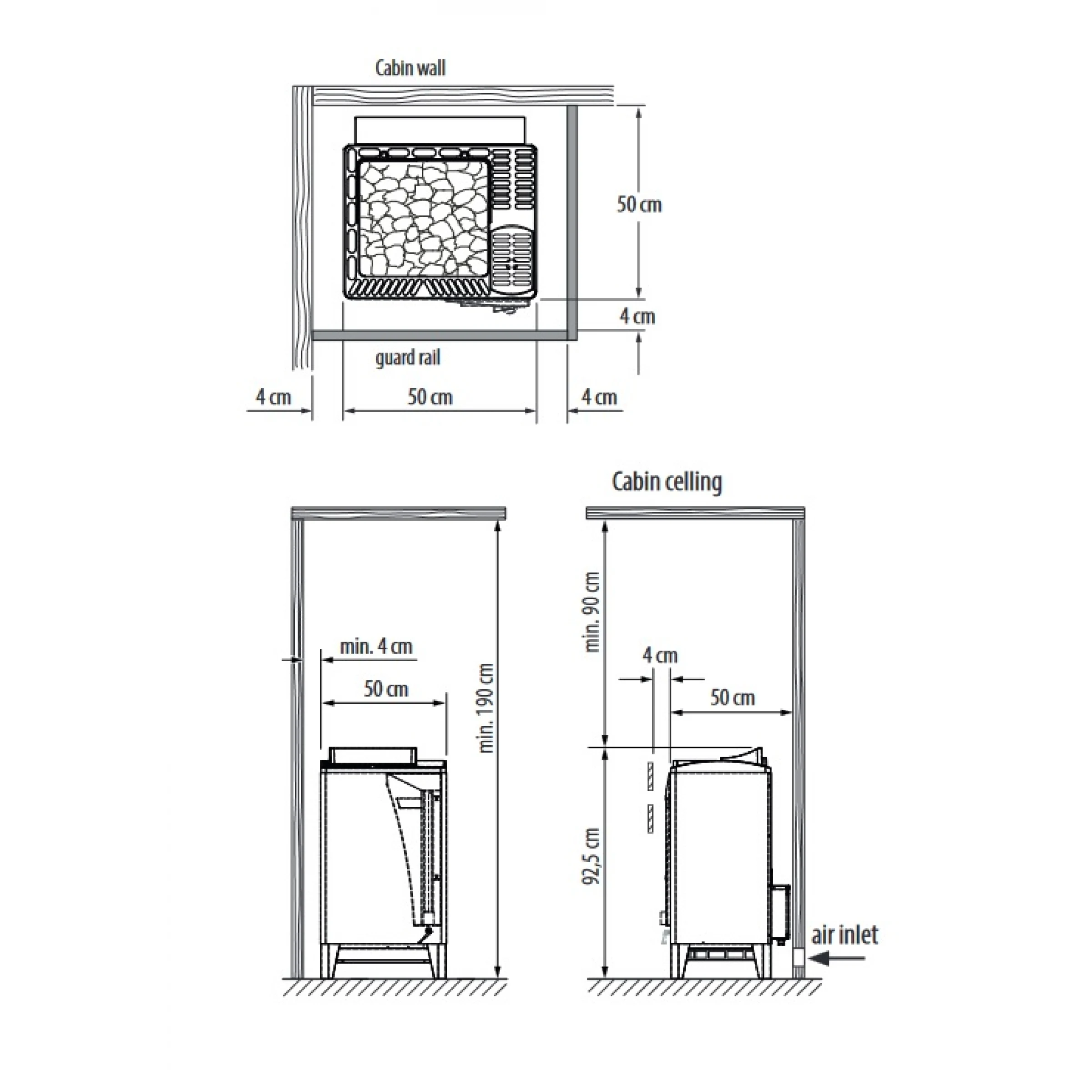

| Model | Output, kW | Sauna size, m3 | Stone capacity, kg | Weight without stones, kg | Min. size of air intake and outlet cm | Dimensions mm | ||
| width | depth | height | ||||||
| EOS BI-O Max 9.0 | 9 | 9 - 14 | 60 | 49 | 35 x 6 | 500 | 500 | 925 |
| EOS BI-O Max 12.0 | 12 | 14 - 18 | 60 | 49 | 35 x 7 | 500 | 500 | 925 |
| EOS BI-O Max 15.0 | 15 | 18 - 25 | 60 | 49 | 35 x 9 | 500 | 500 | 925 |
