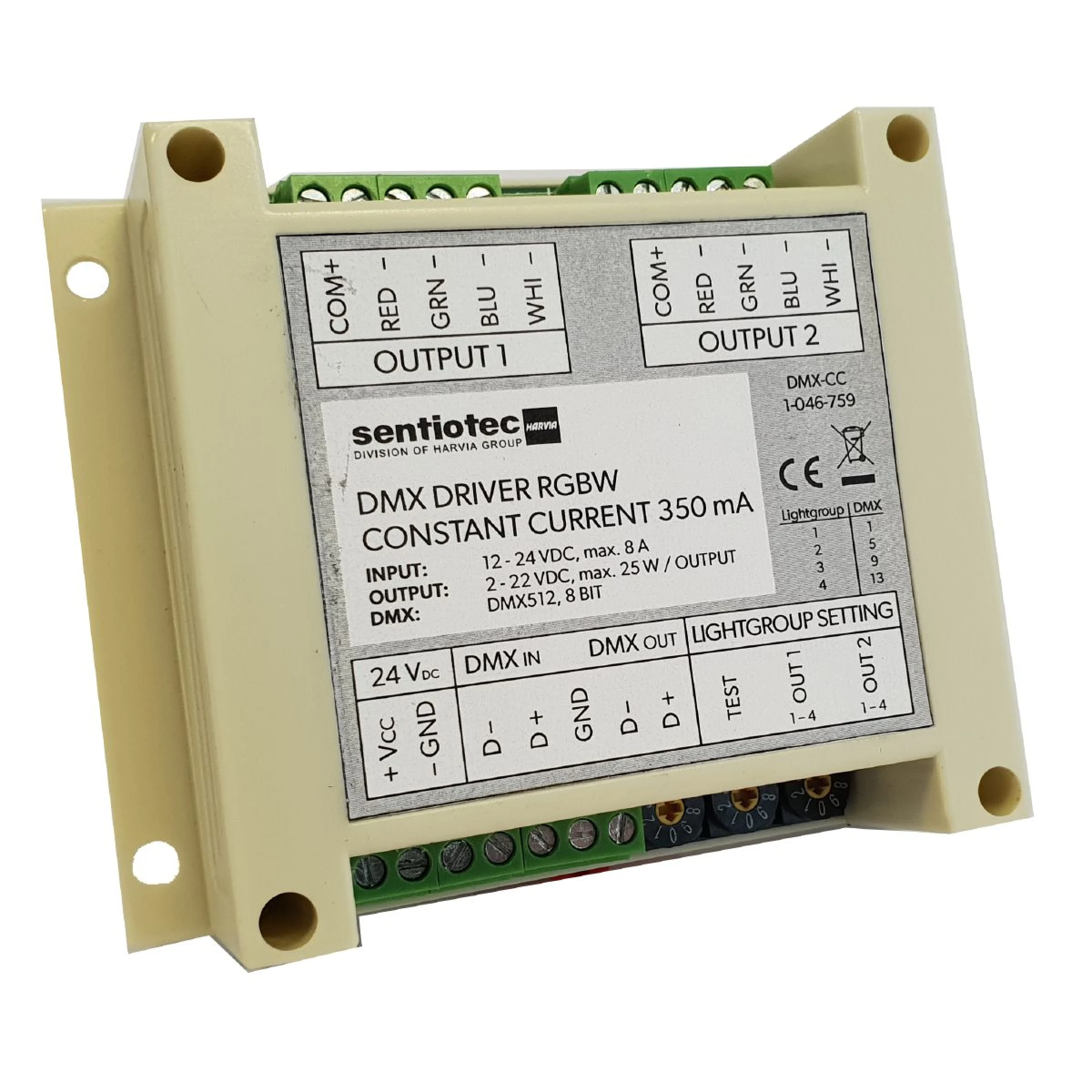

Harvia DMX is a 2 × 4-channel driver designed for controlling compatible RGBW LED lighting via the DMX512 protocol. The driver features two independently controllable 4-channel RGBW outputs and supports 8-bit RGBW control.
DMX addresses are set using the rotary switch on the driver. The unit also includes selectable test programs for checking the connected lighting and colour changes.
Two models are available depending on the electrical characteristics of the connected LED lighting. DMX-CC is designed for 350 mA constant-current (CC) RGBW LED spotlights, while DMX-CV is intended for 12/24 V constant-voltage (CV) RGBW LED lighting.
The drivers are compatible with Harvia home.com4, Xenio RGBW and PRO-DMX control solutions.
Before selecting a model, the electrical specifications and compatibility of the connected LED lighting must be checked.
Technical data:
- Manufacturer: Harvia
- Product type: DMX RGBW LED driver
- Channels: 2 × 4
- Protocol: DMX512
- RGBW control: 8-bit
- Independently controllable outputs: 2
- Protection class: IP20
- Dimensions: 115 × 90 × 40 mm
- Models: DMX-CC or DMX-CV
- Sales unit: 1 pc.
