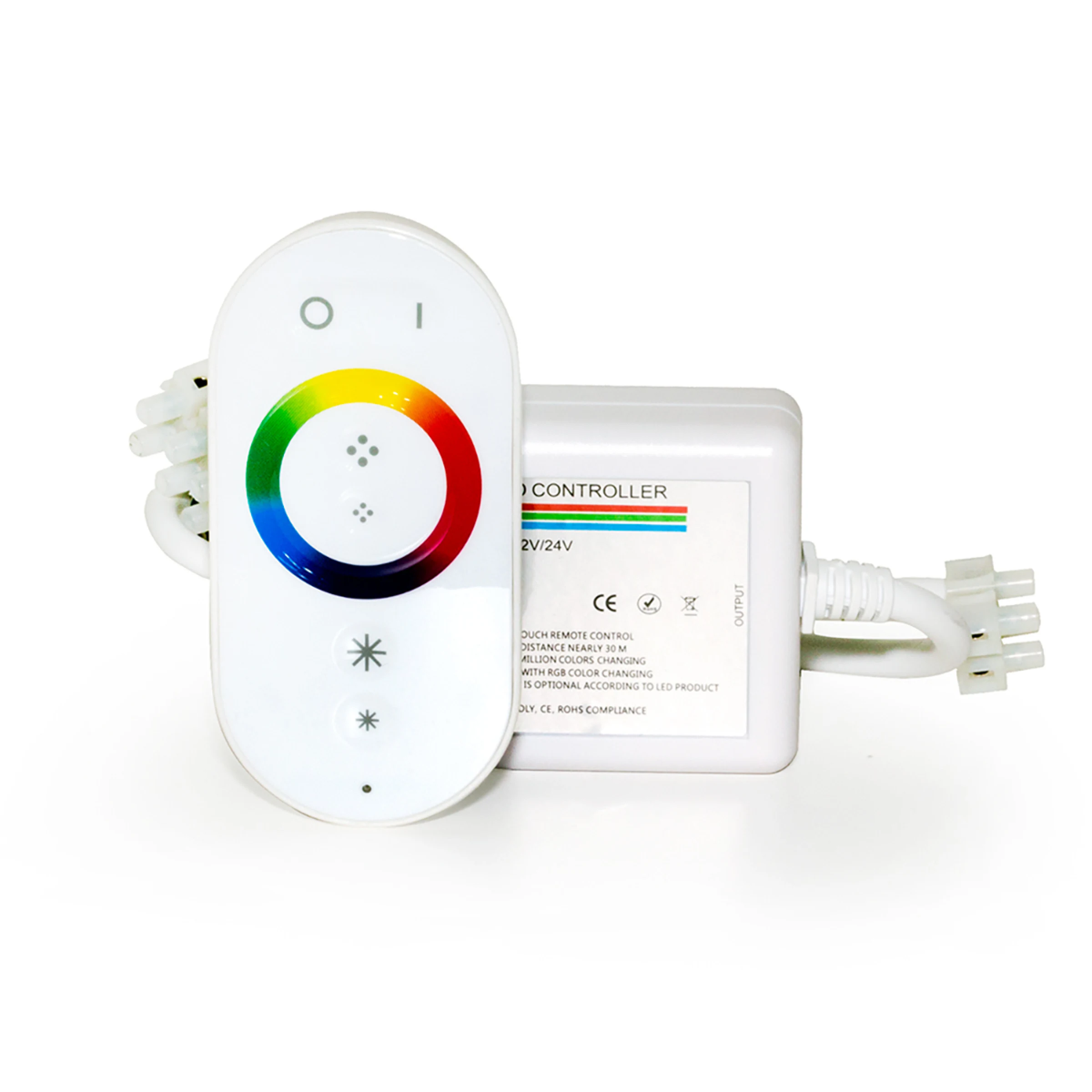

The control panel was designed to offer state-of-the-art LED control lighting and color mixing with a wireless controller.
This modern RGB controller allows you to control any LED bulbs using the RGB protocol, such as RGB LED light bars, RGB LED modules, outdoor lights and more.
The handheld remote control has 2 pre-set programs: relaxation mode and party mode. With relaxation mode, the RGB LED wireless controller creates a smooth color fading sequence of over 64,000 colors. Brightness levels can also be adjusted. With party mode, the colors change without fading in a more energetic sequence, perfect for a party with friends.
An improved touch design, using a panel controller in conjunction with a remote touch method, provides flexible control. The touch remote control has good performance, beautiful, fashionable, easy to use.
In a humid place, cover with a plastic, waterproof box.
Controller:
- Operating temperature: -20 ~ 60 ℃
- Supply voltage: DC 12 ~ 24V - provided, 5V - optional.
- Output: 3 channels
- Communication mode: common anode
- External dimension: 89 x 70 x H8 mm
- Package size: 145 x 95 x 50 mm
- Net weight: 130g
- Total weight: 165 g
- Static power consumption: Output current: ≤ 3A (each channel)
- Output power: 12V: <108W, 24V
Touch remote:
- Operating temperature: -20 ~ 60 ℃
- Power mode: 28 * 8 mm battery
- Static power consumption: 0.036 mW
- Standby current: 3uA
- Operating current: 300uA
- Exhaust current: 12mA
- Distance: 20 m
- Standby time: 6 months
Key features:
- Touch button, ultra-thin
- Number of touch keys up to 64, up to 64 kinds of mode functions, silent, more button functions.
- Easy to use, you can choose the color you want, and static and dynamic modes change freely.
- The automatic sleep function extends battery life.
