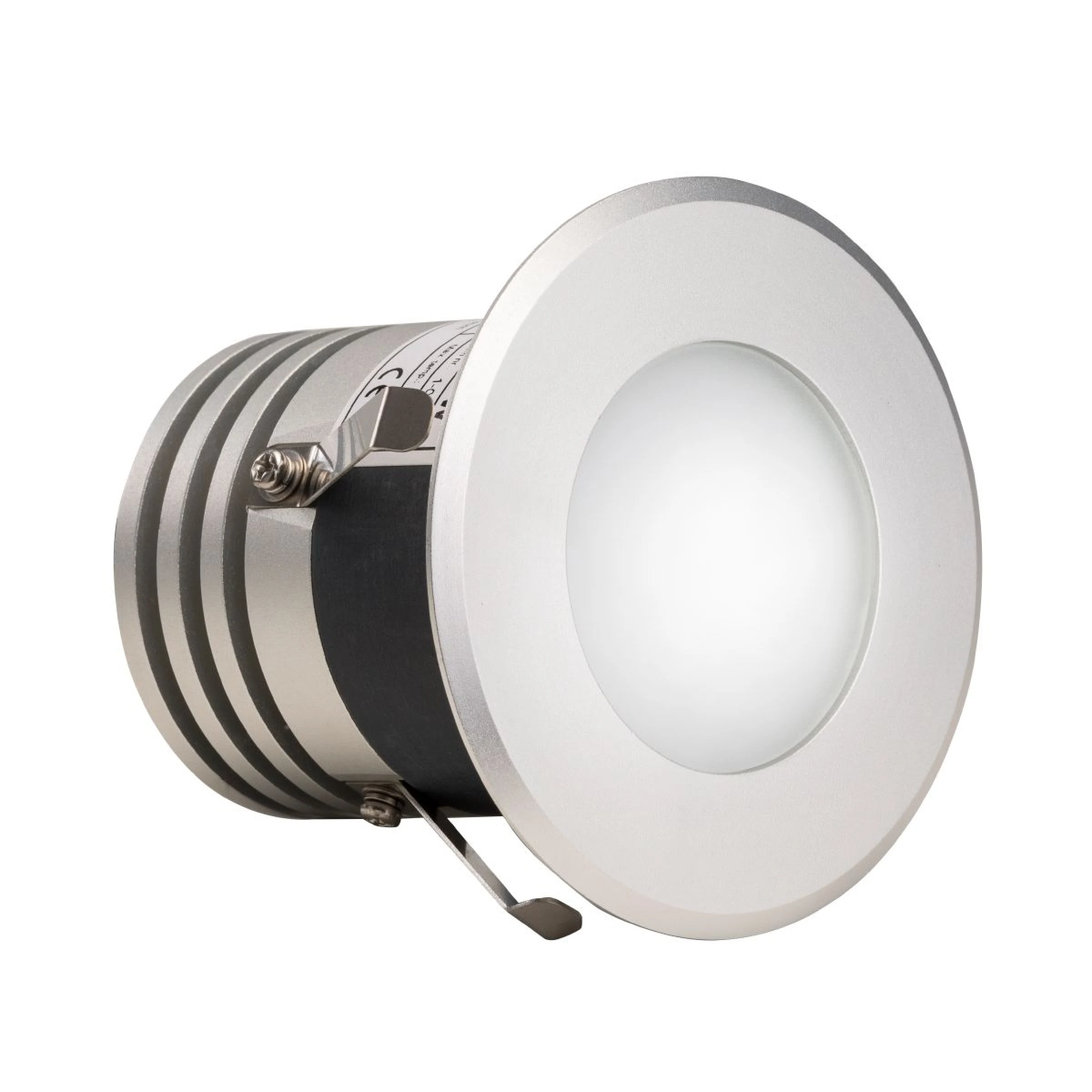

Harvia LED-SP-RGBW-5 is a recessed RGBW LED light designed for sauna, steam room and steam shower lighting. It provides red, green, blue and warm white 3000 K light, allowing different lighting atmospheres to be created.
The luminaire operates using 4 × 350 mA constant-current (CC) control. Harvia specifies control via a compatible CC DMX driver or CC remote driver. The installation manual identifies the Harvia DMX-CC as a compatible DMX driver.
The housing is made of AL6063 aluminium, with tempered frosted glass at the front. Its IP65 protection rating makes it suitable for humid environments. According to Harvia, the luminaire is suitable for steam baths and steam showers and may also be positioned directly above the sauna heater when installed according to the manufacturer's instructions.
The luminous flux is 120 lm, with a colour rendering index of CRI Ra >80. A 2 m temperature-resistant 5 × 0.5 mm² connection cable is included. A 68 mm diameter installation cut-out is required.
Important: LED-SP-RGBW-5 is a 350 mA constant-current (CC) luminaire. Compatible constant-current RGBW power and control components must be selected according to the Harvia wiring diagram.
Technical data:
- Manufacturer: Harvia
- Model: LED-SP-RGBW-5
- Product type: RGBW LED light
- Power: 5 W
- Light colours: red, green, blue, warm white
- White light colour temperature: 3000 K
- Supply/control type: constant current CC
- Current: 4 × 350 mA
- Common anode: yes
- Luminous flux: 120 lm
- Colour rendering index: CRI Ra >80
- Protection class: IP65
- Relative humidity: 0–99%
- Housing: AL6063 aluminium
- Glass: tempered frosted glass
- Diameter: 90 mm
- Height: 91 mm
- Installation cut-out: 68 mm diameter
- Permitted front temperature: –25 to +125 °C
- Permitted rear temperature: –25 to +40 °C
- Connection cable: 2 m, 5 × 0.5 mm²
- Maximum stated LED lifetime: 30,000 h
- Net weight: 0.50 kg
- Product code: LED-SP-RGBW-5
- EAN: 9120053865782
