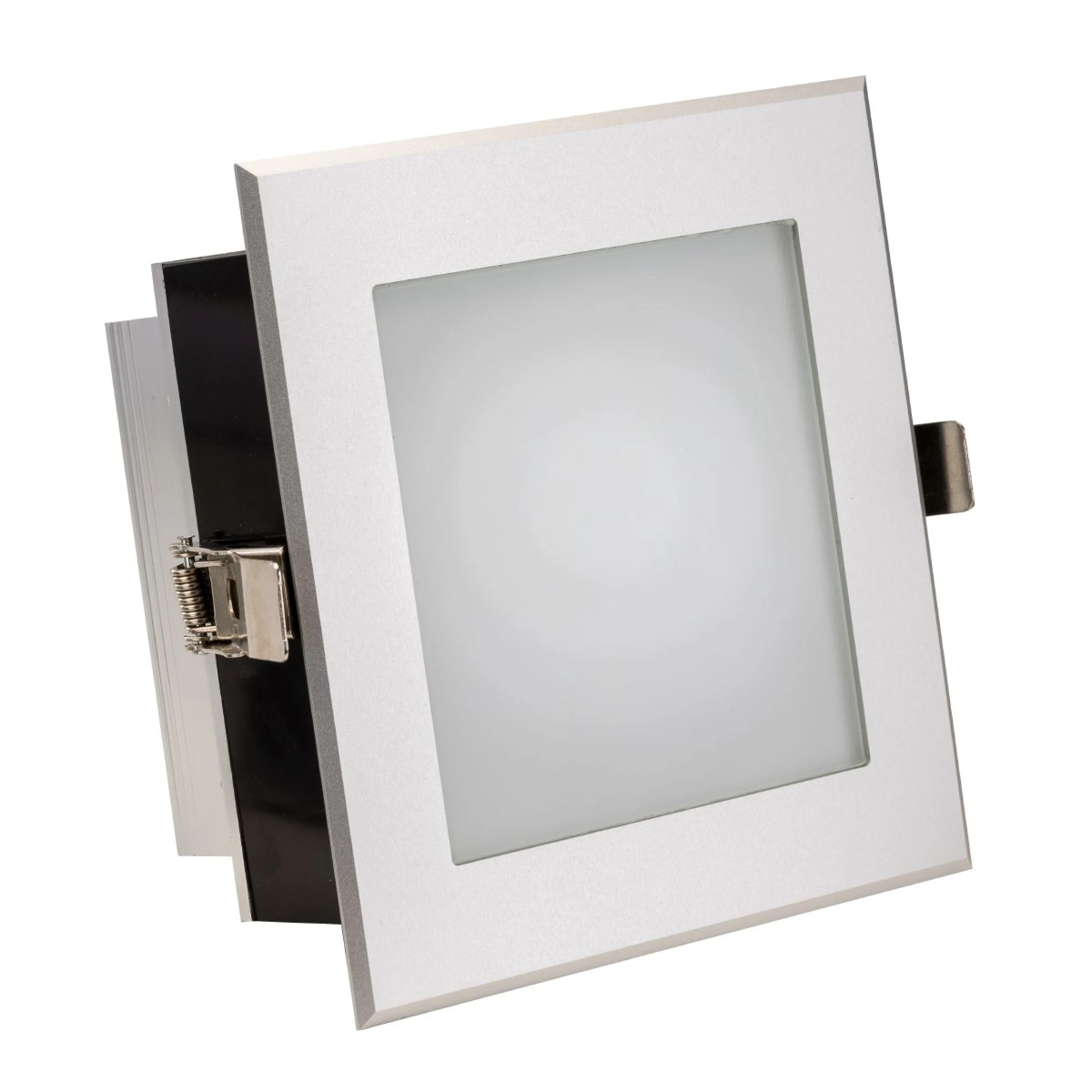

Harvia LED-SP-RGBW-18 is a square recessed RGBW LED light designed for sauna, steam room and steam shower lighting. It provides red, green, blue and warm white 3000 K light, allowing the lighting colour to be adjusted using compatible RGBW control equipment.
The luminaire is controlled using 4 × 350 mA constant current (CC). Harvia specifies compatible CC DMX or CC remote drivers. In the Harvia RGBW system overview, LED-SP-RGBW-18 and LED-SP-RGBW-5 are connected through constant-current components such as DMX-CC or LC-CC-VP.
The housing is made of aluminium and the front is made of tempered glass. With an IP65 protection rating, the luminaire is suitable for humid environments. According to the manufacturer, it is suitable for steam baths and steam showers and may also be positioned directly above the sauna heater when installed according to the manufacturer's requirements.
A 2 m temperature-resistant connection cable is included. Compatible power supply and RGBW control components are selected separately according to the Harvia lighting system being used.
Technical data:
- Manufacturer: Harvia
- Model: LED-SP-RGBW-18
- Product type: RGBW LED light
- Power: 18 W
- Light colours: red, green, blue, warm white
- White light colour temperature: 3000 K
- Control type: constant current (CC)
- Current: 4 × 350 mA
- Control: compatible CC DMX or CC remote driver
- Protection class: IP65
- Housing: aluminium
- Front: tempered glass
- Size stated in product name: 174 × 174 mm
- Dimensions in Harvia technical data: 175 × 175 × 95 mm
- Maximum ambient temperature: 125 °C
- Connection cable: 2 m, temperature-resistant
- Net weight: 1.64 kg
- Product code: LED-SP-RGBW-18
- EAN: 9120053865539
