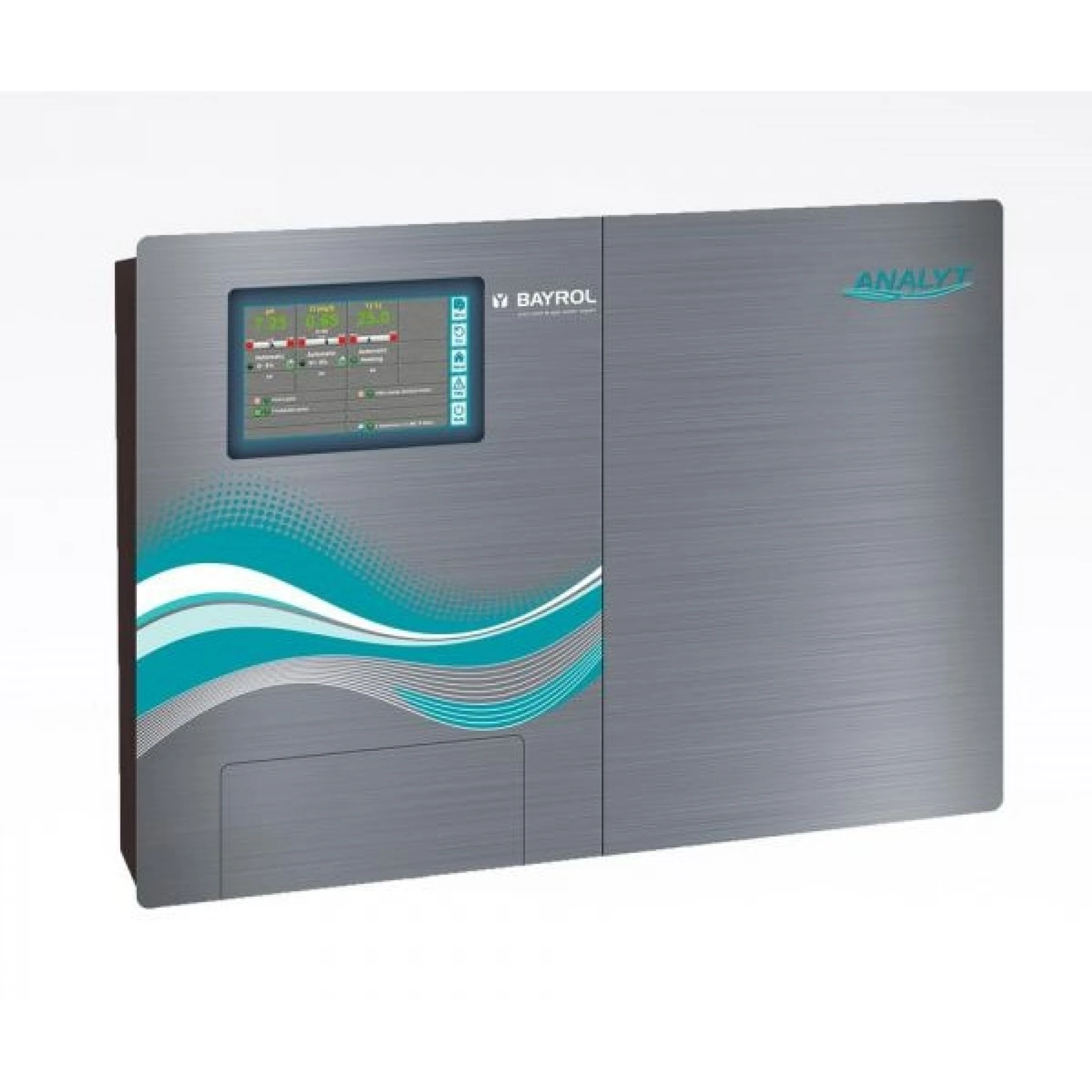

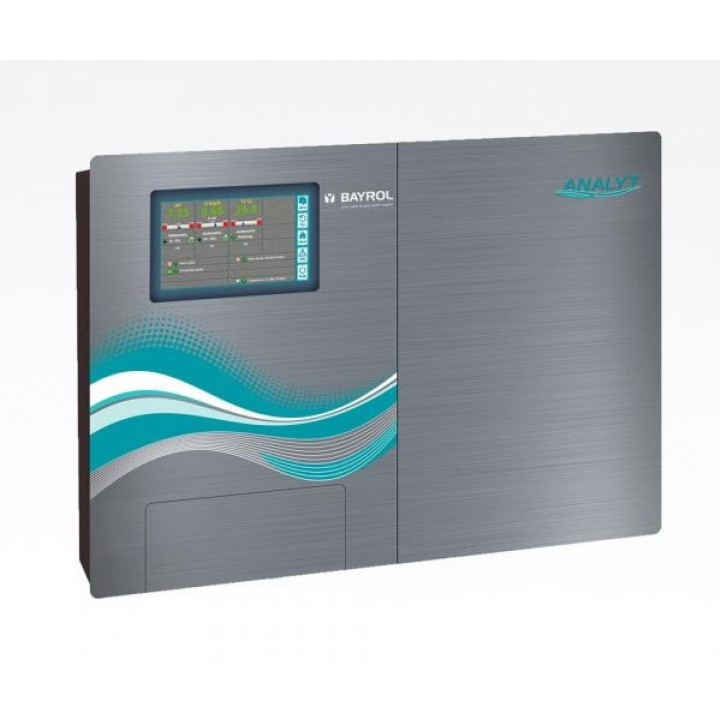

Bayrol Analyt 2 is a highly efficient and accurate measurement, regulation and dosing system for automatic pool water monitoring. Compatible with all types of pumps and dosing systems, can control and regulate pH, chlorine or bromine.
Analyt 2 can control water treatment in all pools, regardless of size: all you need to do is connect pumps with enough flow, and everything else will be taken care of by the unit.
With many options for connecting external auxiliaries, this dosing station acts as a pool control center. For example, it allows you to control the pump, lighting or pool heating, avoiding the use of other control devices and thus reducing costs.
Advantages:
- Professional chlorine measurement with free chlorine and active chlorine display. Shows chlorine measurements in mg / l.
- Adaptation to dosing systems
- Management of large pools
- Remote availability
- Event log
Operation:
Analyt 2 is controlled directly on the touch screen or via a navigation terminal connected to a local area network (computer, tablet or similar device). If your local network is connected to the Internet, Analyt 2 can also be fully managed online.
The measuring element installed in Analyt 2 operates on a potentiostatic principle and can therefore display the chlorine content in mg / l. Electrodes made of gold and platinum are a high-quality combination that ensures extremely accurate measurement of free and active chlorine. The measuring systems are protected by an elegant and removable box that allows easy and quick operation, calibration and maintenance of the electrodes.
Technical data:
- Display: High resolution TFT display with VGA resolution (800 x 480), menu selection by icons, 5 additional shortcuts for frequently used functions, context-sensitive help function.
- Security: Password protection (5 levels), configurable for direct access and remote access.
- Languages: 16 selectable languages
- Protection class: IP65
Parameters / measuring ranges:
- pH: 0-10 (with temperature compensation)
- Free chlorine / bromine: 0.01 - 10 ppm / mg / l
- Water temperature: 0 - 50 ° C
Size:
- Width: 715 mm
- Height: 495 mm
- Depth: 125 mm
