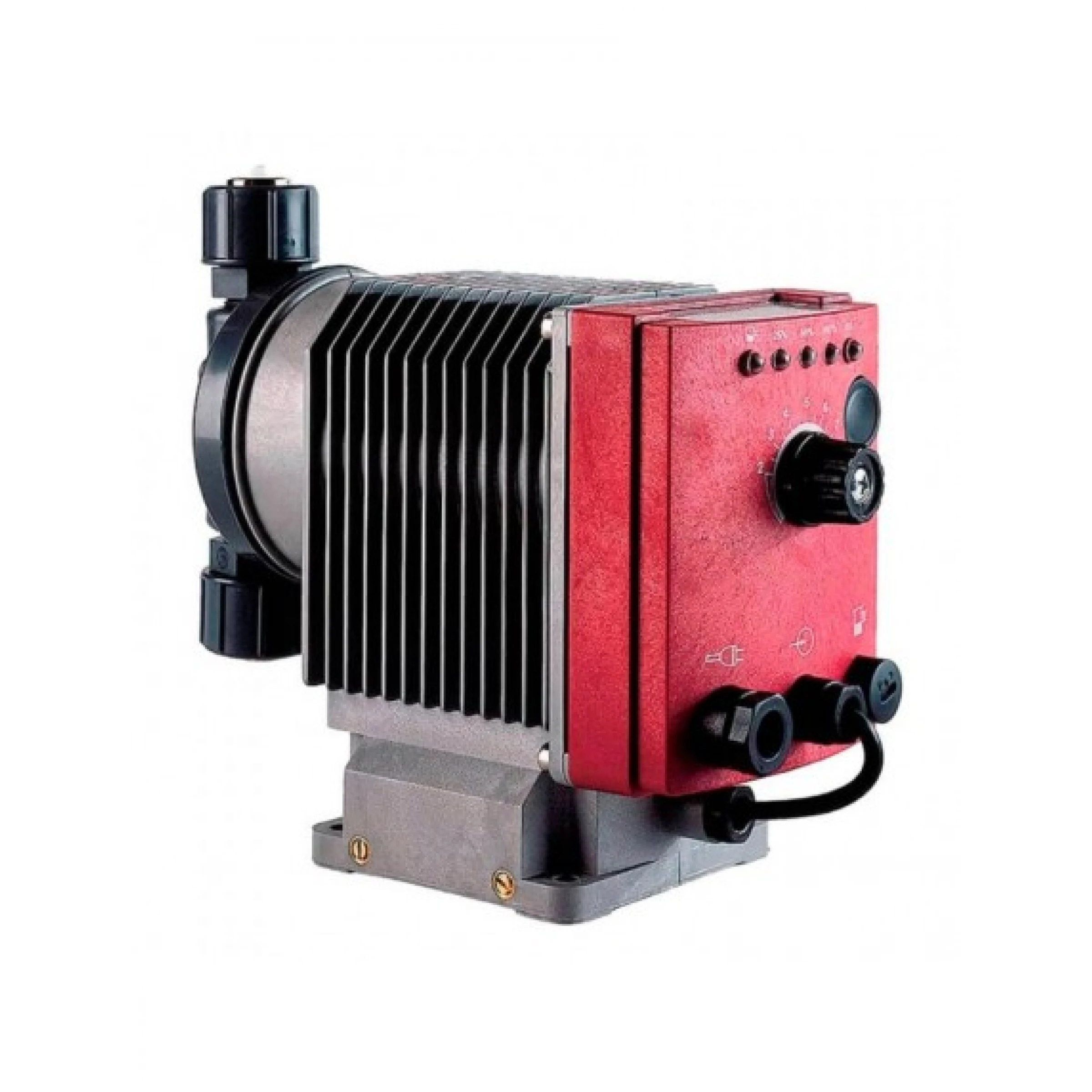

The Bayrol LB 4 dosing pump is designed for dosing chemicals in pool water treatment systems with a maximum system pressure of 10 bar.
The pump can operate as an element of automatic dosing stations or as an independent device.
Pump operation:
Electrical impulses are supplied from the control unit built into the side housing of the dosing pump, causing the pump diaphragm to move and pump out the liquid chemical reagent through a rod built into the chemical tank.
The control unit has a pulse rate regulator and a chemical suction volume regulator. A level sensor is installed to monitor the chemical reagent in the tank. The Bayrol LB 4 pump delivers the dosing chemistry to the pool water treatment system via a reinforced hose with a non-return valve to block water from the water treatment system to the Bayrol dosing pump.
Liquids suitable for the Bayrol LB 4 dosing pump:
- PH-minus liquid Bayrol
- Bayrol Hypochlorite Fluid
- Quickfloc Automatic Bayrol Fluid
- Quickfloc liquid Bayrol
- "Bayrosoft Bayrol"
Technical data:
- Protection class: IP65
- Cord length: 1.8 m
- Maximum pressure: 16 bar
- Speed, rpm: 180
- Pump capacity at medium pressure: 3.8 l / h
- Power consumption: 18 W
- Size: 225 x 90 x 166 mm
