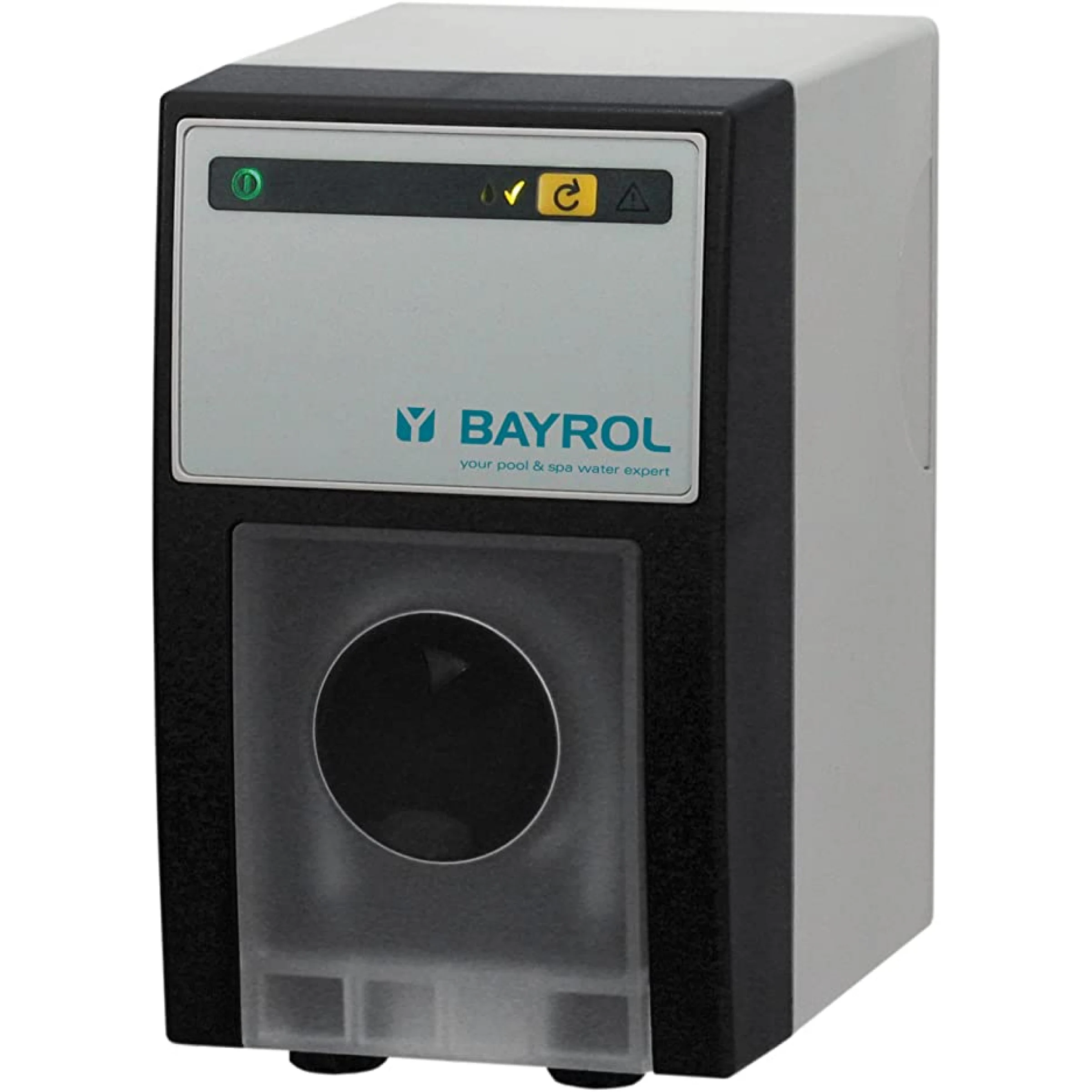

Bayrol Flockmatic is a high quality peristaltic pump for dosing liquid flocculant into the pool circulation circuit. The pump provides crystal clear water and maintains optimal disinfection capacity. Water is purified by coagulating suspensions in pools up to 60 m³.
The Flockmatic comes with a ready-to-mount kit for wall mounting. It is recommended that the pump be installed at a height of approximately 1.5 m immediately below the reagent tank.
The swimming pool must be equipped with a sand filter system of appropriate dimensions.
Attention! The dosing pump must be switched off when washing the reversing sand filter.
Technical data:
- With added hose delivery rate 0.01 l / (10ml / h).
- Maximum pressure: 1.5 bar
- Flow rate: 0.01 l / h (10 ml / h)
- Protection class (housing): IP65
- Dimensions (without mounting plate): 93 x 150 x 130 mm
- Electrical connection: 230 volts / 50 Hz
- Energy consumption 0.02 kW
- Ambient temperature +10 ... + 35 ° C
- Ambient water temperature not higher than +45 ° C
- Humidity not exceeding 60%
- Maximum suction water temperature 35 ° C
- Weight 1.3 kg
The Bayrol Flockmatic pump consists of:
- electric motor,
- reducer,
- work camera.
