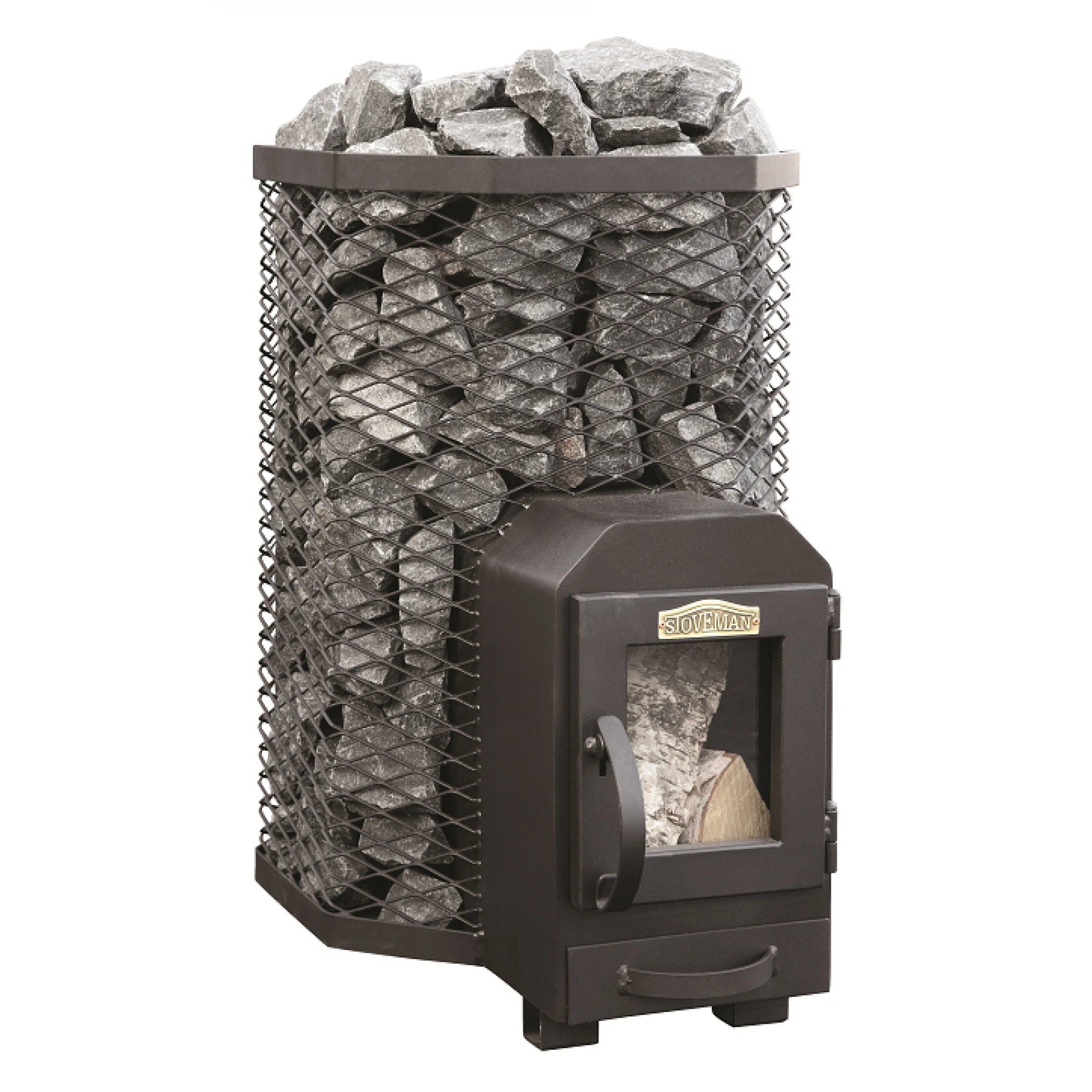

STOVEMAN sauna heater guarantees an enjoyable, mild and durable sauna experience thanks to the large amount of heater stones that block the radiation from the metal surfaces. STOVEMAN 13-LS sauna heater has an improved ventilation system with 6 extra air flow channels on the external walls of the heating unit! The ventilation tubes receive the air from the bottom of the heater, it raises upwards as it gets heated and exits between the top stones.
Materials:
- All parts of the heater in contact with flames are made of 5 mm sheet steel.
- he bottom of the sauna heater is made of 3 mm sheet steel.
- Ash box is made of 2 mm sheet steel.
- The hand crafted ash grate is made of 10×20 mm square steel.
- The basic model of the sauna heater has a glass door.
Options:
- Metal doorplate.
- Heated through the wall.
Recommendation:
To connect the STOVEMAN sauna heater with the chimney it is recommended to use pipes with CE marking withstanding a gas burning temperature of at least 600 degrees.
General information:
- Suitable for sauna rooms with capacity: 6-13 m3
- Amount of heater stones: 110 kg; (The stones are not included in the set. The heater stones on the picture have an illustrative purpose).
- Smoke outlet: 115 mm.
- Equipped with soot flap.
From the 15th of June 2012 all STOVEMAN sauna heaters in serial production are certified according to CE standard EN 15821:2010.
