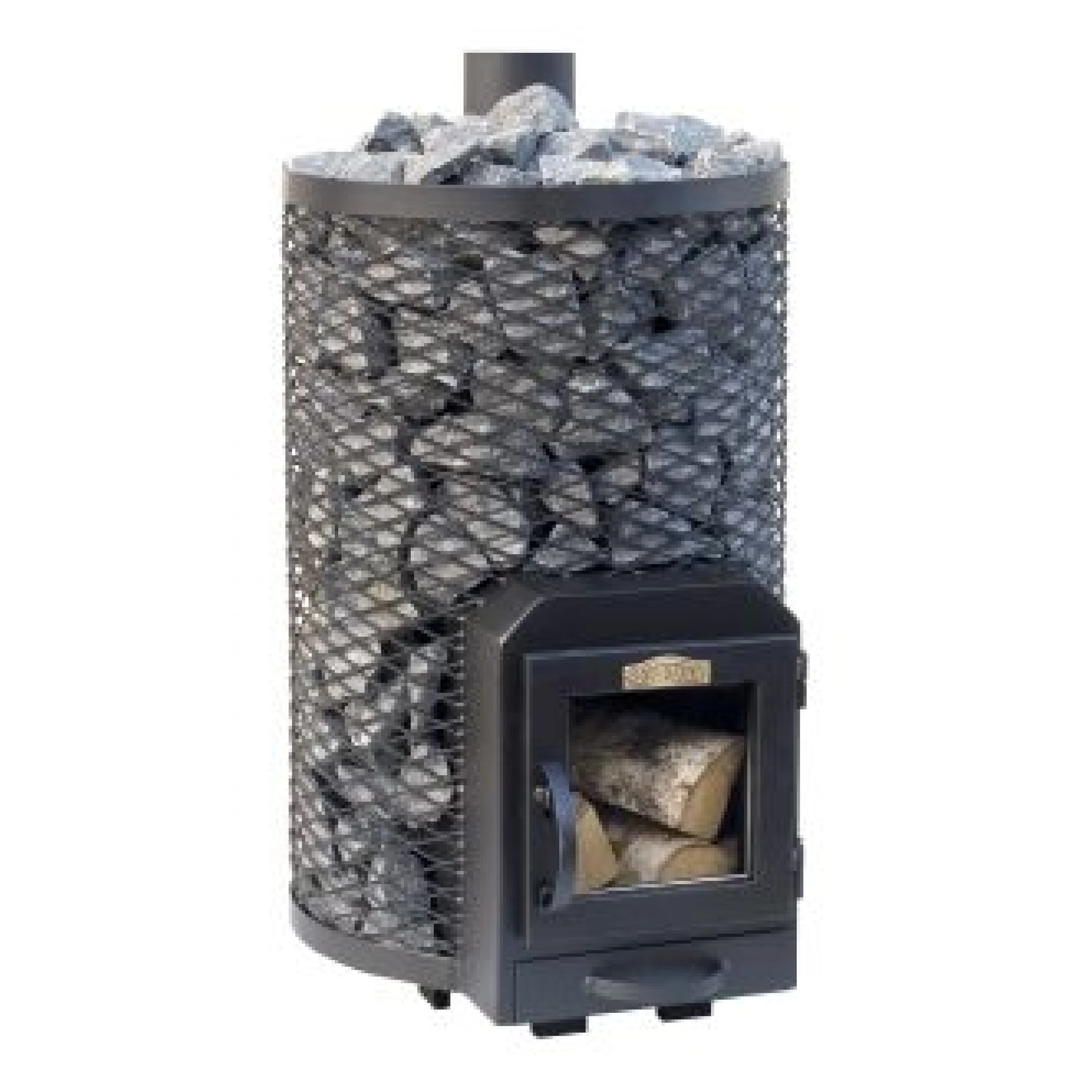

STOVEMAN sauna heater guarantees an enjoyable, mild and durable sauna experience thanks to the large amount of heater stones that block the radiation from the metal surfaces. STOVEMAN 20R sauna heater has an improved ventilation system with 6 extra air flow channels on the external walls of the heating unit! The ventilation tubes receive the air from the bottom of the heater, it raises upwards as it gets heated and exits between the top stones.
Materials:
- The outer corpus of the sauna heater is made of stainless steel.
- All parts of the heater in contact with the flames are made of 5mm sheet steel.
- Ash box is made of 2 mm sheet steel.
- The hand crafted ash grate is made of 10×20 mm square steel.
- The basic model of the sauna heater has a glass door.
Options:
-
Metal doorplate (M).
Recommendation:
To connect the STOVEMAN sauna heater with the chimney it is recommended to use tubes with CE marking withstanding a gas burning temperature of at least 600 degrees.
General information
- Suitable sauna rooms with capacity: 12-20 m3.
- Amount of heater stones: 160 kg (The stones are not included in the set. The heater stones on the picture have an illustrative purpose).

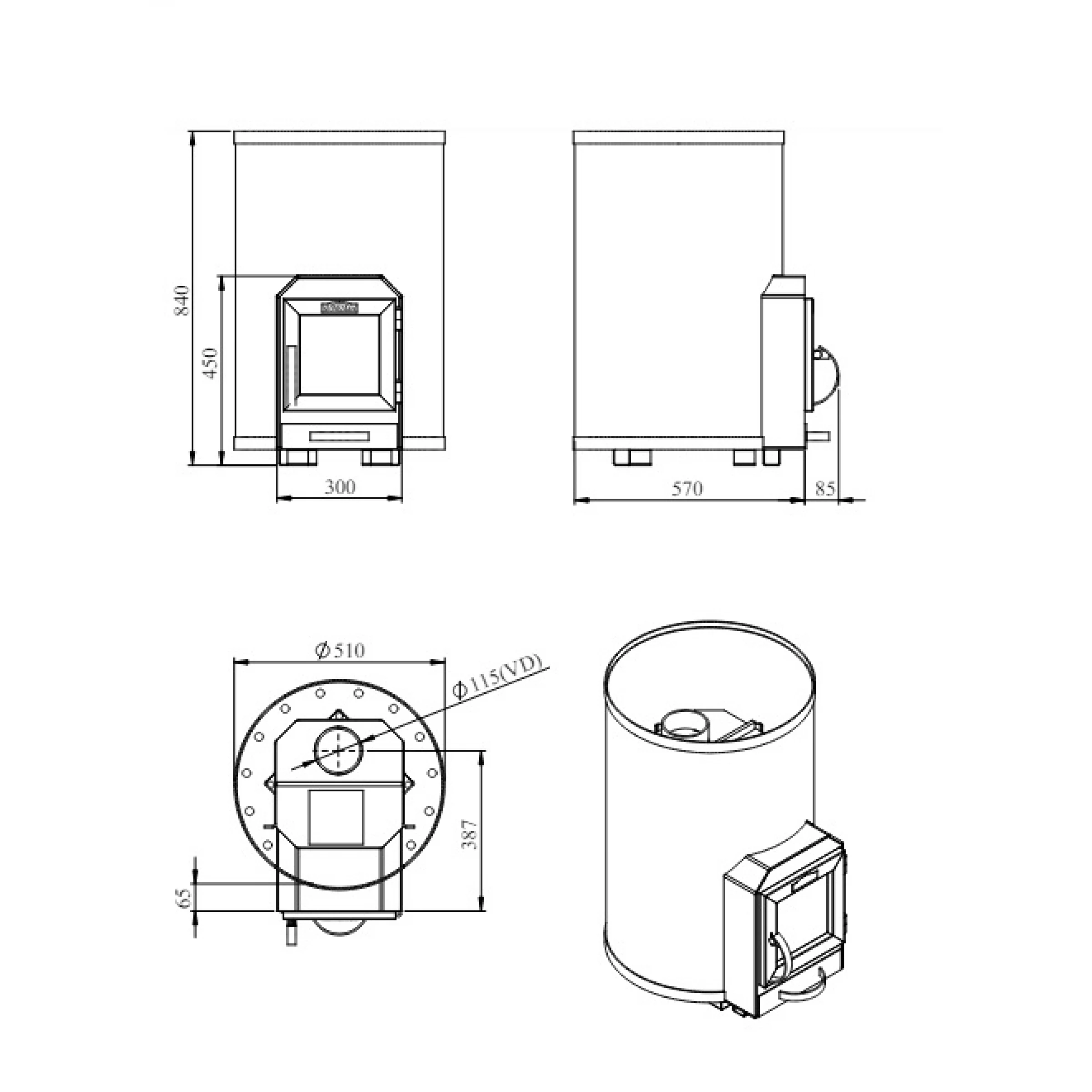

- Smoke outlet 115 mm.
- Equipped with soot flap.
- Stoveman 20R heater is certified according to EN 15821:2010 standard.
- A heat exchanger can be connected to the heater for making hot water.
