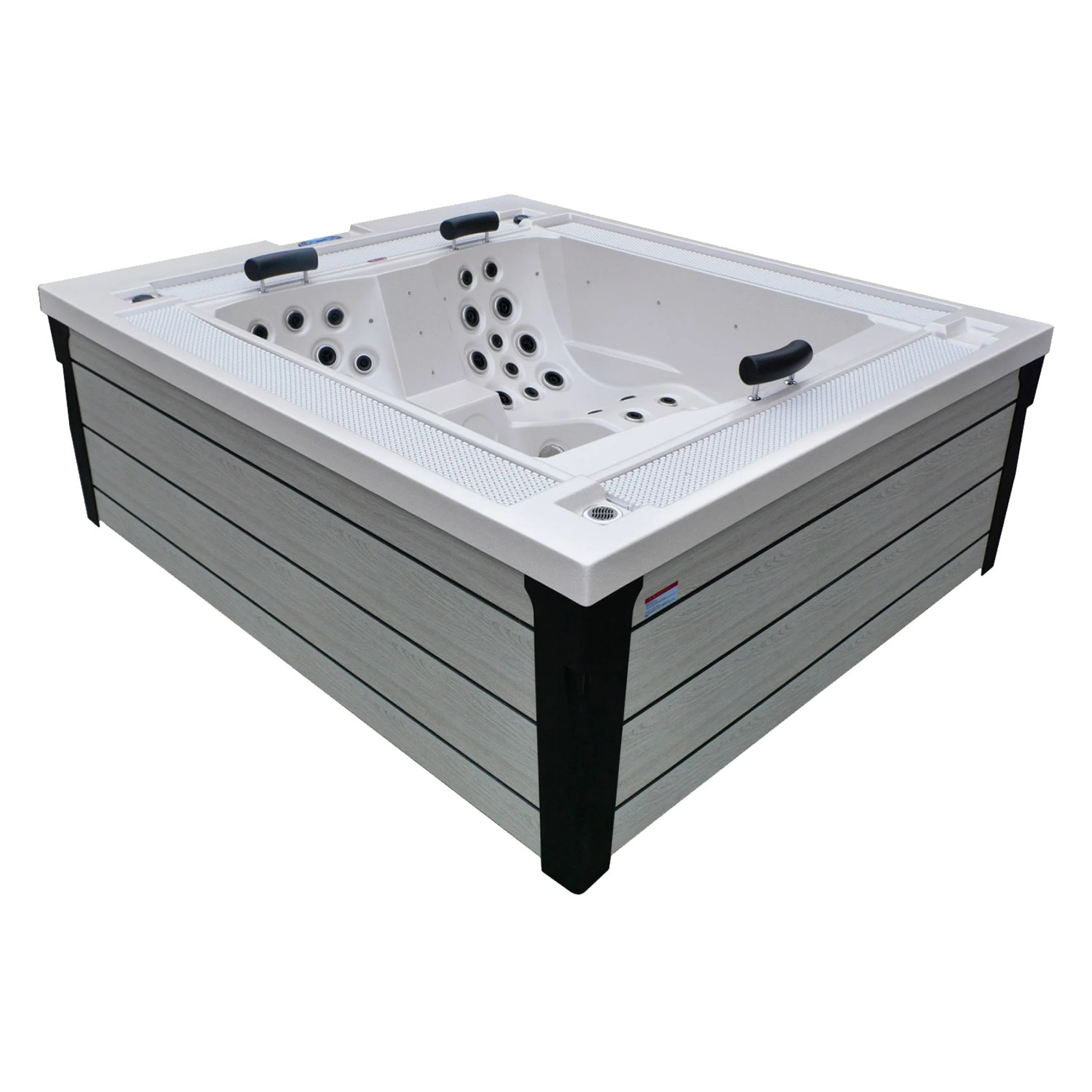

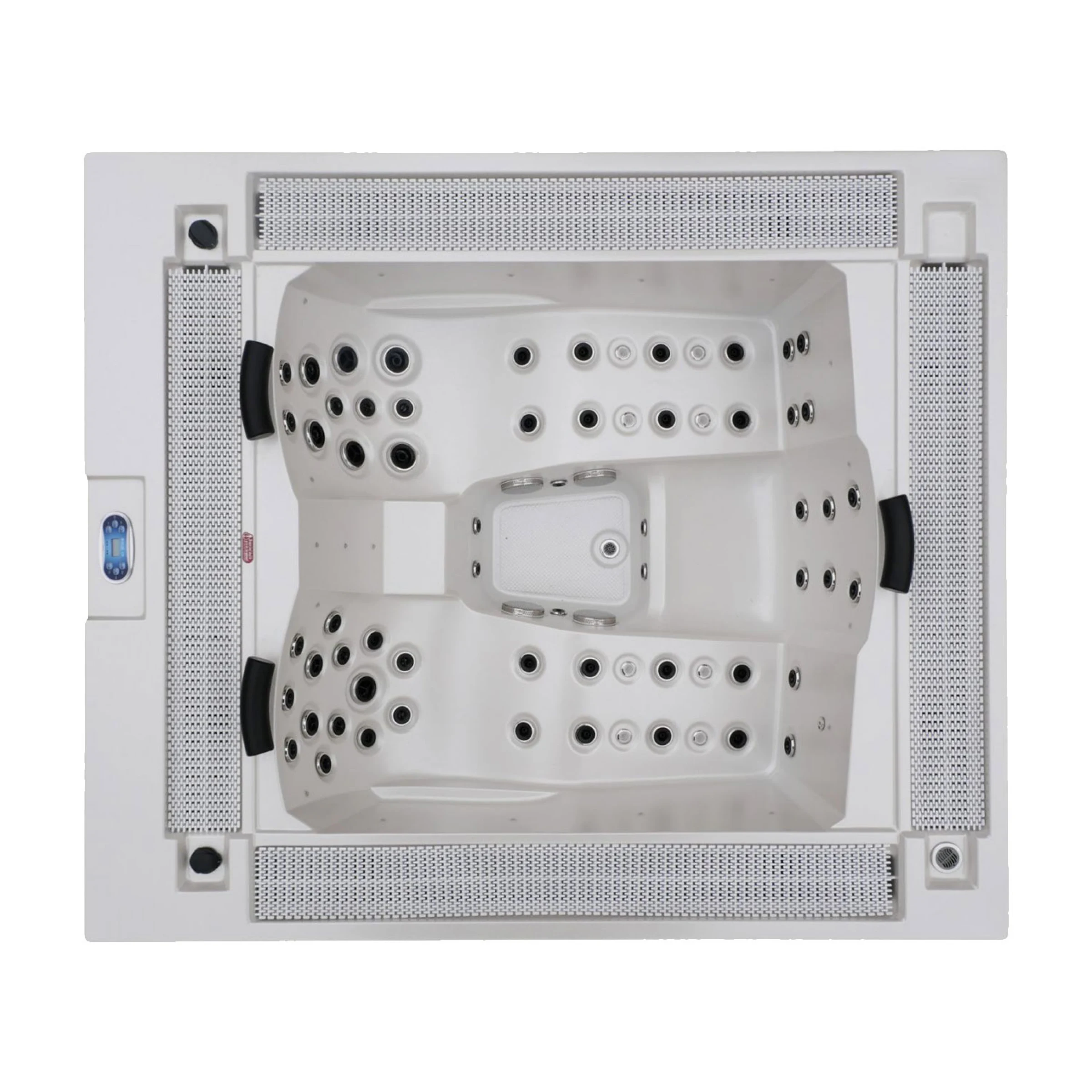

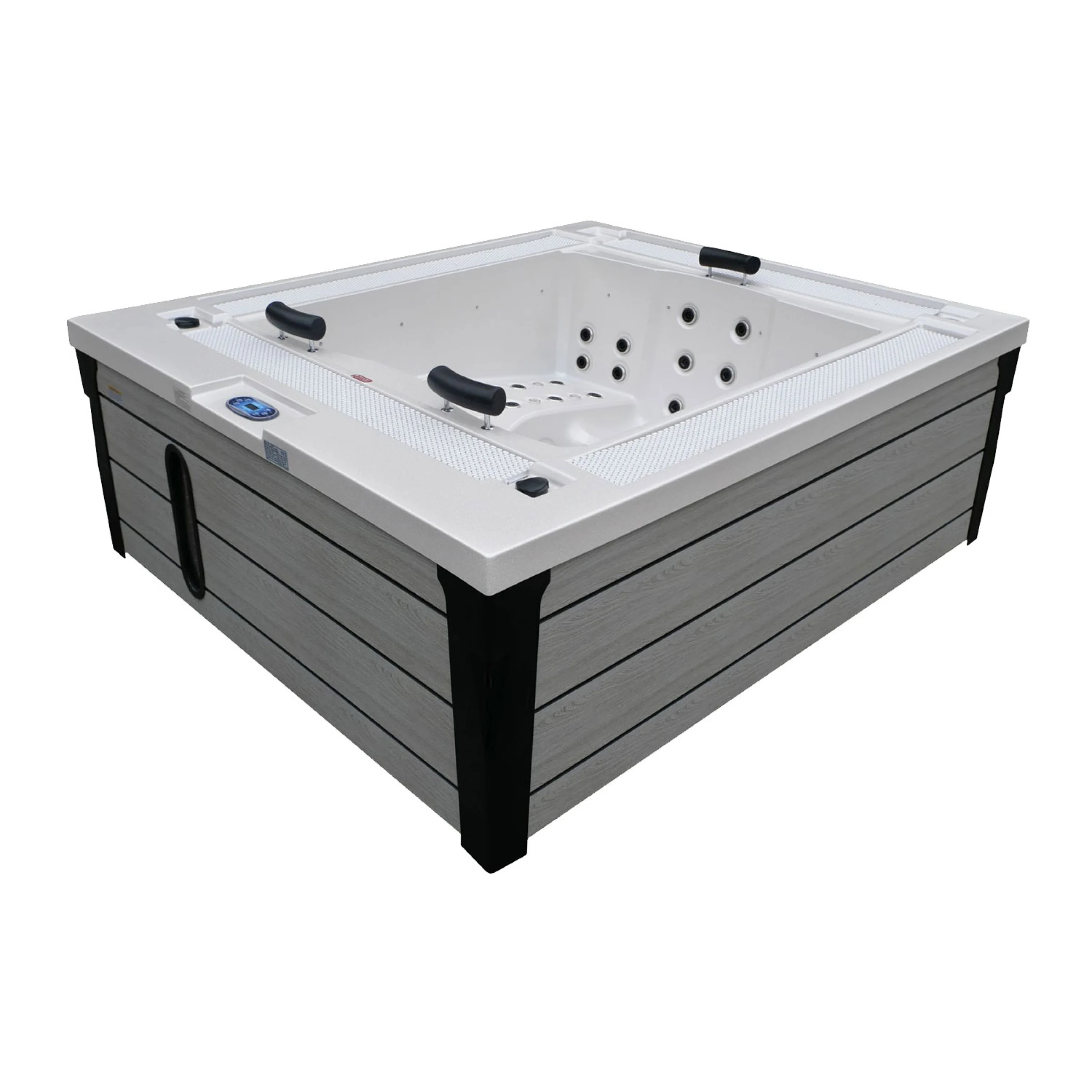

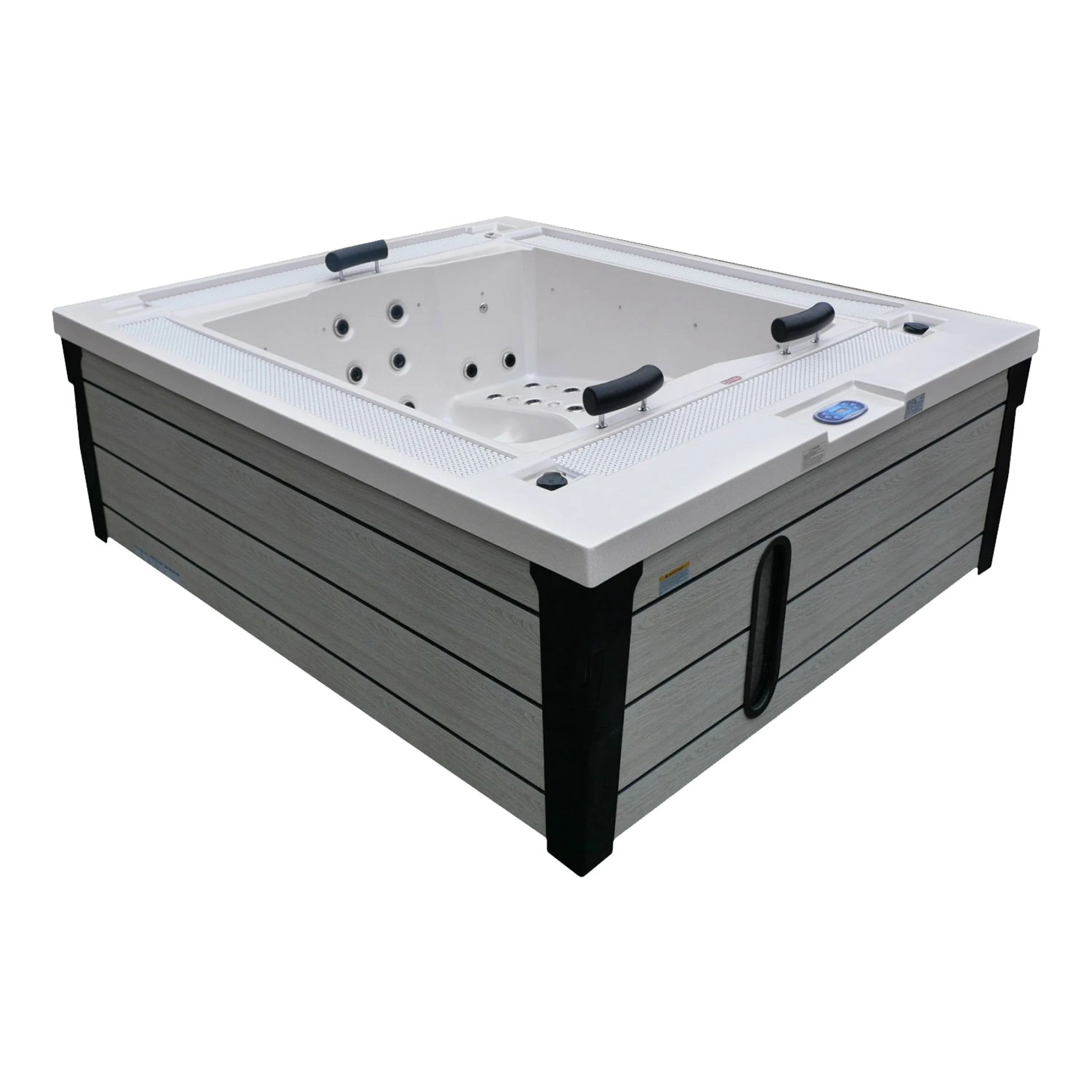

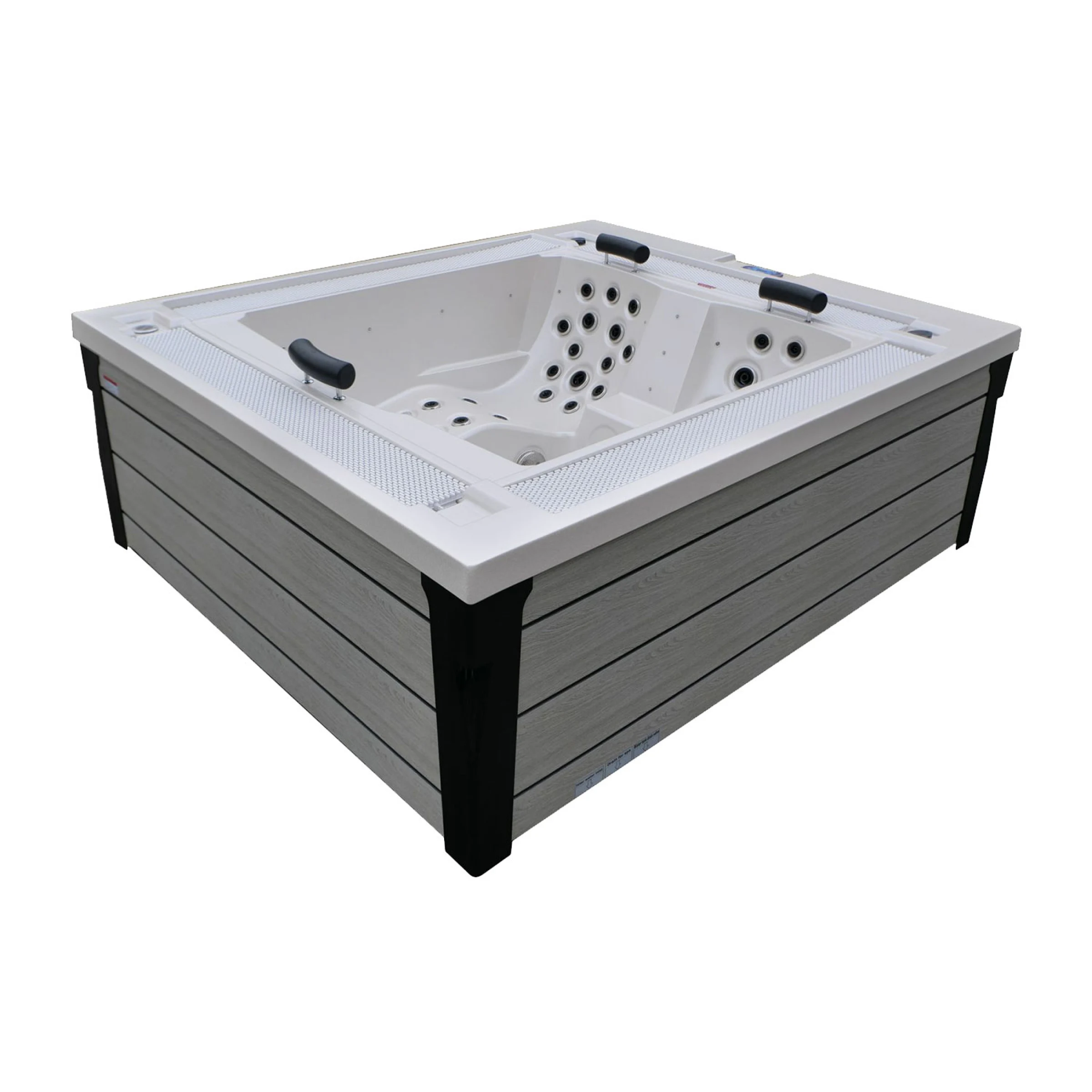

Elviona INFINIA is a three-person massage hot tub featuring an overflow system with a separate grade 304 stainless steel water tank. The hot tub is well suited for outdoor use but can also be installed in appropriately prepared indoor spaces. It features two ergonomic loungers and one seat for adults. The manufacturer's specification also allows for one additional child.
The overflow system is one of the defining features of the INFINIA model. Water flowing over the edge of the hot tub is collected in a separate tank and returned to the circulation system.

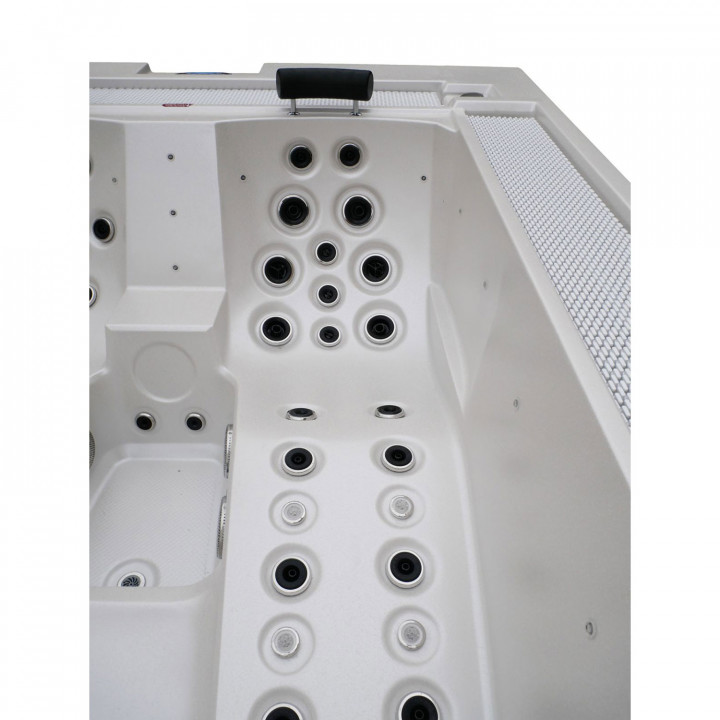

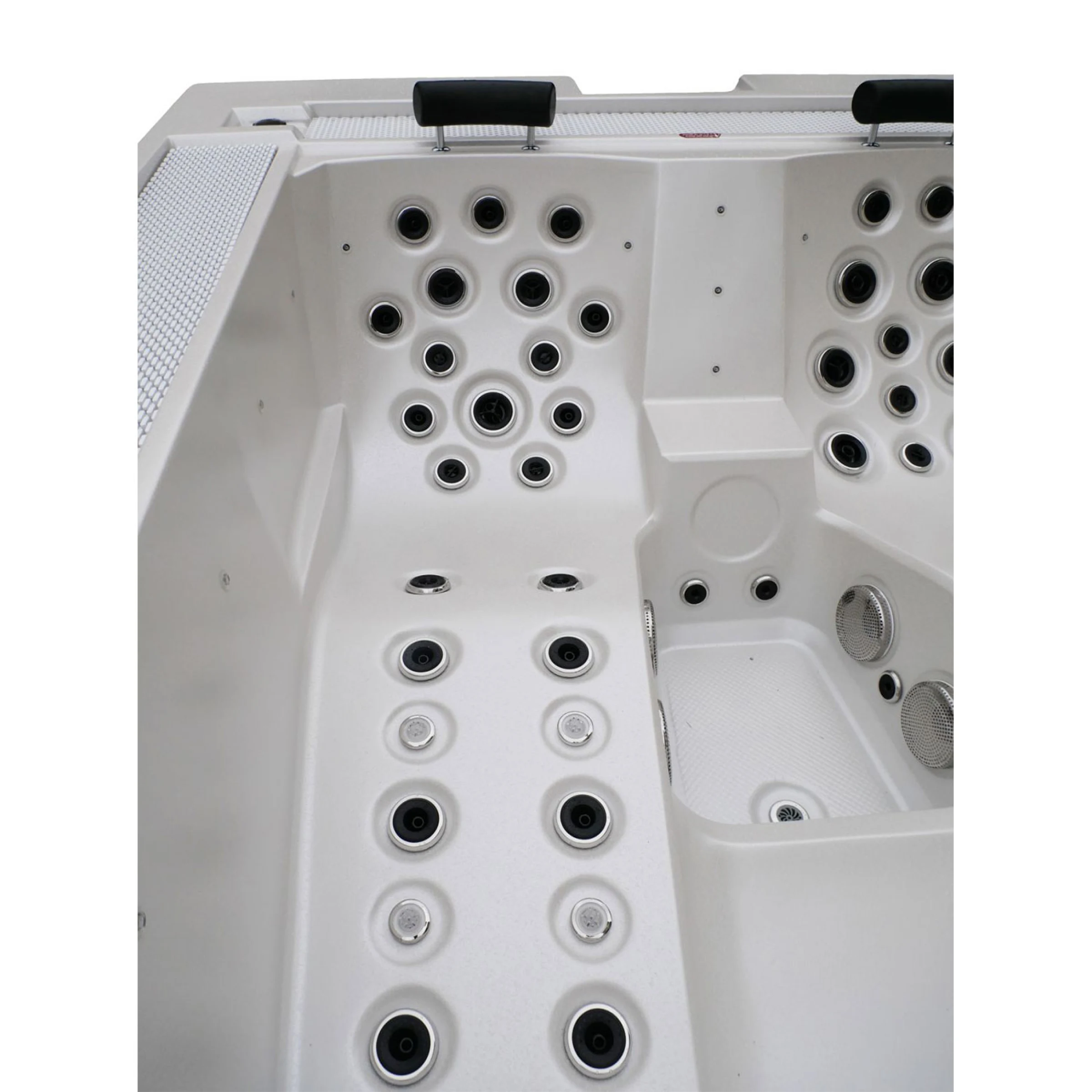

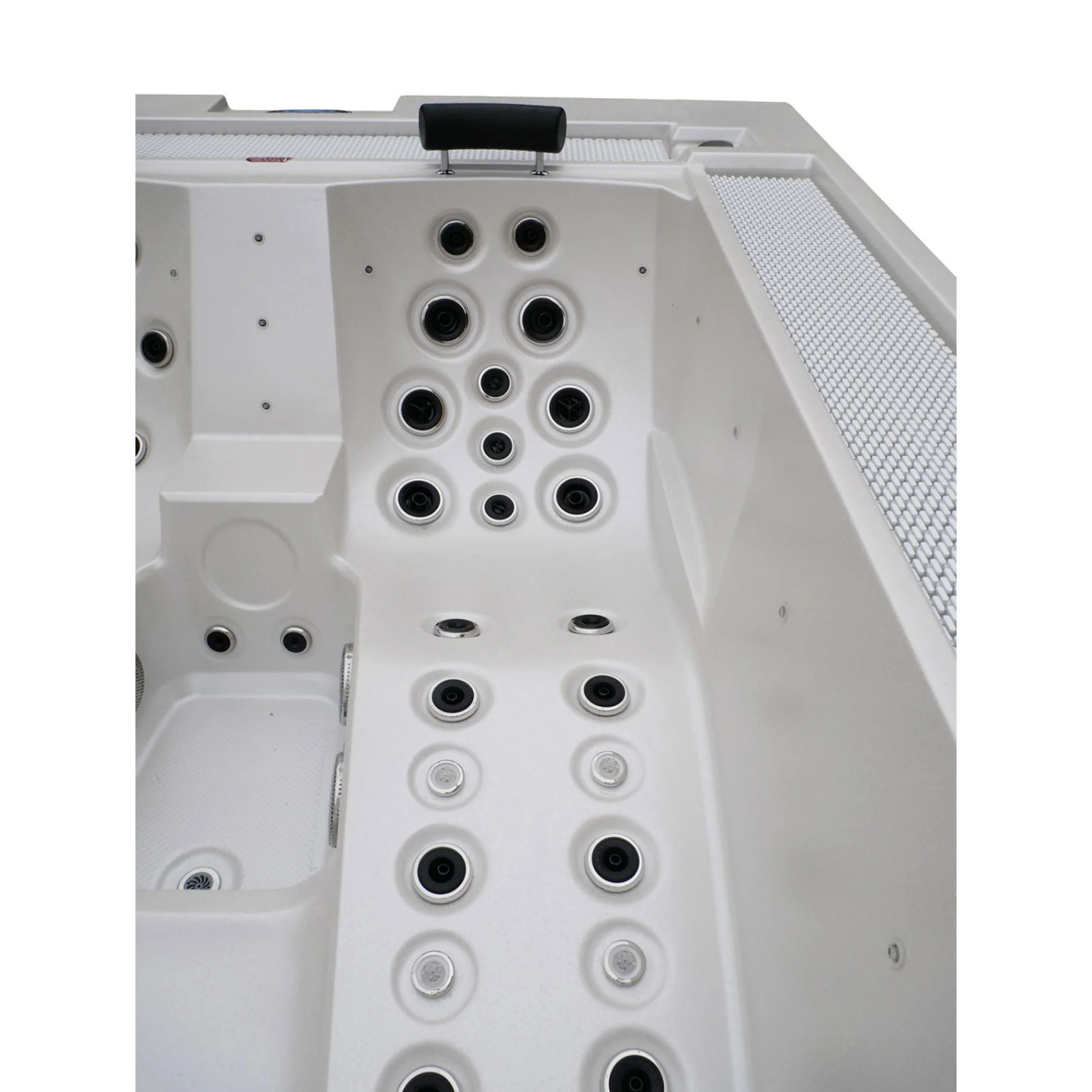

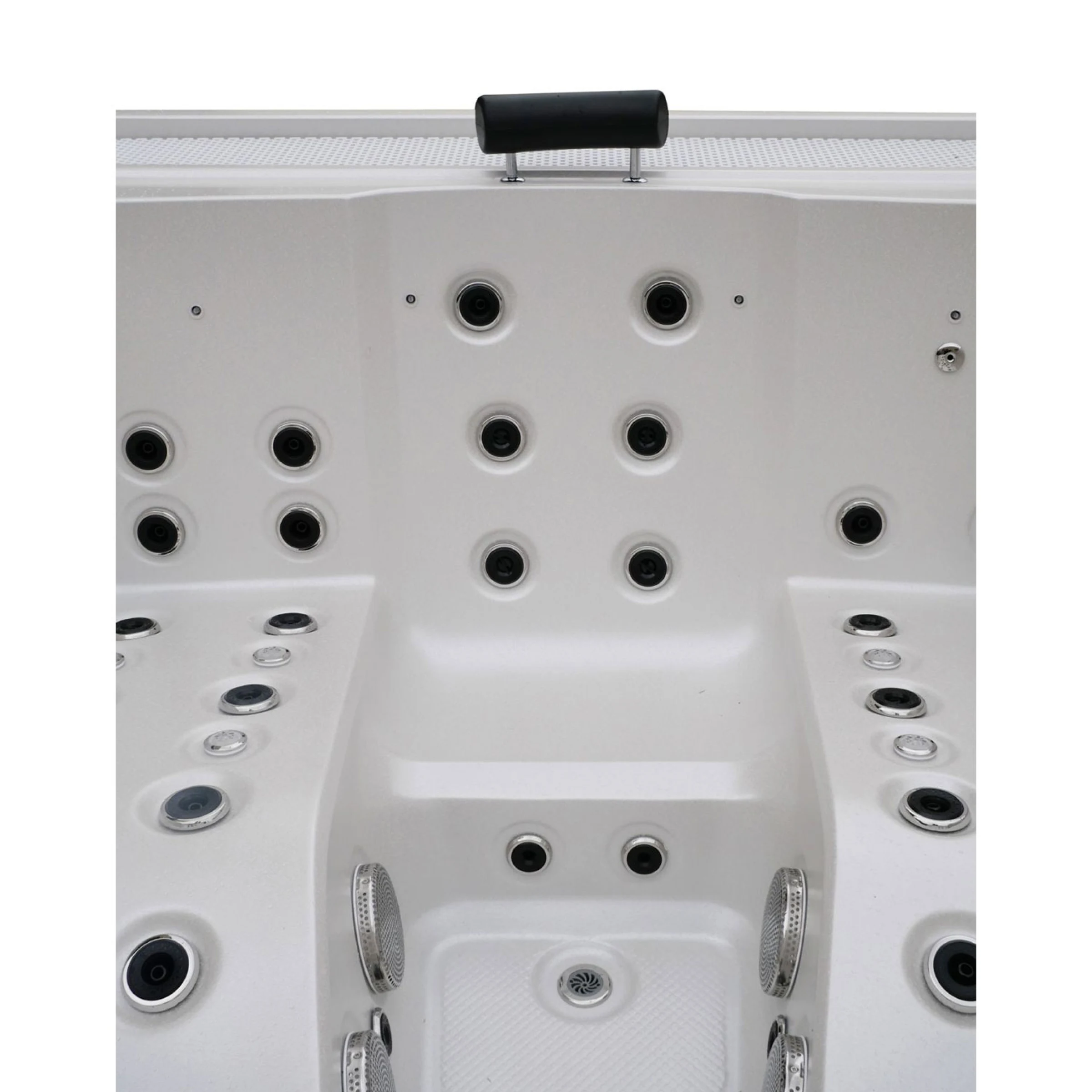

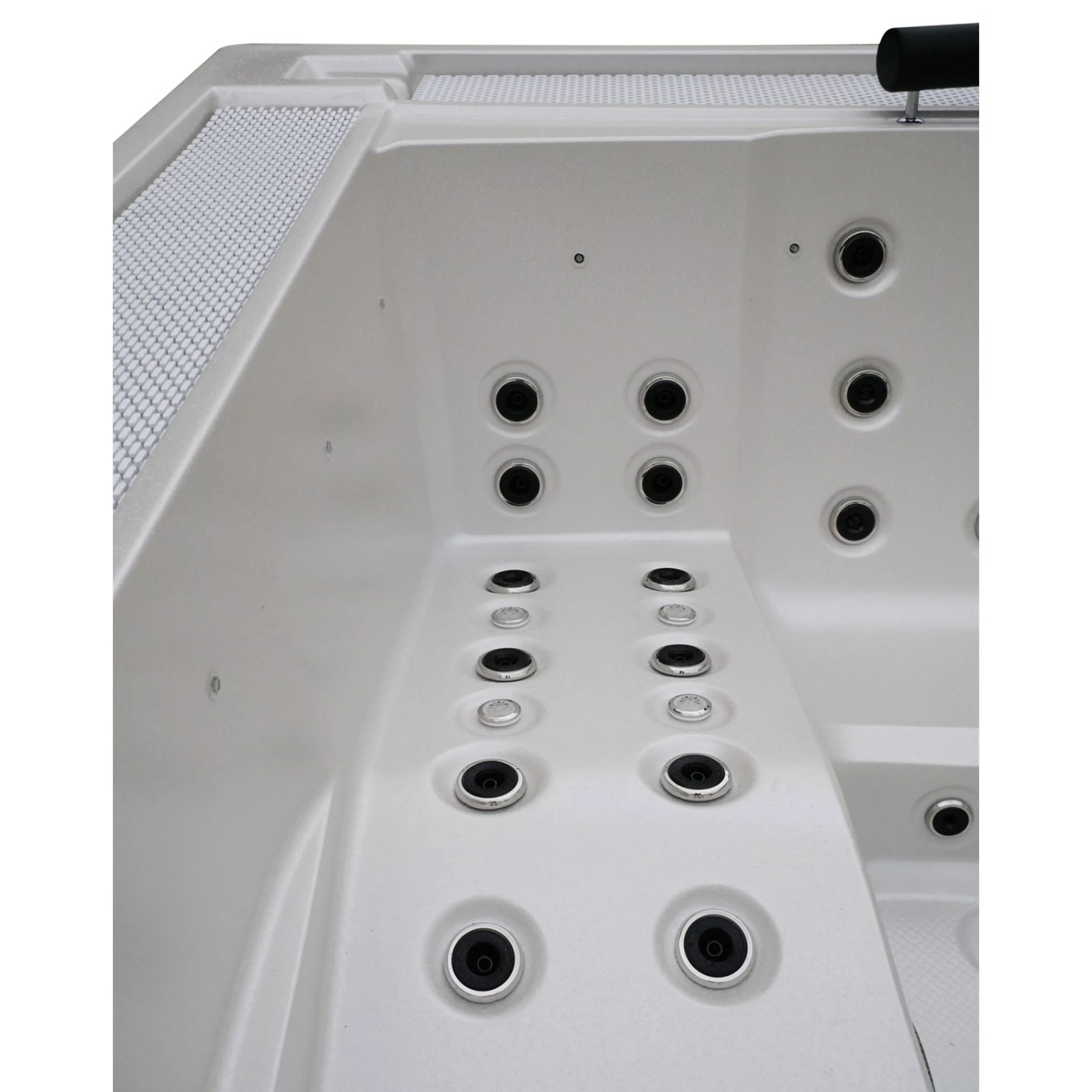

The hot tub is equipped with 67 massage jets - 59 water massage jets and 8 air massage jets, positioned in different massage zones. Two 3.0 HP hydro massage pumps provide water flow, while a 400 W air blower creates an additional bubbling effect. Water massage intensity can be adjusted to individual preferences.
Construction and thermal insulation
The hot tub shell is made from USA Aristech acrylic, reinforced with fiberglass. The exterior cabinet is made from weather-resistant synthetic material, while the supporting frame is constructed from grade 304 stainless steel.
Several insulation features help reduce heat loss:
- Nordic double-insulated thermal cover;
- Additional insulation for the hot tub shell;
- Exterior cabinet insulation made from foam and heat-reflective aluminium foil;
- Insulated bottom base with a 5 mm insulation layer;
- Sealed fiberglass-reinforced plastic (FRP) bottom panel;
- An additional 25 mm layer of foam insulation between the hot tub frame elements.
Water heating and control

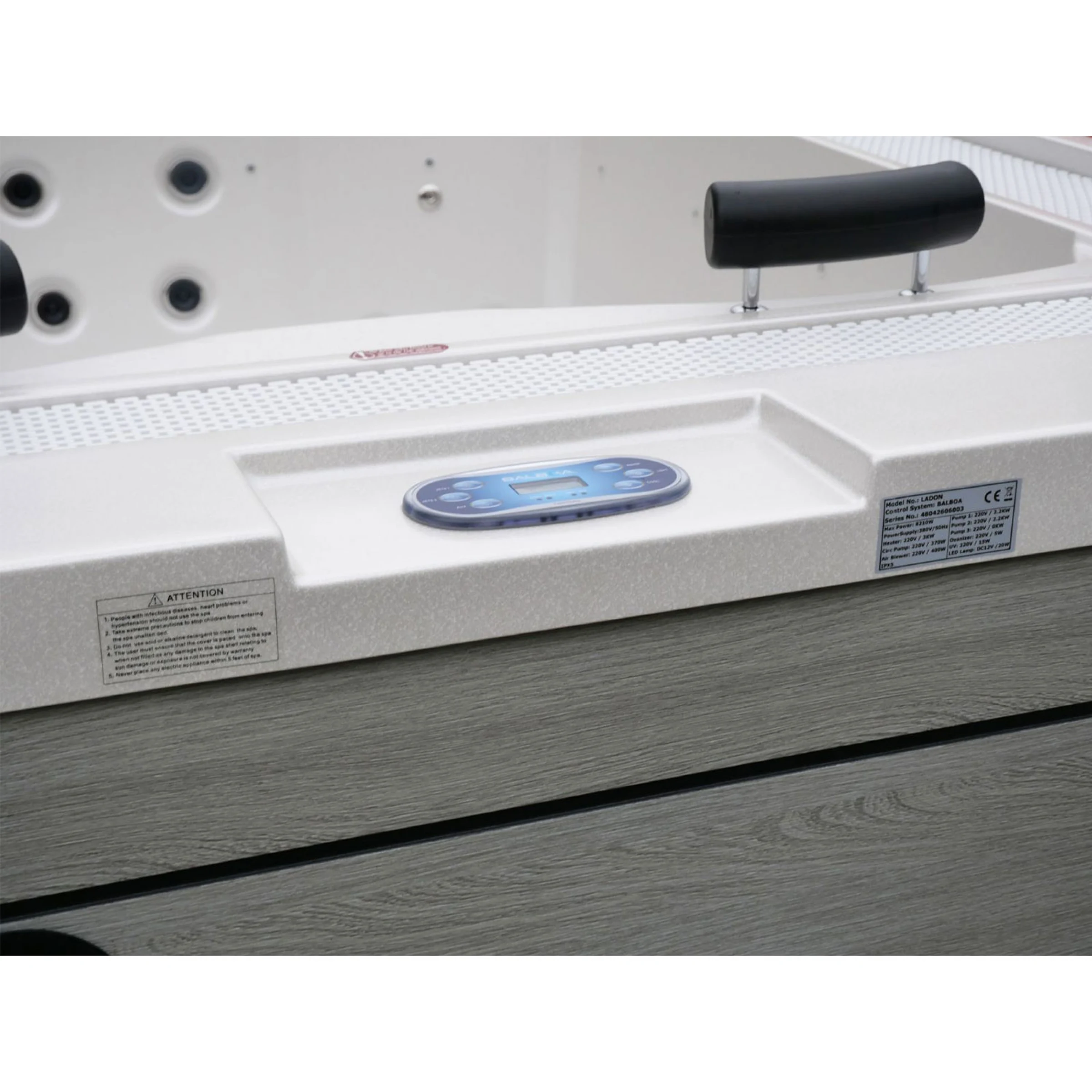

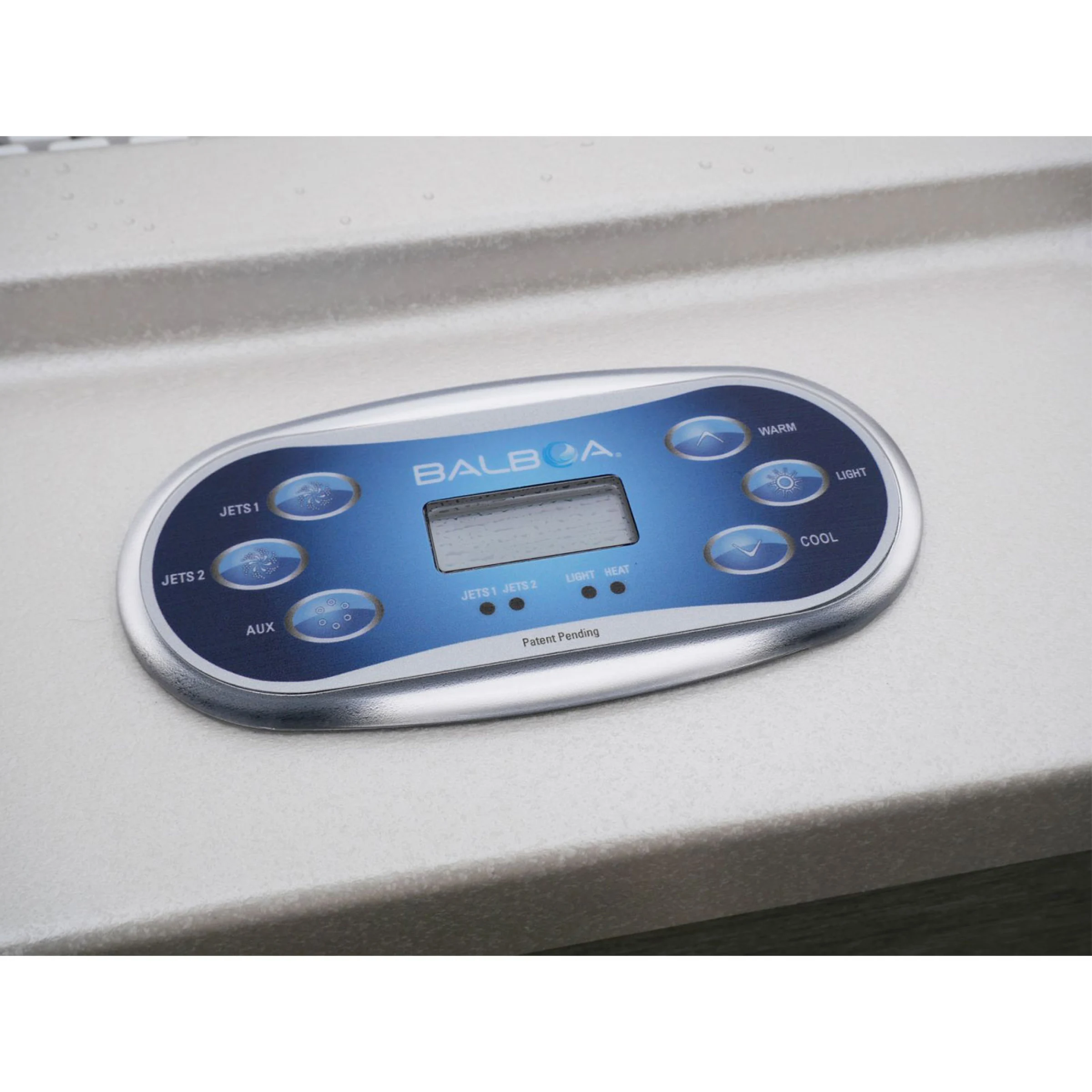

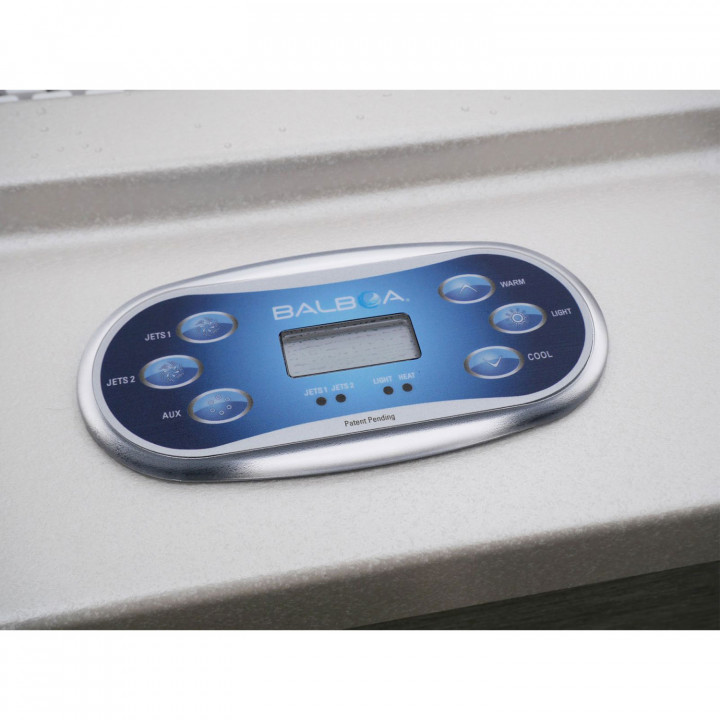

Elviona INFINIA is equipped with a USA BALBOA control system and a 3 kW water heater. The control panel allows users to adjust the water temperature and operate the main hot tub functions.
Water filtration
A separate 0.35 HP circulation pump ensures water circulation through the filtration system. The cartridge filter helps capture mechanical impurities, while the integrated ozone system and UV water disinfection system provide additional water treatment.
Lighting and comfort

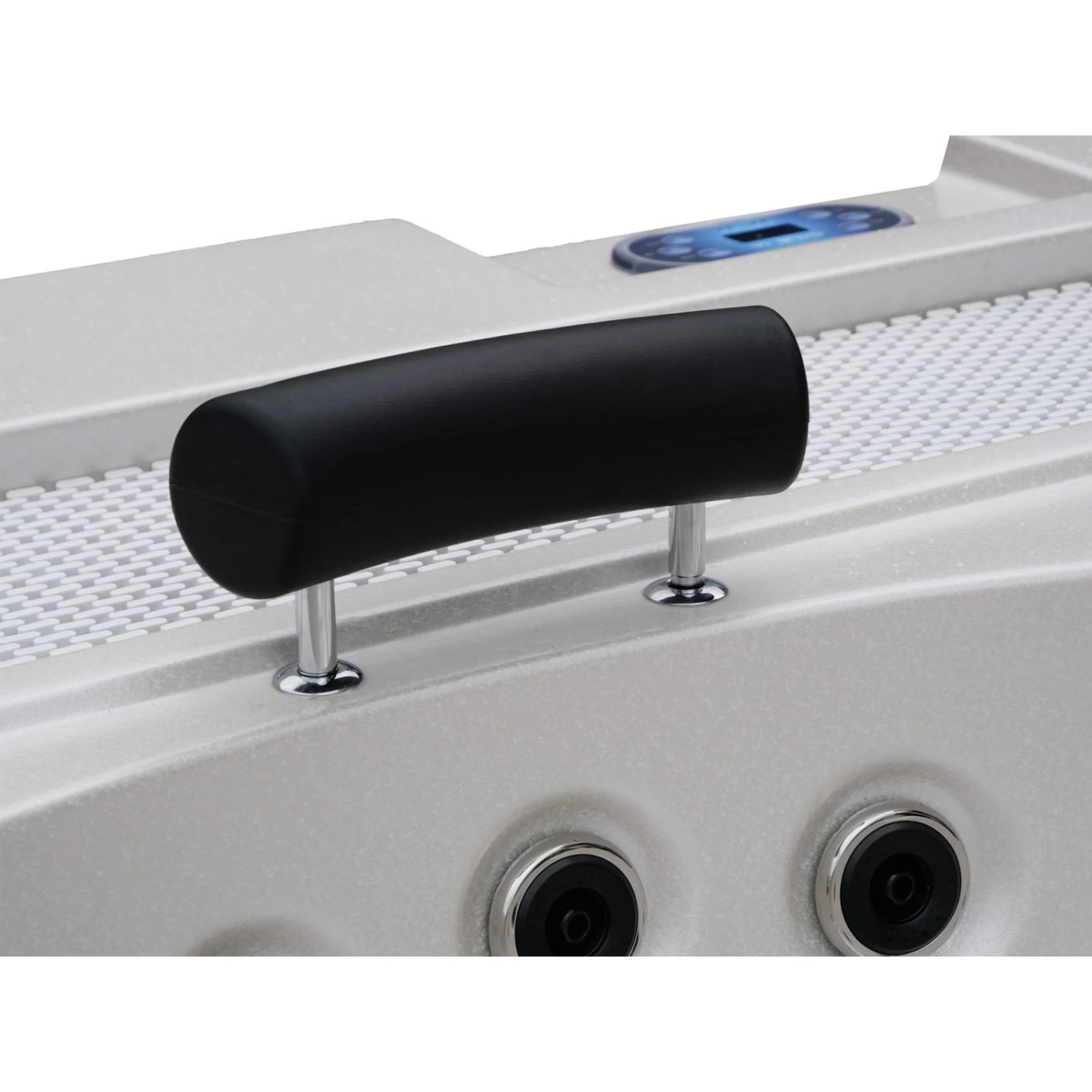

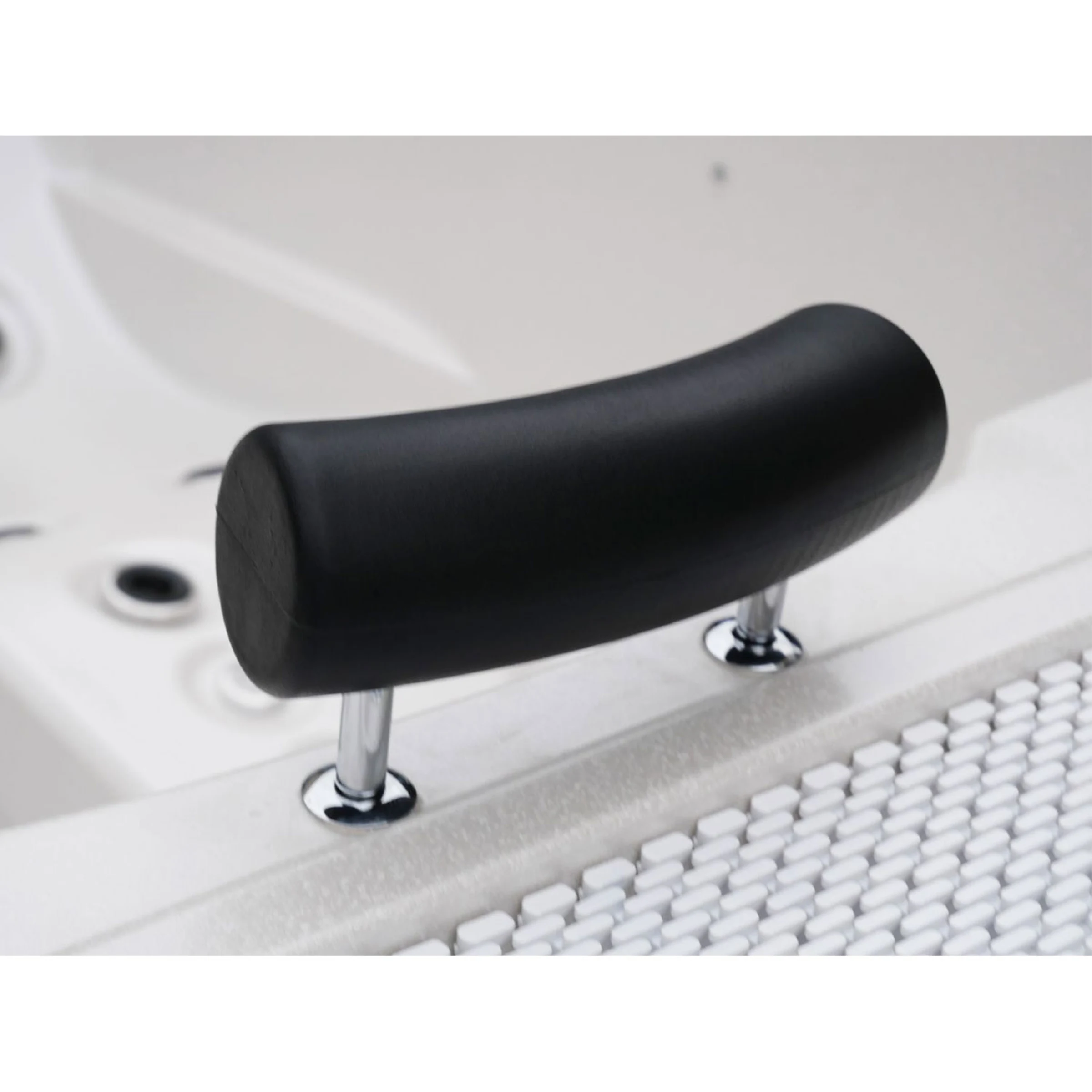

The hot tub features 35 multicolour LED perimeter lights and additional bottom lighting. Additional comfort is provided by three LED-illuminated headrests and ergonomically arranged massage zones.
Included equipment and accessories
Elviona INFINIA is supplied with:
- BALBOA control system with a 3 kW water heater;
- 2 hydro massage pumps rated at 3.0 HP each and 59 water massage jets;
- 400 W air blower and 8 air massage jets;
- Overflow system with a separate grade 304 stainless steel water tank;
- 0.35 HP circulation pump and cartridge water filter;
- Ozone system and UV water disinfection system;
- 35 multicolour LED perimeter lights and additional bottom lighting;
- 3 LED-illuminated headrests;
- Nordic double-insulated thermal cover;
- Protective hot tub cover.
