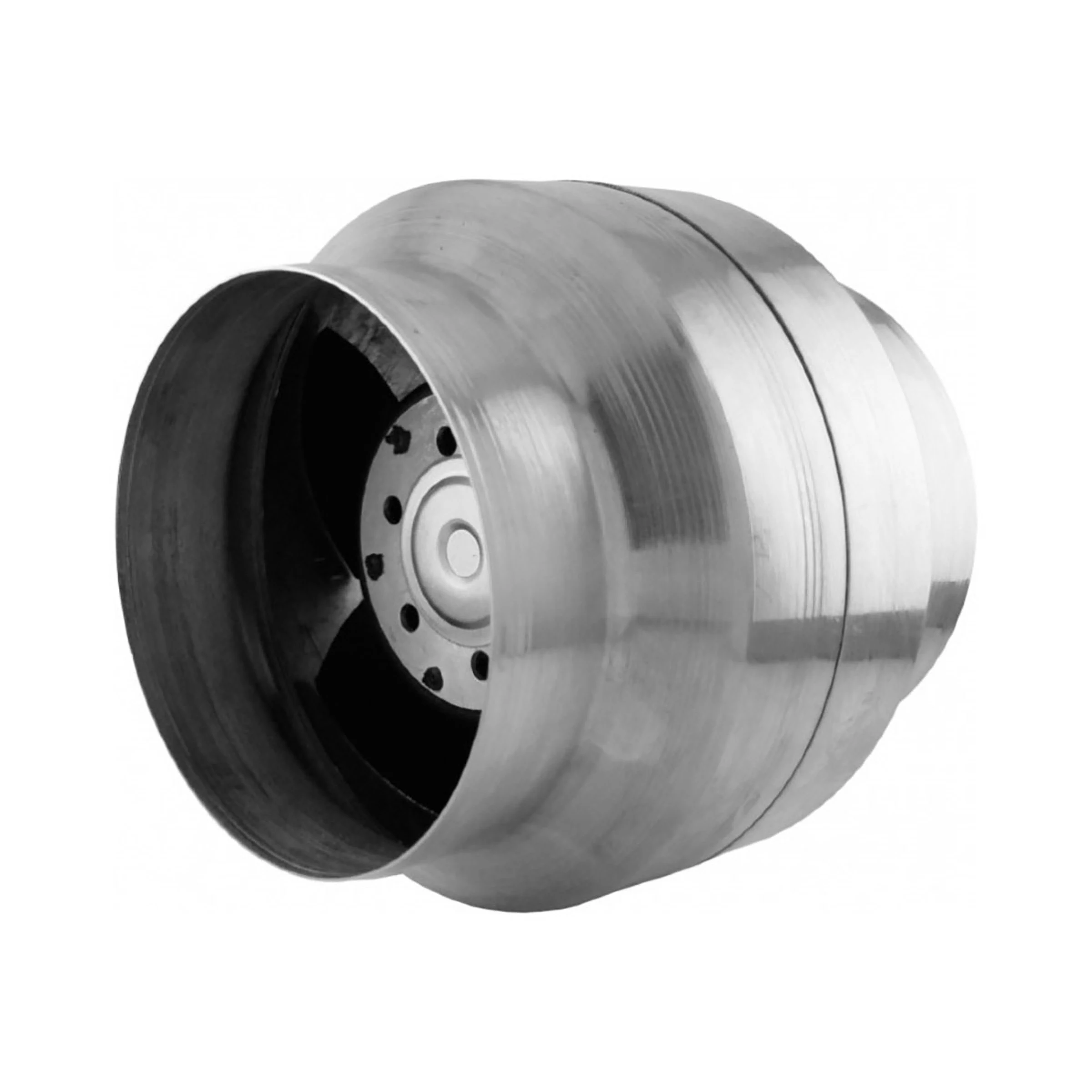

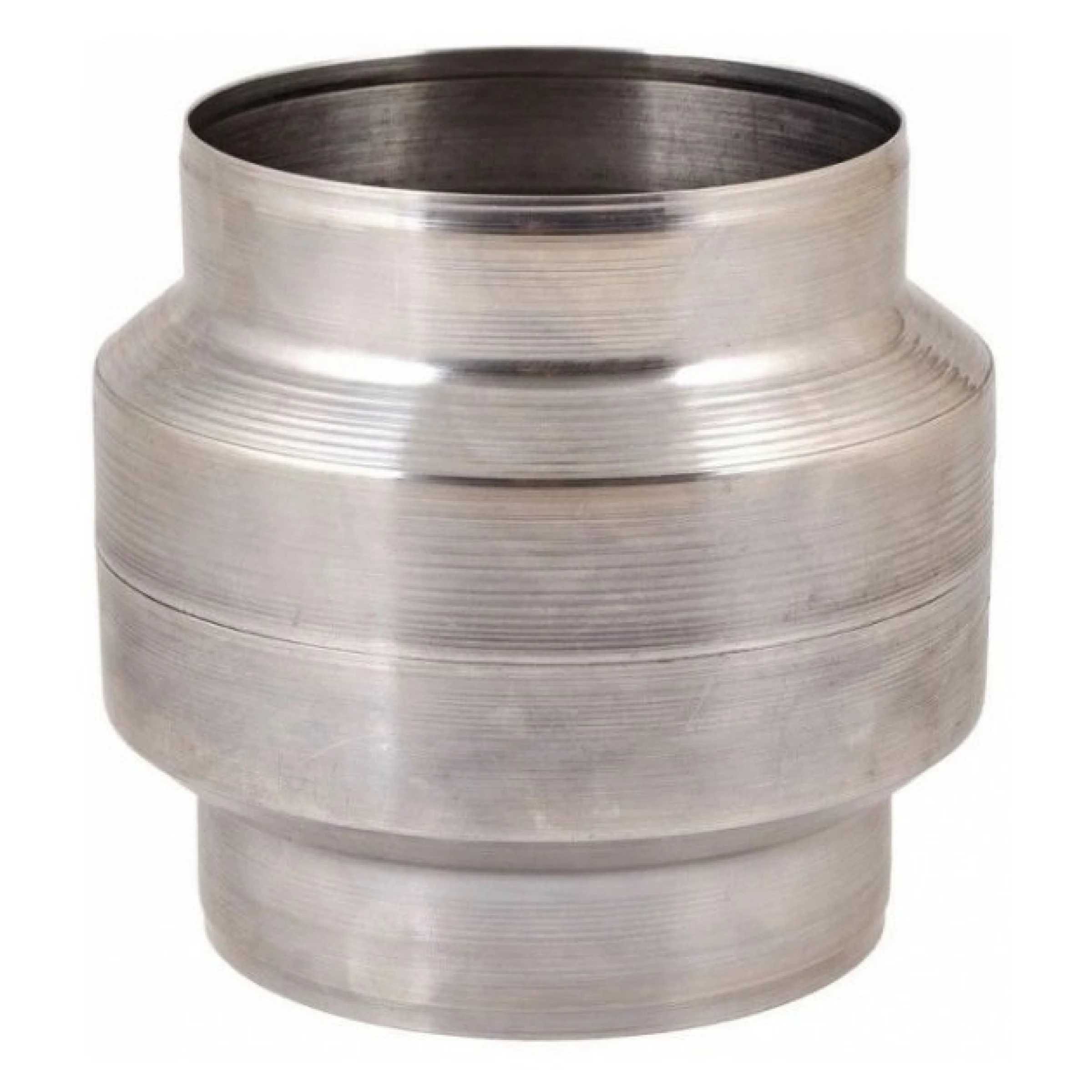

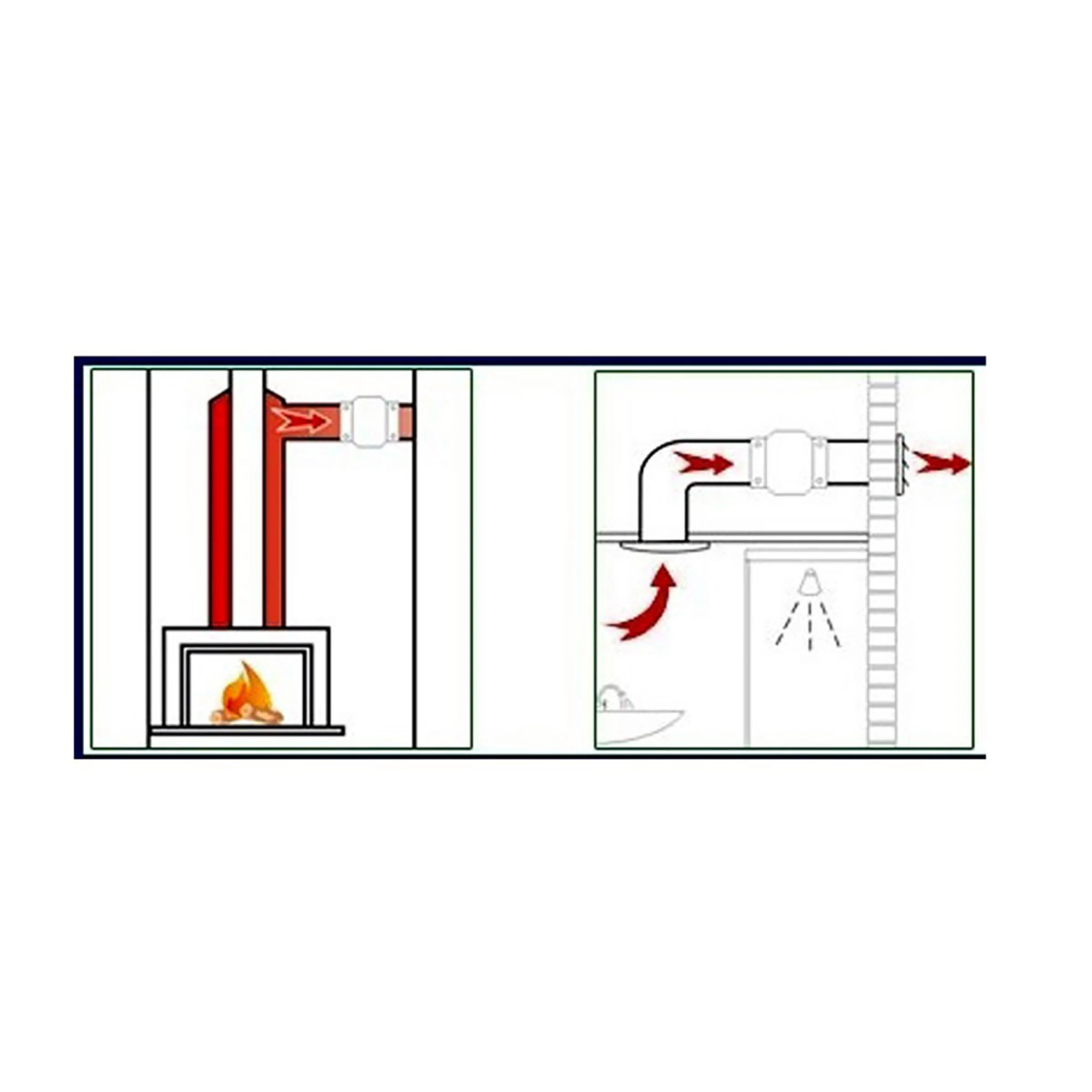

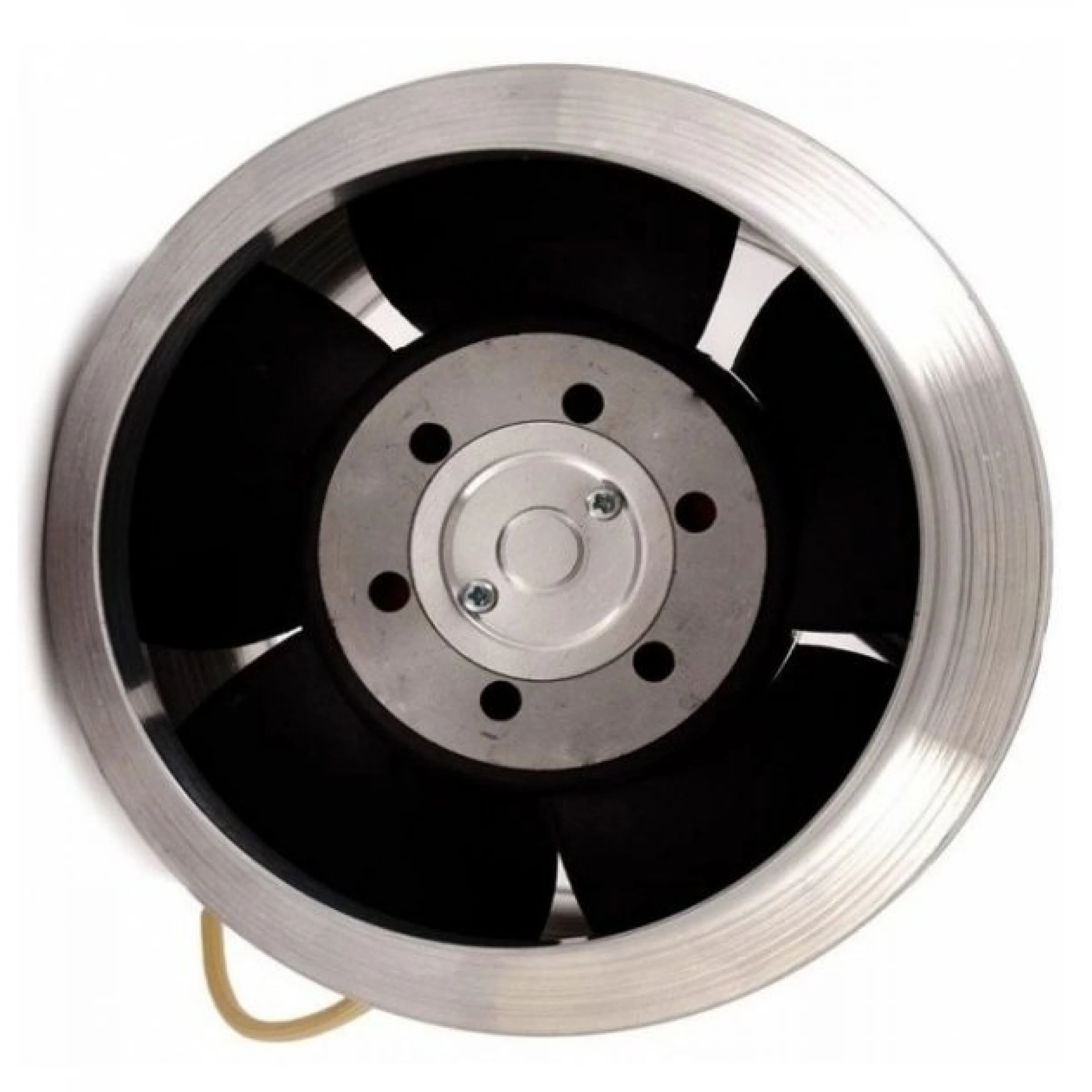

VOK-T 120/Ø100 mm fan is a compact yet powerful solution designed for high temperature operation. Perfect for use in saunas, steam rooms, boiler rooms and various industrial premises. Thanks to the reinforced design and heat-resistant materials, the fan operates reliably even at temperatures up to +150 °C.
Main advantages
- High temperature resistance: up to +150 °C.
- Air flow capacity – up to 150 m³/h.
- Long service life – more than 30,000 hours.
- Compact Ø100 mm housing, easy to install in ventilation ducts.
- NSK (Japan) bearings ensure reliability and quiet operation.
- Low noise level: 39–42 dB.
- Energy efficient and consumes minimal energy.
- Protection class IP44 – resistant to moisture and dust.
Technical data:
- Air flow: up to 150 m³/h.
- Max. static pressure: 75–90 Pa.
- Power supply: 230 V / 50–60 Hz.
- Power consumption: 18–21 W.
- Noise level: 39–42 dB.
- Weight: 0.48 kg.
- Protection class: IP44.
- Connection diameter: 100 mm
- Fan diameter: 120 mm
