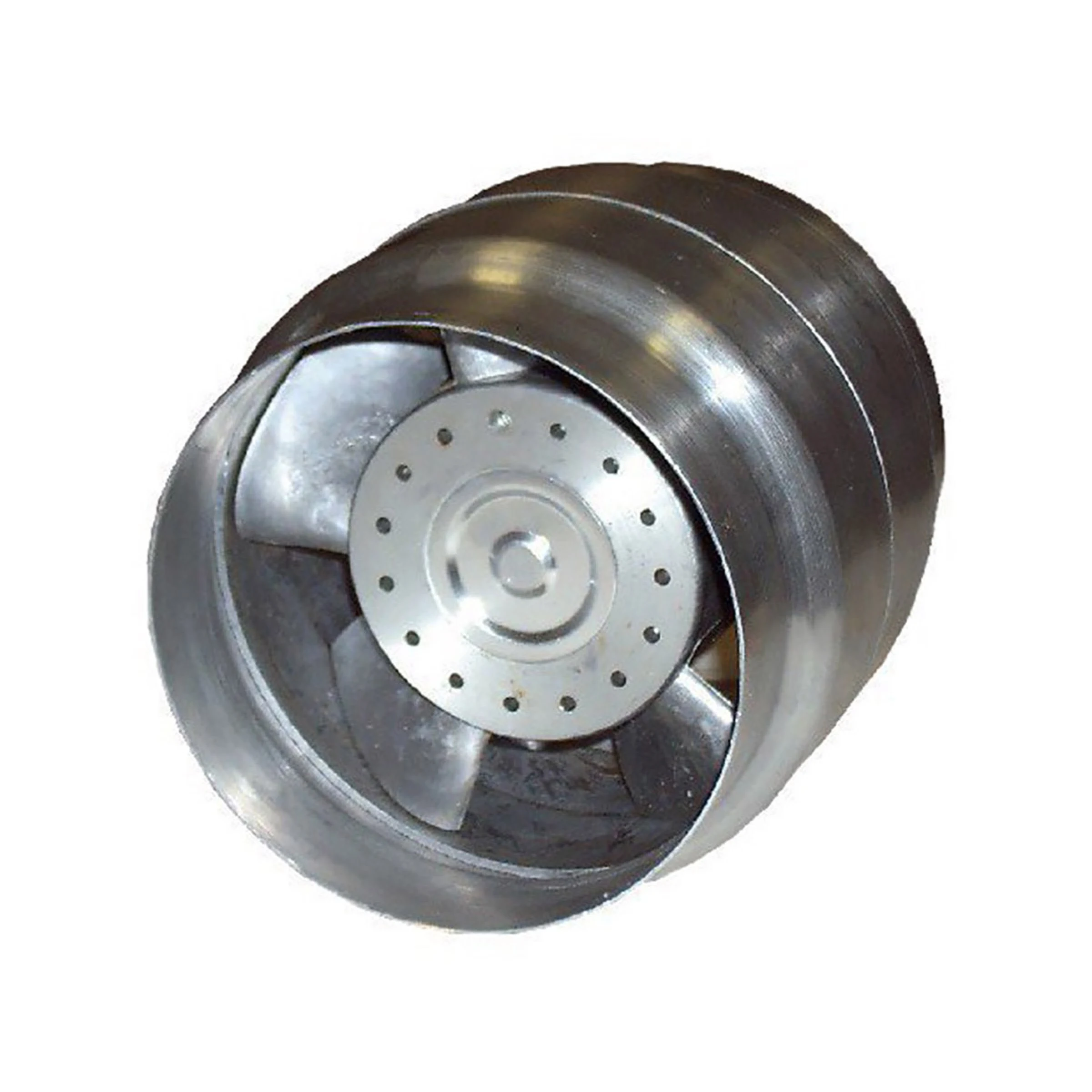

The permissible operating temperature of VOK-T duct fans is up to + 150 ° C. They can be mounted on an air heating pipe connected to a fireplace or other heating system. The fan housing is made of aluminum alloy and the impeller is made of heat-resistant plastic.
Main advantages:
- High temperature resistance – works up to +150°C
- Light and sturdy housing – made of aluminum alloy
- Heat-resistant impeller – ensures reliable operation
- Long-lasting motor – more than 30,000 hours of service life
- Protection against dust and moisture – IP44 class motor
- Low noise level – only 41 dB

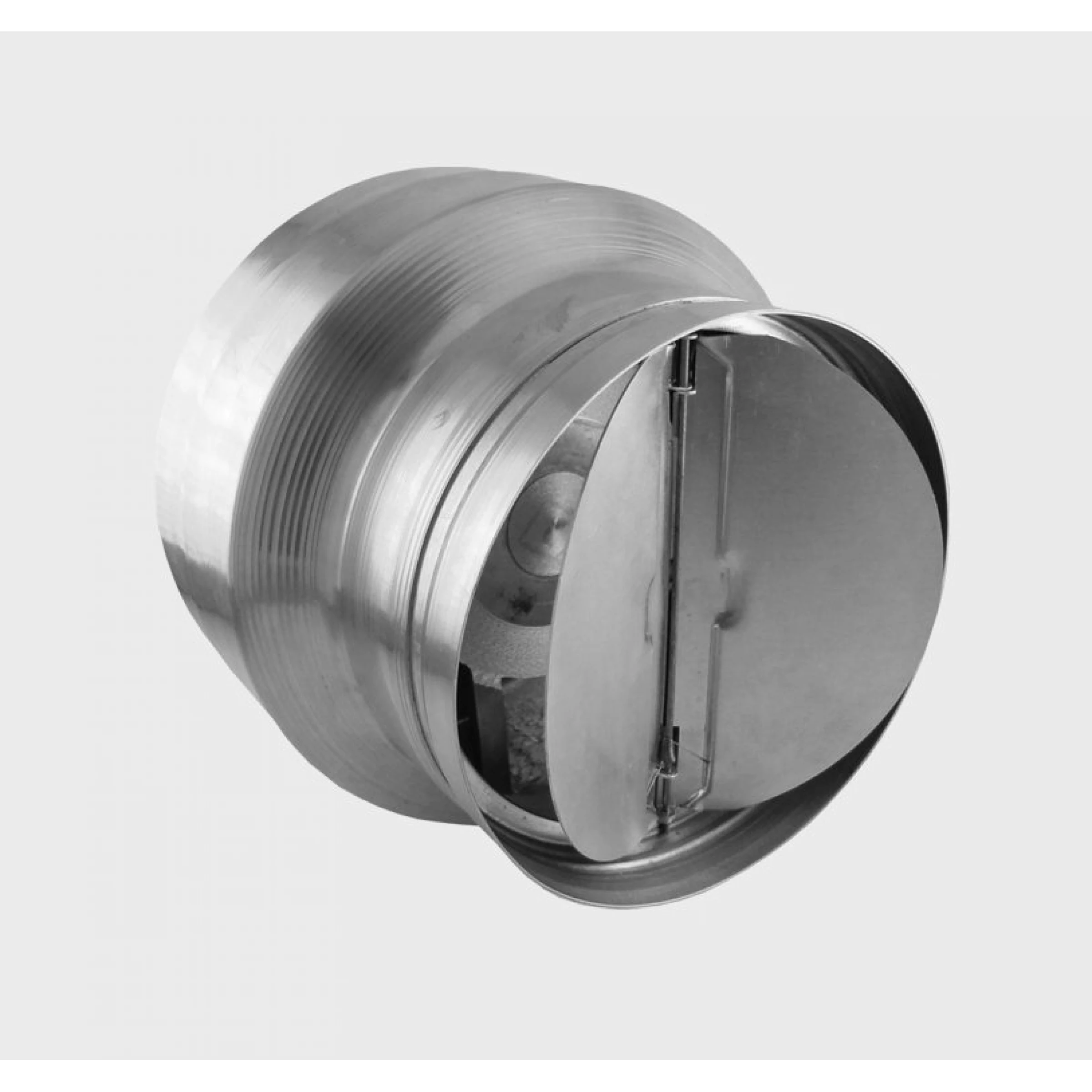

- Integrated check valve – prevents air flow from returning
Technical data:
- Model: VOK 135
- Power supply: 230 V / 50 Hz
- Speed: 2650 rpm
- Maximum air flow: 205 m³/h
- Power: 42 W
- Maximum static pressure: 85 Pa
- Noise level: 41 dB
- Weight: 1.34 kg
- Connection diameter: 100 mm
- Fan diameter: 135 mm
