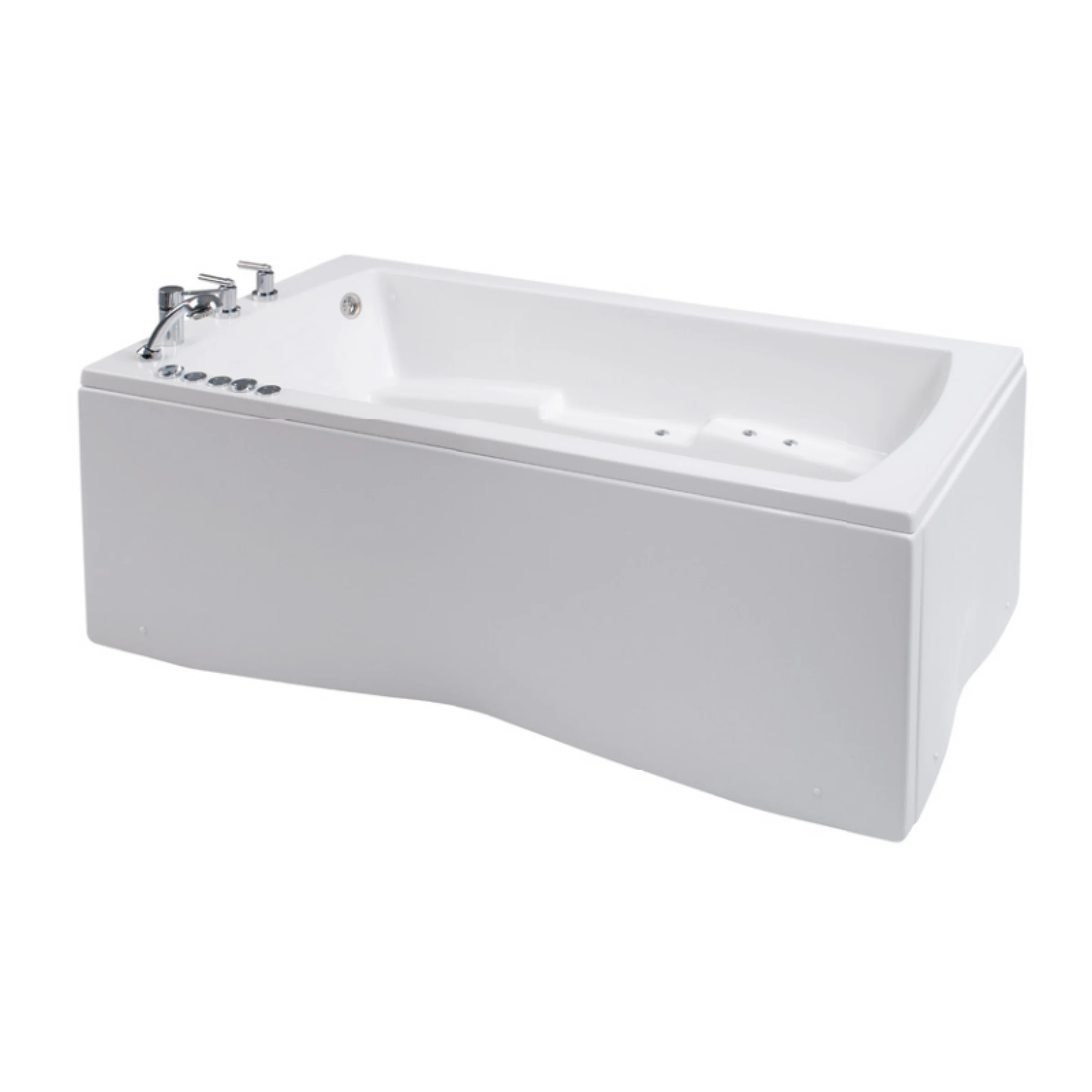

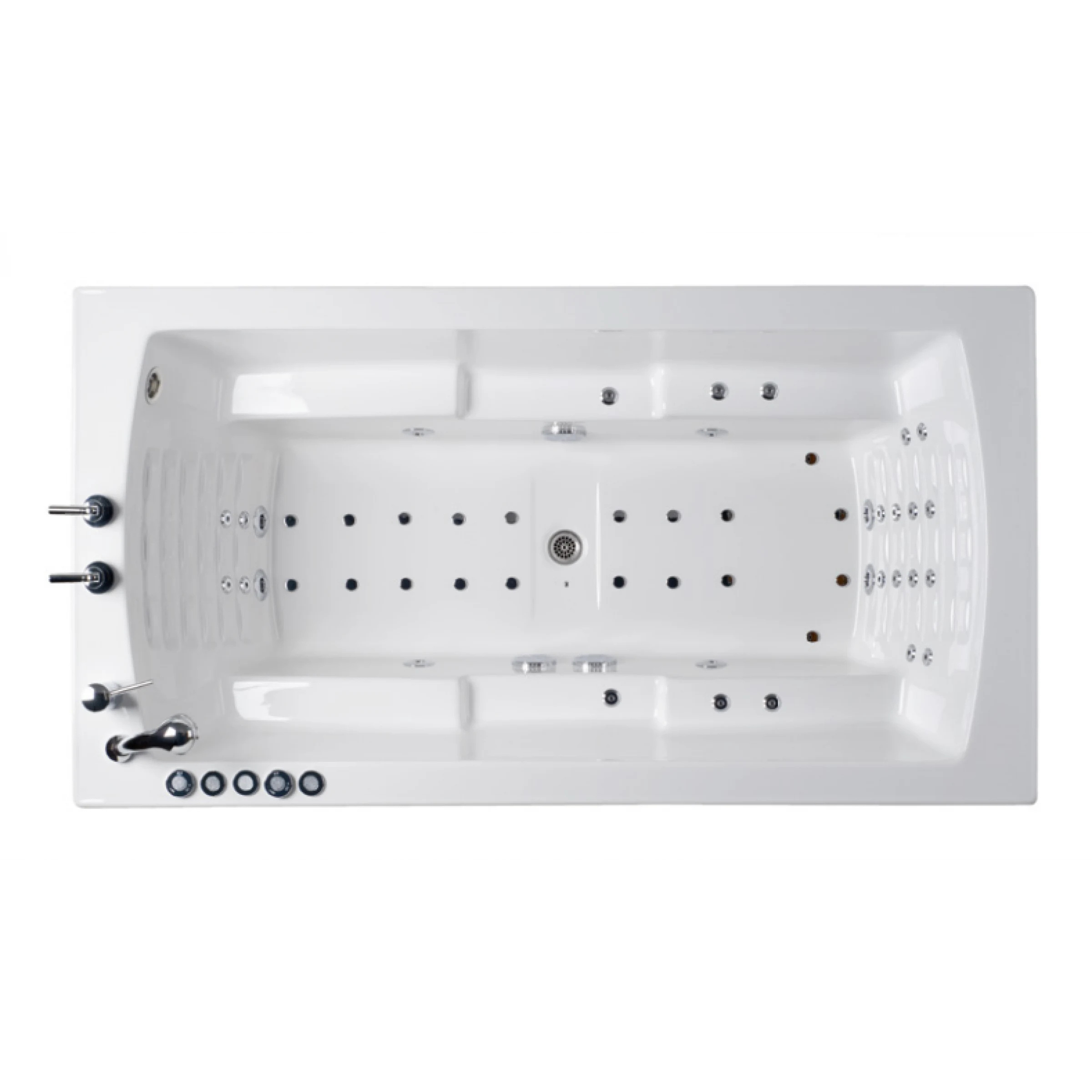

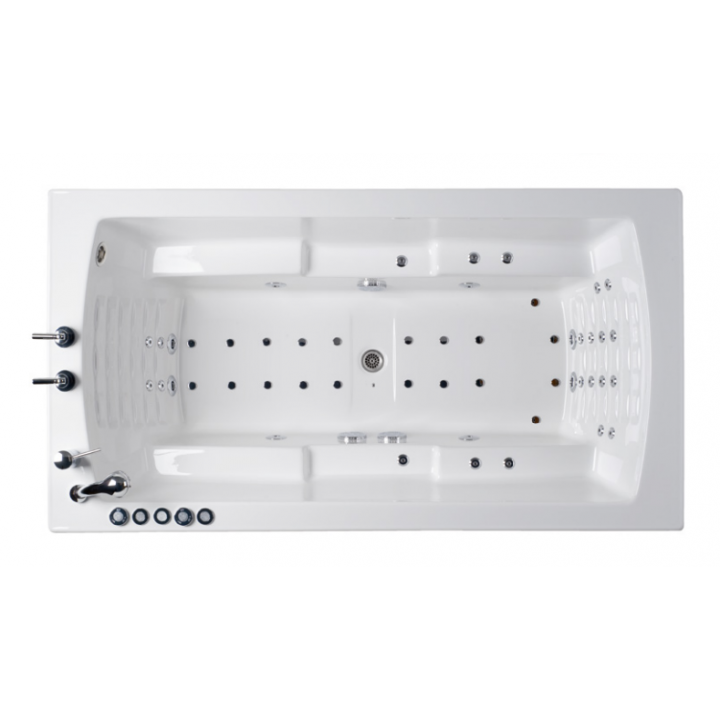

Massage bath "Aquator AQ-31 Hydro" with hydromassage on the sides, back, hand and foot massage.
Equipment:
- Bathtub body with aluminum frame
- Adjustable legs
- 2 front (long), 2 side (short) panels
- Drain and overflow, hot and cold water taps with water inlet, faucet with hand shower
- Stainless steel handles 2 pcs.
- Hydromassage system with pneumatic switching.
Technical data:
- Power (kW): 2.5
- Current (A): 11
- Voltage (V): 230
- Frequency (Hz): 50
- Micro jets: 22
- Midi jets: 8
◍ - Excess water outlet ø 50 mm (both locations suitable)
H - Hot water (¾ " stopcock max. 16 cm high from the floor)
C - Cold water (¾ " stopcock max. 16 cm high from the floor)
S - Power cord cable (2 m)
E - Additional earthing wire cable (2 m)
M - Mineral water (¾ " stopcock max. 16 cm high from the floor)
Water pressure in the system of the underwater shower massage device:
- Nozzle 7 mm 0-0.36 MPa
- Nozzle 9 mm 0-0.33 MPa
- Nozzle 11 mm 0-0.3 MPa
Bath filling time:
- In the case of water pressure in the supplying system about 0,35 MPa and hot and cold water connections 3⁄4" – approximately 4 minutes.
Time for draining the bath:
- In the case of sanitation opening in the floor with Ø 100 mm and sanitation magistral pipe under the floor with Ø 100 mm – approximately 4 minutes.
Additionally available:
- Mixer for mineral, sea and iodine-bromine water
- Color and light therapy
- Electronic water temperature indication
- 1 "autofill with manual temperature control
- Stairs
- Headrest "NEPTUN" white
- Leakage of dirt
- "MILK" system
