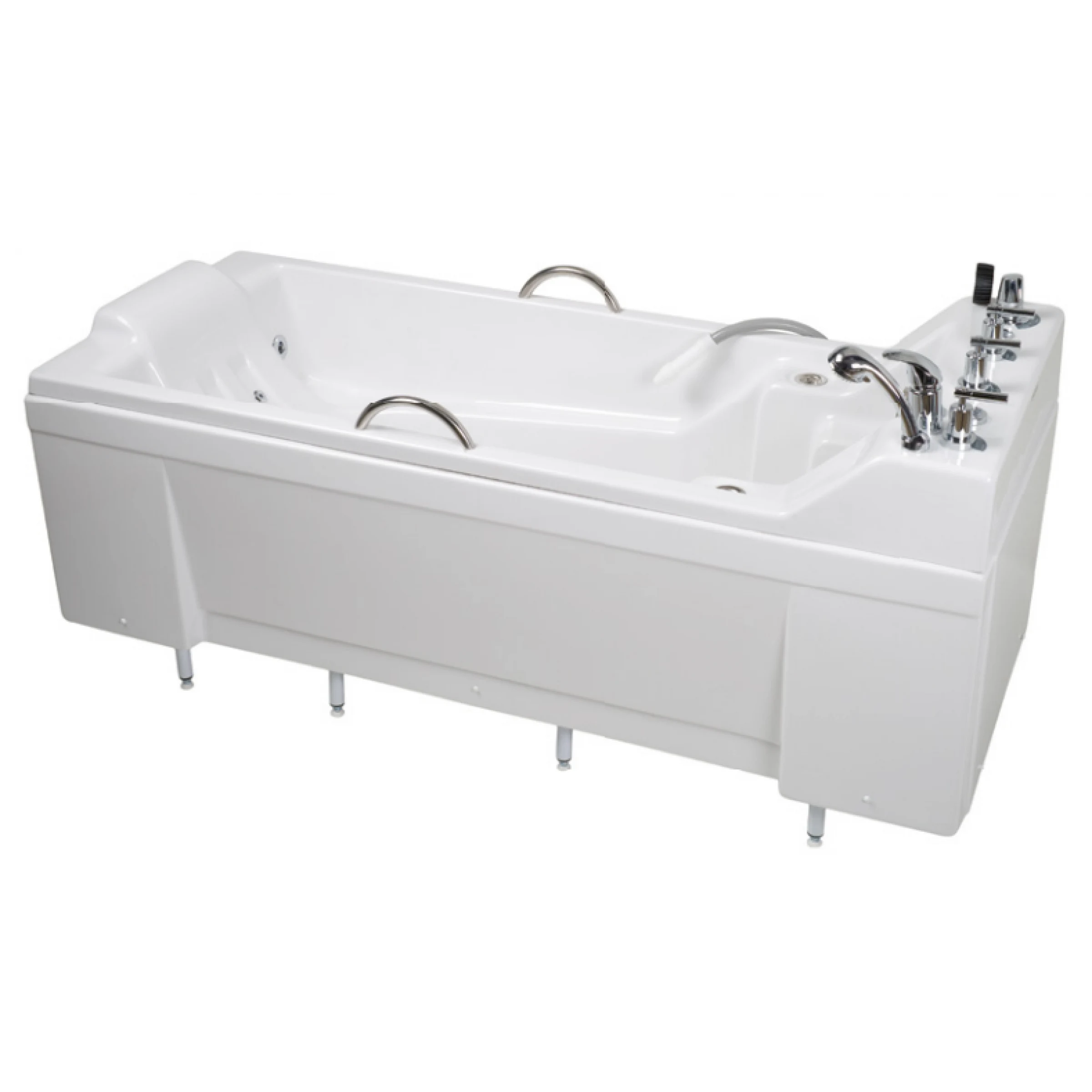

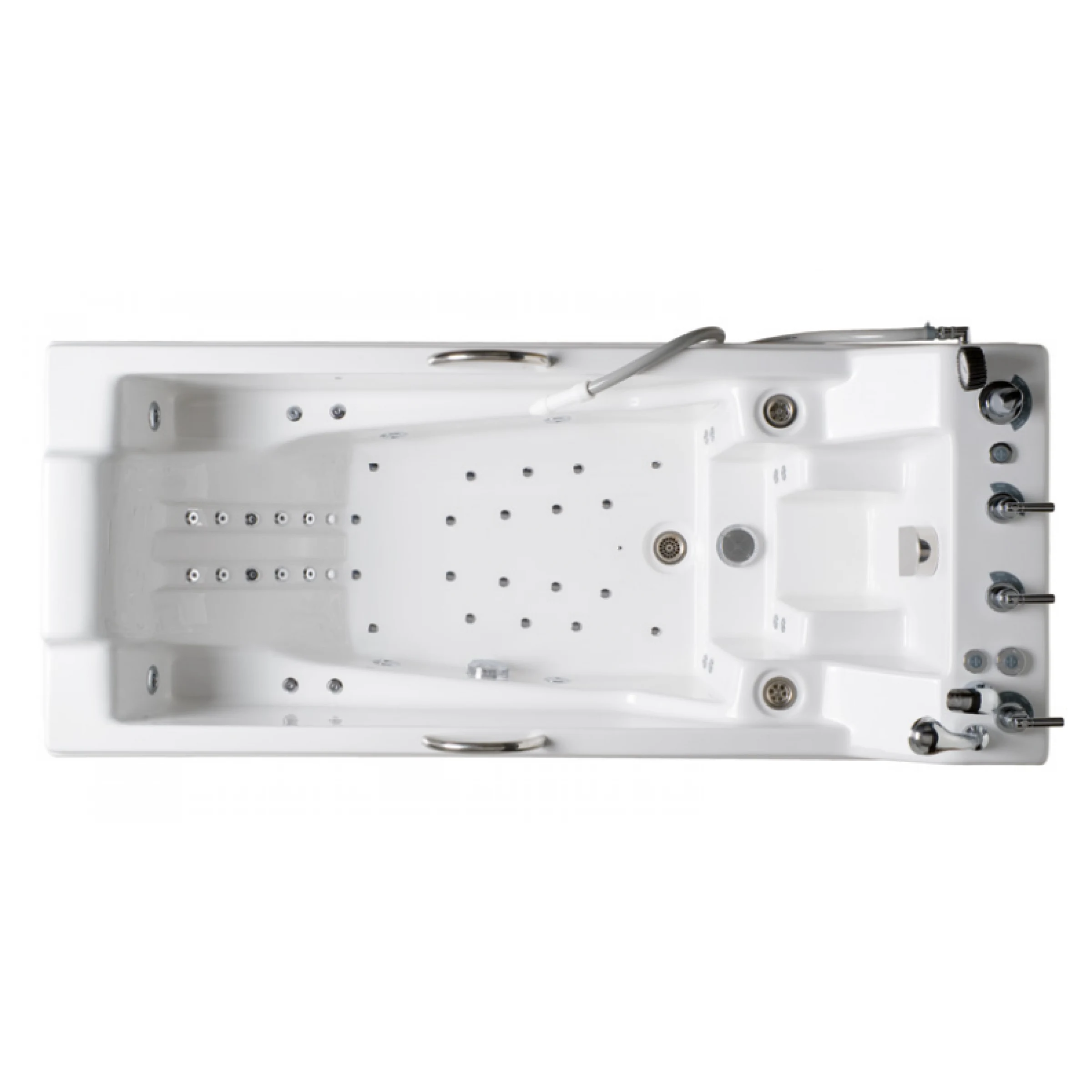

Massage bath "Aquator AQ-27 USM-UVM" with underwater shower massage (USM) and underwater vacuum massage (UVM).
Equipment:
- Bathtube body with aluminium frame, adjustable feet, 2 front (long) and 2 side (short) panels, drain and overflow, hot and cold water ¾“ stopcocks with water inlet opening, mixer with handshower, stainless steel handles,
- Underwater shower (set of 6 pressure nozzles) - and vacuum (1 handle) massage system with flexpipe and pneumatic switching
Technical data:
- Power (kW): 1.5
- Current (A): 7.0, 4.0
- Voltage (V): 230/3 x 400
- Frequency (Hz): 50
- USM nozzles: 6
- UVM nozzles: 1

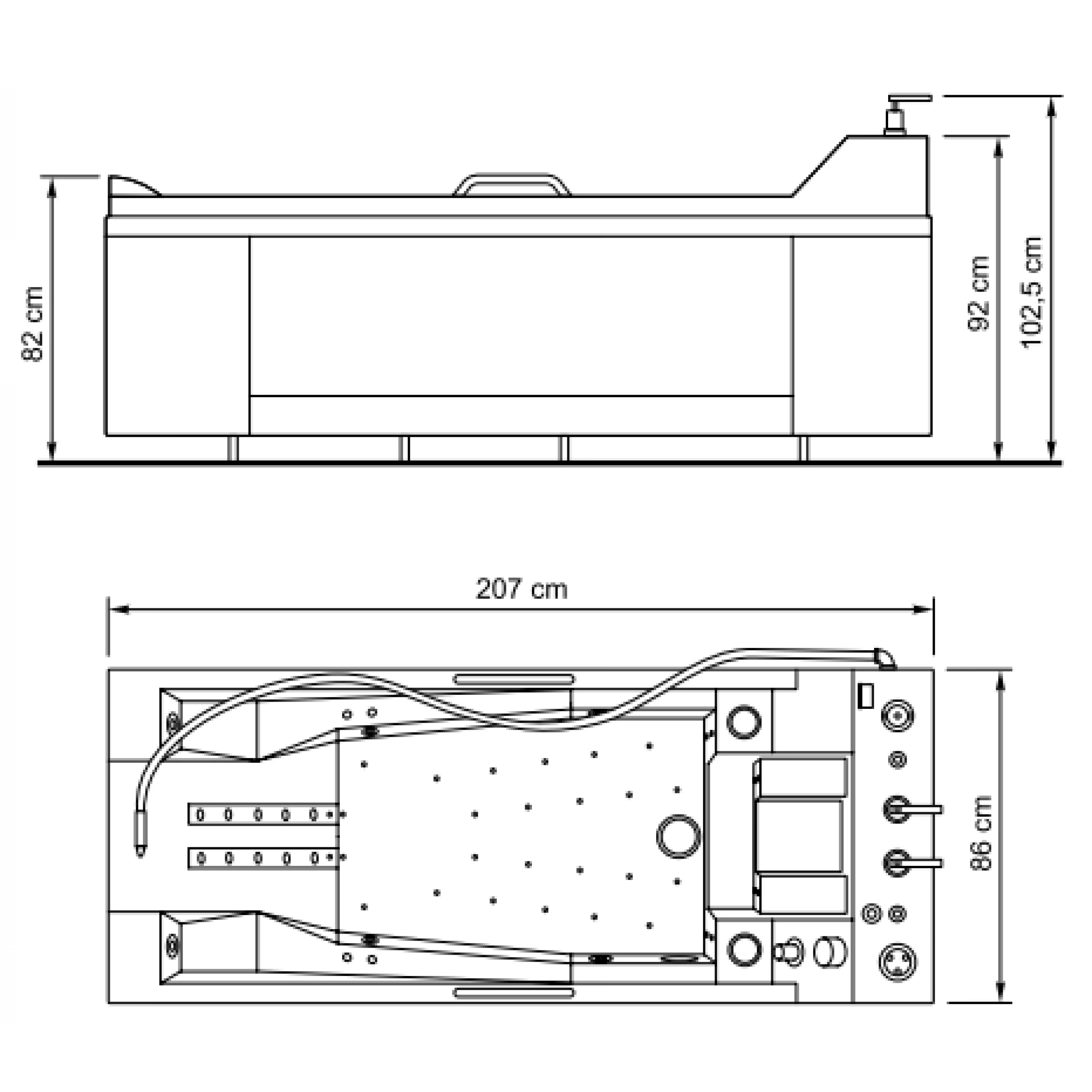

◍ - Sanitation opening Ø 100 mm (both locations are suitable)
H - Hot water (¾" stopcock max. 16 cm high from the floor)
C - Cold water (¾" stopcock max. 16 cm high from the floor)
S - Supply wire cable (2 m long)
E - Additional earthing wire cable (2 m long)
M - Mineral water (¾" stopcock max. 16 cm high from the fl oor)
Water pressure in the system of the underwater shower massage device:
- Nozzle 7 mm 0-0.36 MPa
- Nozzle 9 mm 0-0.33 MPa
- Nozzle 11 mm 0-0.3 MPa
Bath filling time:
- In the case of water pressure in the supplying system about 0,35 MPa and hot and cold water connections ¾" – approximately 4 minutes.
Bath draining time:
- In the case of sanitation opening in the floor with Ø 100 mm and sanitation magistral pipe under the floor with Ø 100 mm – approximately 4 minutes.
Additionally available:
- Mixer for mineral, sea and iodine-bromine water
- Color and light therapy
- Electronic water temperature indication
- 1 "autofill with manual temperature control
- Stairs
- Headrest "NEPTUN" white
- Draining of dirt
- "MILK" system
