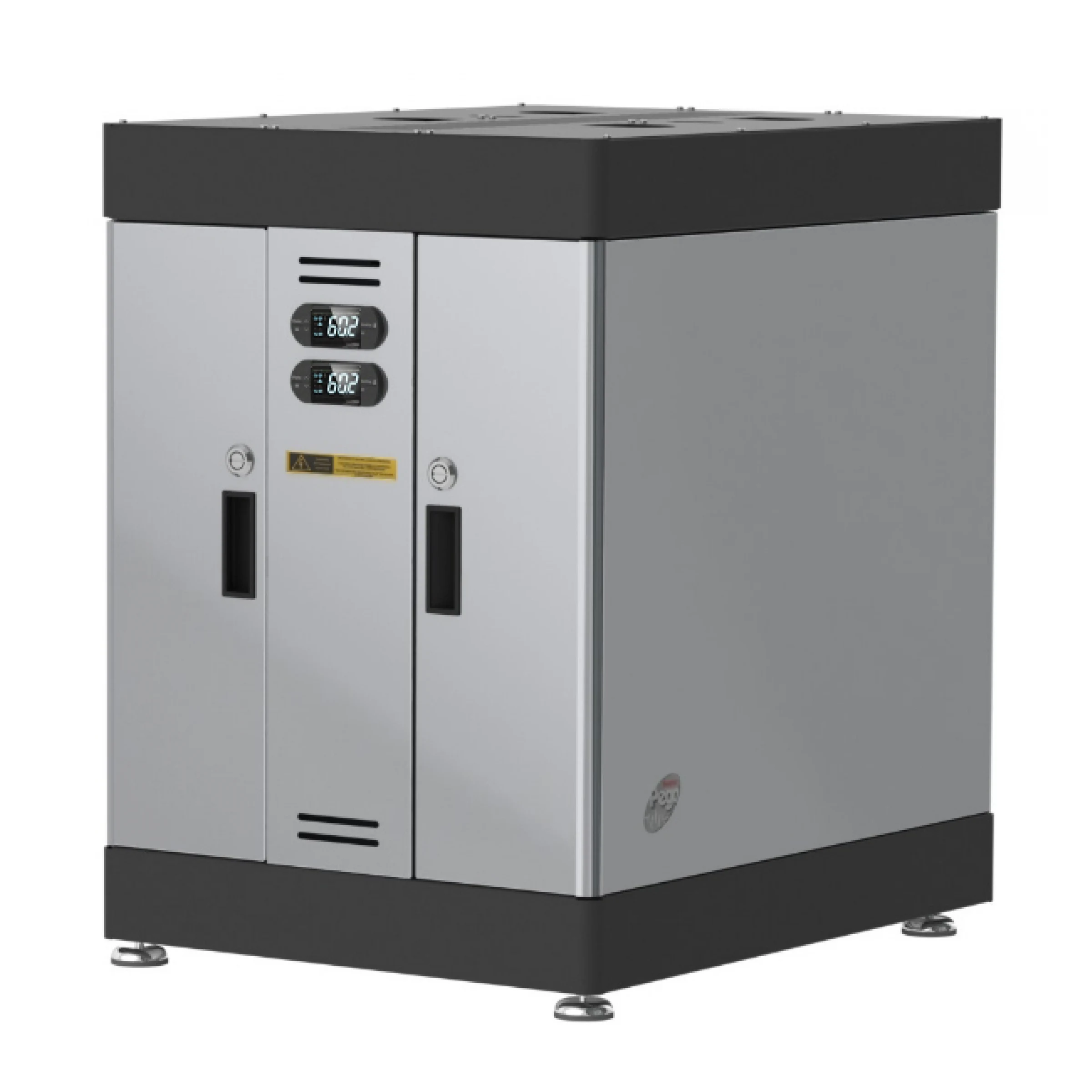

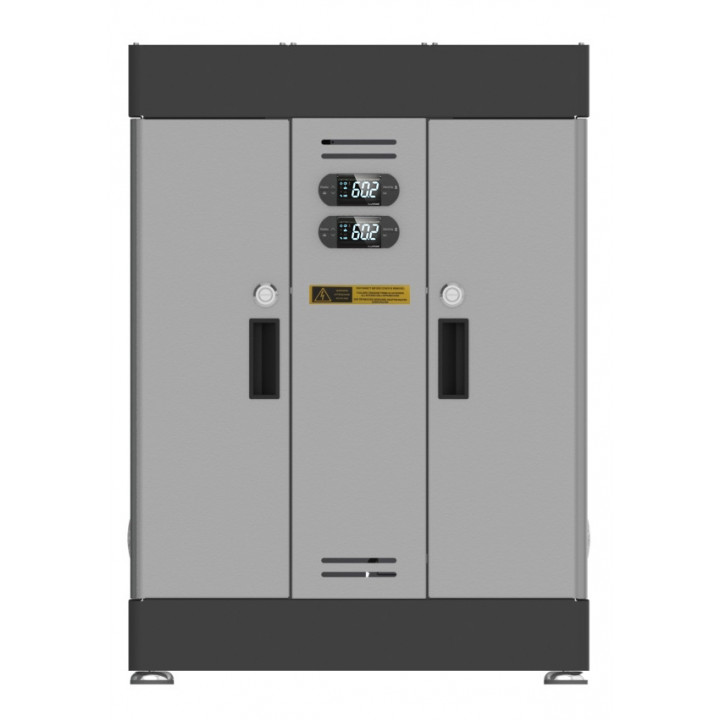

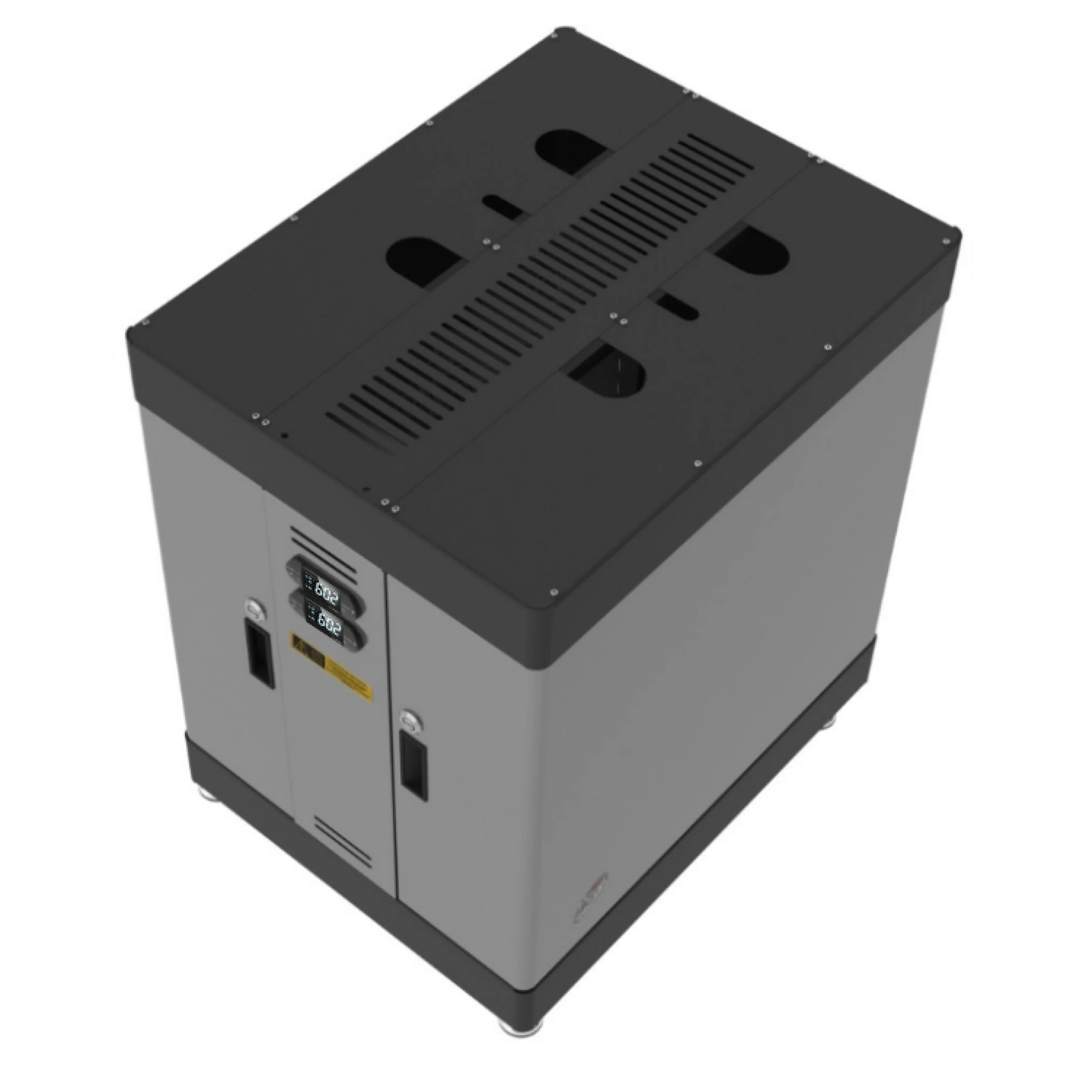

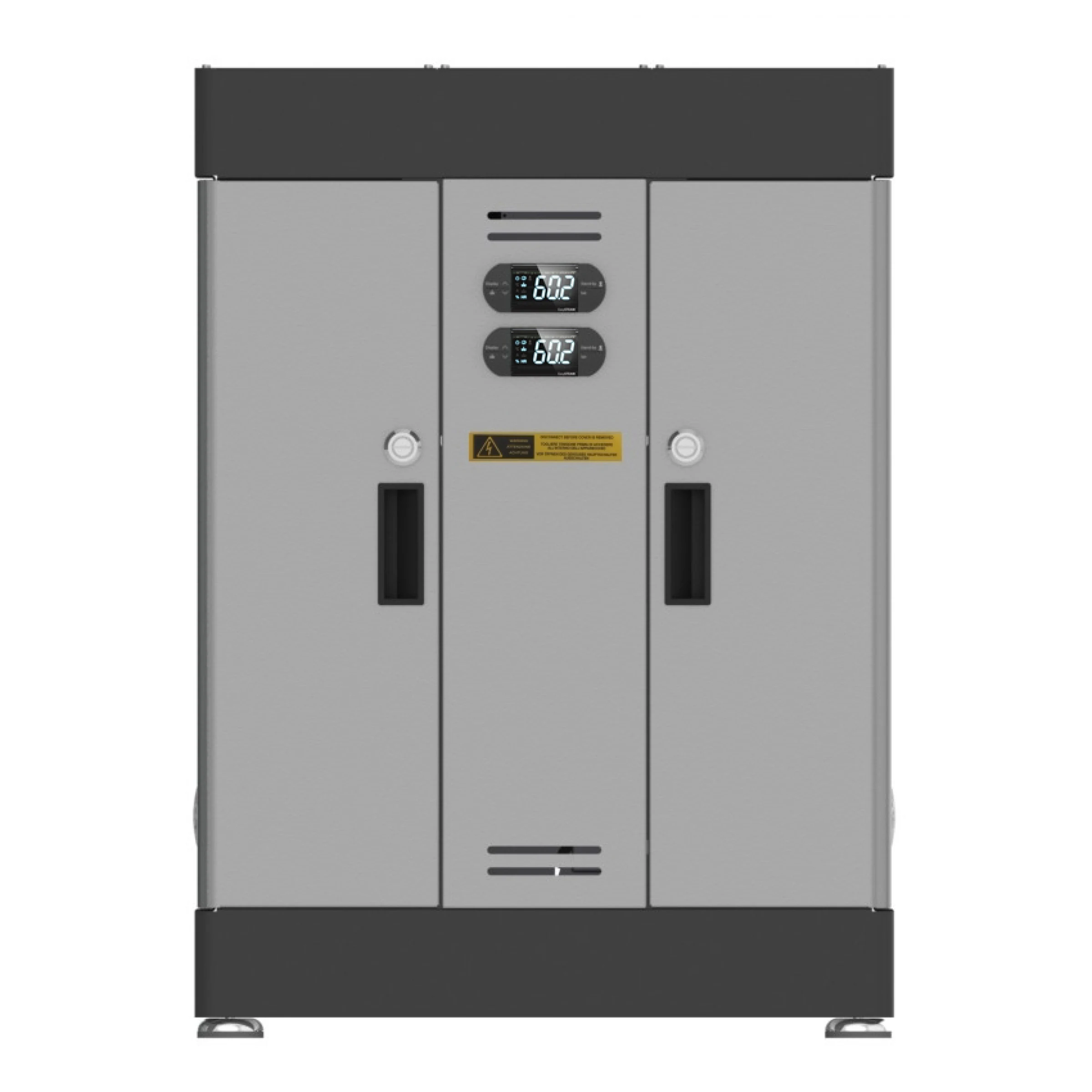

Pego Electrode steam humidifiers ES100
Applications
• Steam/humidity generator for industrial plants, offices, civil facilities, call centres, hotels, museums and bookshops, technological or medical facilities, tobacco industry, food industry, seasoning, wood industry, paper mills, printing industries and steam rooms.
Main characteristics
• Electrodes steam humidifiers.
• Three-phase power supply versions with steam producing of 96 kg/h.
• Master/slave humidifiers management (up to 3 ES100 units) to reach steam productions up to 288 kg/h.
• Structure entirely of stainless steel and abs plastic.
• Easily interchangeable cylinders with steel electrodes, limestone filter on the bottom, maximum level sensor and connector connections.
• Solenoid valves for water charging.
• Tough and reliable drain pumps.
• Available cylinders for low conductivity water (minimum conductivity limit 125 μs/cm).
• Double integrated electronic control.
• Large accessories range.
Electronic control
• Featuring numerous parameters and an user-friendly display, the EASYSTEAM controller allows precise setting of humidifiers performance. Thanks to the high number of available variables it is possible to personalize humidifier functioning on the basis of customer requirements.
• Eight operating modes can be set among which ON/OFF from external contact, proportional with built-in humidistat and 4-20mA or 0-10V probe, proportional with external 0-10V signal. Built-in thermostat ON/OFF. BMS control via Modbus.
• Duct probe management.
• Optimised use for steam baths thanks to the built-in temperature control, essence management, inlet and exhaust fan control.
• Settable with maximum capacity.
• Proportional regulation of steam dispensing from 20% to 100%.
• Steam dispensing reduction from digital input.
• Programmable automatic drainage when not used.
• Management of up to 3 ES100 humidifiers in battery with master/slave configuration.
• Humidifier operating hour meter.
• Maximum level sensor management.
• Control console with large display and status icons for reading and programming work data remotely up to 100 m away with a simple phone cable.
• Diagnostics for problems identifying or maintenance need.
