Description

Heat-resistant silicone cable designed for connecting electrical equipment in environments where cable insulation with increased temperature resistance is required. It can be used for sauna lighting, electric sauna heaters and other equipment, provided that its technical specifications meet the requirements of the connected equipment's manufacturer.

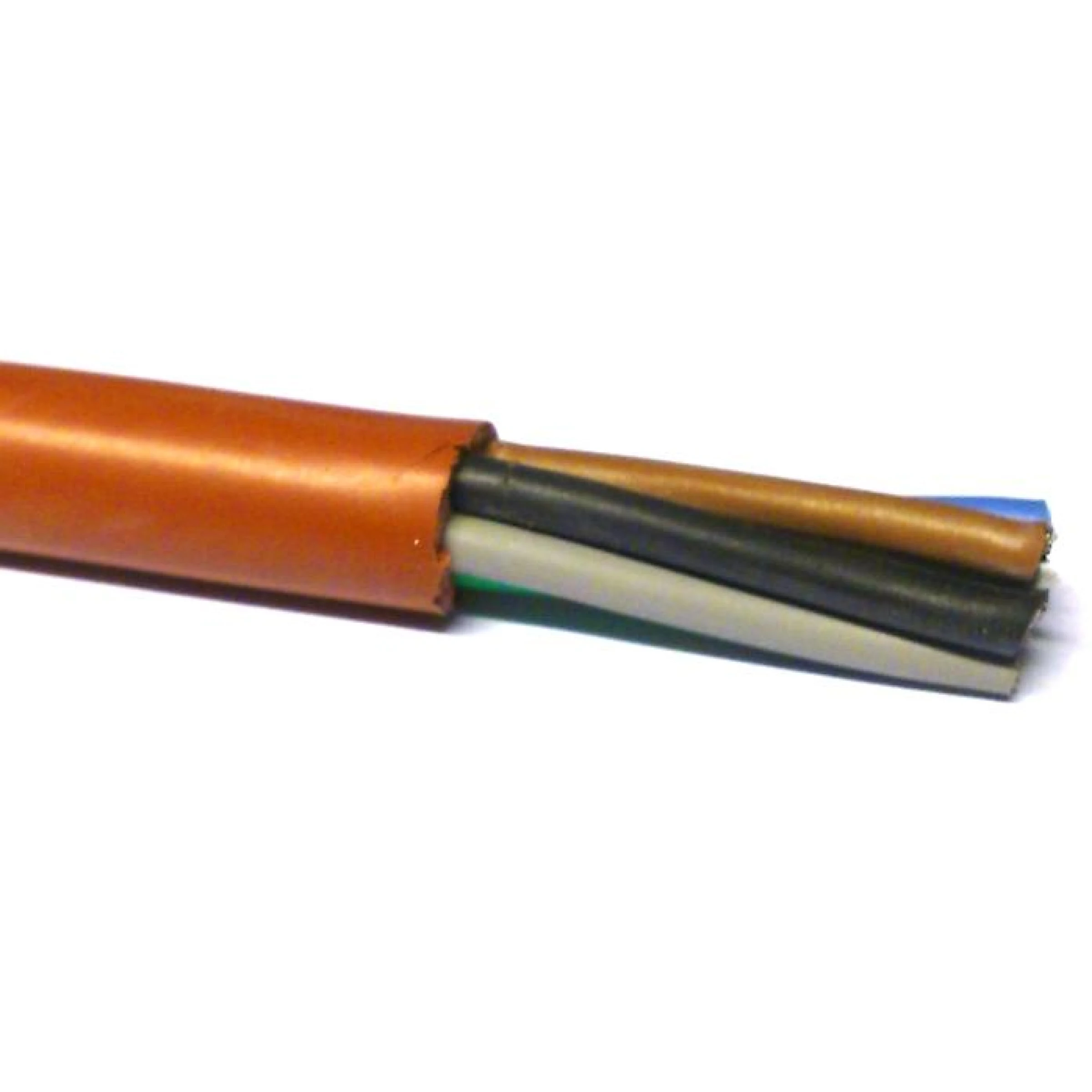

The cable features silicone insulation. Different configurations are available, with varying numbers of cores and conductor cross-sections to suit specific installation requirements.

Cable selection

The cable designation indicates the number of cores and the cross-sectional area of each conductor. For example, 3 x 1.5 mm² means that the cable contains three cores, each with a cross-sectional area of 1.5 mm².

Important:

  • The number of cores and conductor cross-section must be selected according to the connected equipment manufacturer's instructions and applicable electrical installation requirements.

  • Not all cable variants are suitable for every type of sauna equipment.

  • Cable suitability depends on the equipment's wiring diagram and installation conditions.

The price is indicated per metre. Select the required cable length in metres when ordering.

Three silicone cable options you choose suits your needs.

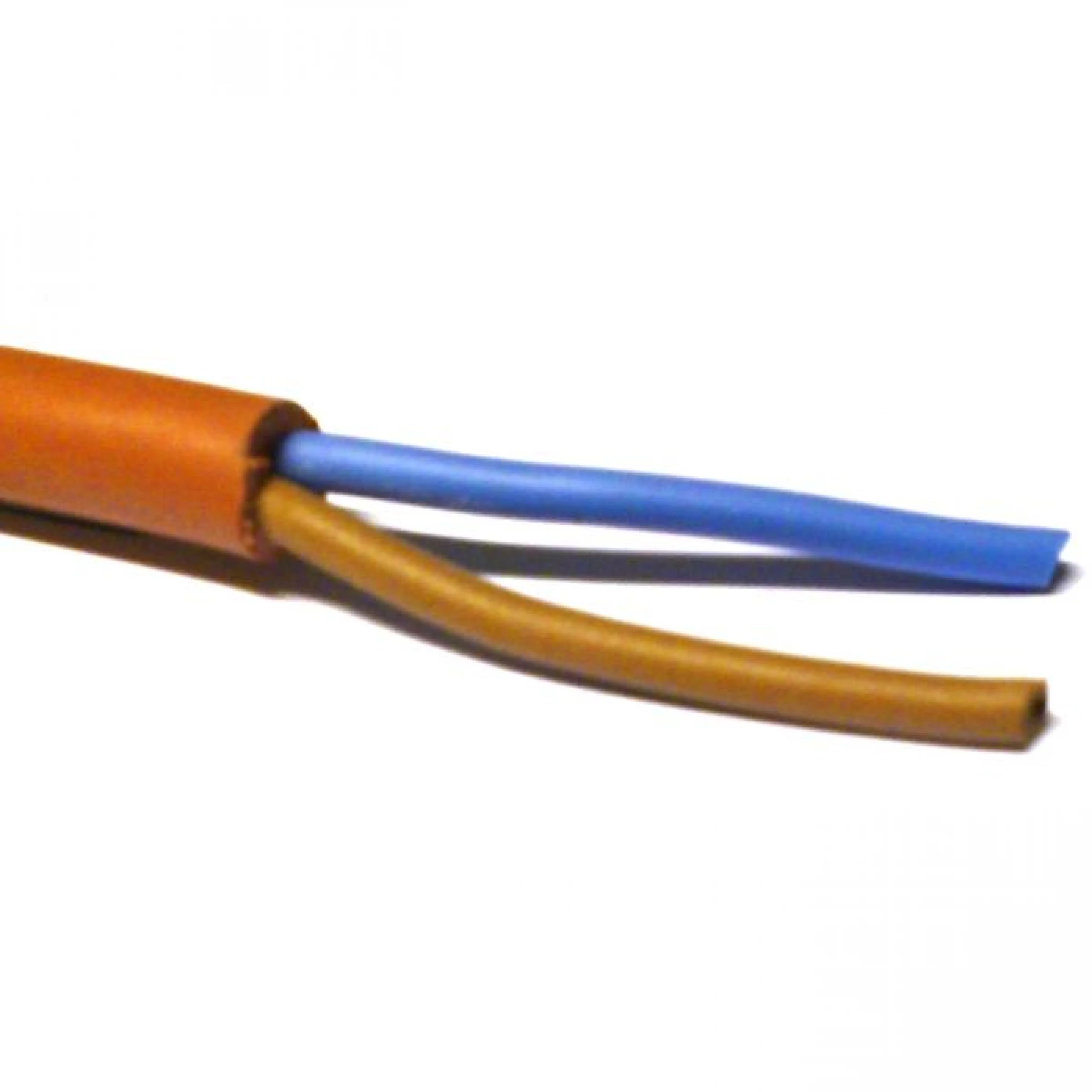

2 x 0.75

  • For white LED strips, fans, door sensors
  • Connection: 230 V
  • Temperature range: -50 °C to +180 °C
  • For low-power single-phase devices

3 x 0.75

  • For simple sauna lighting
  • Connection: 230 V
  • Temperature range: -50 °C to +180 °C
  • A classic choice for interior lighting installations

3 x 1.5

  • For connecting control panels and heaters up to 3 kW
  • For connecting control units and lighting equipment
  • Connection: 230 V AC
  • Temperature range: -50 to 180°C

3 x 2.5 mm

  • For single-phase heaters up to 5 kW
  • Connection: 230 V
  • Temperature range: -50 °C to +180 °C
  • Recommended when a larger conductor cross-section is required

4 x 0.75

  • For colored LED strips, temperature sensors, control panels
  • Connection: 230 V
  • Temperature range: -50 °C to +180 °C
  • Also suitable for data transfer between the panel and the device

5 x 1.5

  • For connecting control panels and heaters up to 6 kW
  • For connecting control panel and humidifier
  • Connection: 400 V 3N
  • Temperature range: from -50 to 180°C

5 x 2.5

  • For connecting control panels and heaters 6 - 11 kW
  • Connection: 400 V 3N
  • Temperature range: from -50 to 180°C

5 x 4

  • For three-phase 9–15 kW heaters
  • Connection: 400 V 3N
  • Temperature range: -50 °C to +180 °C
  • Used in industrial or larger saunas

5 x 6

  • For three-phase stoves over 15 kW
  • Connection: 400 V 3N
  • Temperature range: -50 °C to +180 °C
  • Designed for very high-power systems, ensures stable power supply

7 x 2.5

  • Stoves with steam function (for connection from the control panel)
  • Connection: According to the manufacturer (often 400 V or mixed)
  • Temperature range: -50 °C to +180 °C
  • Required for more complex control solutions with additional functions

Technical data

Warranty (y.)
Not specified
