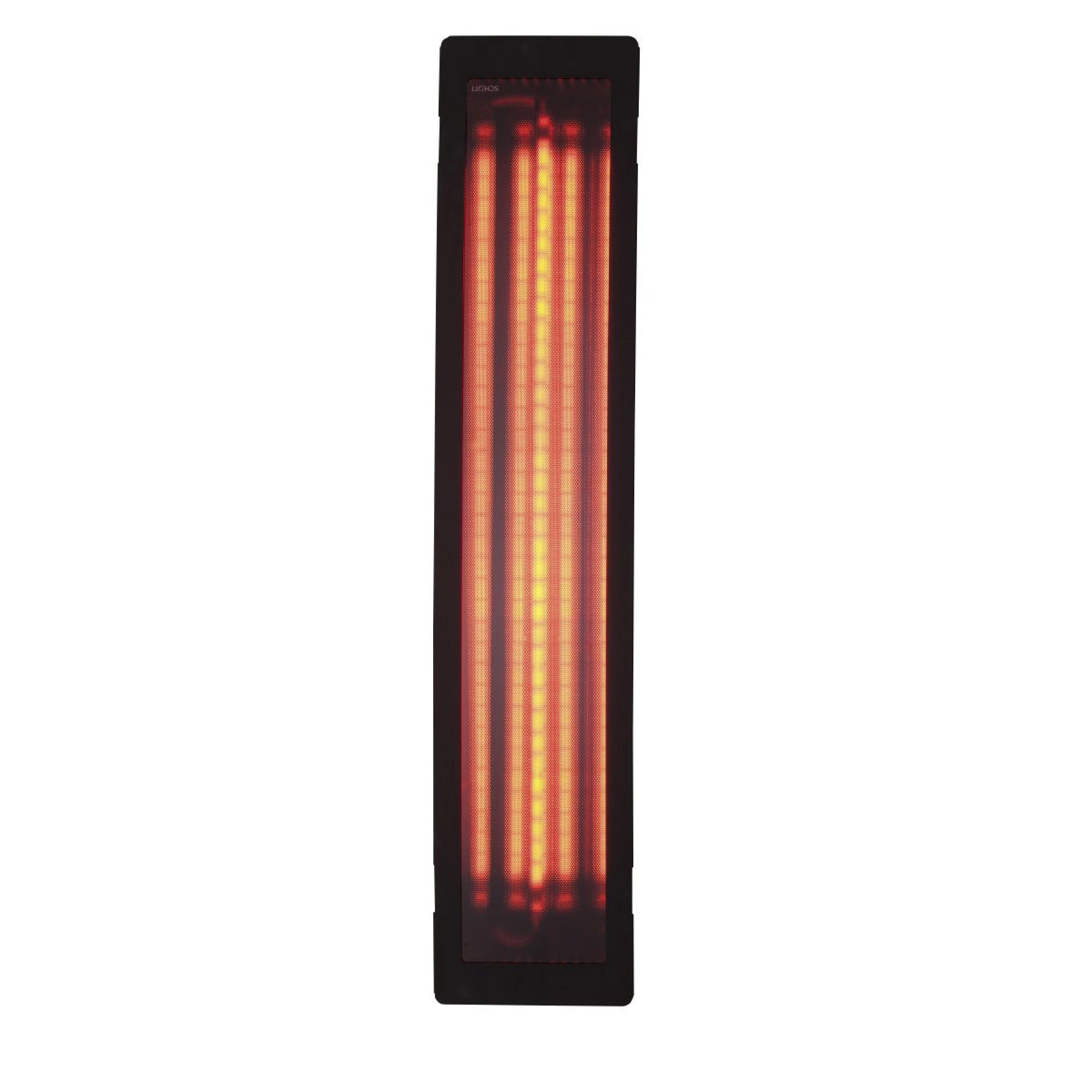

Harvia Vitae is a full-spectrum infrared radiator designed for infrared cabins and compatible sauna heating systems. The range includes 350 W, 500 W and 750 W models in different configurations.
Vitae DIR radiators produce a full infrared spectrum consisting of IR-A 24%, IR-B 55% and IR-C 21%. The heat-resistant glass-ceramic surface and integrated reflector help distribute the infrared radiation evenly. The construction also incorporates overtemperature protection.

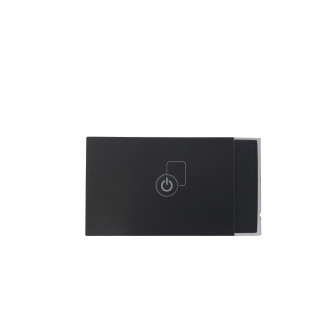

The infrared radiator is designed to be operated with a separate compatible control unit. Installation requirements and additional components depend on the selected model and cabin construction.
Harvia identifies the DIR-R-F models as splash-proof versions. The DIR-350-R-F and DIR-500-R-F are supplied with an additional ventilation kit and have an IPX4 protection rating.
Harvia also specifies IPX4 for the standard DIR-R versions when the radiator is installed in accordance with the manufacturer's requirements together with the appropriate front panel or wooden backrest.
Installation must always be carried out according to the instructions, safety distances and installation requirements specified for the selected model.
Technical data:
- Manufacturer: Harvia
- Series: Vitae
- Product type: full-spectrum infrared radiator
- Power: 350, 500 or 750 W
- Infrared spectrum: IR-A 24%, IR-B 55%, IR-C 21%
- Control: separate compatible control unit
- Installation location: wall
- Color: black
- Protection class: IPX4, subject to the installation requirements of the selected model
- Certificates: CE, EAC
- Sales unit: 1 pc.
