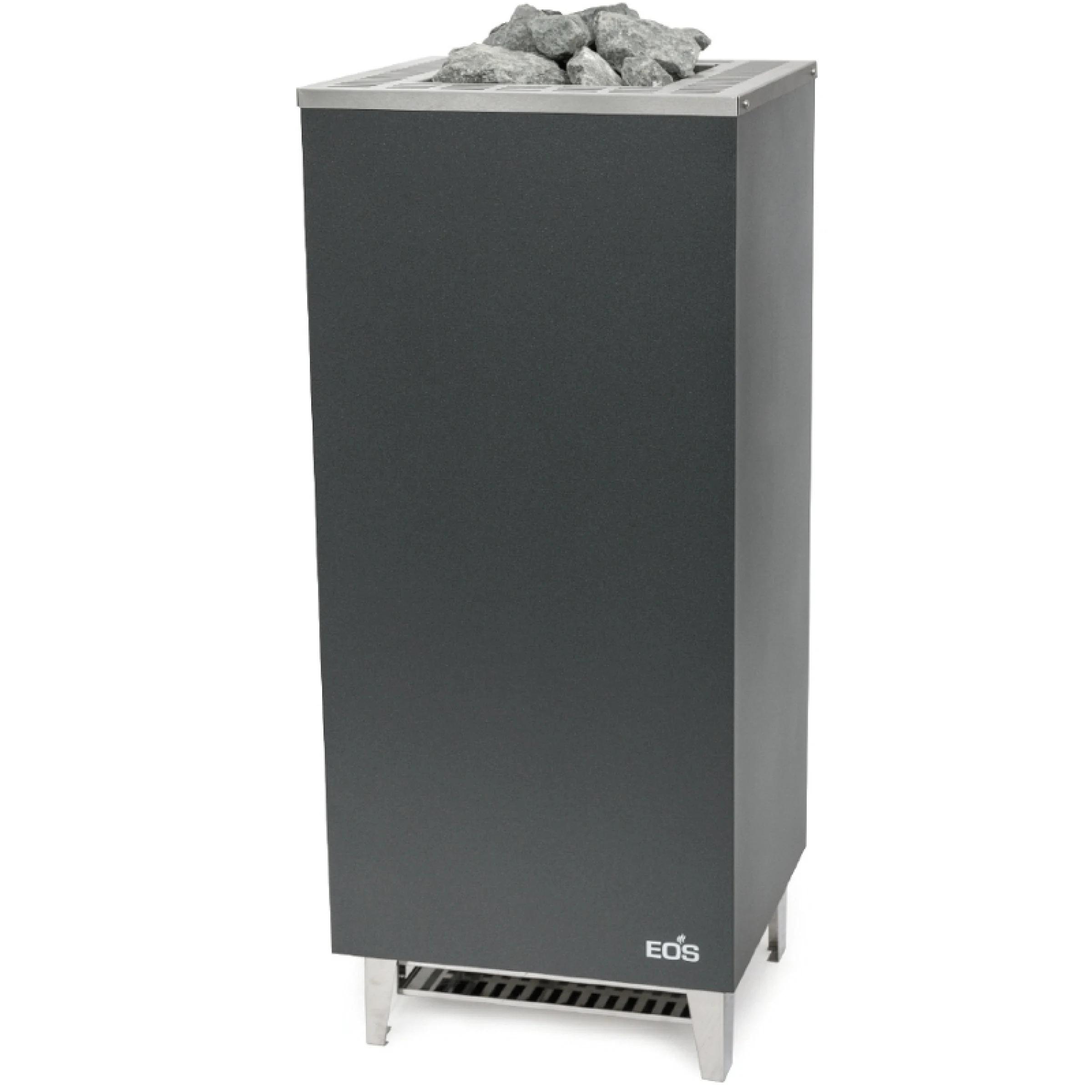

Floor-standing sauna heater for Finnisch (dry) sauna in straightlined, cubistic design. Thanks to the flat rear wall Cubo Plus is ideal for installation in front of glass panels. Extra large rock store is placed above the heating elements for easy servicing and improved air convection.
Advantages:
- Durable, long-lasting construction
- Extra large 45 kg rock store volume
- Optimal relation between stone volume and air convection system for fast heat-up times and powerful water infusions
- Scratch resistant anthracite pearl effect powder coating

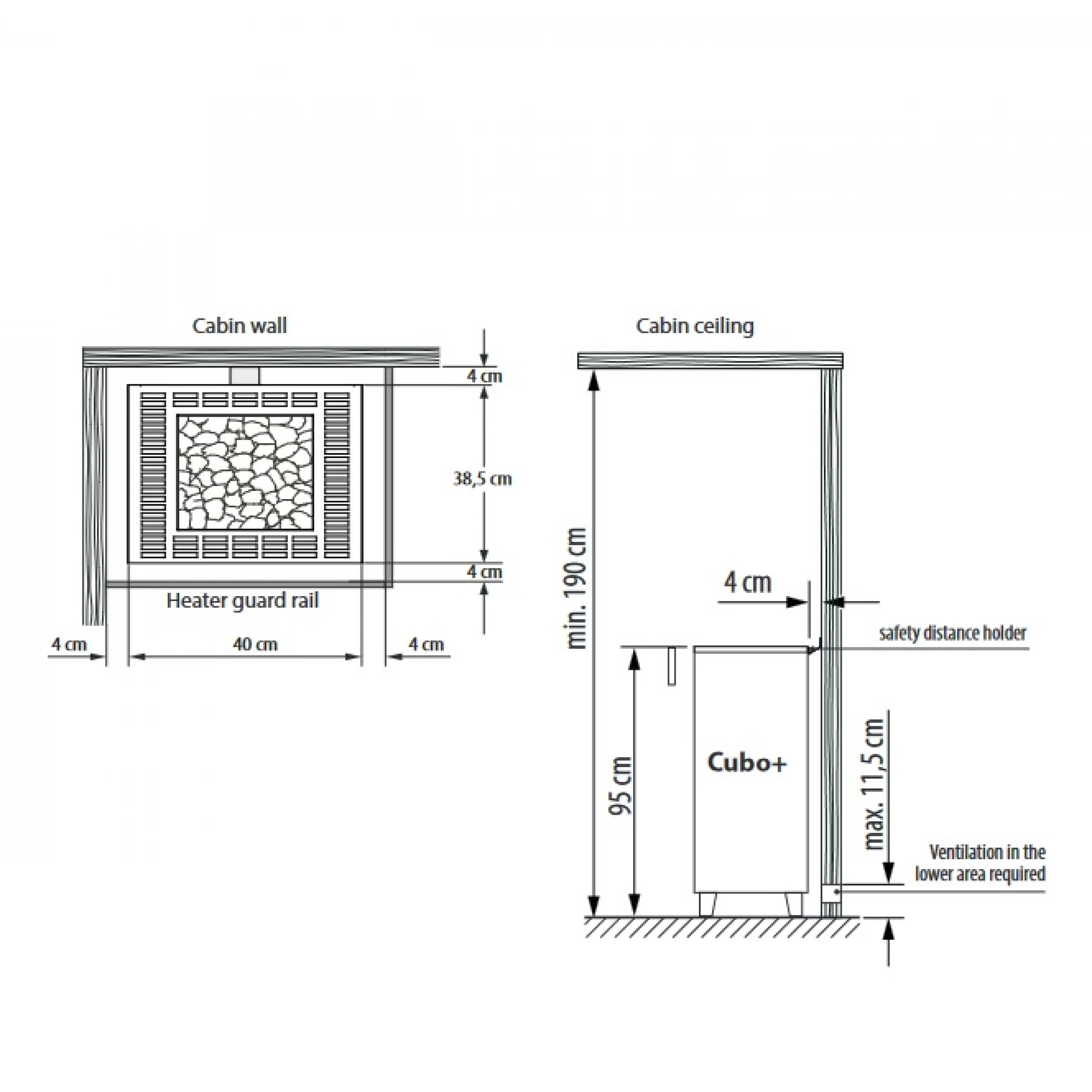

- Compact size - only 38,5 cm depth.
- Optional rear wall cover panel in anthracite pearl effect finish
- Optional mounting brackets for safety guard rail mounting directly to the heater
- Made in Germany quality from EOS
Control units suitable for this heater: Econ D1, Econ D2, Econ D3, Econ D4, Emotec D. 10.5 kW and 12 kW heaters require an additional Emotec L09 R.
Stones purchased separately.
Technical data:
| Model | Output, kW | Sauna size, m3 | Stone capacity, kg | Weight without stones, kg | Min. size of air intake and outlet cm | Dimensions mm | ||
| width | depth | height | ||||||
| EOS Cubo Plus 9.0 | 9 | 9 - 14 | 45 | 32 | 35 x 6 | 400 | 385 | 720 |
